Amgo OH-15 15,000 lb 2 Post Lift
Amgo OH-15 15,000 lb 2 Post Lift
The Tuxedo M-2200IEH-XR Elec-Hydra Motorcycle Lift Bench is engineered for performance, safety, and convenience in professional and home workshops. Its signature retractable approach ramp automatically clears the workspace as the lift raises, eliminating obstructions and enhancing safety. A spring-loaded drop-down service panel provides easy rear wheel access and smoothly swings back into place when not needed.
Powered by a 110 V int egrated electric/hydraulic unit, the lift operates via a handheld control pendant—no more reaching under machines or manually unlatching safety locks. It features six secure locking positions, a full-width 27.5″ ramp, a wheel stop, and a spacious 31.5″ × 88.6″ working table suitable for a wide range of bikes. With a capacity of 2,200 lb, a lifting height of 47.2″, and a minimum height of 7″, the M-2200IEH-XR tackles both low and tall motorcycles with confidence.
This lift is ideal for repair shops, restoration garages, and discerning motorcycle owners who demand professional features, safe operation, and efficient workflow in one robust package.

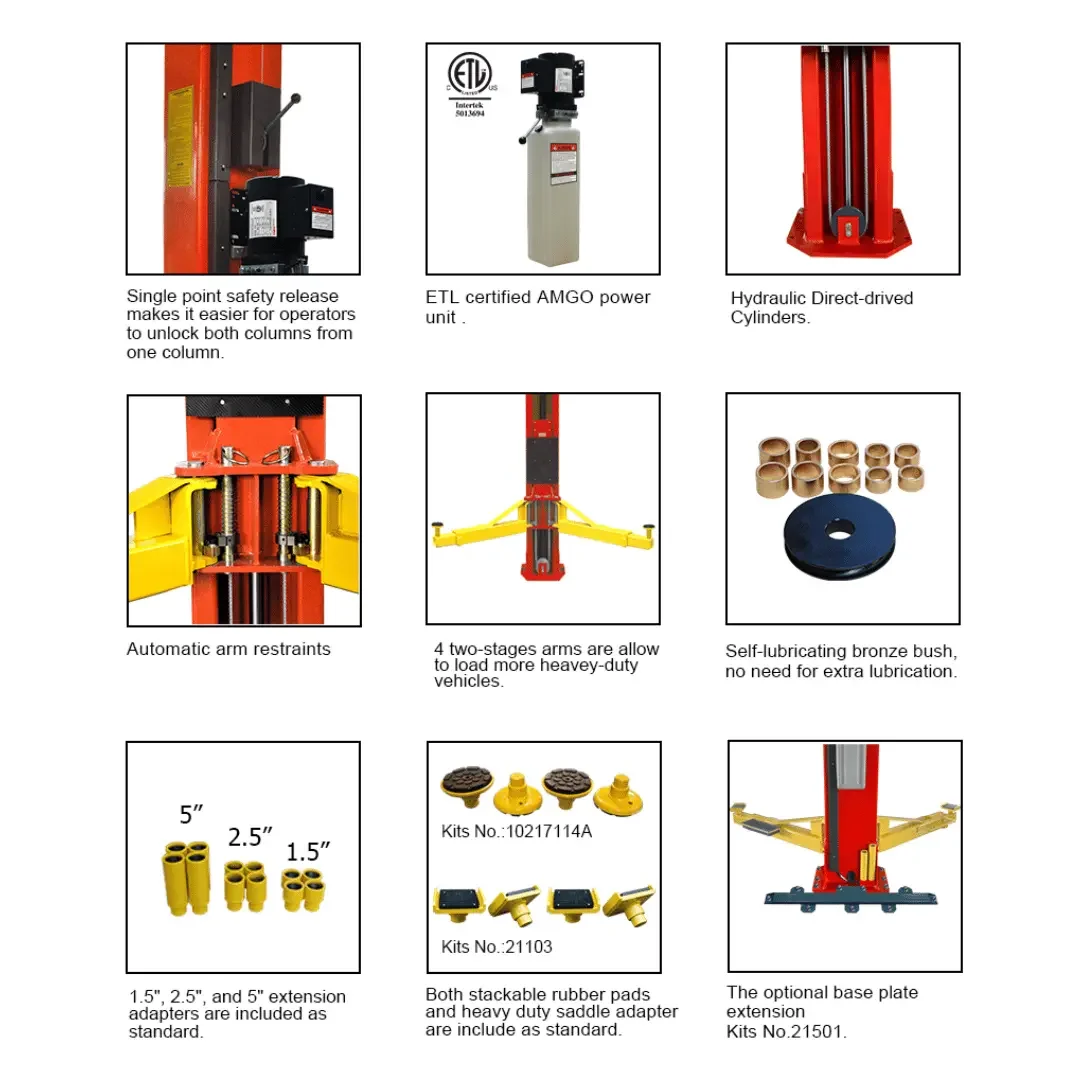

Product Features
- 15,000 lbs capacity
- Single-point safety release
- 4 two-stages arms allowing to lift the trucks from short to long wheel base
- Automatic arm restraints keep the arms locked in their proper positions
- Self-lubricating UHMW Polyethylene sliders and bronze bushings
- Adjustable two height setting accommodate varying service ceiling heights
- Aircraft quality cable is used for synchronization
- Detachable foot guard and tool tray to allow for a clutter free work space
- Five-year Warranty on Steel Components, Three-year Warranty on Hydraulic Parts and Two Years on Electrical Components.
- CE Approved and Certified
- Meets or exceeds the standards prescribed by European Standard EN-1493
Product Specifications
| Model | OH-15 |
|---|---|
| Lifting Capacity | 15,000 lbs |
| Lifting Time | 84S |
| A: Max. Lifting Height: (w/o extension adapter) | 75 1/4″ |
| A: Max. Lifting Height: (w/ extension adapter) | 84 1/4″ |
| A: Max. Lock Height: (w/o extension adapter) | 73 5/16″ |
| A: Max. Lock Height: (w/ extension adapter) | 82 5/16″ |
| B: Overall Height: (Low Setting) | 174″ |
| B: Overall Height: (Medium Setting) | 186″ |
| B: Overall Height: (High Setting) | 198″ |
| C: Overall Width | 150 3/4″ |
| D: Drive Thru Clearance | 109 3/4″ |
| E: Width Between Columns | 123 1/2″ |
| F: Minimum Pad Height | 7 1/4″ |
| Motor | 2.0HP, 220V / 60Hz, Single Phase |
| Gross Weight | 2,394 lbs |
Pick Up and Delivery
Our Pick Up locations for AMGO are located in Manning, SC / Dallas, TX / Temecula, CA.
Call, text, or chat with us if you have questions. 866-774-7743
