Amgo PRO-30 HD 30,000 lb 4 Post Lift
Amgo PRO-30 HD 30,000 lb 4 Post Lift
The AMGO Pro-30 HD 30,000 lb 4-Post Lift is a heavy-duty solution designed for the most demanding shops and fleet operations. This 4 post vehicle lift provides unmatched strength and reliability, making it the go-to choice for servicing buses, commercial trucks, and oversized equipment.
With an incredible 30,000 lb capacity, the Pro-30 HD is engineered to handle large-scale lifting with ease. Its extra-wide diamond-plated runways offer excellent traction and stability, while adjustable runways give you the flexibility to accommodate different vehicle widths. Smooth hydraulic operation ensures efficient lifting and lowering, keeping your workflow consistent.
Built with operator safety as the top priority, this 4 post lift features multiple redundant systems including air-released safety locks, a mechanical self-locking mechanism, and cable-slack protection. These layered safety measures provide complete confidence when working under even the heaviest loads.
Durability is guaranteed with its rugged steel construction and industrial-grade hydraulics. Backed by a comprehensive warranty on structure, hydraulics, and electrical components, this 4 post car lift is built to support continuous, heavy-duty use in professional environments.
Product Features
- 30,000 lbs capacity.
- AMGO ETL certified power unit comes as standard.
- Mechanical self-locking safety device with air-driven lock release.
- Both primary multiple safety locks and cable-slack protection system are equipped as standard.
- Cable-driven, utilizing aircraft standard high quality cables.
- Hydraulic cylinder is designed and made to high standard, utilizing high quality oil seals and compensation valve.
- Non-skid diamond platforms.

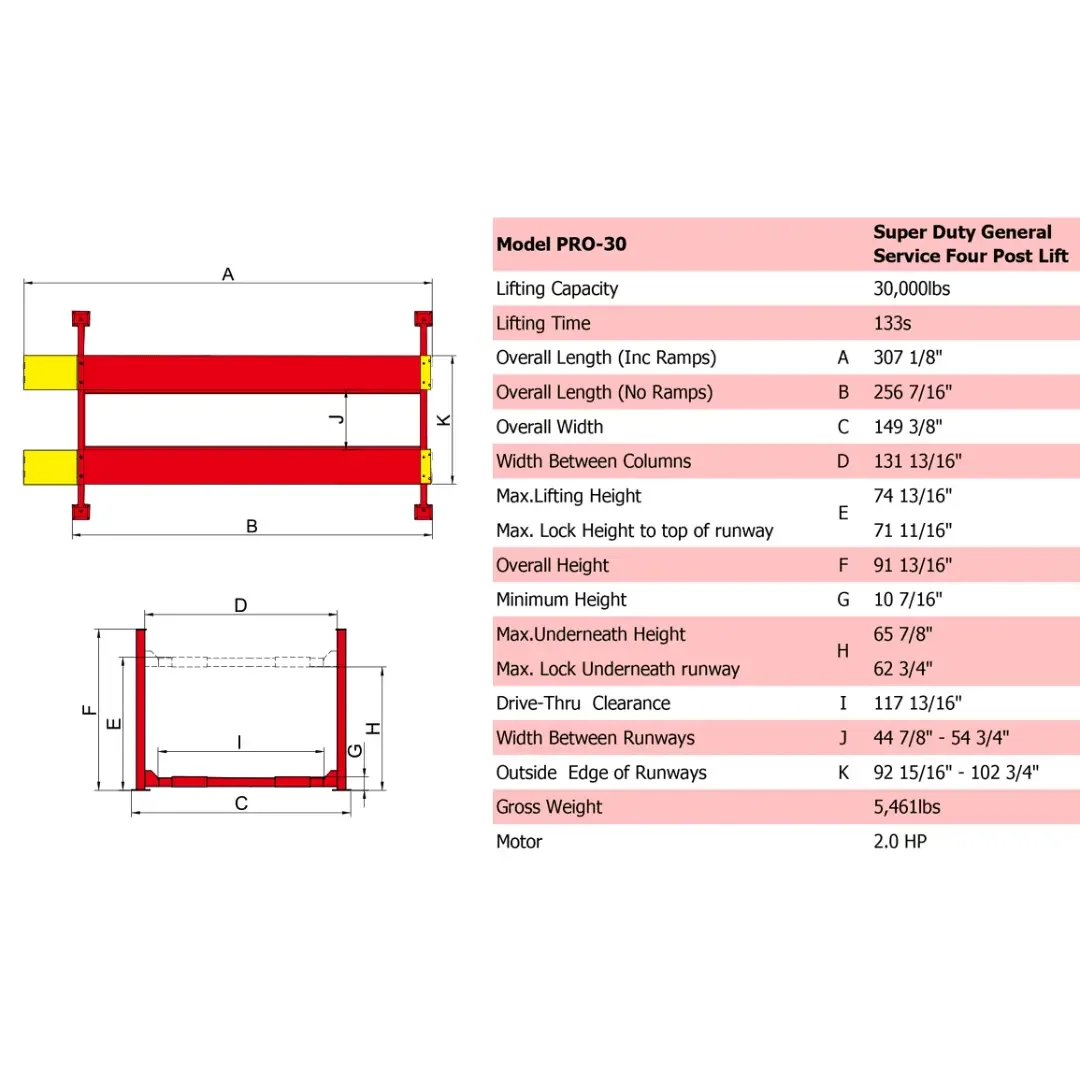

Product Specifications
| Model | PRO-30 |
|---|---|
| Lifting Capacity | 30,000 lbs |
| Lifting Time | 133S |
| A: Overall Length (Inc.Ramps) | 307 1/8″ |
| B: Overall Length (No.Ramps) | 256 7/16″ |
| C: Overall Width | 149 3/8″ |
| D: Width Between Columns | 131 13/16″ |
| E: Max. Lifting Height | 74 13/16″ |
| E: Max. Lock Height to Top of Runway | 71 11/16″ |
| F: Overall Height | 91 13/16″ |
| G: Minimum Height | 10 7/16″ |
| H: Max. Underneath Height | 65 7/8″ |
| H: Max. Lock Underneath Runway | 62 3/4″ |
| I: Drive-Thru Clearance | 117 13/16″ |
| J: Width Between Runways | 44 7/8″ - 54 3/4″ |
| K: Outside Edge of Runways | 92 15/16″ - 102 3/4″ |
| Gross Weight | 5,461 lbs |
| Motor | 2.0HP |
Pick Up and Delivery
Our Pick Up locations for AMGO are located in Manning, SC / Dallas, TX / Temecula, CA.
Call, text, or chat with us if you have questions. 866-774-7743
Original: $12,375.00
-65%$12,375.00
$4,331.25
Description
Amgo PRO-30 HD 30,000 lb 4 Post Lift
The AMGO Pro-30 HD 30,000 lb 4-Post Lift is a heavy-duty solution designed for the most demanding shops and fleet operations. This 4 post vehicle lift provides unmatched strength and reliability, making it the go-to choice for servicing buses, commercial trucks, and oversized equipment.
With an incredible 30,000 lb capacity, the Pro-30 HD is engineered to handle large-scale lifting with ease. Its extra-wide diamond-plated runways offer excellent traction and stability, while adjustable runways give you the flexibility to accommodate different vehicle widths. Smooth hydraulic operation ensures efficient lifting and lowering, keeping your workflow consistent.
Built with operator safety as the top priority, this 4 post lift features multiple redundant systems including air-released safety locks, a mechanical self-locking mechanism, and cable-slack protection. These layered safety measures provide complete confidence when working under even the heaviest loads.
Durability is guaranteed with its rugged steel construction and industrial-grade hydraulics. Backed by a comprehensive warranty on structure, hydraulics, and electrical components, this 4 post car lift is built to support continuous, heavy-duty use in professional environments.
Product Features
- 30,000 lbs capacity.
- AMGO ETL certified power unit comes as standard.
- Mechanical self-locking safety device with air-driven lock release.
- Both primary multiple safety locks and cable-slack protection system are equipped as standard.
- Cable-driven, utilizing aircraft standard high quality cables.
- Hydraulic cylinder is designed and made to high standard, utilizing high quality oil seals and compensation valve.
- Non-skid diamond platforms.
Product Specifications
| Model | PRO-30 |
|---|---|
| Lifting Capacity | 30,000 lbs |
| Lifting Time | 133S |
| A: Overall Length (Inc.Ramps) | 307 1/8″ |
| B: Overall Length (No.Ramps) | 256 7/16″ |
| C: Overall Width | 149 3/8″ |
| D: Width Between Columns | 131 13/16″ |
| E: Max. Lifting Height | 74 13/16″ |
| E: Max. Lock Height to Top of Runway | 71 11/16″ |
| F: Overall Height | 91 13/16″ |
| G: Minimum Height | 10 7/16″ |
| H: Max. Underneath Height | 65 7/8″ |
| H: Max. Lock Underneath Runway | 62 3/4″ |
| I: Drive-Thru Clearance | 117 13/16″ |
| J: Width Between Runways | 44 7/8″ - 54 3/4″ |
| K: Outside Edge of Runways | 92 15/16″ - 102 3/4″ |
| Gross Weight | 5,461 lbs |
| Motor | 2.0HP |
