Amgo PRO-40E (Extra Length) 40,000 lb 4 Post Lift
Amgo PRO-40E (Extra Length) 40,000 lb 4 Post Lift
The AMGO PRO-40E (Extra Length) 40,000 lb chain-driven 4 post lift is built to handle the heaviest and longest vehicles on the road, from stretch limousines and RVs to industrial fleet trucks. Designed with an extended runway length, this 4 post vehicle lift provides an additional 59″ over the standard PRO-40, giving shops the capacity to service oversized vehicles with ease.
Engineered for maximum safety, the lift includes a mechanical self-locking safety system with air-released locks, multiple primary safety locks, and a cable-slack protection system. Aircraft-grade synchronization cables and a heavy-duty hydraulic cylinder ensure smooth and stable lifting for loads up to 40,000 lb.
With a wide drive-through clearance of 129 7/8″, adjustable runway widths, and a total platform length of over 425″ with ramps, the 4 post auto lift accommodates long wheelbase vehicles while maintaining excellent stability and operator space. Powered by a 2.0 HP, 220 V single-phase ETL-certified motor, the PRO-40E delivers dependable performance and low maintenance for heavy-duty commercial shops.
Product Features
- 40,000 lbs capacity.
- AMGO ETL certified power unit comes as standard.
- Mechanical self-locking safety device with air-driven lock release.
- Both primary multiple safety locks and cable-slack protection system are equipped as standard.
- Cable-driven, utilizing aircraft standard high quality cables.
- Hydraulic cylinder is designed and made to high standard, utilizing high quality oil seals and compensation valve.
- Non-skid diamond platforms.

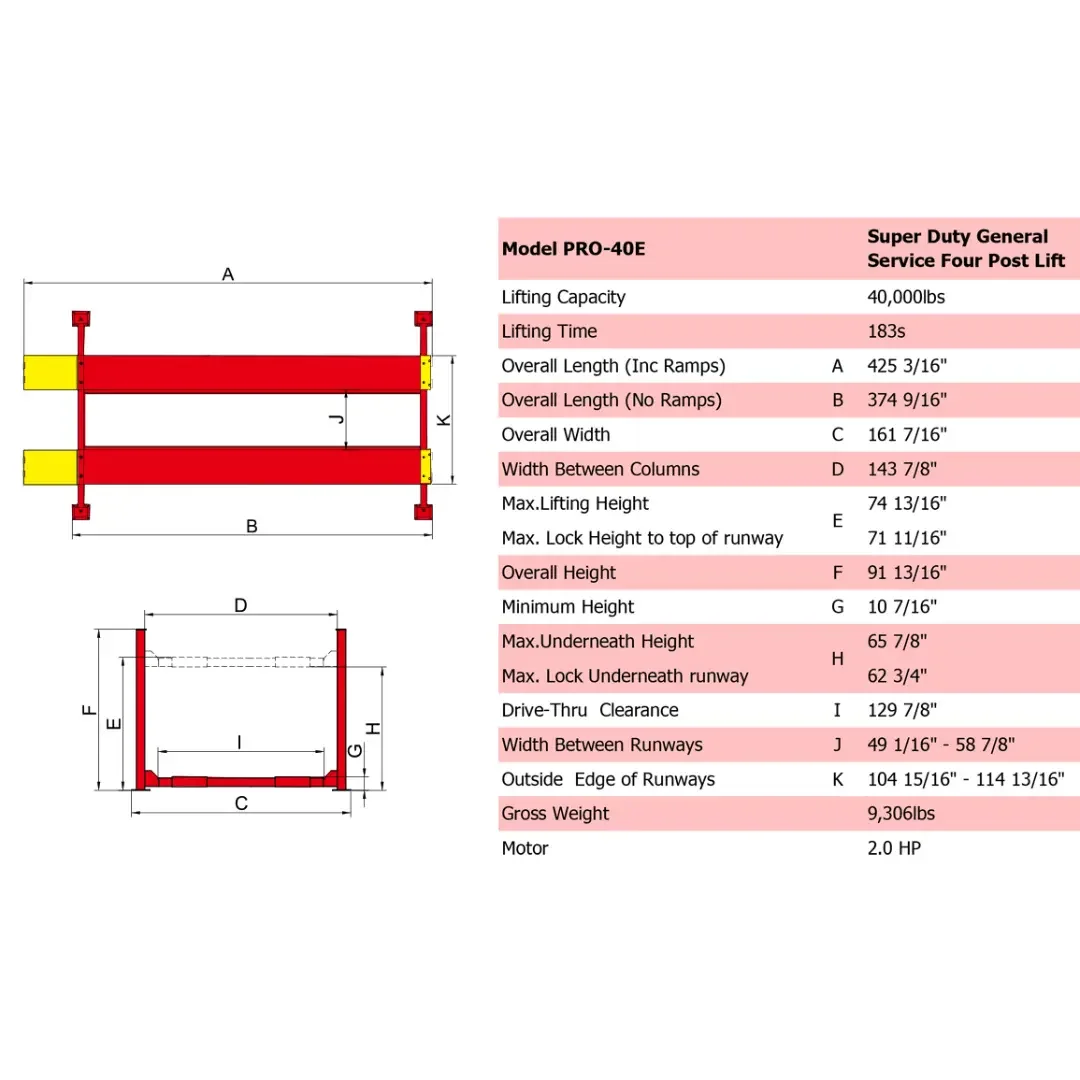

Product Specifications
| Model | PRO-40E |
|---|---|
| Lifting Capacity | 40,000 lbs |
| Lifting Time | 183S |
| A: Overall Length (Inc.Ramps) | 425 3/16″ |
| B: Overall Length (No.Ramps) | 374 9/16″ |
| C: Overall Width | 161 7/16″ |
| D: Width Between Columns | 143 7/8″ |
| E: Max. Lifting Height | 74 13/16″ |
| E: Max. Lock Height to Top of Runway | 71 11/16″ |
| F: Overall Height | 91 13/16″ |
| G: Minimum Height | 10 7/16″ |
| H: Max. Underneath Height | 65 7/8″ |
| H: Max. Lock Underneath Runway | 62 3/4″ |
| I: Drive-Thru Clearance | 129 7/8″ |
| J: Width Between Runways | 49 1/16″ - 58 7/8″ |
| K: Outside Edge of Runways | 104 15/16″ - 114 13/16″ |
| Gross Weight | 9,306 lbs |
| Motor | 2.0HP |
Pick Up and Delivery
Our Pick Up locations for AMGO are located in Manning, SC / Dallas, TX / Temecula, CA.
Call, text, or chat with us if you have questions. 866-774-7743
Description
Amgo PRO-40E (Extra Length) 40,000 lb 4 Post Lift
The AMGO PRO-40E (Extra Length) 40,000 lb chain-driven 4 post lift is built to handle the heaviest and longest vehicles on the road, from stretch limousines and RVs to industrial fleet trucks. Designed with an extended runway length, this 4 post vehicle lift provides an additional 59″ over the standard PRO-40, giving shops the capacity to service oversized vehicles with ease.
Engineered for maximum safety, the lift includes a mechanical self-locking safety system with air-released locks, multiple primary safety locks, and a cable-slack protection system. Aircraft-grade synchronization cables and a heavy-duty hydraulic cylinder ensure smooth and stable lifting for loads up to 40,000 lb.
With a wide drive-through clearance of 129 7/8″, adjustable runway widths, and a total platform length of over 425″ with ramps, the 4 post auto lift accommodates long wheelbase vehicles while maintaining excellent stability and operator space. Powered by a 2.0 HP, 220 V single-phase ETL-certified motor, the PRO-40E delivers dependable performance and low maintenance for heavy-duty commercial shops.
Product Features
- 40,000 lbs capacity.
- AMGO ETL certified power unit comes as standard.
- Mechanical self-locking safety device with air-driven lock release.
- Both primary multiple safety locks and cable-slack protection system are equipped as standard.
- Cable-driven, utilizing aircraft standard high quality cables.
- Hydraulic cylinder is designed and made to high standard, utilizing high quality oil seals and compensation valve.
- Non-skid diamond platforms.
Product Specifications
| Model | PRO-40E |
|---|---|
| Lifting Capacity | 40,000 lbs |
| Lifting Time | 183S |
| A: Overall Length (Inc.Ramps) | 425 3/16″ |
| B: Overall Length (No.Ramps) | 374 9/16″ |
| C: Overall Width | 161 7/16″ |
| D: Width Between Columns | 143 7/8″ |
| E: Max. Lifting Height | 74 13/16″ |
| E: Max. Lock Height to Top of Runway | 71 11/16″ |
| F: Overall Height | 91 13/16″ |
| G: Minimum Height | 10 7/16″ |
| H: Max. Underneath Height | 65 7/8″ |
| H: Max. Lock Underneath Runway | 62 3/4″ |
| I: Drive-Thru Clearance | 129 7/8″ |
| J: Width Between Runways | 49 1/16″ - 58 7/8″ |
| K: Outside Edge of Runways | 104 15/16″ - 114 13/16″ |
| Gross Weight | 9,306 lbs |
| Motor | 2.0HP |
