Atlas ALI Certified APEX 8 4-Post Lift + RJ35 Sliding Jacks Combo
Atlas ALI Certified APEX 8 4-Post Lift + RJ35 Sliding Jacks Combo
The Atlas® APEX8 is an ALI Certified version of our most popular 4-post hobbyist lift, the Atlas® Garage PRO8000. Perfect for the customer with too many cars and not enough space.
Designed for homeowners or restoration shops; not recommended for daily use in commercial repair shops.
Nearly 200 lbs. heavier than comparable lifts. Includes a free caster kit with polyurethane wheels—easy to install and portable.
Includes two Atlas® RJ35 sliding bridge jacks. Great for tire/brake service. Note: Only the APEX8 lift is ALI Certified.
Product Features
APEX8 4-Post Lift
- ALI Certified Lift
- 8,000 lb. Capacity
- Free Standing/Portable Design
- Powder Coat Finish

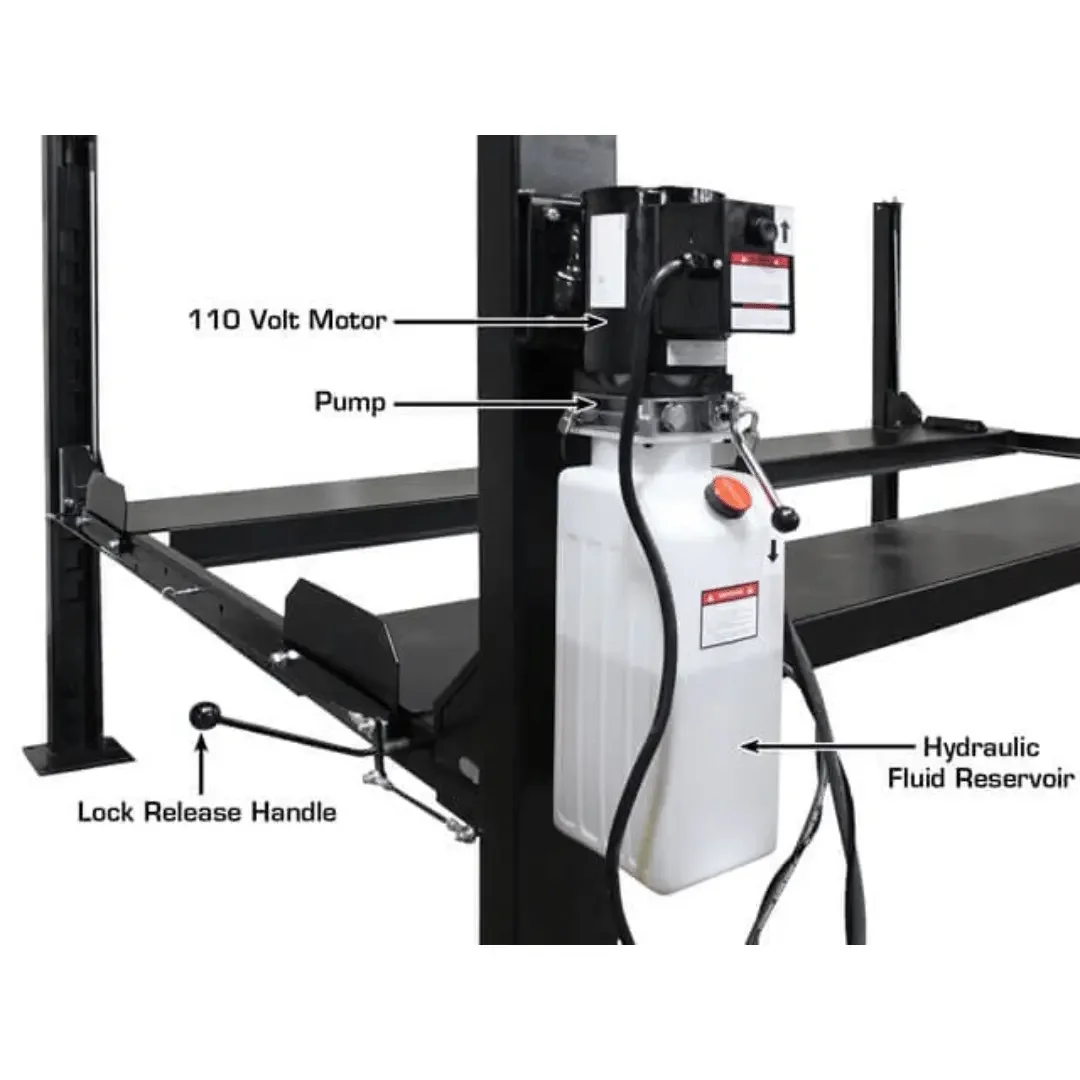

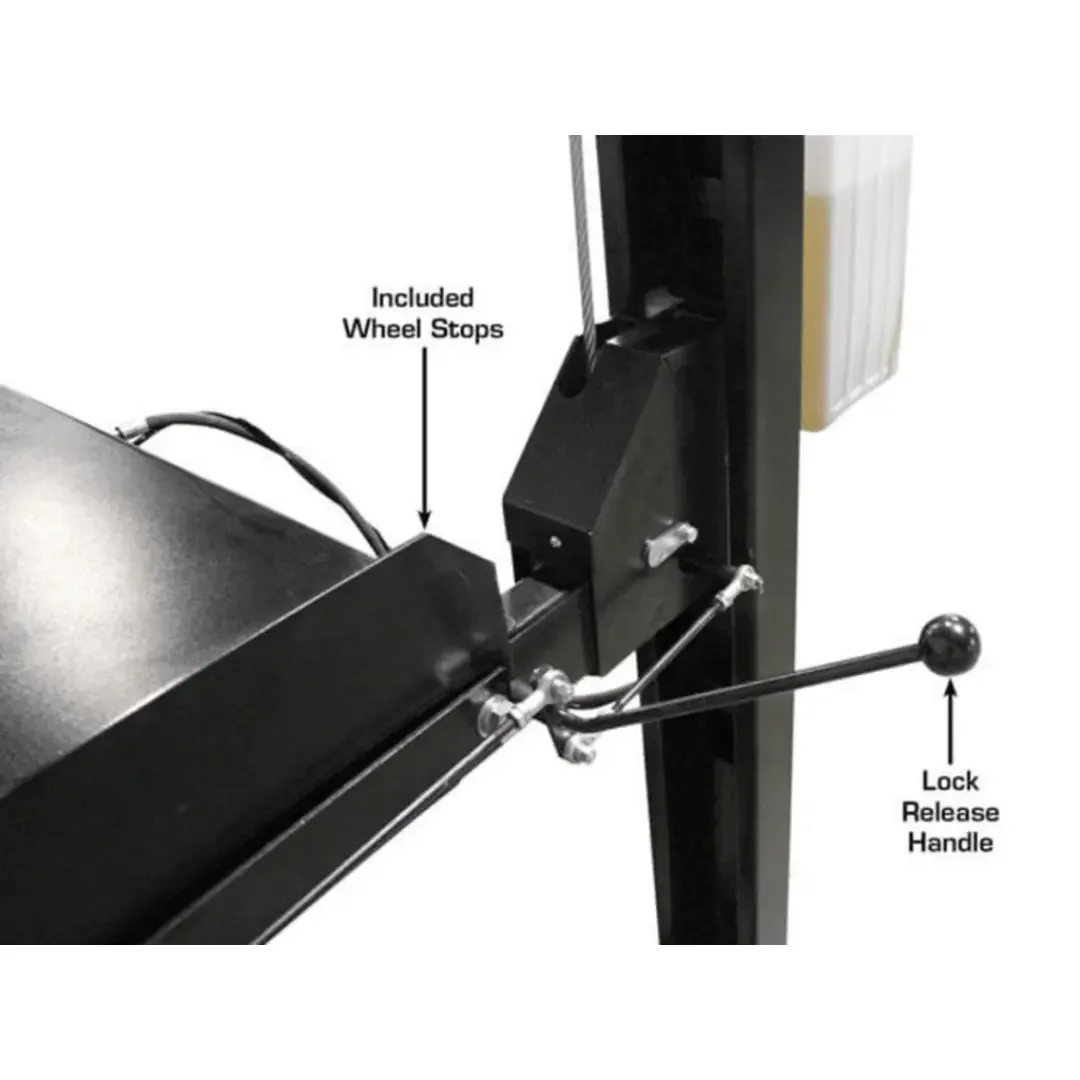

- Single Point Lock Release

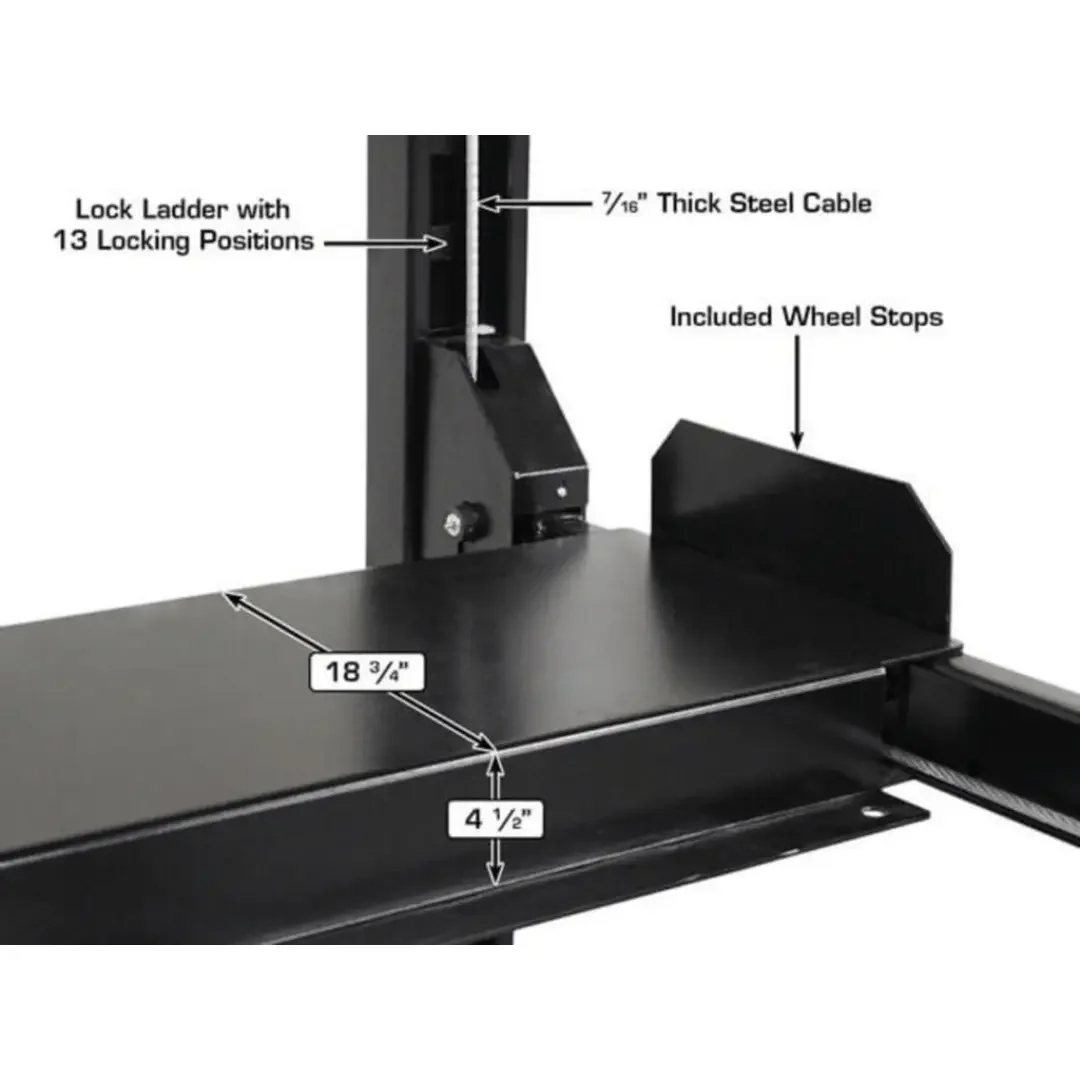

- Lock Ladder Design
- Double Lock Safety System
- Steel Approach Ramps Included
- Wheel Stops Included
- Two Wheel Chocks Included
- Caster Kit with Polyurethane wheels Included
- Anchor Bolts Optional
- Great for Storage or Maintenance

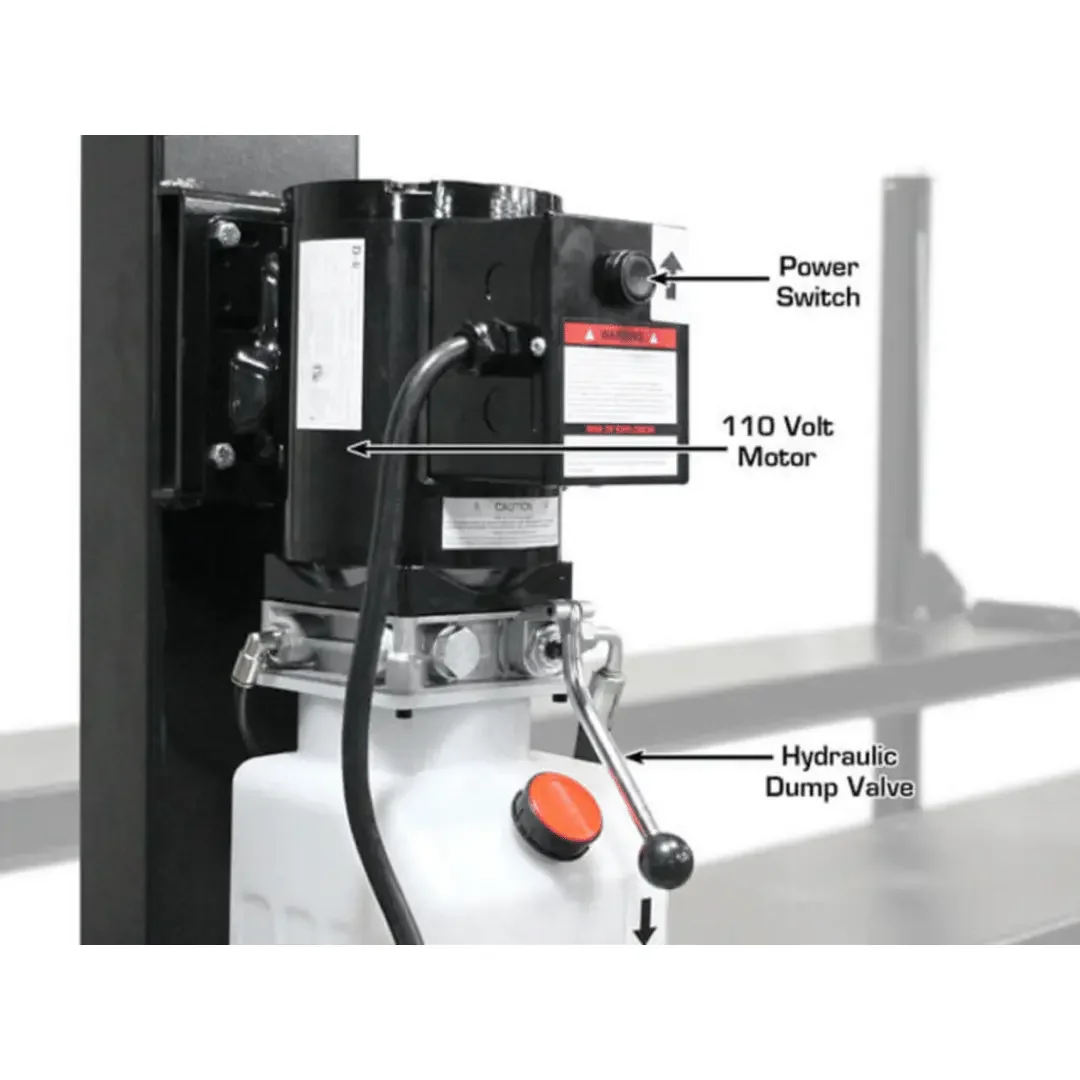

- 110V Electric (30amp Breaker)

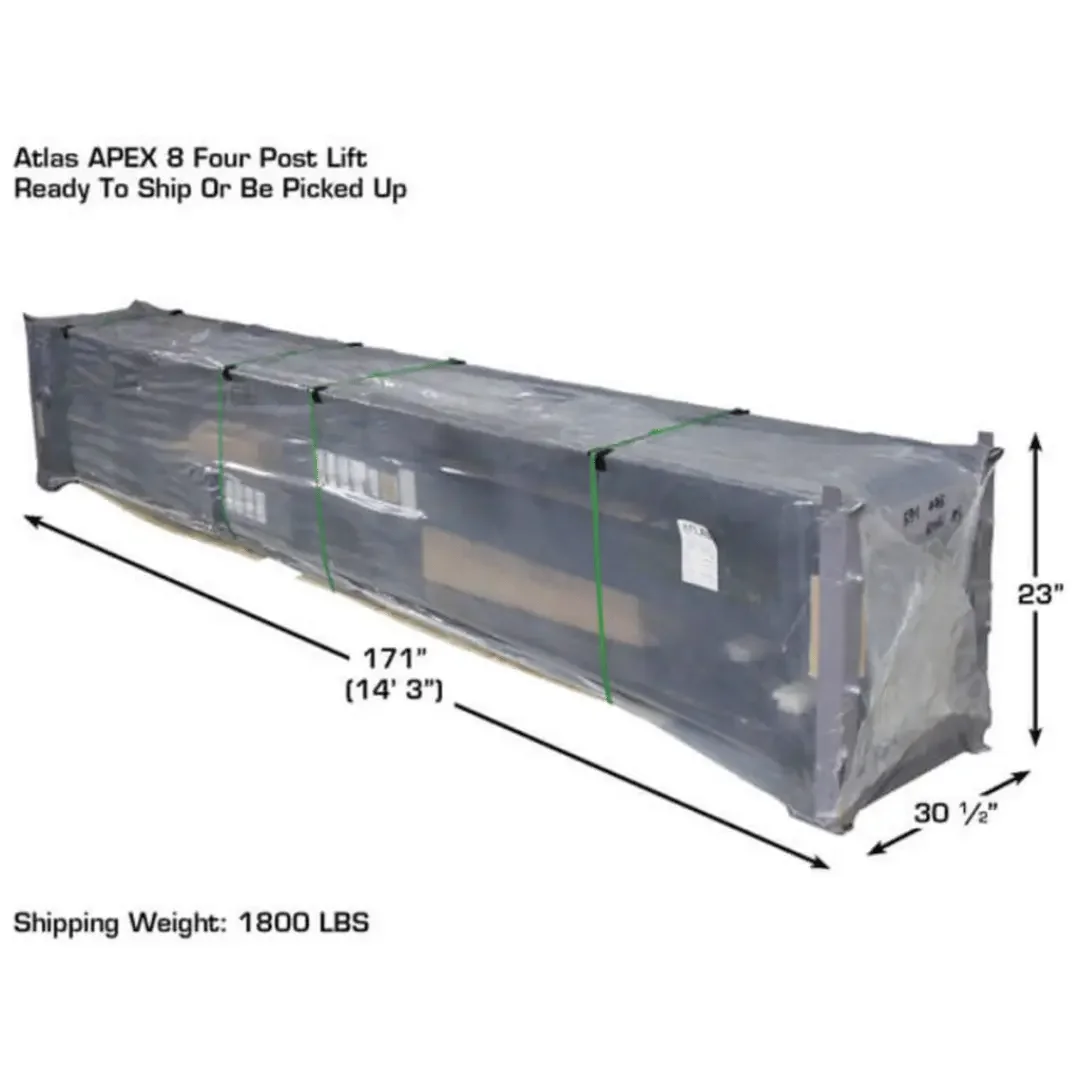

- Shipping Weight: 2,000 lbs.
- 5yr Structural / 2yr Hydraulic Warranty

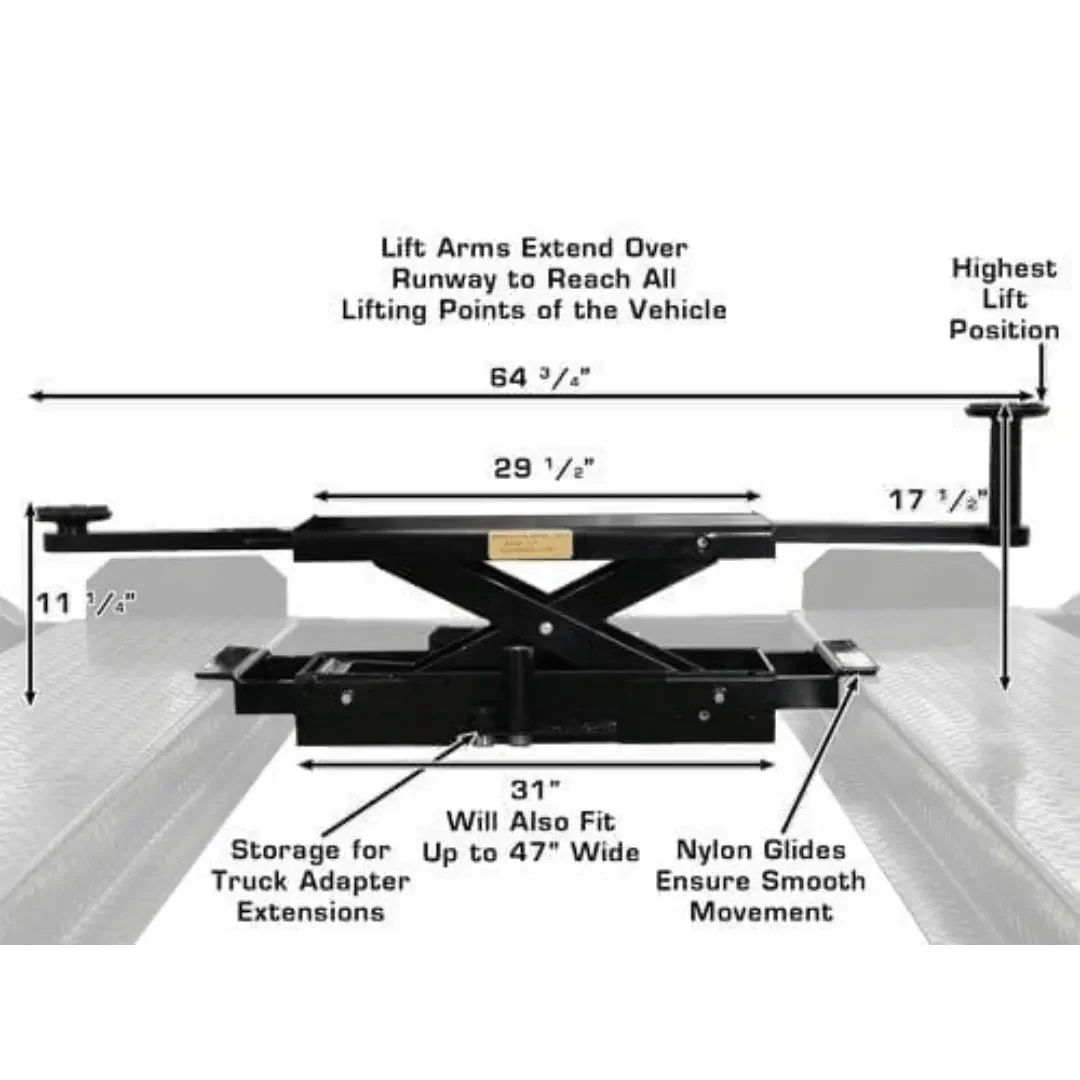

RJ35 Sliding Bridge Jack
- 3,500 lbs. Capacity
- Manual Hand Pump
- Scissor Design
- Compact, Low Profile
- Adjustable Width & Lift Arms
- Multiple Safety Lock Positions
- 4-Piece Truck Adapter Set
- 1-Year Parts Warranty
Product Specifications

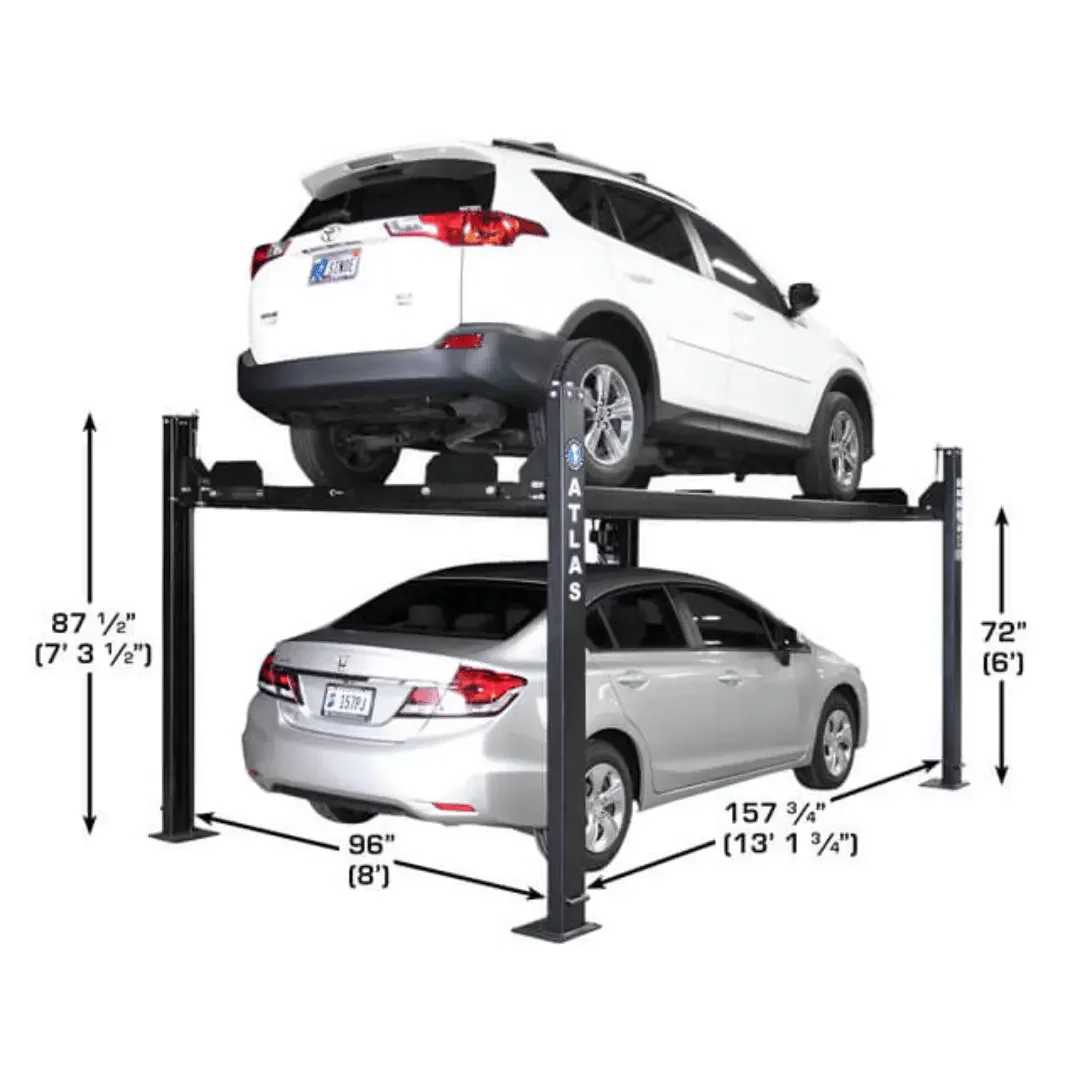

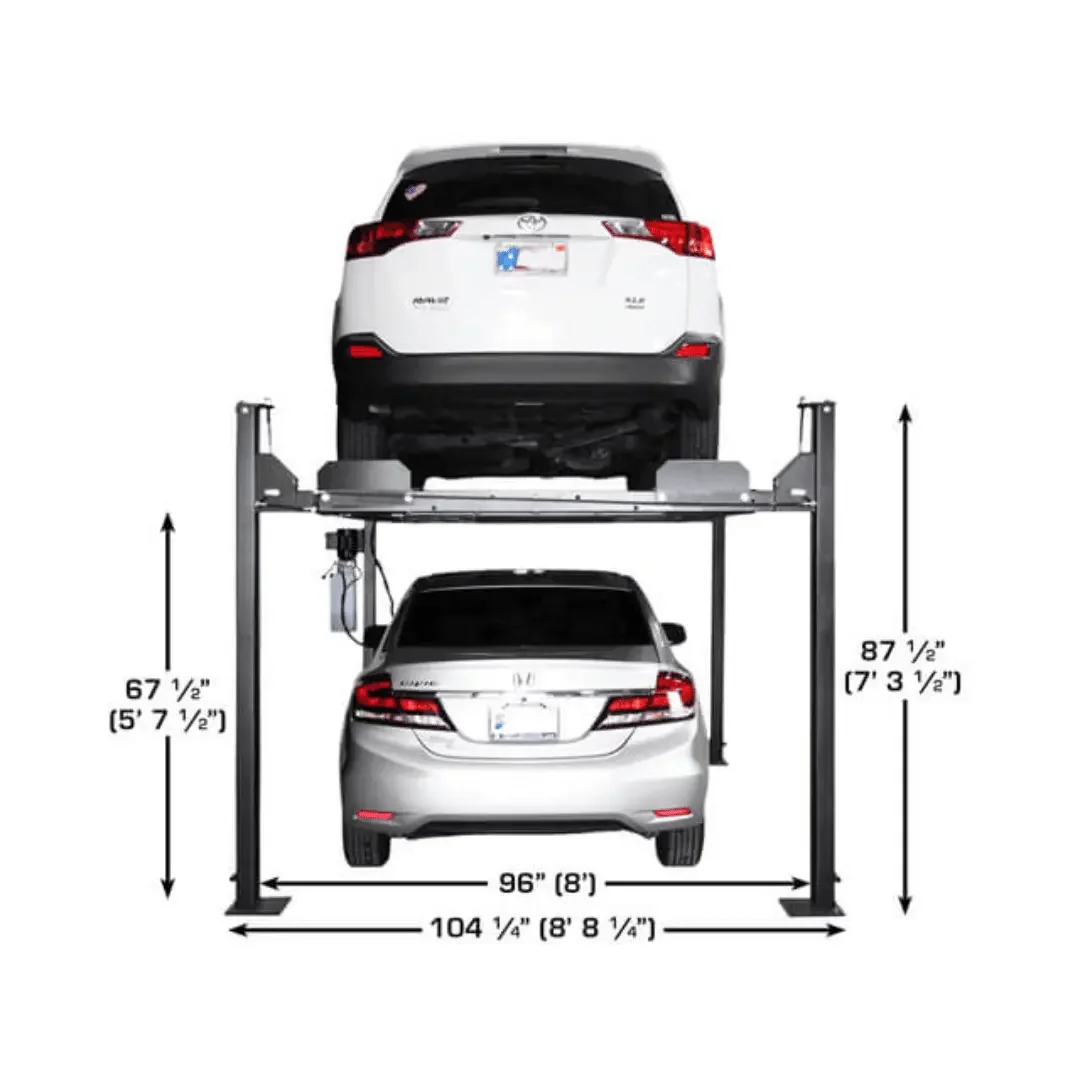

Atlas® APEX8 Specifications
| Capacity | 8,000 lbs. |
| Lifting Height | 72" |
| Clearance Under Runways | 67" |
| Height Of Columns | 85" |
| Width (No Motor) | 104" |
| Width (With Motor) | 114" |
| Length With Ramp | 207 5/8" |
| Length Between Columns | 157 1/3" |
| Runway Width | 18 2/4" |
| Runway Length | 169 1/2" |
| Runway Thickness | 4 1/3" |
| Width Between Runways | 38" (w/ rail: 33") |
| Outside Runway Width | 75 1/4" |
| Clearance Between Columns | 94" |
| Drive Thru | 80 1/4" |
| Electrical | 110V, 30 amp |
| Oil Required | 3–5 gal AW32/AW46 |
| Shipping Weight | 2,000 lbs. |

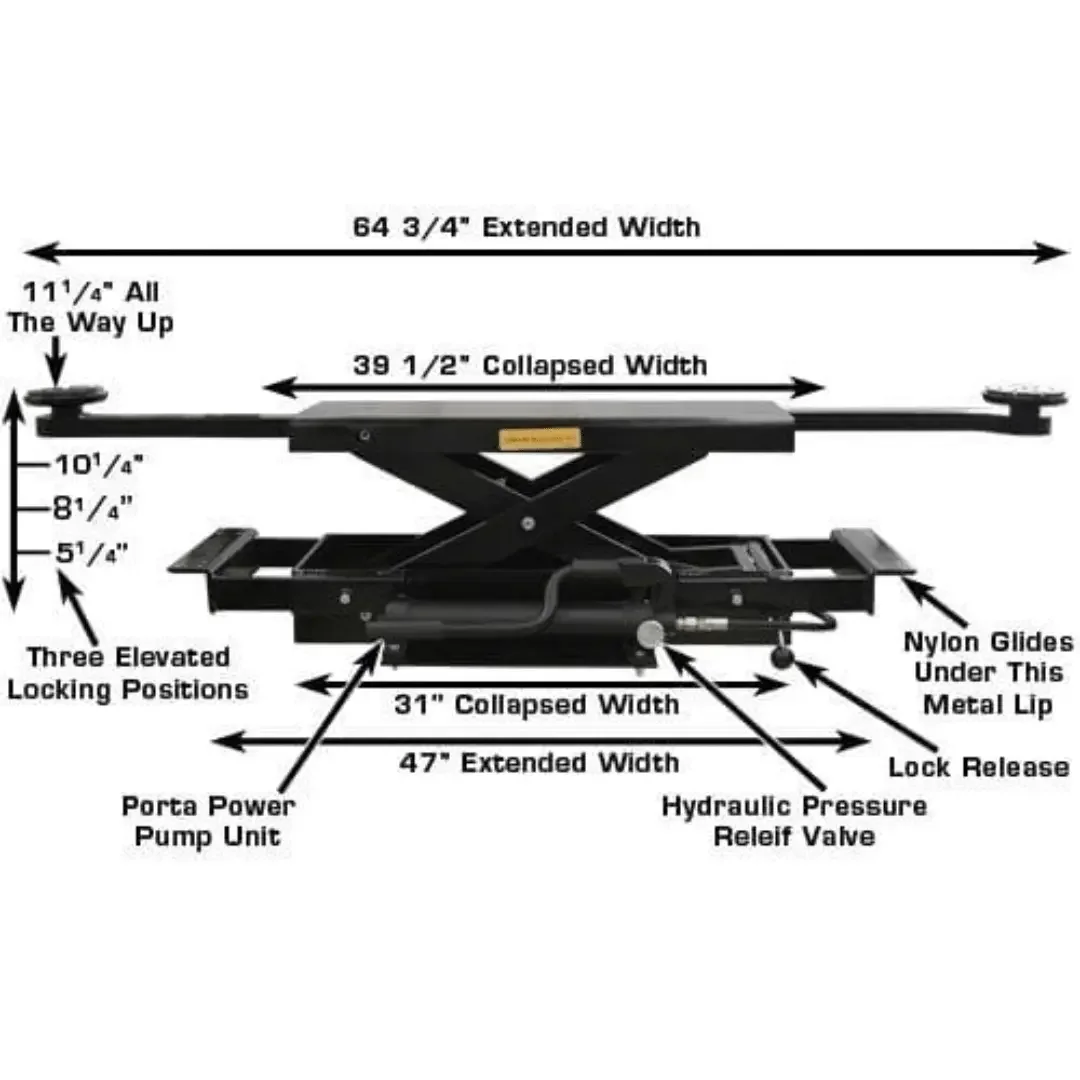

Atlas® PROJACK35 Specifications
| Max Capacity | 3,500 lbs. |
| Max Width | 64 3/4" |
| Min Width | 29 1/2" |

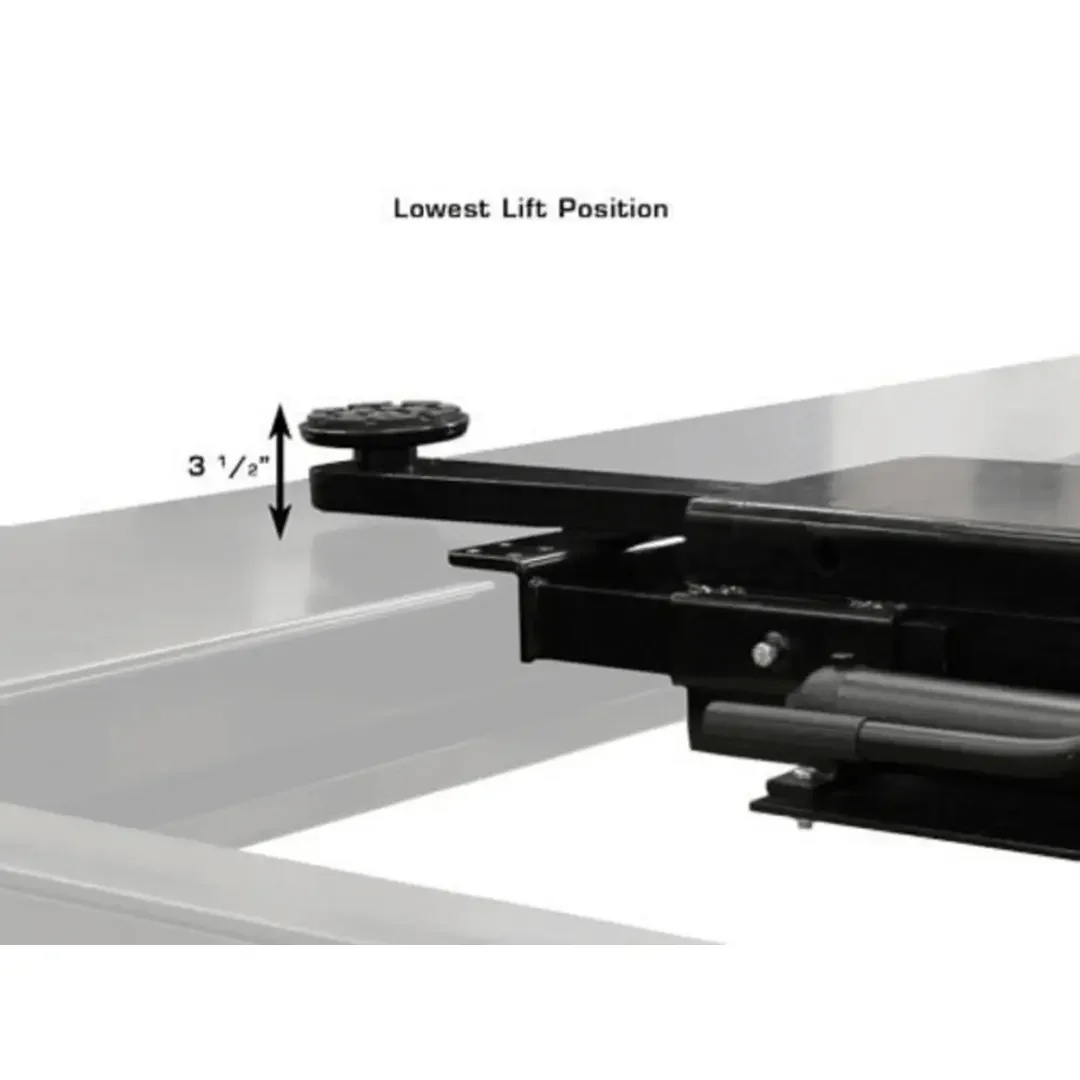

| Min Height w/ Pad | 3 1/2" |
| Pad Height Above Arm | 1 3/8" |
| Max Height (No Adapters) | 11" |
| Max Height (With Adapters) | 17 1/4" |
| Adapter Heights | 1.5", 5" |
| Peg Size | 1.5" |

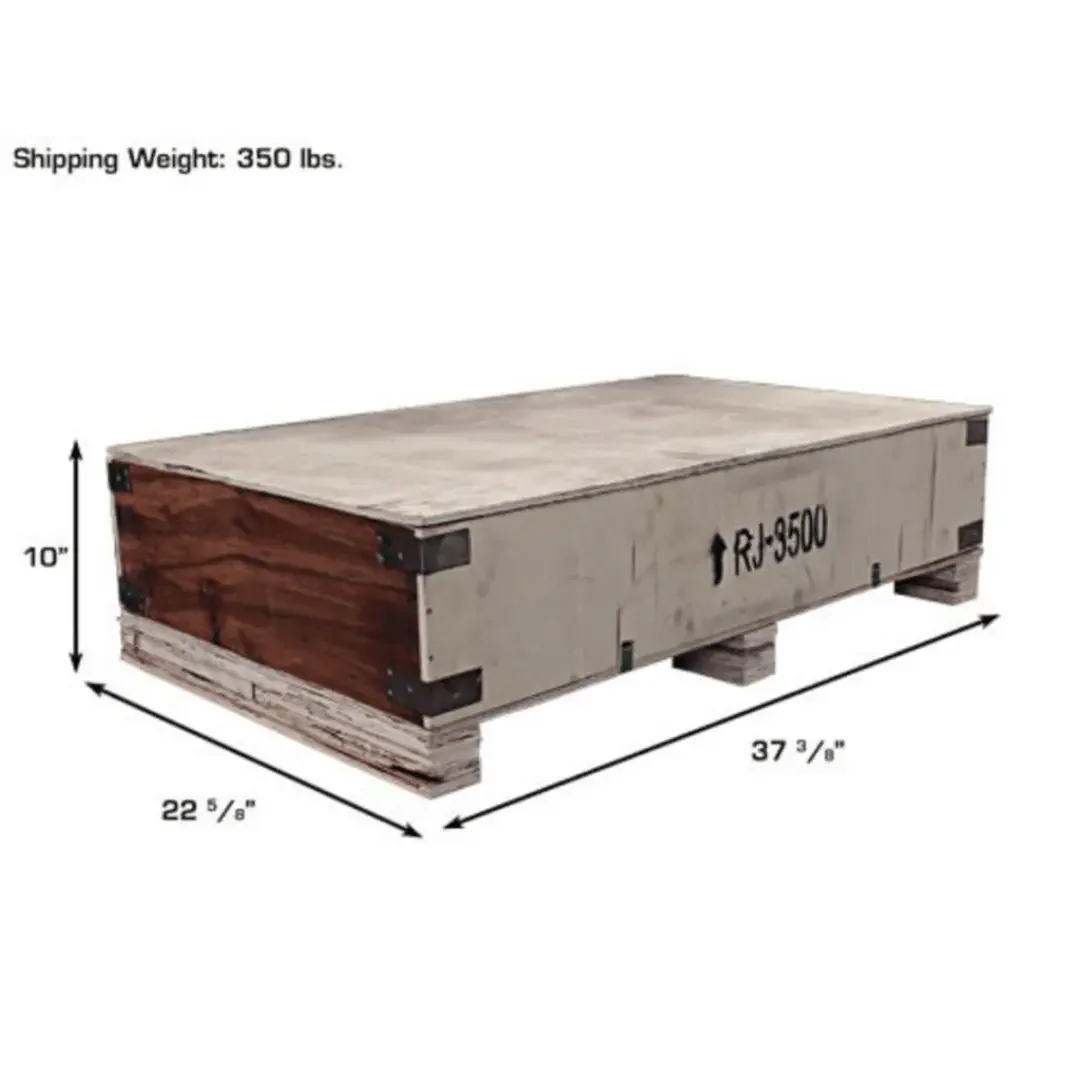

| Shipping Weight | 350 lbs. |
Pick Up and Delivery
Pick Up available in Atlanta, GA; Fresno, CA; Phoenix, AZ; Indiana, IN; and New Jersey, NJ.
Call, text, or chat: 866-774-7743
