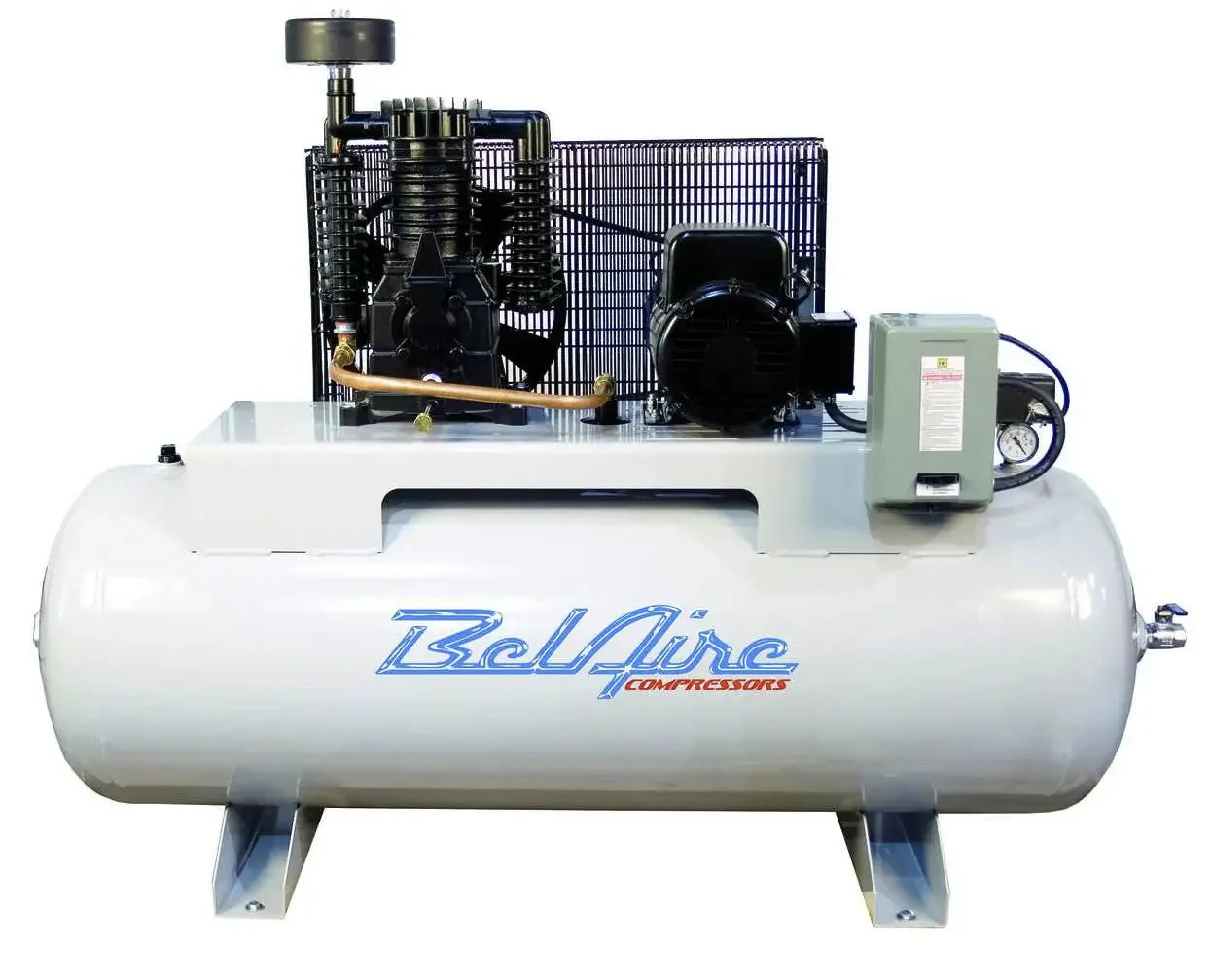

HomeStoreBelAire Air Compressor 318H 5 HP 80 Gallon Two Stage 208-230V 1 Phase
BelAire Air Compressor 318H 5 HP 80 Gallon Two Stage 208-230V 1 Phase
BelAire 318H 5-HP 80-Gallon Two-Stage Air Compressor (208-230V 1-Phase)
Two-Stage Pump
- Designed for superior quality & extends the life of the pump
Compact Design
- Ideal for work environments where space is a premium
5-HP Single Phase Motor (208-230V)
- Can be wired for either voltage
80-Gallon ASME Certified Horizontal Air Tank
- 100% factory tested at full pressure
High Flow Belt Guard
- Fully enclosed design provides added safety
Oil Level Sight Glass
- Easily check the oil level at any time
Start-Stop Pressure Switch Control
Stainless Steel Valves
- Extends the life of the compressor
3/4" Outlet
- 2 Year Full Warranty
- Magnetic starter 0000052006 sold separately
Product Features
- Two-Stage Pump
- Designed for superior quality & extends the life of the pump
- Compact Design
- Ideal for work environments where space is a premium
- 5-HP Single Phase Motor (208-230V)
- Can be wired for either voltage
- 80-Gallon ASME Certified Horizontal Air Tank
- 100% factory tested at full pressure
- High Flow Belt Guard
- Fully enclosed design provides added safety
- Oil Level Sight Glass
- Easily check the oil level at any time
- Start-Stop Pressure Switch Control
- Saves time and energy
- Stainless Steel Valves
- Extends the life of the compressor
- 3/4" Outlet
- 2 Year Full Warranty
- Magnetic starter 0000052006 sold separately
Product Specifications
General Information
| Product Category |
Air Compressor - Stationary |
Motor
| Voltage |
208-230 Volt AC |
| Phase |
Single Phase |
| Magnetic Starter |
No |
| Amp Draw |
Consult Certified Electrician |
| Recommended Breaker |
40 Amp Breaker |
Engine
Pump
| CFM |
18.5 |
| CFM Rated @ |
100 PSI |
| Pump Material |
Aluminum w/ Cast Iron Sleeve |
| Max PSI |
175 PSI |
| Oil Sight Glass |
Yes |
| Pump Type |
Two-Stage |
| After Cooler |
Yes |
| Pump Drive |
Belt Drive |
| Oil Type |
Oil Lubricated |
| Oil System |
Splash Lubrication |
| Pump Low Oil Shut-off |
No |
Tank
| Tank Size |
80 Gallons |
| Tank Outlet |
3/4 Inch |
| Electronic Drain Valve |
No |
| Tank Orientation |
Horizontal |
Accessories
| Pressure Gauge |
Yes |
| Air Dryer |
No |
Overview
| Weight |
491 Pounds |
| Certification |
ASME |
| Consumer Warranty |
2 Year |
| Product Length |
71 Inches |
| Product Width |
24 Inches |
| Product Height |
49 Inches |
| Power Type |
Electric |
$3,222.00
BelAire Air Compressor 318H 5 HP 80 Gallon Two Stage 208-230V 1 Phase—$3,222.00
