BelAire Air Compressor 318HLE Elite Series 7.5 HP 80 Gallon Two Stage 208-230V 1 Phase

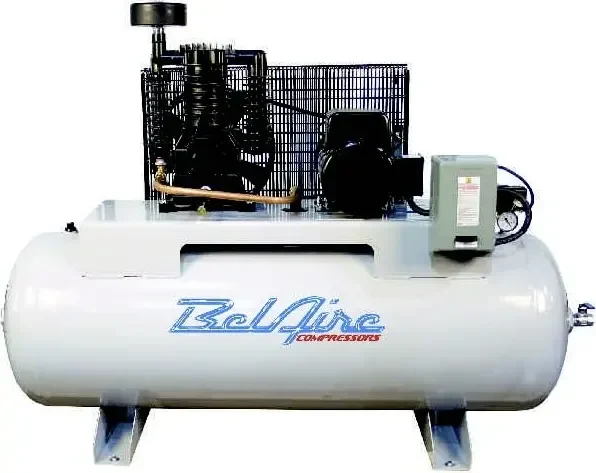

BelAire 318HLE Elite Series 7.5 HP 80 Gallon Compressor
The BelAire 318HLE Elite Series 7.5 HP 80-Gallon Two-Stage Air Compressor is engineered for demanding applications requiring consistent and high-volume compressed air. Its robust 7.5 horsepower motor, operating on a 208-230V Single Phase power supply, drives a two-stage pump that efficiently delivers up to 22.3 CFM at 100 PSI, ensuring reliable performance for heavy-duty tasks. The 80-gallon horizontal ASME-certified tank provides ample air storage, reducing the frequency of motor cycling and enhancing overall system efficiency. Designed with durability in mind, the compressor features solid cast iron cylinders and an oil sight glass for easy maintenance.
Safety is prioritized with an ASME code tank and safety valves, while the fully enclosed high-flow belt guard ensures safe operation. This compressor is ideal for professional workshops, automotive service centers, and industrial environments where continuous, high-capacity air supply is essential.
Click on the manual link below for warranty information.
Product Features
- Solid Cast Iron Cylinder Sleeve 2 Stage Pump
- Delivers 22.3 CFM at 100 PSI
- Rugged components provide long-lasting dependability
- Start / Stop Pressure Switch Controls
- Save time & energy
- ASME Tank & Safety Valve
- 80 gallon air reserve for big jobs or multiple users
- 3/4" air outlet; 175 PSI maximum pressure
- 2 Year Bumper To Bumper Factory Warranty
- No additional purchase necessary
- Fully Enclosed High-Flow Belt Guard
- Protects the belt & the operator
- Manual Air Tank Drain
- Makes tank simple to maintain
- 208 Volt Or 230 Volt Single Phase Power
- Easily wires into either your 208V-1 or 230V-1 system
- CPXHT25 dryer recommended (not included)
Product Specifications
General Information
| Product Category | Air Compressor - Stationary |
Motor
| Voltage | 208-230 Volt AC |
| Phase | Single Phase |
| Magnetic Starter | Yes |
| Amp Draw | Consult Certified Electrician |
| Recommended Breaker | 60 Amp Breaker |
Engine
| HP | 7.5 |
Pump
| CFM | 22.3 |
| CFM Rated @ | 100 PSI |
| Pump Material | Aluminum w/ Cast Iron Sleeve |
| Max PSI | 175 PSI |
| Oil Sight Glass | Yes |
| Pump Type | Two-Stage |
| After Cooler | Yes |
| Pump Drive | Belt Drive |
| Oil Type | Oil Lubricated |
| Oil System | Splash Lubrication |
| Pump Low Oil Shut-off | Yes |
Tank
| Tank Size | 80 Gallons |
| Tank Outlet | 3/4 Inch |
| Electronic Drain Valve | No |
| Tank Orientation | Horizontal |
Accessories
| Pressure Gauge | Yes |
| Air Dryer | No |
Overview
| Weight | 548 Pounds |
| Certification | ASME |
| Consumer Warranty | 2 Year |
| Commercial Warranty | 2 Year |
| Product Length | 71 Inches |
| Product Width | 24 Inches |
| Product Height | 49 Inches |
| Power Type | Electric |
