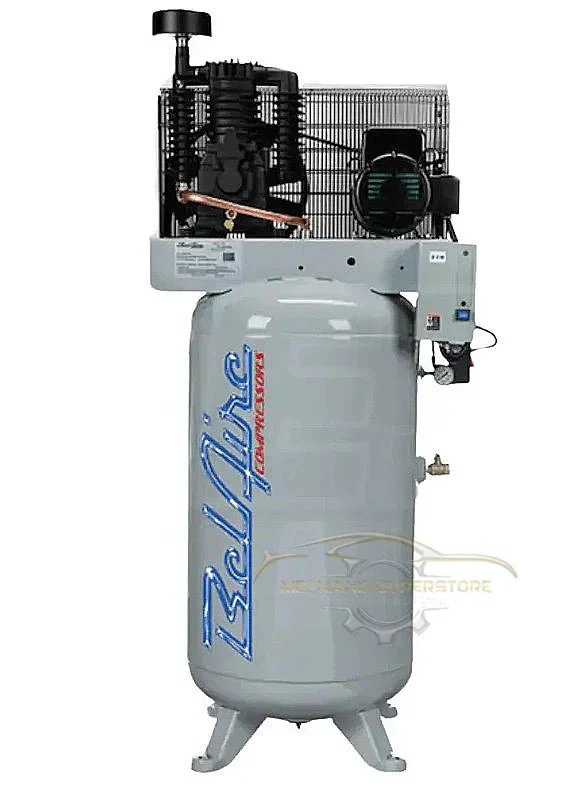

BelAire Air Compressor 318VE Elite Series 80 Gallon Two Stage
BelAire 318VE Elite Series 5-HP 80-Gallon Two-Stage Air Compressor (208-230V 1-Phase)
The BelAire 318VE Elite Series is a 5 HP, 80-gallon two-stage air compressor built for consistent performance in demanding shop environments. Powered by a 208-230V Single Phase motor, it delivers the durability and output needed for heavy-duty air tools and industrial applications. This unit features a vertical tank design to save floor space, and its cast-iron pump construction ensures long service life.
Built-in overload protection, an enclosed belt guard, and easy-access controls add to its user-focused design. With high airflow output and reliable pressure recovery, this model is ideal for automotive and commercial shops that require dependable, high-volume air.
Click on the manual link below for warranty information.
Product Features
- Two-Stage Pump
- Designed for superior quality & extends the life of the pump
- Compact Design
- Ideal for work environments where space is a premium
- 5-HP Single Phase Motor (208-230V) w/ Magnetic Starter Included
- Saves $$$, No need to purchase additional starter
- 80-Gallon ASME Certified Vertical Air Tank
- 100% factory tested at full pressure
- High Flow Belt Guard
- Fully enclosed design provides added safety
- Oil Level Sight Glass
- Easily check the oil level at any time
- Start-Stop Pressure Switch Control & Stainless Steel Valves
- Saves time and energy and extends the life of the compressor
- Elite Series Automatic Tank Drain (Not Electronic)
- Pressurized auto draining makes tank maintenance effortless
- Triple-Pass Pump Mounted Aftercooler
- Keeps your pump running cooler and longer
- 3/4" Air Outlet
- 2 year Factory Warranty protects your investment
Product Specifications
General Information
| Product Category | Air Compressor - Stationary |
Motor
| Voltage | 208-230 Volt AC |
| Phase | Single Phase |
| Magnetic Starter | Yes |
| Amp Draw | Consult Certified Electrician |
| Recommended Breaker | 40 Amp Breaker |
Engine
| HP | 5 |
Pump
| CFM | 18.5 |
| CFM Rated @ | 100 PSI |
| Pump Material | Solid Cast Iron |
| Max PSI | 175 PSI |
| Oil Sight Glass | Yes |
| Pump Type | Two-Stage |
| After Cooler | Yes |
| Pump Drive | Belt Drive |
| Oil Type | Oil Lubricated |
| Oil System | Splash Lubrication |
| Pump Low Oil Shut-off | Yes |
Tank
| Tank Size | 80 Gallons |
| Tank Outlet | 3/4 Inch |
| Electronic Drain Valve | No |
| Tank Orientation | Vertical |
Accessories
| Pressure Gauge | Yes |
| Air Dryer | No |
Overview
| Weight | 428 Pounds |
| Certification | ASME |
| Consumer Warranty | 2 Year |
| Product Length | 39 Inches |
| Product Width | 24 Inches |
| Product Height | 77 Inches |
| Power Type | Electric |
