BelAire Air Compressor 318VL 7.5 HP 80 Gallon Two Stage

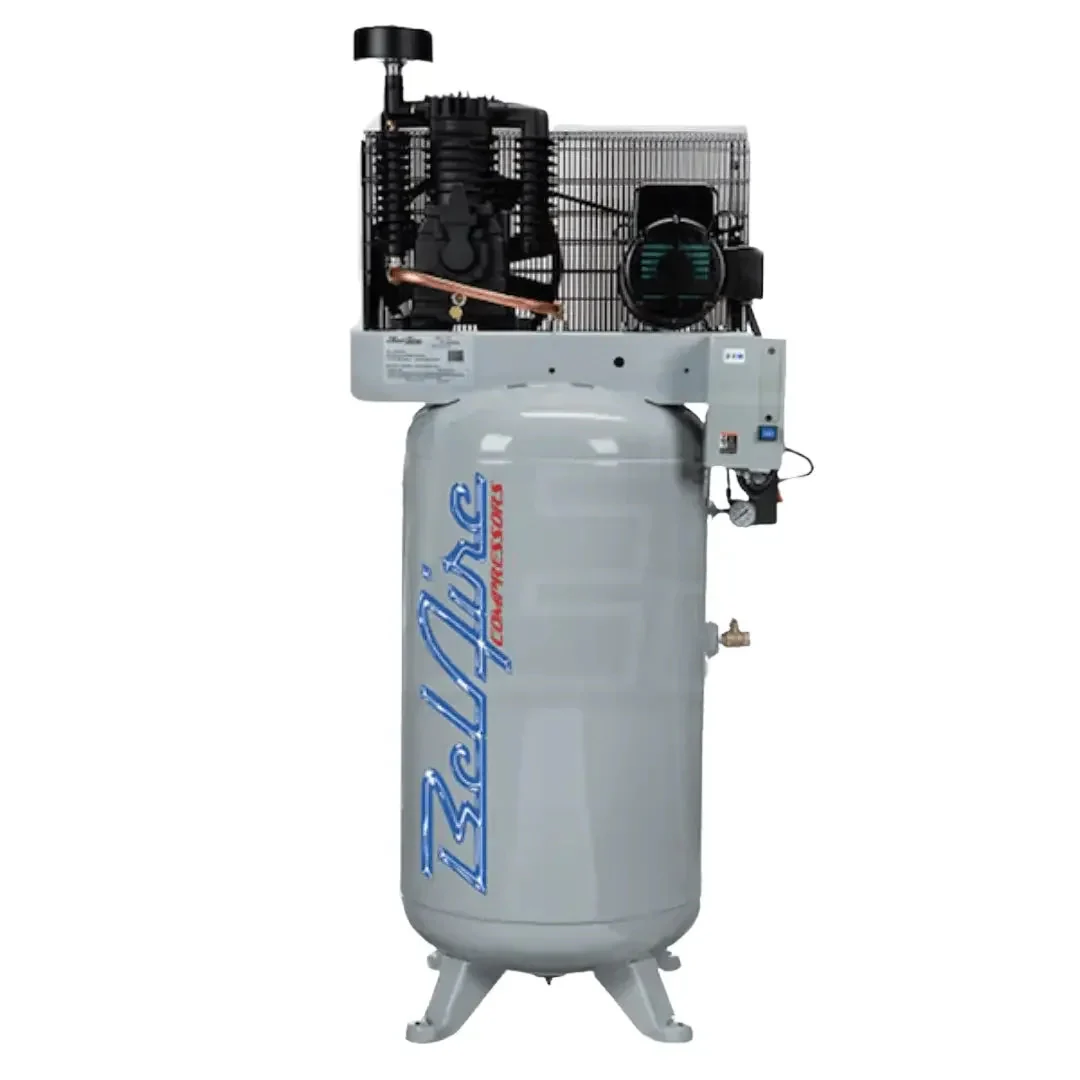

BelAire 318VL 7.5-HP 80-Gallon Two-Stage Air Compressor (208-230V 1-Phase) w/ Magnetic Starter
The BelAire 318VL is a robust two-stage air compressor designed to meet the demanding needs of small to mid-sized workshops. Powered by a 7.5 horsepower motor operating on a 208-230V Single Phase electrical system, this compressor delivers reliable performance for various pneumatic applications.
Equipped with an 80-gallon vertical tank, the 318VL provides ample air storage, reducing the frequency of motor cycling and enhancing overall efficiency. The compressor produces 25.3 cubic feet per minute (CFM) at 100 PSI and reaches a maximum pressure of 175 PSI, ensuring a steady and sufficient airflow to power pneumatic tools and equipment.
The two-stage pump design, constructed with solid cast iron, ensures durability and longevity, capable of withstanding the rigors of continuous operation. The belt-driven mechanism allows for higher pressure output, making it suitable for demanding tasks.
Safety and ease of use are prioritized in the design of the 318VL. It features a fully enclosed high-flow belt guard to protect moving parts, an ASME-certified tank with a manual drain valve for straightforward maintenance, and a magnetic starter for reliable motor protection and operation.
With dimensions of 39 inches in length, 24 inches in width, and 77 inches in height, the BelAire 318VL is designed for vertical installation, optimizing floor space in your workshop. Backed by a two-year bumper-to-bumper warranty, this compressor offers dependable performance and peace of mind for your air compression needs.
Product Features
- Two-Stage Hybrid Pump
- Designed for superior quality & extends the life of the pump
- Compact Design
- Ideal for work environments where space is a premium
- 7.5-HP Single Phase Motor (208-230V) w/ Magnetic Starter Included
- Saves $$$, No need to purchase additional starter
- 80-Gallon ASME Certified Vertical Air Tank
- 100% factory tested at full pressure
- High Flow Belt Guard
- Fully enclosed design provides added safety
- Oil Level Sight Glass
- Easily check the oil level at any time
- Start-Stop Pressure Switch Control
- Saves time and energy
- Stainless Steel Valves
- Extends the life of the compressor
- 3/4" air outlet works with many systems
- 2 Year Factory Warranty
- Protects your investment
Product Specifications
General Information
| Product Category | Air Compressor - Stationary |
Motor
| Voltage | 208-230 Volt AC |
| Phase | Single Phase |
| Magnetic Starter | Yes |
| Amp Draw | Consult Certified Electrician |
| Recommended Breaker | 60 Amp Breaker |
Engine
| HP | 7.5 |
Pump
| CFM | 22.3 |
| CFM Rated @ | 100 PSI |
| Pump Material | Solid Cast Iron |
| Max PSI | 175 PSI |
| Oil Sight Glass | Yes |
| Pump Type | Two-Stage |
| After Cooler | Yes |
| Pump Drive | Belt Drive |
| Oil Type | Oil Lubricated |
| Oil System | Splash Lubrication |
| Pump Low Oil Shut-off | No |
Tank
| Tank Size | 80 Gallons |
| Tank Outlet | 3/4 Inch |
| Electronic Drain Valve | No |
| Tank Orientation | Vertical |
Accessories
| Pressure Gauge | Yes |
| Air Dryer | No |
Overview
| Weight | 479 Pounds |
| Certification | ASME |
| Consumer Warranty | 2 Year |
| Product Length | 39 Inches |
| Product Width | 24 Inches |
| Product Height | 73 Inches |
| Power Type | Electric |
Downloads
Brochure
Manual
Warranty
