BelAire Air Compressor 338HE Elite Series 5 HP 80 Gallon Two Stage

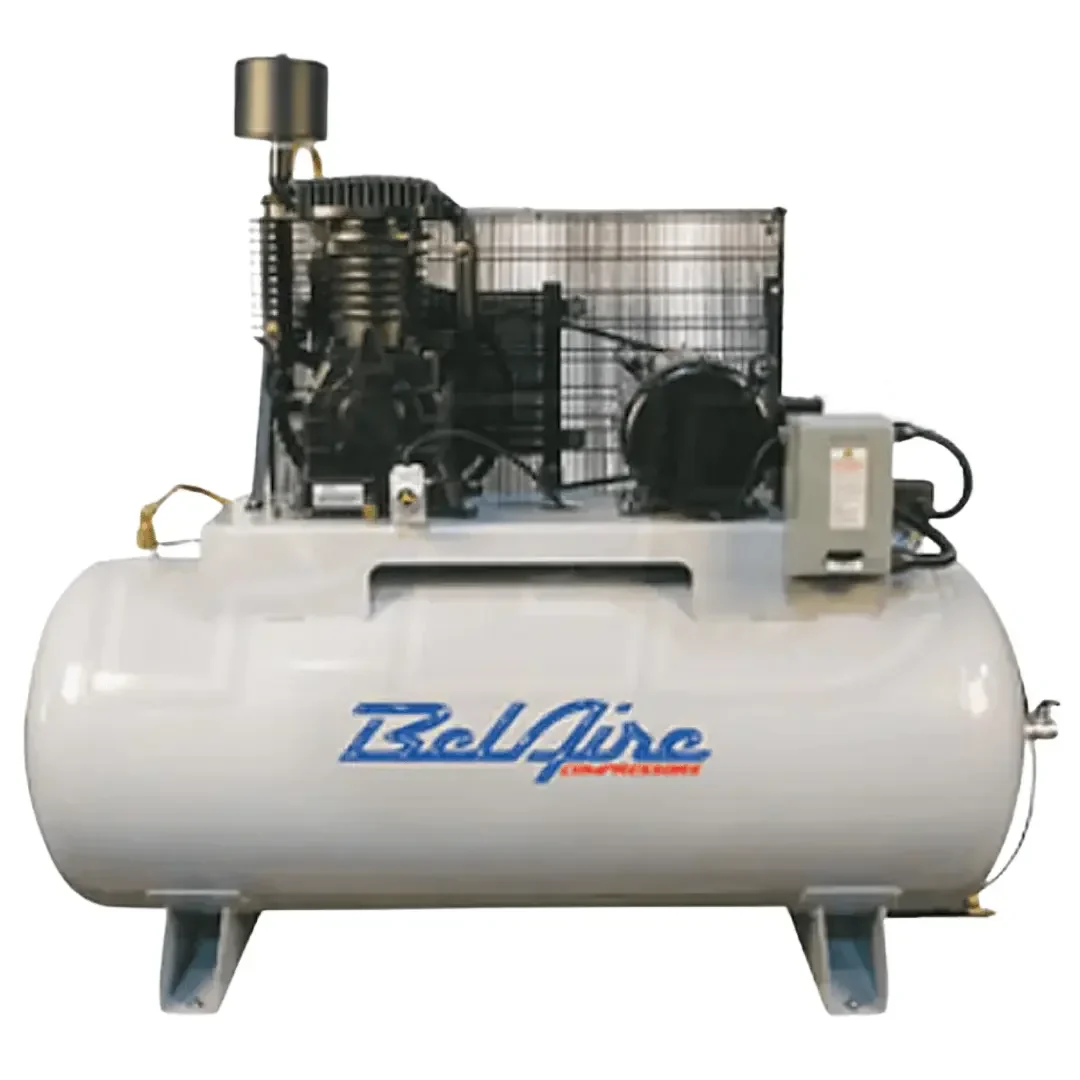

BelAire 338HE Elite Series 5-HP 80-Gallon Two-Stage Air Compressor (208-230V 3-Phase)

The BelAire 338HE Elite Series is a heavy-duty two-stage air compressor engineered for demanding industrial and workshop environments. Featuring a 5 horsepower motor operating on 208-230 volt Three Phase power, it delivers 18.5 cubic feet per minute at 100 PSI and 16.6 CFM at 175 PSI, with a maximum pressure of 175 PSI. This performance ensures consistent, reliable airflow for powering multiple pneumatic tools and high-demand shop equipment.

The unit’s belt-driven two-stage pump is constructed with a durable cast-iron cylinder sleeve, stainless steel valves, and aluminum heads to improve heat dissipation and ensure long-lasting operation. A standout feature of the Elite Series is its triple-pass pump-mounted aftercooler, which lowers discharge air temperature, enhances efficiency, and extends component life.

For enhanced safety and convenience, the BelAire 338HE includes a magnetic starter for smooth motor operation, a low oil protection switch to prevent damage, and an automatic tank drain to simplify maintenance. Its start-stop pressure switch allows for reliable automatic operation, while the oil sight glass provides quick and easy monitoring of oil levels. The compressor is also equipped with a fully enclosed high-flow belt guard to protect moving parts during use.

Air is stored in an 80-gallon horizontal ASME-certified tank that reduces motor cycling and maintains stable compressed air delivery during heavy use. Measuring approximately 71 inches in length, 24 inches in width, and 49 inches in height, and weighing around 481 pounds, the BelAire 338HE balances a compact footprint with robust construction suitable for industrial shop floors. It is factory-tested at full pressure for reliability and comes backed by a two-year bumper-to-bumper warranty covering all components, providing peace of mind for your compressed air needs.
