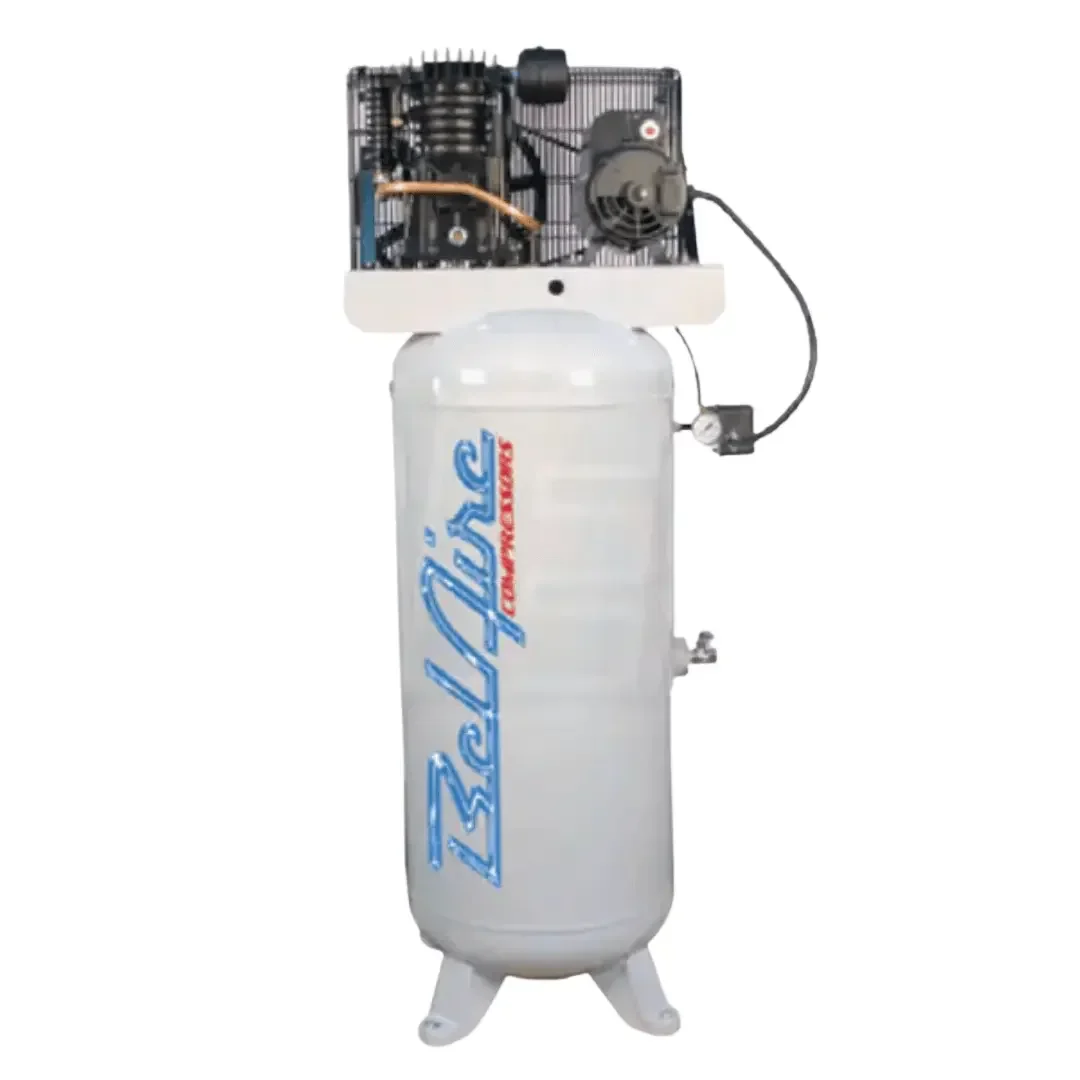

BelAire Air Compressor 338VE4 Elite Series 80 Gallon 460V 3 Phase

BelAire 338VE4 Elite Series 5-HP 80-Gallon Two-Stage Air Compressor (460V 3-Phase)

The BelAire 338VE4 is a high-performance two-stage air compressor designed for demanding industrial and commercial applications. It features a 5-horsepower motor operating on 460-volt Three Phase power, delivering 18.5 cubic feet per minute (CFM) at 100 PSI and 16.6 CFM at 175 PSI, with a maximum pressure rating of 175 PSI. This performance ensures a steady and reliable supply of compressed air for powering multiple pneumatic tools and equipment.

The compressor is equipped with a durable belt-driven two-stage pump constructed with solid cast iron cylinders and aluminum heads, providing efficient heat dissipation and long service life. An integrated triple-pass aftercooler helps reduce discharge air temperature, enhancing performance and extending component longevity.

Air is stored in an 80-gallon vertical ASME-certified tank, offering ample reserve capacity to minimize motor cycling and maintain stable airflow during heavy use. The unit includes a magnetic starter for smooth motor operation, a start-stop pressure switch for automatic control, and a manual tank drain valve for easy maintenance. Safety features include an oil sight glass for quick monitoring and a fully enclosed high-flow belt guard to protect moving parts.

Measuring approximately 39 inches in length, 24 inches in width, and 77 inches in height, and weighing around 453 pounds, the BelAire 338VE4 combines a compact footprint with industrial-grade durability. It is factory-tested at full pressure and comes backed by a two-year bumper-to-bumper warranty covering all components, providing peace of mind for your compressed air needs.
