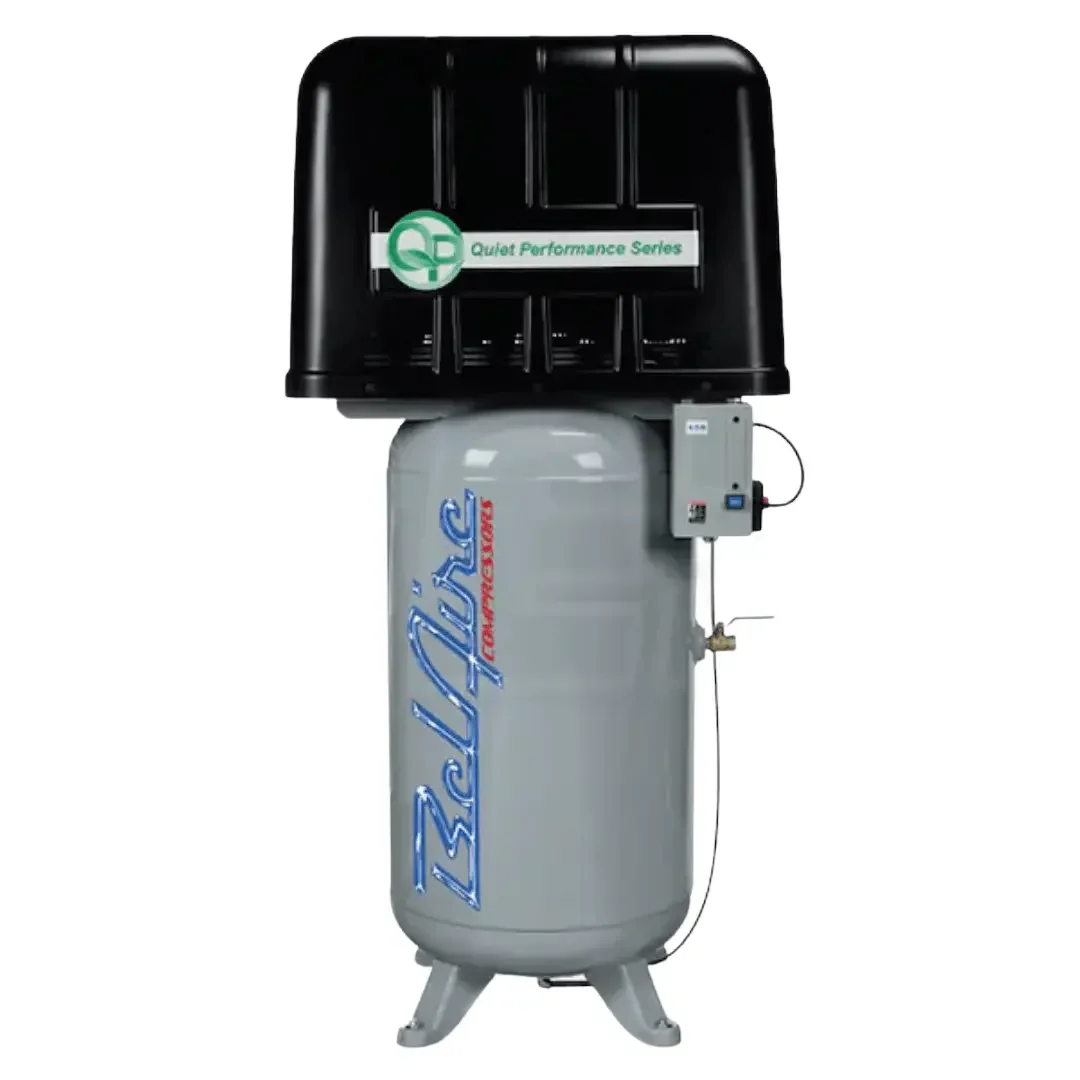

BelAire QP318VLE 7.5-HP 80-Gallon Two-Stage Quiet Performance Air Compressor (208-230V 1-Phase)
Quiet Compressor Air System
- A piston air compressor with the noise level of a rotary screw
Compact Design
- Ideal for work environments where space is a premium
7.5-HP Single Phase Motor (208-230V) w/ Magnetic Starter Included
- Saves $$$, No need to purchase additional starter
Low Sound Enclosure
- As low as 69 dbA, designed for a greener workplace
- Less than half the noise of a standard piston compressor
High Strength ABS Enclosure & High Flow Fan
- Keeps the compressor running cooler and quieter
Cast Iron Cylinder
- Designed for superior quality & extends the life of the pump
80-Gallon ASME Certified Vertical Air Tank
- 100% factory tested at full pressure
Added Features
- Low Oil Level Protection & High Temperature Shut Dow
- Automatic Pressurized Tank Drain (Not Electronic)
- ASME Safety Valves & Integrated Aftercooler
- Shipped "Wet", Ready To Use
Product Features
- Quiet Compressor Air System
- A piston air compressor with the noise level of a rotary screw
- Compact Design
- Ideal for work environments where space is a premium
- 7.5-HP Single Phase Motor (208-230V) w/ Magnetic Starter Included
- Saves $$$, No need to purchase additional starter
- Low Sound Enclosure
- As low as 69 dbA, designed for a greener workplace
- Less than half the noise of a standard piston compressor
- High Strength ABS Enclosure & High Flow Fan
- Keeps the compressor running cooler and quieter
- Cast Iron Cylinder
- Designed for superior quality & extends the life of the pump
- 80-Gallon ASME Certified Vertical Air Tank
- 100% factory tested at full pressure
- Low Oil Level Protection & High Temperature Shut Dow
- Automatic Pressurized Tank Drain (Not Electronic)
- ASME Safety Valves & Integrated Aftercooler
- Shipped "Wet", Ready To Use
Product Specifications
General Information
| Product Category |
Air Compressor - Stationary |
Motor
| Voltage |
208-230 Volt AC |
| Phase |
Single Phase |
| dBA |
69 |
| Magnetic Starter |
Yes |
| Amp Draw |
Consult Certified Electrician |
| Recommended Breaker |
Consult Certified Electrician |
Engine
Pump
| CFM |
25.3 |
| CFM Rated @ |
100 PSI |
| Pump Material |
Solid Cast Iron |
| Max PSI |
175 PSI |
| Oil Sight Glass |
Yes |
| Pump Type |
Two-Stage |
| After Cooler |
Yes |
| Pump Drive |
Belt Drive |
| Oil Type |
Oil Lubricated |
| Oil System |
Splash Lubrication |
| Pump Low Oil Shut-off |
Yes |
Tank
| Tank Size |
80 Gallons |
| Tank Outlet |
3/4 Inch |
| Electronic Drain Valve |
No |
| Tank Orientation |
Vertical |
Accessories
| Pressure Gauge |
Yes |
| Air Dryer |
No |
Overview
| Weight |
608 Pounds |
| Certification |
ASME |
| Consumer Warranty |
2 Year |
| Product Length |
38.2 Inches |
| Product Width |
24.3 Inches |
| Product Height |
80 Inches |
| Power Type |
Electric |
