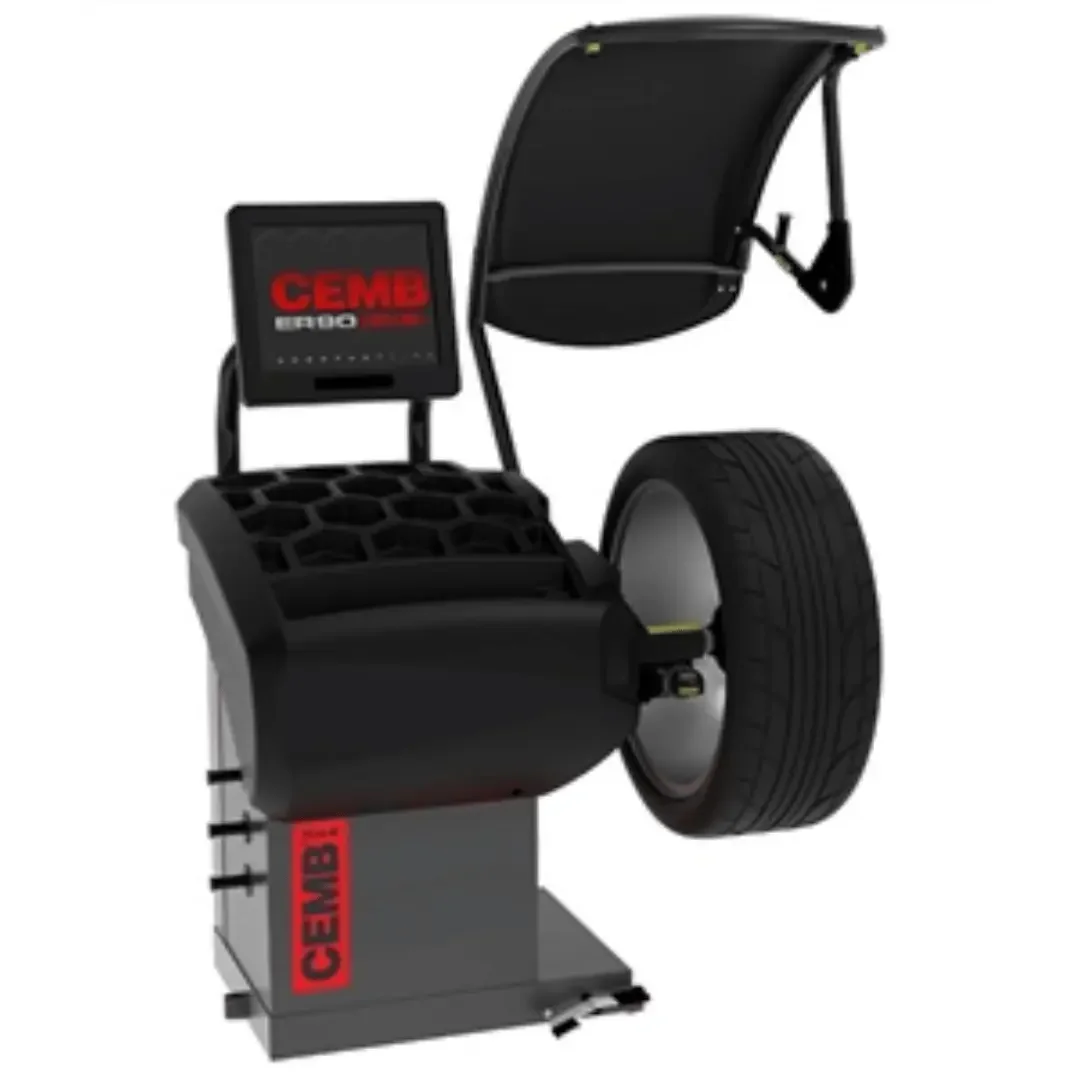

CEMB ER90 EVO Fully Automatic Wheel Balancer
CEMB ER90 EVO Fully Automatic Wheel Balancer
Automatic Wheel Balancer - The new immediate no contact balancing machine without need of check-spin. The new ER90 EVO automatically detects wheel data simply pressing one single touchbutton and after a few seconds gives a clear and accurate indication of exact position to place counterweights (clip-on and/or stick-on weights)
One Plane Balancing
OPB (One Plane Balancing), eliminates both static and dynamic unbalance with a single counterweight, indicating the exact position to apply the weight inside the rim. The balancer automatically detects if it is possible to correct both unbalances with only one weight, and activates OPB program (One Plane Balancing). A real revolution in wheel balancing. OPB saves you time and money while maximizing your productivity.
Product Features
- Pneumatic Clamping
- One Plane Balancing (OPB) - eliminates the static & dynamic unbalance by means of a single counterweight, indicating its exact application point on the inner side of the rim
- AutoAdaptive™ Mode - detects weight & dimensions & calculates the tolerance value that will cancel any vibration perceived on the steering wheel
- Hubmatch - guided on-car eccentricity cancellation process
- Ergonomic Design
- 3D Laser Scan - laser that indicates where to put the stick-on weights, faster & more accurate reading of dimension, & doesn't have any moving parts making it robust
- Pneumatic Wheel Locking (CEMB patient) - is extremely easy & quick to use provides accurate wheel centering
- Side Laser - 12 o'clock laser for correct clip on weights application
- Electric Brake - Wheel locking system that locks the wheel in the correct position by means of an electromagnetic brake
- Wheel Guard
- EMS Sonar - measurement of wheel conicity with indication of side slip
- LA Sonar - tread depth. Measurement in three sections of the tire
- Touch - full diagnosis on just the rim: two plane eccentricity measurement
- Printer
Product Specifications
| Model | ER90 |
| Wheel Clamping Type | Pneumatic |
| Max. Tire Diameter | 40" (1016 mm) |
| Maximum Rim Diameter | 30" (765 mm) |
| Maximum Rim Width | 20" (510 mm) |
| Maximum Wheel Weight | 165 lbs. (75kg) |
| Power Supply | 220V, 1ph, Air |
| Shipping Weight | 485 lbs. (220 kg) |
