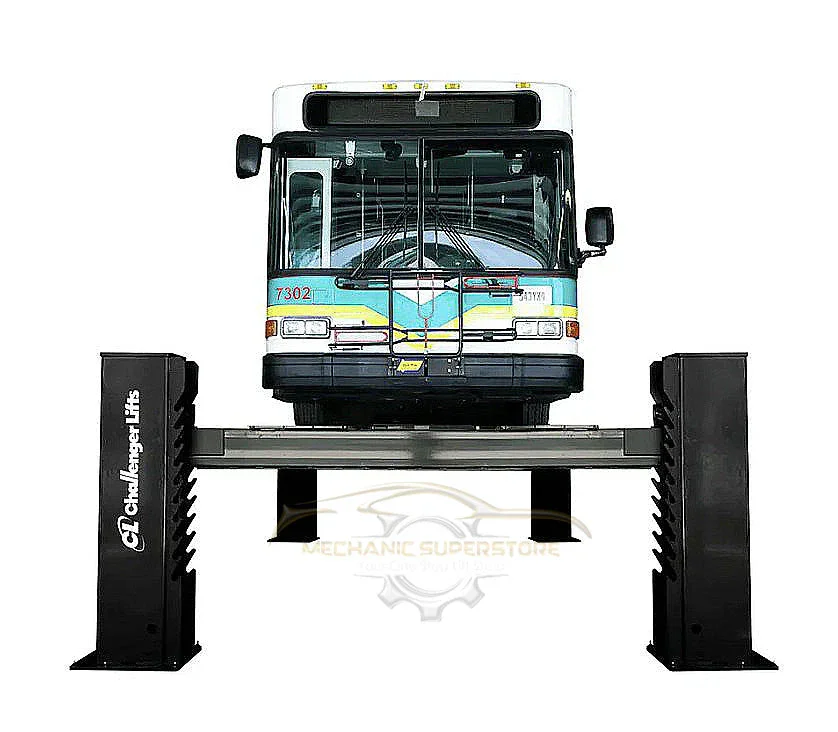

Challenger 44060E 60000 lbs Heavy-Duty 4 Post Chain Driven Lift
Challenger Lifts 44060E 60000 lbs Heavy-Duty 4 Post Chain Driven Lift
Our 30,000 lb to 60,000 lb lifts offer an economical solution for high-capacity lifting in a classic 4-post format. The diamond-plated, anti-skid runways and ramps ensure excellent traction for vehicles. Featuring a synchro-power system with dual heavy-duty lift cylinders and lever controls, these lifts deliver both variable and synchronized power to the front and rear suspension. This design is ideal for supporting large-axle vehicles with heavier front or rear ends, such as waste trucks and construction vehicles.
Product Features
- 30,000 lb. to 60,000 lb. capacity 4-post
- 310” to 430” max wheelbase
- 32” wide runways aid for drive-on confidence
- 10 lock positions provide maximum head room for working underneath vehicles (40K-60K)
- Single-point air actuated lock release allows technicians to disengage column locks simultaneously
- Diamond-plate approach ramps for positive vehicle traction
- Optional 15,000 lb. – 35,000 lb. rolling jacks provide complete optimization for your heavy-duty servicing needs
- Available with black columns only
Product Specifications
| Model | 44060E |
|---|---|
| Lifting Capacity | 50,000 lbs. |
| Max. Wheelbase | 370” |
| Rise Height | 73” |
| Overall Length | 41' |
| Overall Width | 17’ 1.25” |
| Inside Columns | 144” |
| Between Columns | 350” |
| Height Overall | 92" |
| Height of Runways | 14” |
| Width of Runways | 32” |
| Width Between Runways | 36” - 58” |
| Width Between Runways with jacks | 43" - 53.5" |
| Motor / Voltage | 15HP, 230 - 460v Three Phase |
| Amps | 42 - 21 |
| Speed of Rise | 70s |
| Color Available | Black |
Pick Up and Delivery
Call, text, or chat with us if you have questions. 866-774-7743
Description
Challenger Lifts 44060E 60000 lbs Heavy-Duty 4 Post Chain Driven Lift
Our 30,000 lb to 60,000 lb lifts offer an economical solution for high-capacity lifting in a classic 4-post format. The diamond-plated, anti-skid runways and ramps ensure excellent traction for vehicles. Featuring a synchro-power system with dual heavy-duty lift cylinders and lever controls, these lifts deliver both variable and synchronized power to the front and rear suspension. This design is ideal for supporting large-axle vehicles with heavier front or rear ends, such as waste trucks and construction vehicles.
Product Features
- 30,000 lb. to 60,000 lb. capacity 4-post
- 310” to 430” max wheelbase
- 32” wide runways aid for drive-on confidence
- 10 lock positions provide maximum head room for working underneath vehicles (40K-60K)
- Single-point air actuated lock release allows technicians to disengage column locks simultaneously
- Diamond-plate approach ramps for positive vehicle traction
- Optional 15,000 lb. – 35,000 lb. rolling jacks provide complete optimization for your heavy-duty servicing needs
- Available with black columns only
Product Specifications
| Model | 44060E |
|---|---|
| Lifting Capacity | 50,000 lbs. |
| Max. Wheelbase | 370” |
| Rise Height | 73” |
| Overall Length | 41' |
| Overall Width | 17’ 1.25” |
| Inside Columns | 144” |
| Between Columns | 350” |
| Height Overall | 92" |
| Height of Runways | 14” |
| Width of Runways | 32” |
| Width Between Runways | 36” - 58” |
| Width Between Runways with jacks | 43" - 53.5" |
| Motor / Voltage | 15HP, 230 - 460v Three Phase |
| Amps | 42 - 21 |
| Speed of Rise | 70s |
| Color Available | Black |
