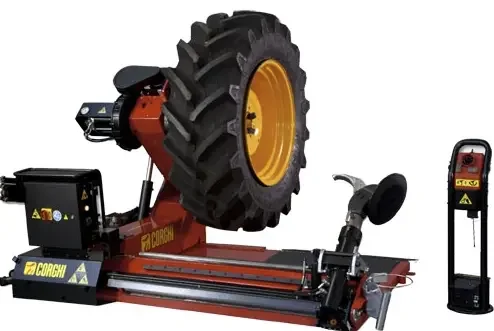

Corghi HD1300 Heavy-Duty Semi-Automatic Tire Changer
Corghi HD1300 Heavy-Duty Semi-Automatic Tire Changer
The Corghi HD1300 Heavy Duty Semi-Automatic Tire Changer is designed to meet the rigorous demands of professional tire service centers, commercial workshops, and fleet maintenance facilities. Built to handle the largest and heaviest tires, this machine combines robust construction, advanced electrohydraulic technology, and operator-focused ergonomics to deliver efficient, safe, and precise tire-changing operations. Capable of servicing trucks, buses, agricultural vehicles, and other industrial machinery, the HD1300 provides the versatility and durability required to keep high-volume workshops operating at peak performance. Its heavy-duty design ensures long-term reliability, allowing technicians to tackle even the most challenging tires with confidence and ease.
The HD1300 features a powerful electrohydraulic system that drives consistent and precise operation. Its hydraulic power unit manages the carriage and turntable movements with smooth, controlled motion, while the ergonomically positioned control module allows technicians to handle all operations efficiently. The turntable spindle accommodates rim diameters from 14 inches to 56 inches, covering a wide range of heavy-duty applications. The machine’s semi-automatic functionality gives operators control over rotation, clamping, and bead-breaking processes, reducing physical strain while maintaining accuracy. This balance of control and automation improves workflow efficiency, enabling technicians to perform multiple tire changes quickly without sacrificing safety or precision.
The HD1300’s heavy-duty carriage incorporates hydraulic left-right translation and a safety lock system, enhancing operator protection and minimizing the risk of accidents. These features are particularly important when working with large, high-weight tires, ensuring that the technician can position and secure the tire safely during service. The semi-automatic system streamlines repetitive tasks, such as bead breaking and mounting, allowing technicians to work faster and with less physical effort. These innovations not only protect the operator but also help prevent damage to expensive rims and tires, a critical consideration in commercial and industrial operations.
The HD1300 can handle wheel assemblies weighing up to 3,700 lbs (1,678 kg), making it capable of servicing some of the heaviest tires in the industry. Its hydraulic bead-breaking system delivers controlled, high-force separation of tire beads, enabling quick removal without risk to rims. Optional special clamps with plastic inserts provide protection for alloy rims, expanding the machine’s versatility to accommodate a variety of wheel materials. The combination of high lifting capacity, adjustable clamping, and protective features ensures that the HD1300 meets the needs of diverse service environments, from fleet maintenance centers to agricultural and industrial workshops.
Ergonomics play a central role in the HD1300 tire changer design. The control console is intuitively arranged, allowing operators to manage all hydraulic functions efficiently. The semi-automatic configuration gives technicians the flexibility to apply precise control when needed, particularly for delicate or unusually shaped tires. By reducing operator fatigue and simplifying complex tasks, the HD1300 improves overall productivity while maintaining high-quality results. Its compact footprint, despite heavy-duty capabilities, ensures that it fits comfortably into most workshop layouts without sacrificing workspace or accessibility.
Constructed from reinforced steel and high-quality components, the HD1300 tire changer is built to withstand the demands of continuous, high-volume operation. Its durable design, combined with powerful hydraulic performance and operator-friendly controls, delivers a reliable solution for professional tire service centers. The machine’s versatility, safety features, and efficiency make it a cornerstone for any facility handling large commercial, agricultural, or industrial tires, ensuring that technicians can operate safely, quickly, and accurately every day.
Contact us for more tire changer information.
Product Specifications
| Max Tire Diameter | 87.6” (2,225 mm) |
| Maximum Tire Width | 51” (1,295 mm) |
| Clamp Capacity | 14-56” (355-1,422 mm) |
| Wheel Central Hole Min. | 4" (102 mm) |
| Max. Torque Delivery | 3098 ft/lbs |
| Bead Breaking Force | 6393 lbs |
| Max. Liftable Wheel Weight | 3748 lbs |
| Wheel Lifter Cylinder Load Capacity | 4850 lbs |
| Hydraulic Power Unit Motor | 3ph - 2hp |
| Two-speed Gear Motor | 3ph 1.75 - 2.5 hp |
| Power Supply | 230 V - 3 ph - 50/60 Hz |
| Weight | 2,205 lbs |
