10,000lb Capacity GrandPrix GP-10C 2 Post Car Lift / Clearfloor
GrandPrix GP-10C 2 Post Car Lift / 10,000 Lb. Capacity / Clearfloor
The GrandPrix GP‑10C 2 post lift is designed to handle a wide variety of vehicles, including compact cars, SUVs, and full‑size trucks. The lift’s symmetric and asymmetric arm configurations give it unmatched flexibility. Triple‑telescoping front arms and dual‑stage extended rear arms allow for a broad range of reach, enabling technicians to work on vehicles with varying wheelbases. This adaptability is essential for high‑volume shops or garages that handle a diverse fleet of vehicles.
Built for stability and longevity, the GP‑10C 2 post lift features a 6" x 6" tubular steel carriage that ensures strength under load. The mechanical structure of the lift minimizes vibration and provides secure lifting at all heights. Safety is a priority, and this BendPak‑engineered lift includes automatic arm restraints that lock in place when the lift is engaged. These restraints prevent unintended arm movement during operation. In addition, the padded overhead safety shutoff bar provides another layer of protection, stopping the lift if it encounters an obstruction.
The GP‑10C operates with a 220 VAC / 60 Hz / 1‑phase motor and delivers a full rise time of approximately 65 seconds. The screw pad adjustments allow up to 2" (51 mm) of flexibility to fine‑tune lifting positions for different vehicle heights. The maximum load per arm is 2,500 lbs. (1,134 kg), ensuring balanced lifting and stable support throughout the service process. This combination of speed, strength, and adjustability makes the GP‑10C a highly efficient choice for both light and heavy‑duty applications.
One of the key advantages of the GrandPrix GP‑10C 2 post lift is its clearfloor design. This design offers unobstructed floor space that makes it easier to work around the vehicle and access undercarriage areas without limitation. The ability to position tools and equipment without interference increases productivity and reduces work time. Furthermore, the open‑floor layout enables easier cleaning and maintenance of the shop floor.
The lift’s construction is designed to handle the demands of a busy environment. Heavy‑duty steel construction ensures years of reliable service, and the powder‑coated finish provides corrosion resistance and durability. The lift’s dual hydraulic cylinders operate in unison to deliver smooth and even lifting, and its automatic arm restraints and mechanical locks ensure safe operation every time.
The GrandPrix GP‑10C 2 post car lift is ideal for automotive repair shops, tire shops, dealerships, and home garages that require a dependable and high‑capacity lifting solution. It offers versatility, safety, and durability in a package that enhances productivity and workflow efficiency. Whether lifting for tire changes, suspension work, brake service, or general maintenance, this lift provides a stable and reliable platform for a wide range of automotive service needs.
Contact us for more information.
GrandPrix GP‑10C 2 post car lift Product Features
- 10,000-lb. lifting capacity
- Rugged box-beam overhead construction for added stability
- Padded overhead safety shutoff bar
- Symmetric and asymmetric arm design for enhanced versatility

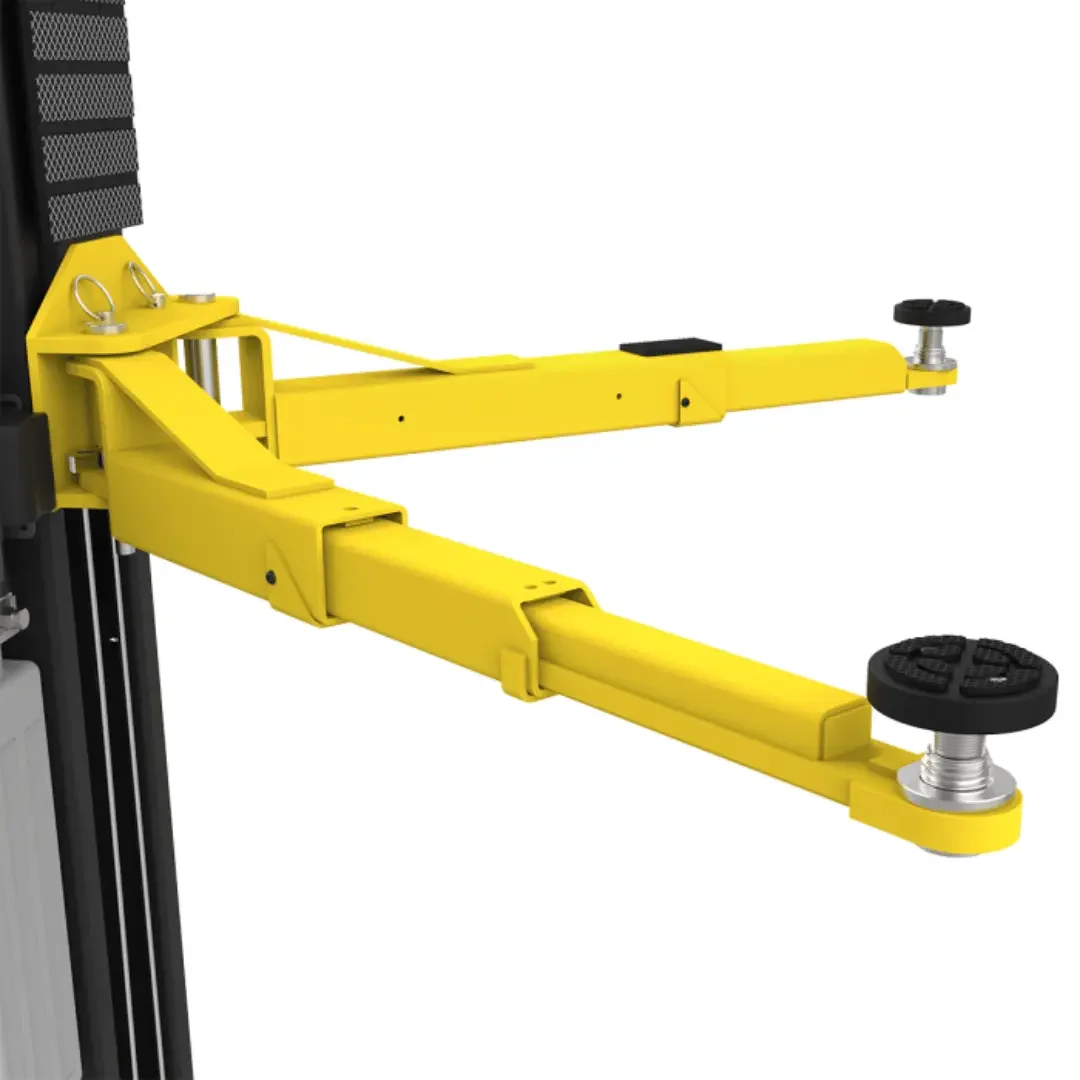

- Triple-telescoping front arms & dual-stage extended rear arms
- Dual direct-drive low-pressure hydraulic cylinders

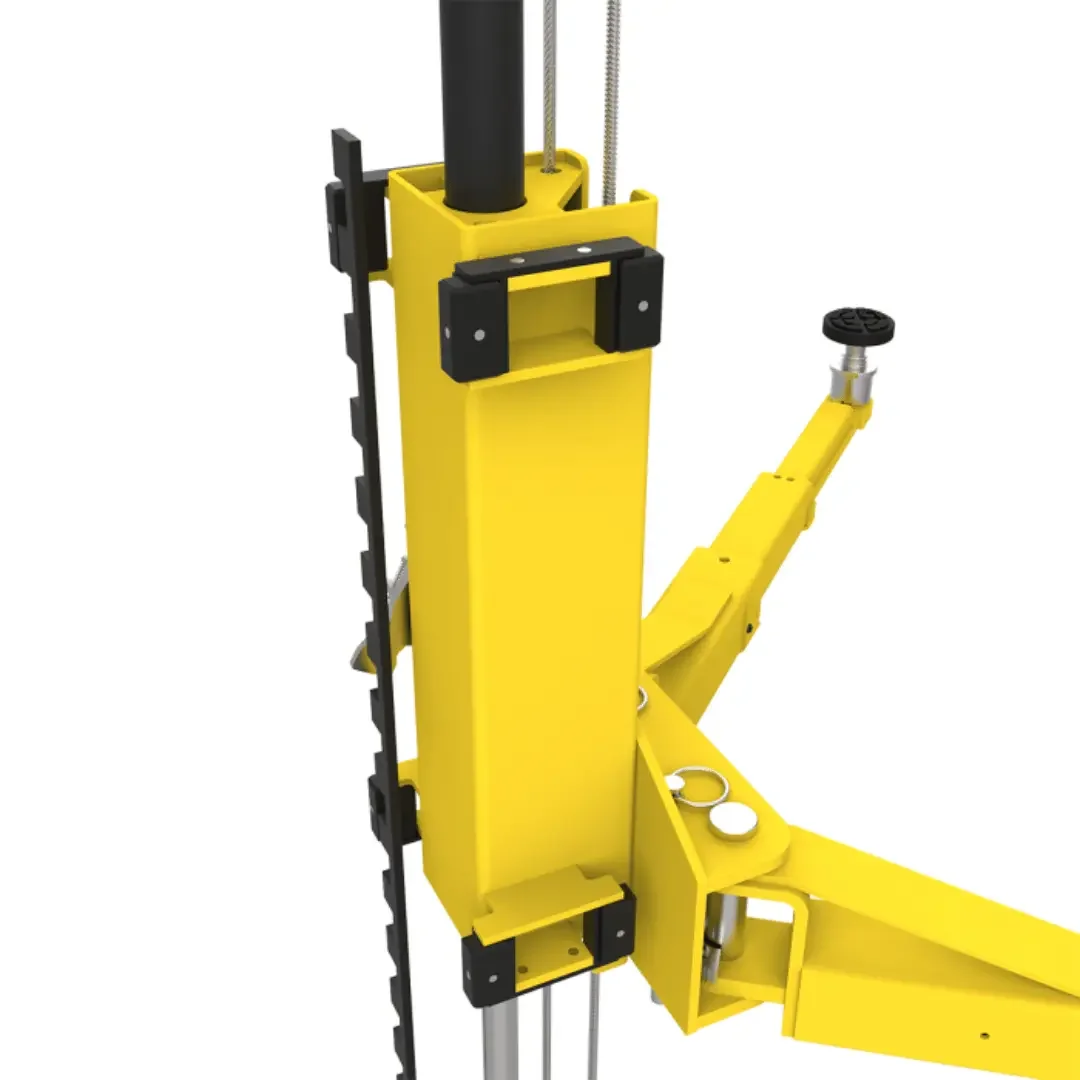

- Heavy-duty 6” x 6” tubular steel carriage for maximum strength
- Electric-hydraulic power system for effortless operation
- Oversized 20.5" x 15.5" base plate for increased stability
- Self-lubricating UHMW polyethylene guide blocks for long-lasting durability
- Safety locks in each column spaced every 3 inches
- Automatic arm restraints for enhanced safety
- Heavy-duty 3/8" aircraft-quality equalizer cables
- Oversized cable sheaves to reduce cable fatigue

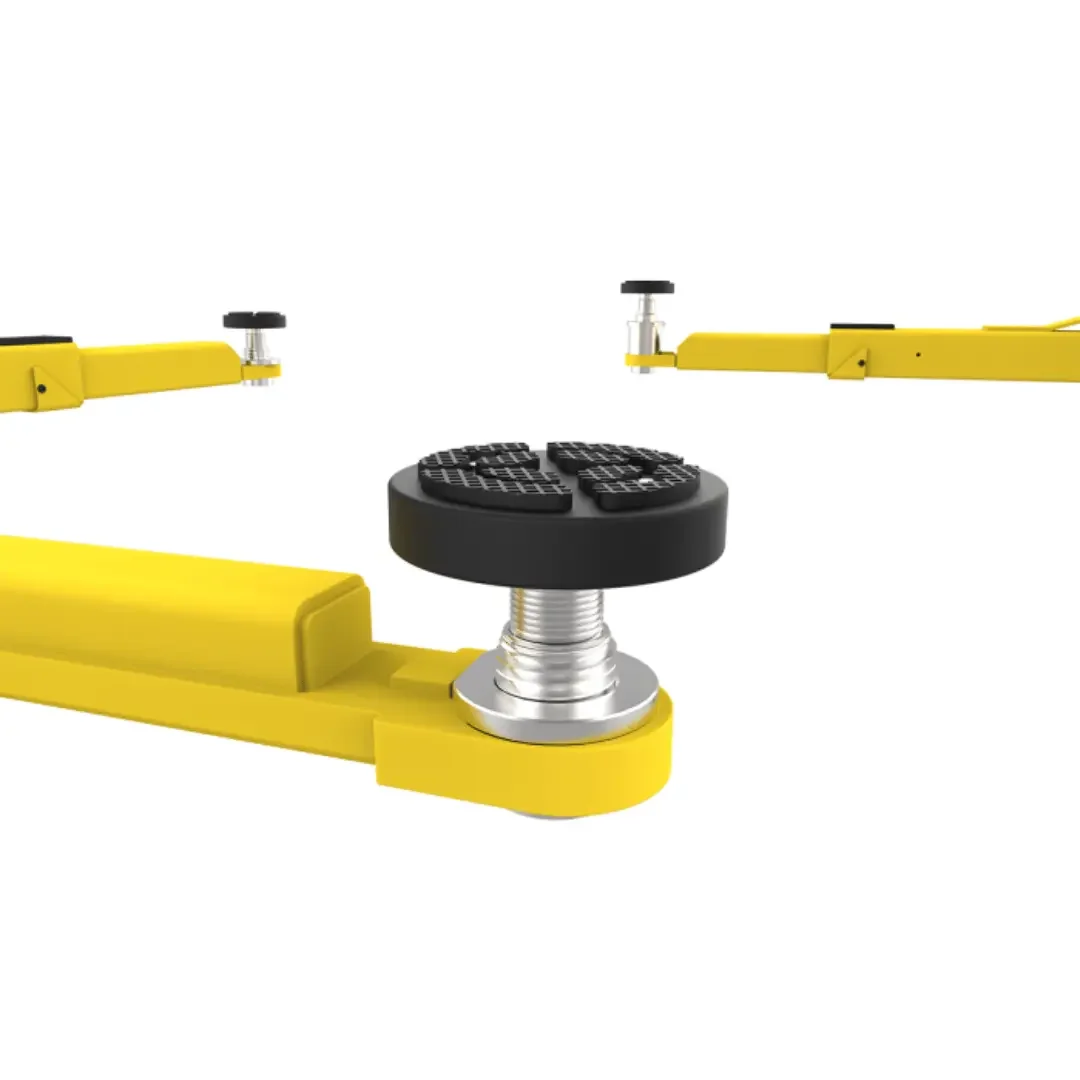

- Double-telescoping screw pads feature tear-resistant polyurethane for long-lasting durability
- Full size rubber carriage guard reduces door dings

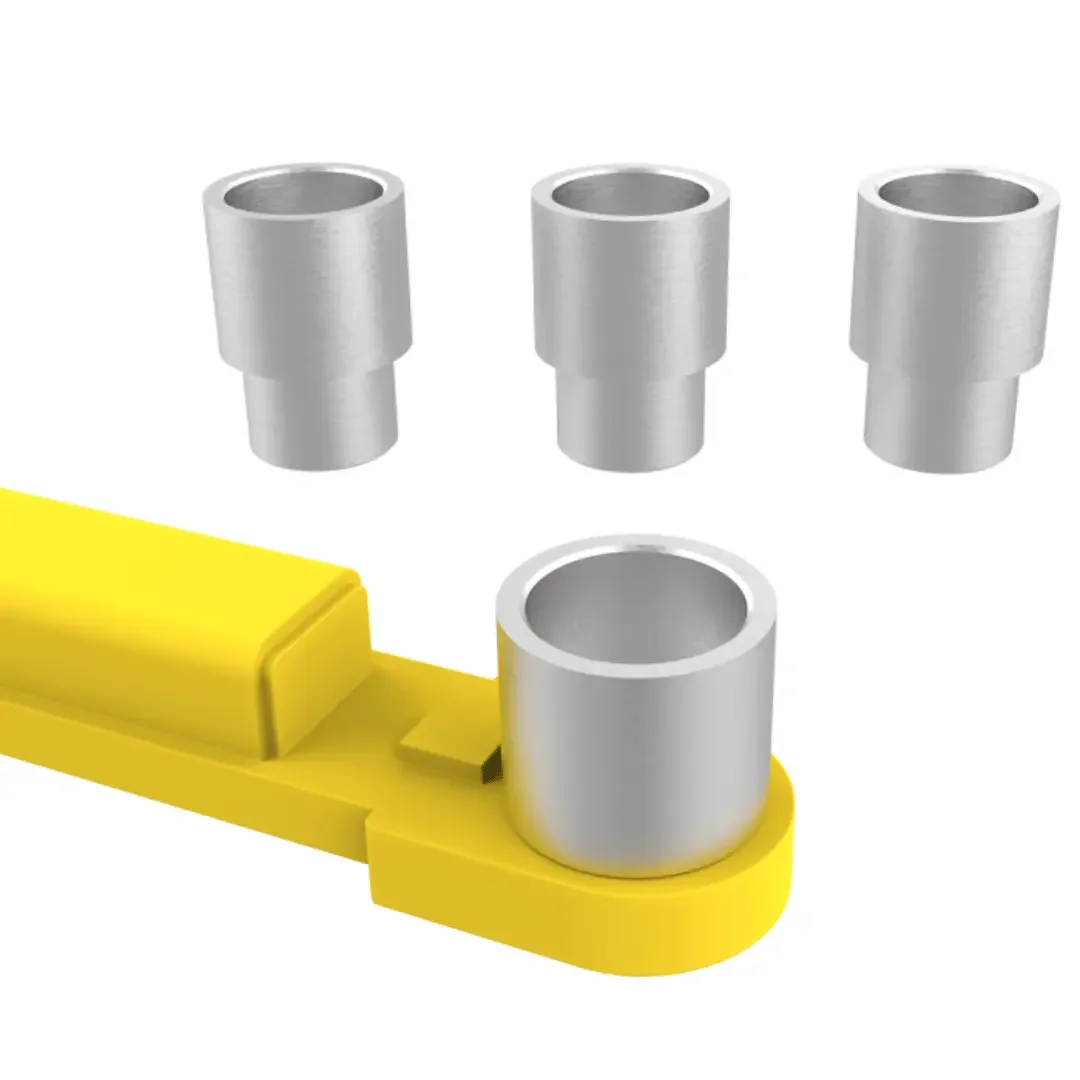

- 4-piece 63mm stackable adapter set included
- 10-piece concrete wedge anchors included
- 36-month limited warranty
Product Specifications
| Lifting capacity | 10,000 lbs. (4,536 kg) |
| Max. Capacity / Front Axle | 5,000 lbs. (2,268 kg) |
| Max. Capacity / Rear Axle | 5,000 lbs. (2,268 kg) |
| A - Height Overall | 148" (3,759 mm) |
| B - Width Overall (at Baseplate) | 137.5" (3,492 mm) |
| C - Width Outside of Columns | 128.5" (3,264 mm) |
| D - Floor to Overhead Switch Bar | 142.5" (3,619 mm) |
| E - Width Inside Columns | 114.5" (2,908 mm) |
| F - Front Arm Reach (Min.) | 22.5" (571 mm) |
| F - Front Arm Reach (Max.) | 43.25" (1,099 mm) |
| G - Rear Arm Reach (Min.) | 33.5" (845 mm) |
| G - Rear Arm Reach (Max.) | 53.25" (1,353 mm) |
| H - Min. Pad Height | 3.9" (100 mm) |
| I - Rise | 70" (1,778 mm) |
| J - Max. Lift Height (Pad + 63mm Adapt.) | 76.5" - 78.5" (1,943 - 1,994 mm) |
| K - Drive-Thru Clearance | 103" (2,618 mm) |
| Screw Pad Adjustment | 2" (51 mm) |
| Motor | 220 VAC / 60Hz / 1 Ph |
| Time of Full Rise | 65 seconds |
| Max. Load Per Arm | 2,500 lbs. (1,134 kg) |
| Shipping Weight | 1,545 lbs. (703 kg) |
Pick Up and Delivery
Our Pick Up locations for Bendpak/Dannmar/Ranger are located in Santa Paula, California & Theodore, Alabama.
Call, text, or chat with us if you have questions. 866-774-7743
Original: $4,195.00
-65%$4,195.00
$1,468.25
