2 Post Lifts | Katool KT-H115Z 11000 lb 2 Post Car Lift

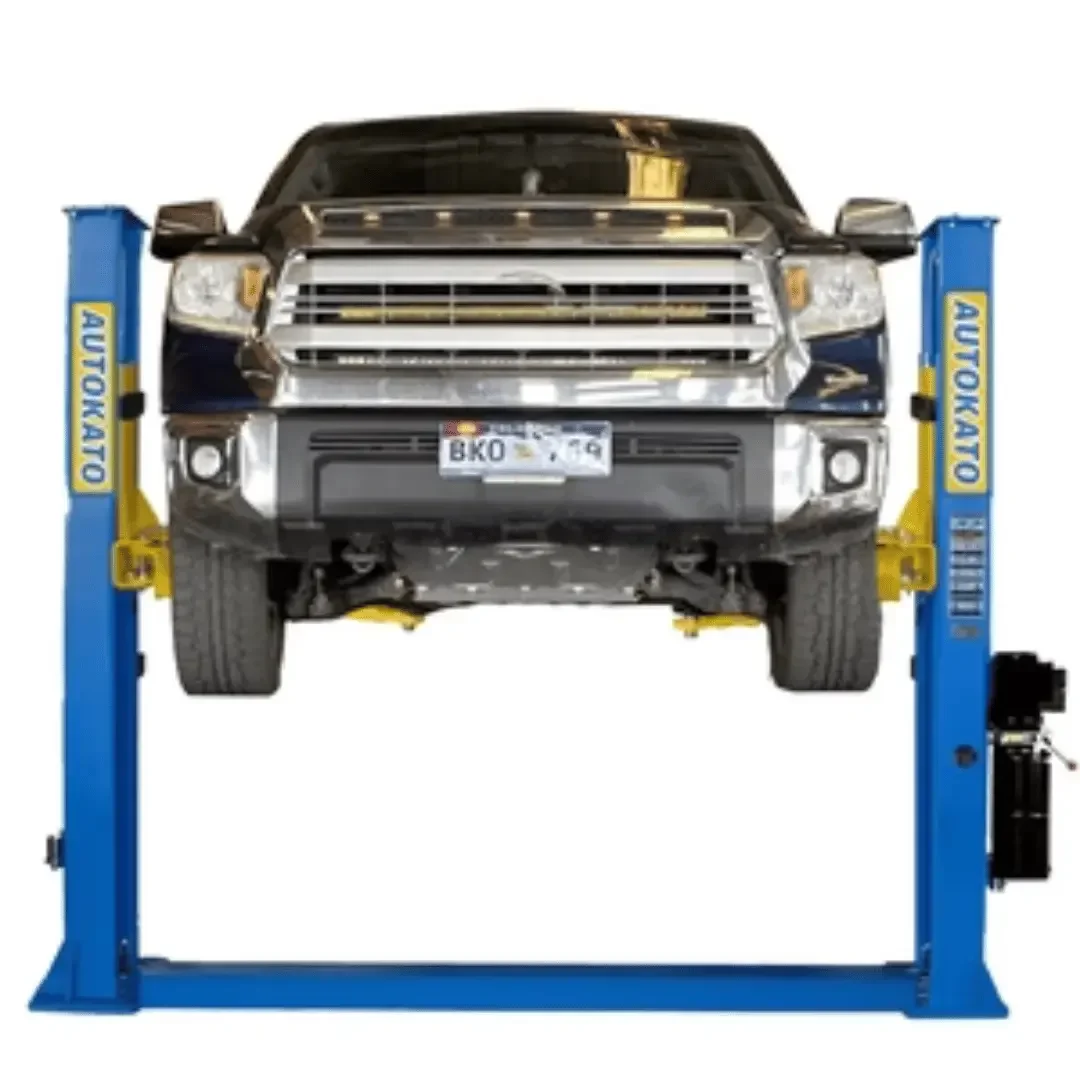

Katool KT-H115Z 11000 lbs 2 Post Professional Car Lift
The Katool KT-H115Z is a robust 2-post lift designed to handle up to 11,000 lbs, making it suitable for a variety of vehicles including cars, trucks, and SUVs. Its floor plate design ensures stability and durability, while the dual hydraulic chain-drive cylinders provide smooth and reliable lifting performance.
The lift operates on a 220V single-phase power supply, delivering 4.0HP to efficiently raise vehicles to a maximum height of 70.8 inches. Safety is prioritized with a manual safety release system accessible from both sides, and the lift is CE approved, meeting stringent safety standards. This lift is an excellent choice for automotive shops seeking a reliable and powerful solution for vehicle lifting needs.
Contact us for more information on Katool 2 post lifts.
Product Features
- 11000 lbs lifting capacity
- CE Approved and Certified,it has adopted 115% dynamic loading capacity and 150% loading capacity tested.
- Manual safety release from two side.
- Base plate design
- Dual Hydraulic Chain-Drive Cylinders
- Robber pad door opening protection.
- Screw-on pad and extension support adaptor sets +100mm
- Top level hydraulic system with 220V/60HZ/1PH
Product Specifications
| Lifting Capacity | 11000 lbs.(5000KG) |
| Max. Lifting Height | 70.8"/1800mm |
| Min. Height | 3.9"/100mm |
| Height Overall | 110.9"/2818mm |
| Width Overall | 140.4"/3565mm |
| Outside Column | 124.8"/3170mm |
| Inside Column | 110.2"/2800mm |
| Dirve-Thru Clearance | 98.4"/2500mm |
| Front Arm Reach(Min) | 29.5"/750mm(2 stages) |
| Front Arm Reach (Max) | 46"/1170mm(2 stages) |
| Rear Arm Reach(Min) | 35.4"/900mm(2 stages) |
| Rear Arm Reach(Max) | 58.2"/1480mm(2 stages) |
| Motor | 220VAC/60HZ/1PH/2.2KW |
| Net Weight | 570KG |
Pick Up and Delivery
Call, text, or chat with us if you have questions. 866-774-7743
Description
Katool KT-H115Z 11000 lbs 2 Post Professional Car Lift
The Katool KT-H115Z is a robust 2-post lift designed to handle up to 11,000 lbs, making it suitable for a variety of vehicles including cars, trucks, and SUVs. Its floor plate design ensures stability and durability, while the dual hydraulic chain-drive cylinders provide smooth and reliable lifting performance.
The lift operates on a 220V single-phase power supply, delivering 4.0HP to efficiently raise vehicles to a maximum height of 70.8 inches. Safety is prioritized with a manual safety release system accessible from both sides, and the lift is CE approved, meeting stringent safety standards. This lift is an excellent choice for automotive shops seeking a reliable and powerful solution for vehicle lifting needs.
Contact us for more information on Katool 2 post lifts.
Product Features
- 11000 lbs lifting capacity
- CE Approved and Certified,it has adopted 115% dynamic loading capacity and 150% loading capacity tested.
- Manual safety release from two side.
- Base plate design
- Dual Hydraulic Chain-Drive Cylinders
- Robber pad door opening protection.
- Screw-on pad and extension support adaptor sets +100mm
- Top level hydraulic system with 220V/60HZ/1PH
Product Specifications
| Lifting Capacity | 11000 lbs.(5000KG) |
| Max. Lifting Height | 70.8"/1800mm |
| Min. Height | 3.9"/100mm |
| Height Overall | 110.9"/2818mm |
| Width Overall | 140.4"/3565mm |
| Outside Column | 124.8"/3170mm |
| Inside Column | 110.2"/2800mm |
| Dirve-Thru Clearance | 98.4"/2500mm |
| Front Arm Reach(Min) | 29.5"/750mm(2 stages) |
| Front Arm Reach (Max) | 46"/1170mm(2 stages) |
| Rear Arm Reach(Min) | 35.4"/900mm(2 stages) |
| Rear Arm Reach(Max) | 58.2"/1480mm(2 stages) |
| Motor | 220VAC/60HZ/1PH/2.2KW |
| Net Weight | 570KG |
