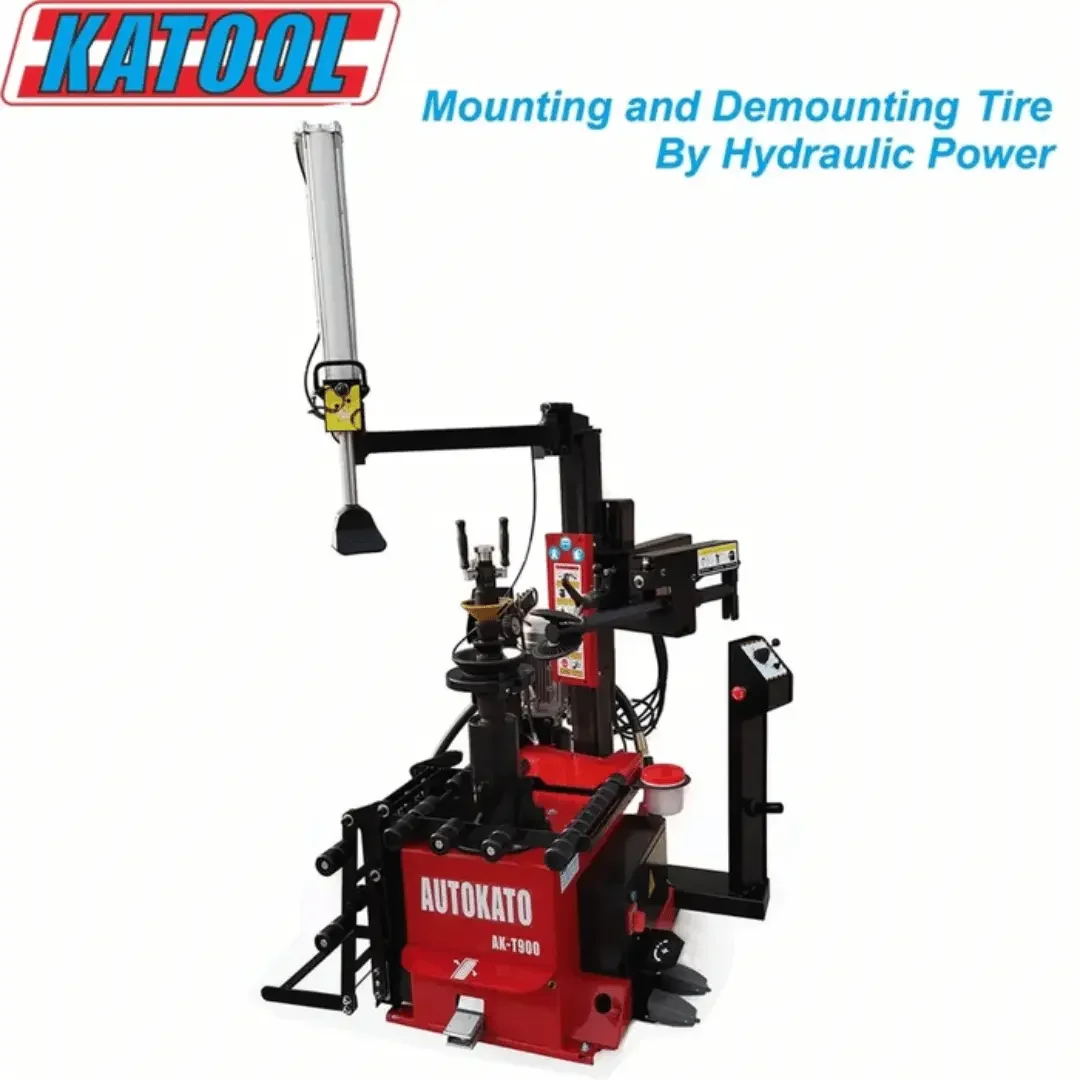

Katool KT-T900 Center Post Tire Changer Machine

The Katool KT-T900 Center Post Tire Changer is built for serious shop environments where versatility, strength, and operator efficiency matter most. Designed with an all-hydraulic power system, this machine handles virtually all car wheels with consistent force and control. Its 2.0 HP drive setup provides the torque needed for challenging tasks, while the hydraulic assist components help reduce operator strain and boost throughput in busy settings.

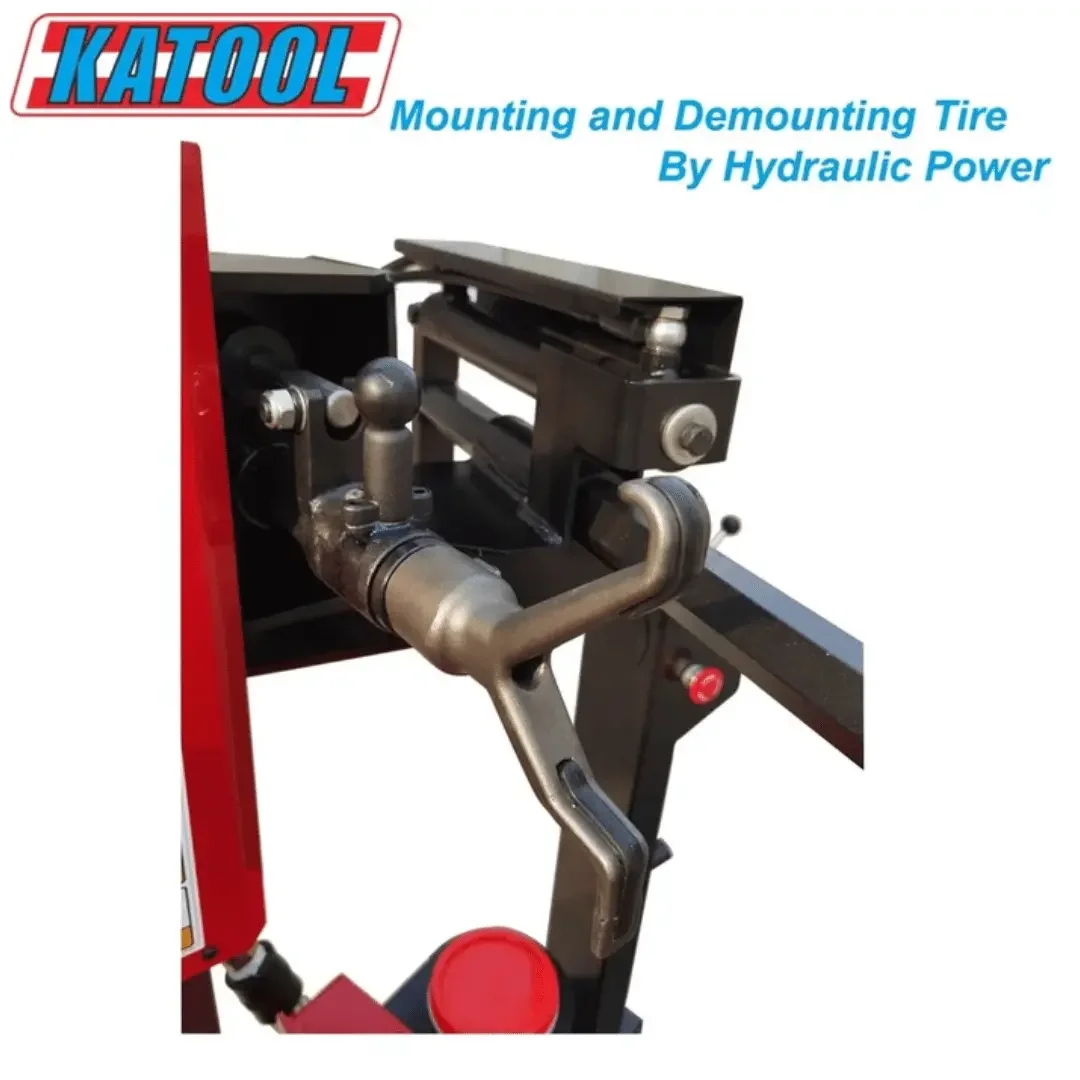

One of the defining features of the KT-T900 is its built-in top assist arm, which is especially useful for mounting and demounting run-flat and low-profile tires. These more rigid tires often resist conventional mounting techniques, but the assist arm gives the added leverage to manage them smoothly and reliably. Because it’s a leverless design, the mounting head is optimized to reduce risk to rims—stainless steel construction combined with protective covers guards the wheel surfaces. That means less cosmetic damage and fewer comebacks.

On top of that, the KT-T900 tire changer includes a wheel lift assistant device that helps to raise the wheel into position for easier alignment. This feature streamlines the process, letting the technician focus more on precise handling rather than struggling to position heavy rims. The motor has premium copper windings to help with efficient heat dissipation and long life under frequent use; that combination of thermal management and durability is key when you're running the changer all day.

The capability of this tire changer machine supports wheels up to 47 inches in diameter, with a clamping capability spanning 12 to 30 inches. It also handles wheel widths up to 16 inches. These ranges cover most passenger car and light truck wheels encountered in a typical shop environment, offering flexibility without pushing the machine beyond its design envelope. The rotation speed is about 6.8 RPM, which balances speed and operator control during the change cycle.

The hydraulic portion runs 1.1 kW (1.5 HP) capacity, paired with a 1.5 kW (2 HP) gearbox motor that ensures the mechanical side can meet the demands placed on it. Because the system is fully hydraulic, the power gets delivered smoothly with fewer mechanical linkages wearing out over time. The KT-T900 is designed to run on standard 110V, 1-phase, 60 Hz power, making it easier to place in many shop environments without special wiring.

Also integrated is a high-quality filter system to protect internal hydraulic components from contaminants. This kind of attention to fluid cleanliness greatly extends the reliable service life of the hydraulic system. The overall net weight of the machine is around 414 lb (188 kg), giving it enough mass to stay stable during operation without becoming unmanageable on the shop floor.

In sum, the Katool KT-T900 Center Post Tire Changer Machine offers a well-balanced package of hydraulic strength, intelligent assist mechanisms, and a smart operational envelope. It’s built to stay in the fight, handling demanding tire jobs day after day while protecting rims, aiding operators, and delivering consistent performance.
