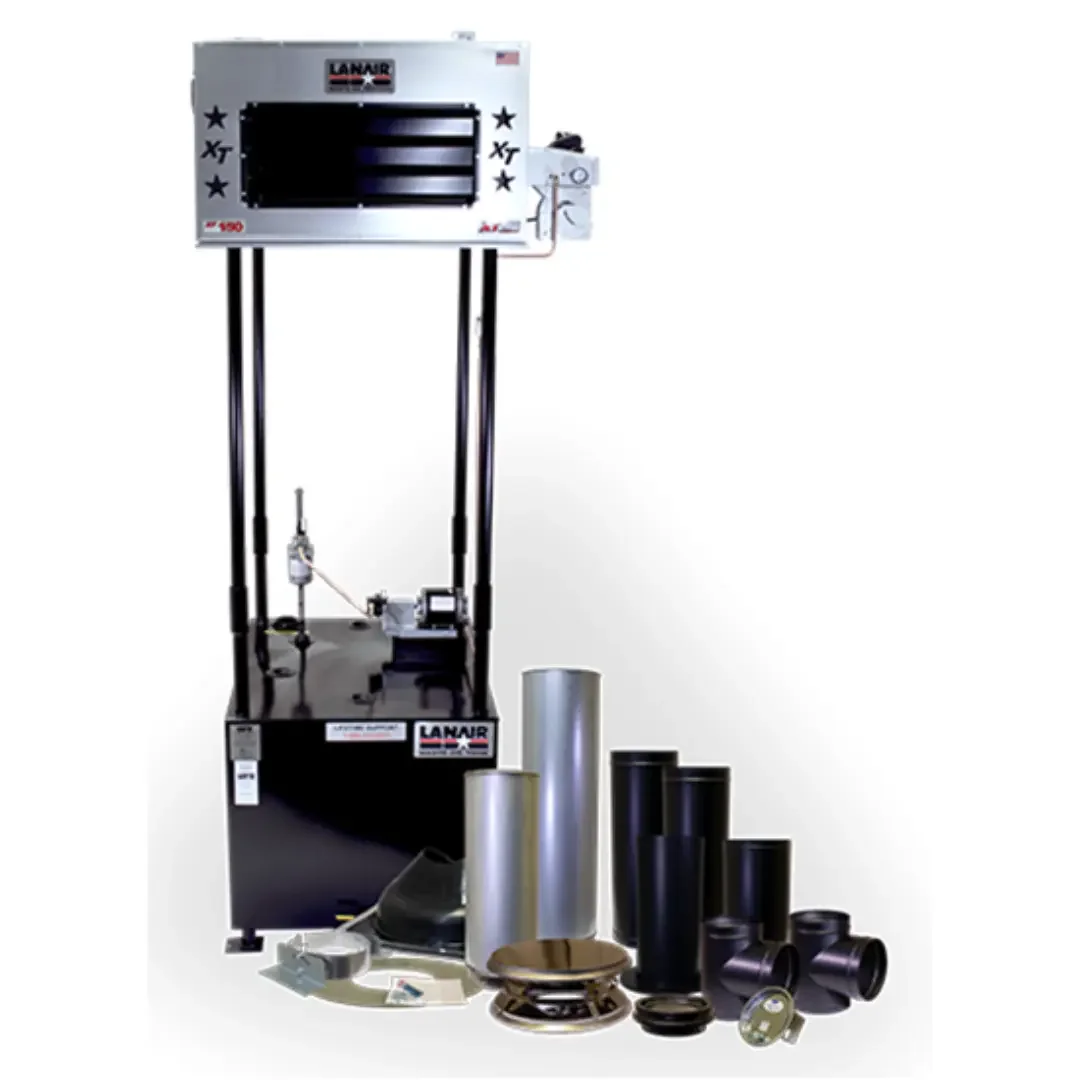

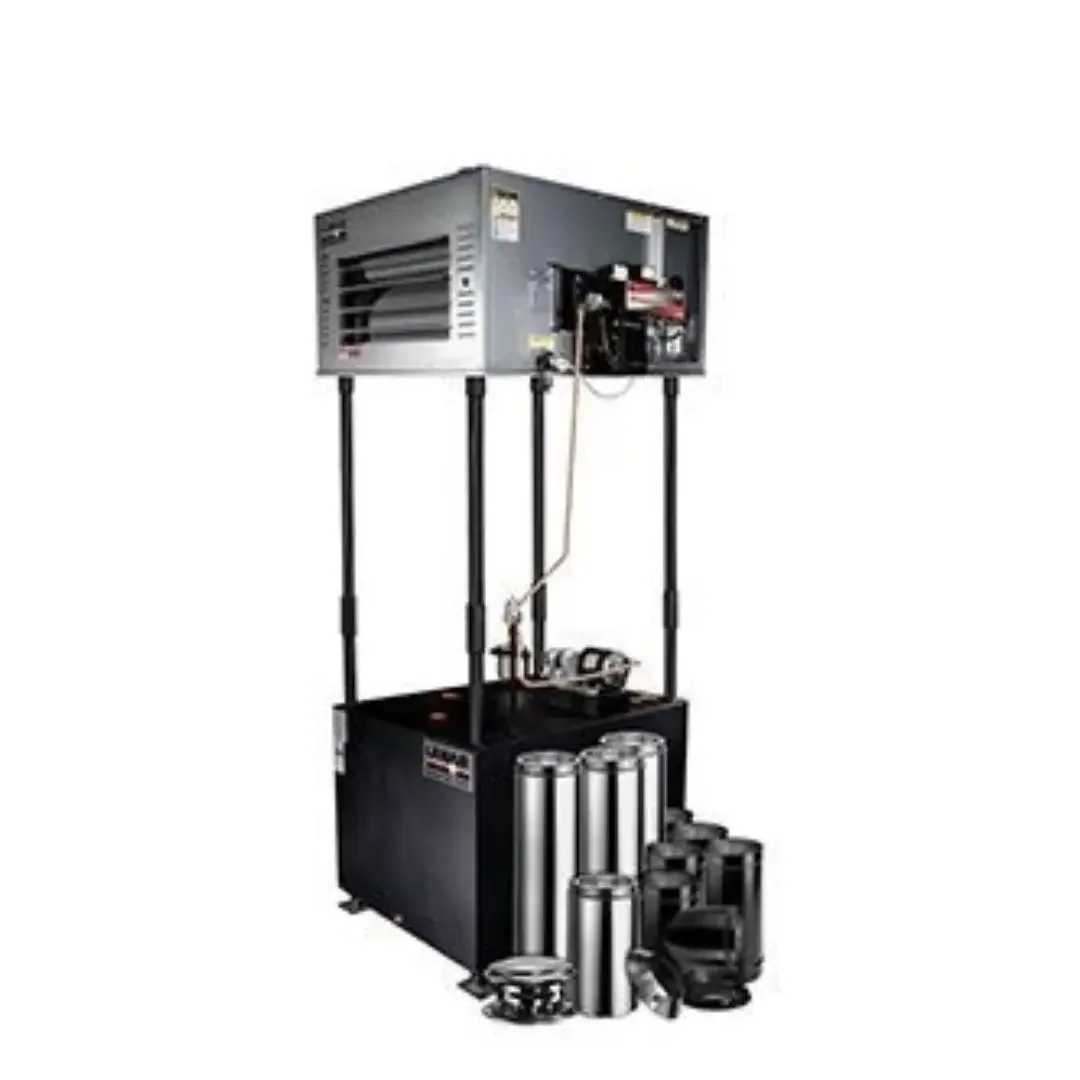

LANAIR XT150 Waste Oil Heater Value Package 3
LANAIR XT150 Waste Oil Heater Value Package 3
*Note - This value package is a roof-mount vent

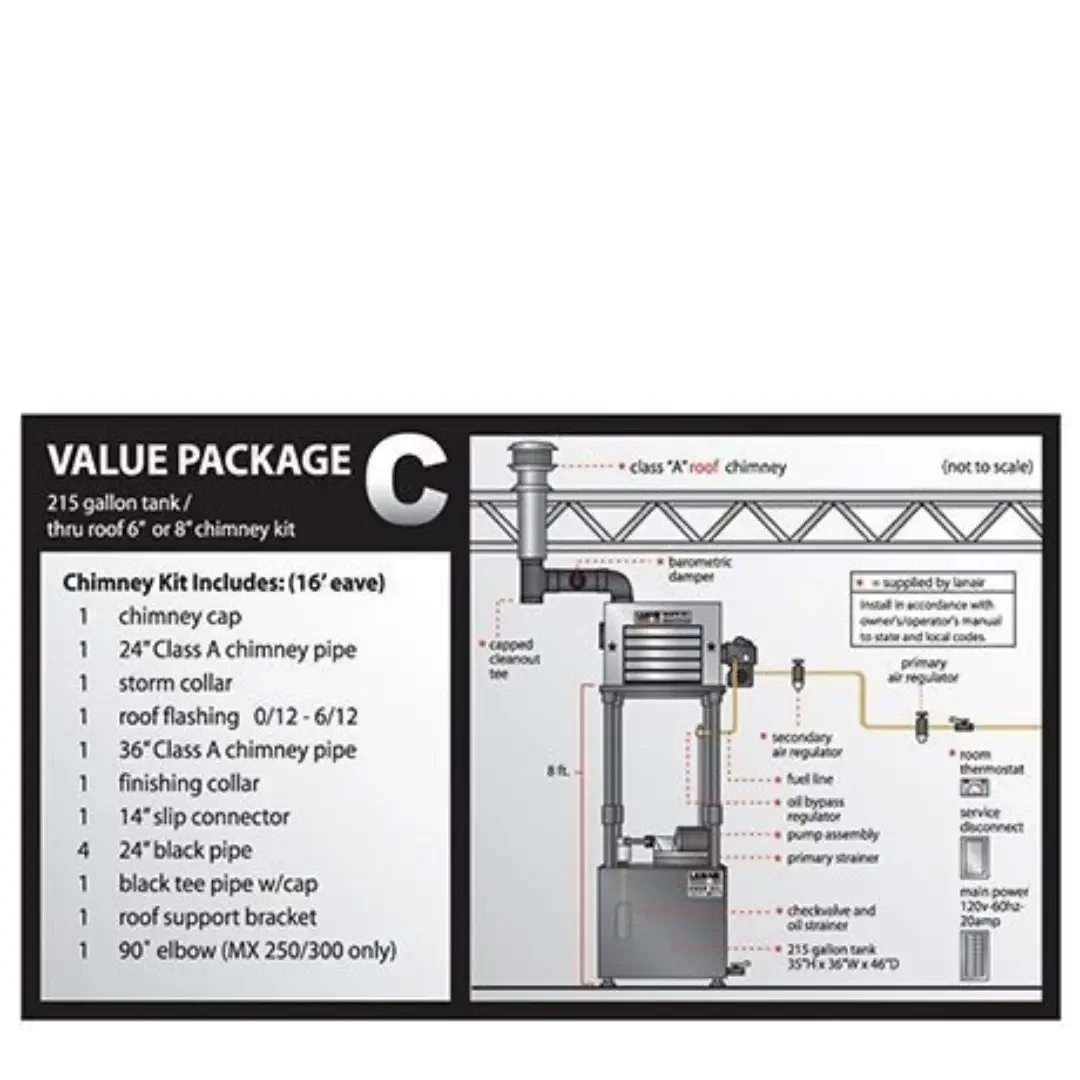

Heater with 215 gallon tank and thru roof 6" chimney kit: Chimney Kit Includes (16' eave): 1 chimney cap, 1 (24") Class A chimney pipe, 1 storm collar, 1 roof flashing 0/12-6/12, 1 (36") Class A chimney pipe, 1 finishing collar, 1 (14") slip connector, 4 (24") black pipe, 1 black tee pipe w/cap, 1 roof support bracket, 1 (90°) elbow
The XT Series heaters by Lanair are our most advanced units to date. We combine the latest burner technology with the latest lean manufacturing efficiencies to produce a quality, reliable heater at the lowest price in the industry. Factor in unstable fuel prices and escalating disposal costs and you'll see that purchasing a Lanair XT Series Heater is indeed... "The Right Choice at the Right Time!"
The XT-150 Waste Oil Heater is our smallest unit pushing out up to 150,000 BTU's an hour. It features a fine grained galvanized (rust-resistant) cabinet to protect it in most shop environments, a high performance XT series burner that burns more efficient than any other burners to date, an internal fan to reduce excess noise in your shop, and adjustable locking louvers to direct air flow. All our units are UL listed so you can be assured that safety is a high priority with all Lanair products.
Product Specifications
| Heat Range (BTUH) | 150,000 |
| Fuel Input (GPH) | 1.07 |
| Fuel Type | Waste oil (used crankcase oil up to 50 wt), used synthetic oil, used #1 and #2 fuel oil, used C.C. synthetic ATF #1 and #2, used automatic transmission fluid |
| Heating Area (sq. ft.) | 3,500 |
| Power Supply (AC) | 120 V-60Hz 20 Amps |
| Cabinet Dimensions (L x W x H) | 24" x 40.25" x 48" |
| Hanging Weight (lbs.) | 413 |
| Axial Fan (CFM) | 2,600 |
| Chimney Pipe | 6" Class A |
| Compressed Air | 2 CFM – 12-15 PSI |
| Combustion Chamber | 12 Gauge CRS |
| Ductable Option | Call |
| Chimney Location | Top and Side |
Downloads
Brochure
Manual
Warranty
Original: $9,810.27
-65%$9,810.27
$3,433.59
Description
LANAIR XT150 Waste Oil Heater Value Package 3
*Note - This value package is a roof-mount vent
Heater with 215 gallon tank and thru roof 6" chimney kit: Chimney Kit Includes (16' eave): 1 chimney cap, 1 (24") Class A chimney pipe, 1 storm collar, 1 roof flashing 0/12-6/12, 1 (36") Class A chimney pipe, 1 finishing collar, 1 (14") slip connector, 4 (24") black pipe, 1 black tee pipe w/cap, 1 roof support bracket, 1 (90°) elbow
The XT Series heaters by Lanair are our most advanced units to date. We combine the latest burner technology with the latest lean manufacturing efficiencies to produce a quality, reliable heater at the lowest price in the industry. Factor in unstable fuel prices and escalating disposal costs and you'll see that purchasing a Lanair XT Series Heater is indeed... "The Right Choice at the Right Time!"
The XT-150 Waste Oil Heater is our smallest unit pushing out up to 150,000 BTU's an hour. It features a fine grained galvanized (rust-resistant) cabinet to protect it in most shop environments, a high performance XT series burner that burns more efficient than any other burners to date, an internal fan to reduce excess noise in your shop, and adjustable locking louvers to direct air flow. All our units are UL listed so you can be assured that safety is a high priority with all Lanair products.
Product Specifications
| Heat Range (BTUH) | 150,000 |
| Fuel Input (GPH) | 1.07 |
| Fuel Type | Waste oil (used crankcase oil up to 50 wt), used synthetic oil, used #1 and #2 fuel oil, used C.C. synthetic ATF #1 and #2, used automatic transmission fluid |
| Heating Area (sq. ft.) | 3,500 |
| Power Supply (AC) | 120 V-60Hz 20 Amps |
| Cabinet Dimensions (L x W x H) | 24" x 40.25" x 48" |
| Hanging Weight (lbs.) | 413 |
| Axial Fan (CFM) | 2,600 |
| Chimney Pipe | 6" Class A |
| Compressed Air | 2 CFM – 12-15 PSI |
| Combustion Chamber | 12 Gauge CRS |
| Ductable Option | Call |
| Chimney Location | Top and Side |
Downloads
Brochure
Manual
Warranty
