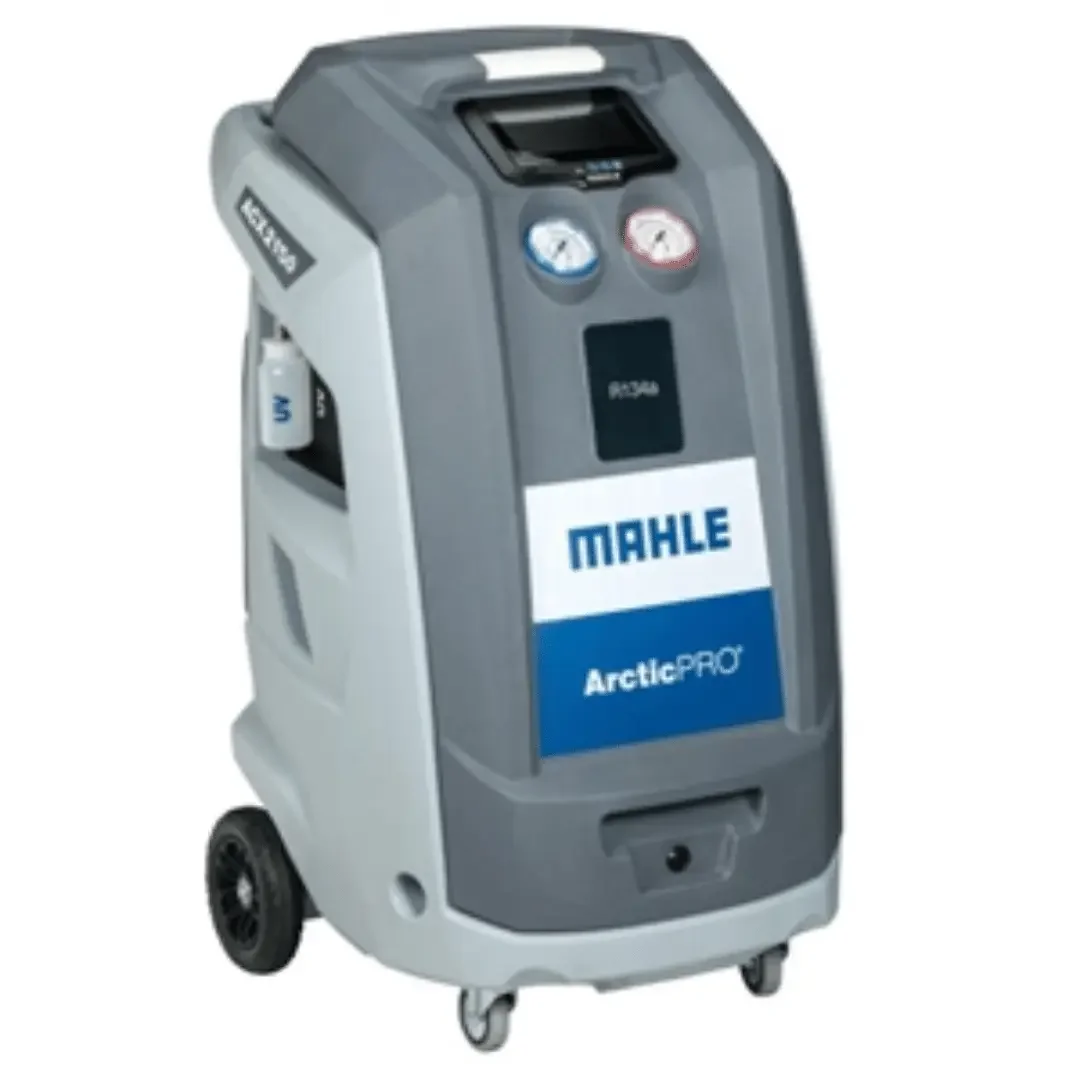

Mahle ACX2150 ArcticPRO® R134a Refrigerant Handling System
Mahle ACX2150 ArcticPRO® R134a Refrigerant Handling System
The MAHLE ArcticPRO ACX2150 is a fully automatic R134a refrigerant handling system designed to optimize efficiency and minimize technician involvement. Its ergonomic design features a 7-inch capacitive touch LCD display, intuitive user interface, and LED status light visible across the workshop, making operations straightforward and highly accessible. You’ll appreciate the hinged service door for easier servicing and wireless software updates to keep the system current without downtime.
When it comes to function, the ACX2150 automatically weighs recovered oil and injects precisely the right amount back into the system. It also integrates UV dye injection for improved leak detection, and offers optional refrigerant identification to prevent cross-contamination. WiFi-enabled with remote support capabilities, this machine allows MAHLE technicians to troubleshoot settings or assist in real time. Logging and analytics features help shops track service records, manage refrigerant usage, and print job summaries when paired with optional network or thermal printers.
Built for demanding environments, the unit meets SAE J2788, J2099, and UL 1963 standards, offers ±0.5 oz. charging accuracy and achieves up to 95% recovery within 30 minutes at 70–75°F. It handles up to a 30 lb DOT cylinder and pairs with a standard 120 VAC, 12 amp line. At 47 inches tall and weighing approximately 215 lbs, it features 9-foot hoses, spin-on filter-drier capacity of up to 150 lbs, and support for lubrication-intensive tasks through its 2 CFM dual-stage vacuum pump.
Product Features
- State-of-the-Art. Ergonomic design, 7" capacitive touch LCD display, and intuitive user interface sets a new industry standard.
- Status Indicator. LED light indicates status visible from anywhere in the workshop.

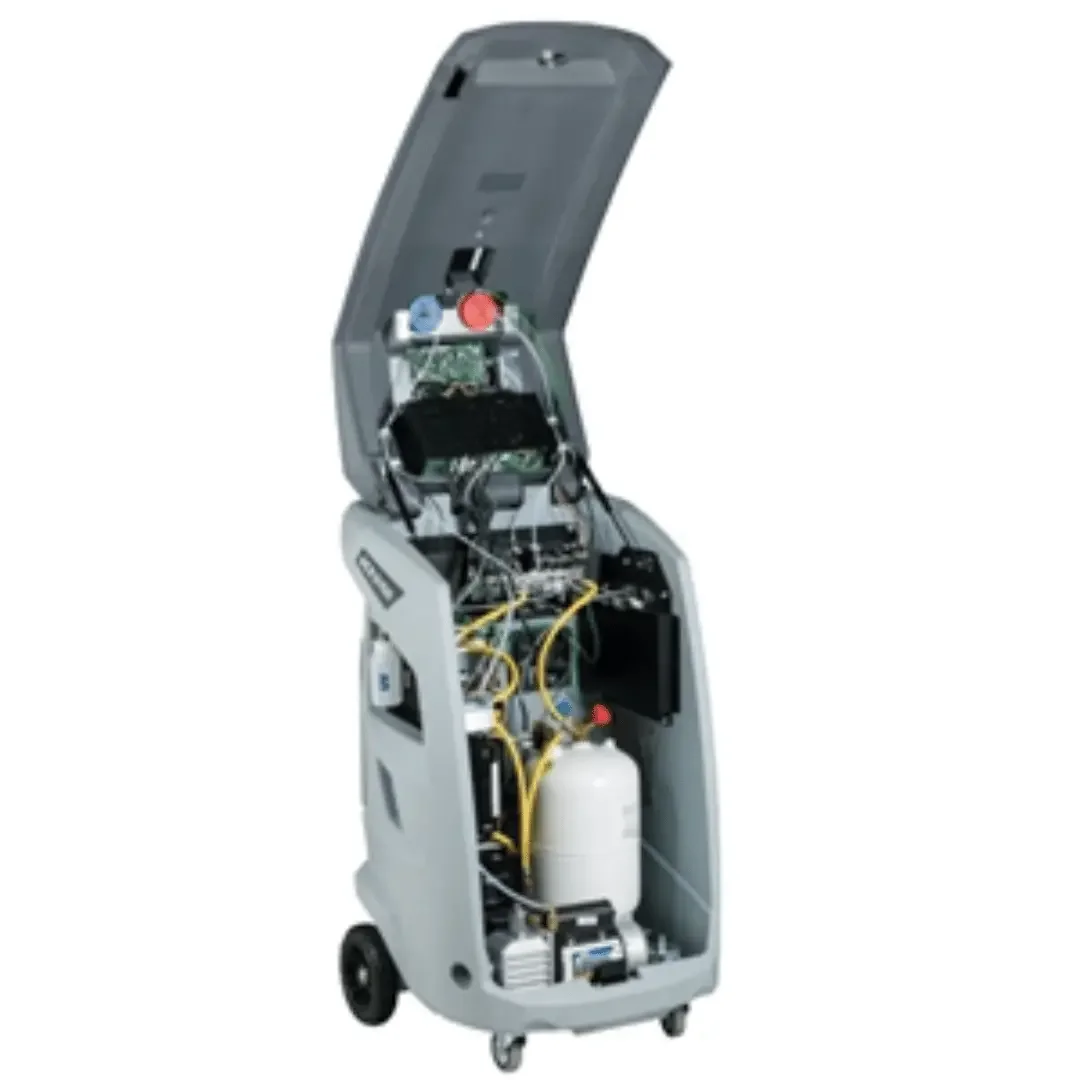

- Best In Class Serviceability. New ergonomic hinged service door simplifies unit service.
- Automatic Updates. Permanent wireless software updates, ensuring you always have the latest features.
- Oil System Management. Automatic weighing of recovered oil with on-board oil-injection allows accurate replenishment of oil removed during service.
- UV Dye Injection. Integrated UV dye injection provides high level of A/C system leak detection.
- Remote Support for Technicians. Allows MAHLE to connect to a unit over WiFi for troubleshooting and advanced support.
- Data Management & Reporting Metrics. Ability to log and monitor services allowing analytics for proactive service reminders, refrigerant use optimization, warranty reporting and more.
- Customer Service. Every unit is built to be easily repaired by the owner and we proudly offer nationwide service centers and lifetime phone support coverage and a two year standard warranty.
- Network Printing. Retains valuable service records, network printing capability to print services provided for customer.
- Optional thermal printer allows printing of service reports.
- Optional refrigerant identifier prevents contamination of machine internals.
- Optional iOS and Android capable phone app allowing remote service session mirroring and advanced functions
Includes
- #023 80095 00 Quick Release High Side Coupling R134A
- #023 80096 00 Quick Release Low Side Coupling R134A
- #028 80532 00 Red Hose R134A
- #028 80533 00 Blue Hose R134A
Product Specifications
| Model | ACX2150 |
| Certifications | SAE J2788, SAE J2099, UL 1963 |
| Charge Performance | +/- 0.5 oz. at 70° to 75°F (+/- 15g at 21° to 24°C) |
| Recovery Performance | 95% at 70° to 75°F (21° to 24°C) within 30 minutes |
| Operation | Fully Automatic |
| Charging Cylinder | 30 lb. (13.6 kg) DOT |
| Compressor | 3/8 HP-0.279kW |
| Display | Color, 7” Capacitive Touch Screen |
| Filter-Drier Capacity | 150 lb. (68kg)spin-on type |
| Hoses | 9 ft. (2.75 m) |
| Languages | English, French, Spanish |
| Operating Ranges | 50° - 122°F (10°-50°C) |
| Power Source | 120 VAC - 60 HZ - 12 AMP |
| Printer | Optional |
| Vacuum Pump | 2 CFM dual stage |
| Dimensions | 47" H x 29" W x 29" D (119 cm x 74 cm x 74 cm) |
| Weight | 215 lb. (98 kg) |
