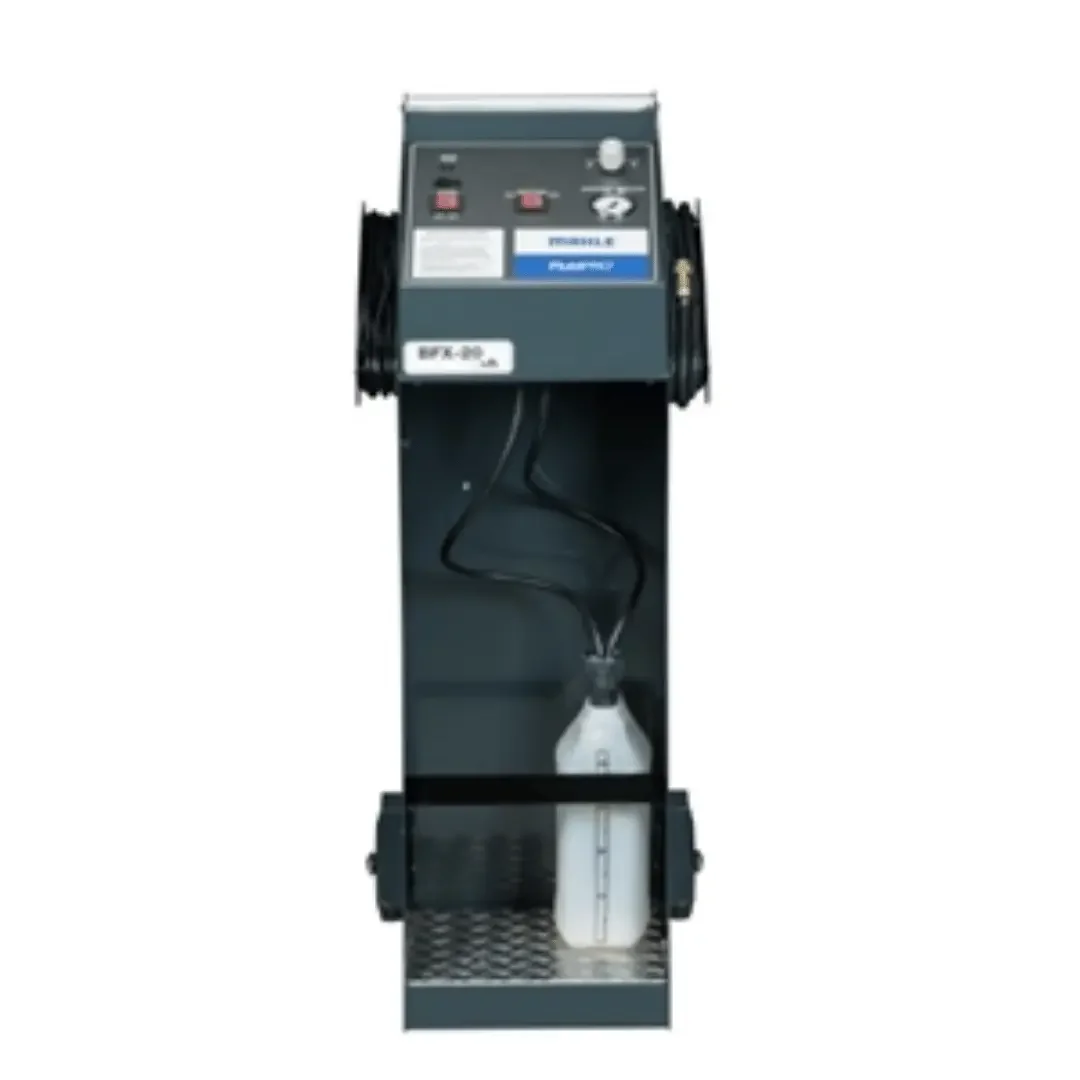

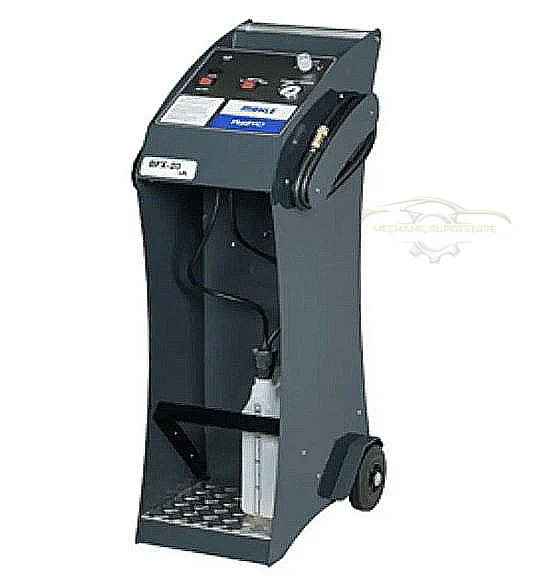

Mahle BFX-20 Brake Fluid Exchanger
Mahle BFX-20 Brake Fluid Exchanger
The MAHLE FluidPRO BFX-20 Brake Fluid Exchanger is a professional-grade machine engineered to streamline brake fluid replacement with efficient, one-person operation. Designed for use on a wide range of vehicles including those equipped with ABS, ESP, EDS, and SBC systems, it uses a hydraulic pump and an infinitely variable pressure regulator to deliver a consistent pulsating flow, effectively removing air bubbles from the brake system for safer, cleaner exchanges.
This unit pushes fresh brake fluid from its integrated 5-liter reservoir directly into the vehicle’s master cylinder while simultaneously extracting the old fluid. Its automatic shut-off feature activates when the reservoir is empty, and it safely releases pressure after each service, eliminating the need for manual venting during fluid changes. The BFX-20 includes an 11.3-foot hose for extended reach around the service bay, and its compact design features a removable tool tray that stores adapters and accessories for easy access.
Weighing only 46 pounds, this brake fluid exchanger maintains a small footprint at approximately 40 inches high, 16 inches wide, and 16 inches deep, making it easy to maneuver and store. It operates on standard 110-volt power, and select configurations include a complete adapter kit to accommodate nearly all vehicle makes and models.
Warranty: 1 year parts and labor
Product Features
- Does Not Include Adapters
- Fitted with an infinitely variable pressure regulator
- Suitable for ABS, ESP, EDS, and SBC
- Hydraulic pump
- Pulsating fluid flow to pressurize air bubbles out of the braking system
- Automatic switch-off on empty container
- Pressureless decoupling from vehicle
- Venting of device during container changeover not necessary
- Additionally fitted with the BFX PLUS extraction system
- One-man operation via mobile device is possible
- Removable tool tray
- Without adapters: P/N 425 80011 00 / Adapters included (P/N 425 80014 00)
Product Specifications
| Model | BFX-20 |
| Working Pressure | 5-50 psis |
| Max. Container Size | 5L / 1.3 gal |
| Filling Hose Length | 11.3 ft |
| Power Supply | 110V / 60Hz |
| Dimensions | 40″ H x 16″ W x 16″ L |
| Weight | 46 lbs |
