Quincy Air Compressor 120 Gallon Two Stage

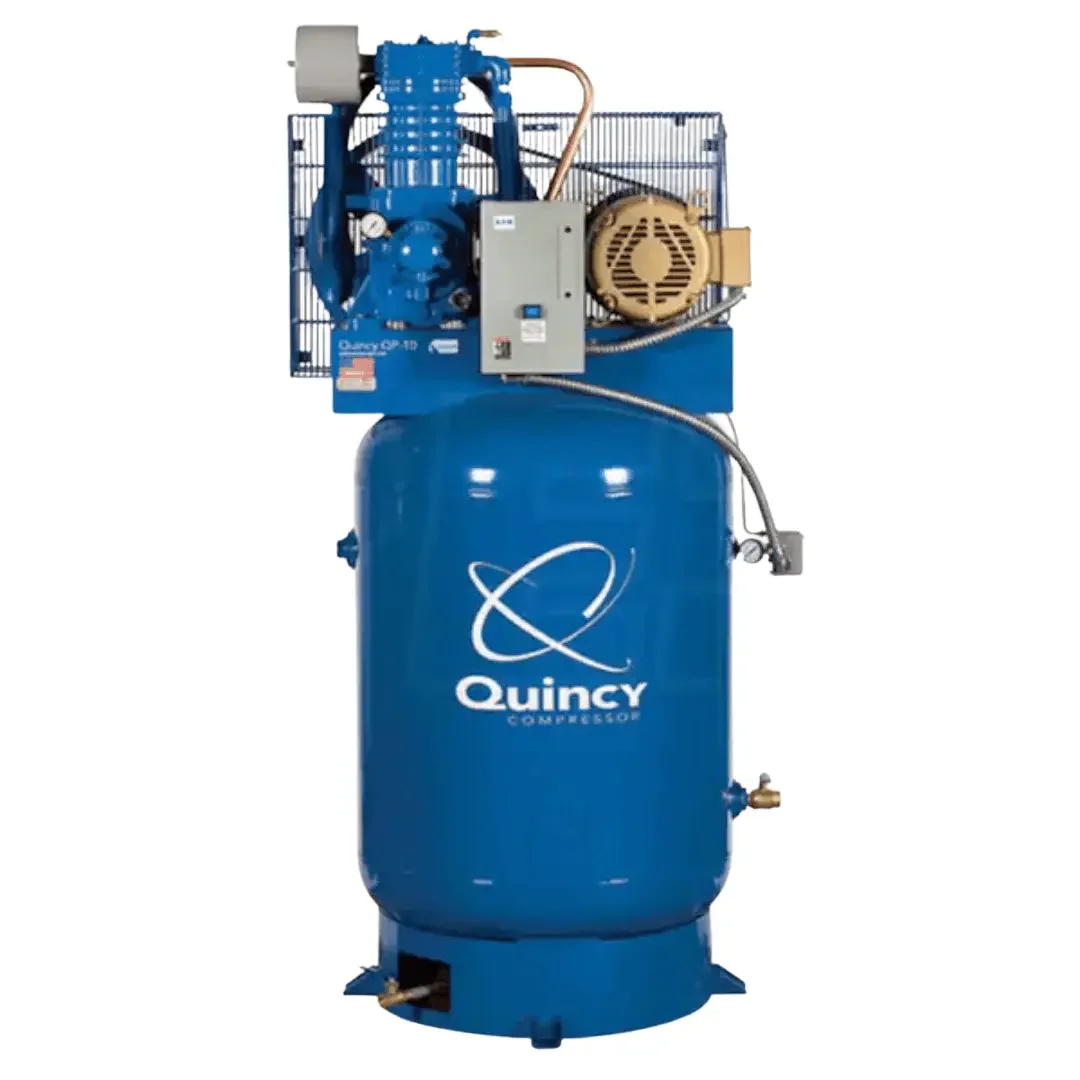

Quincy 5103DS12VCA23 QP Pro 10-HP 120-Gallon Pressure Lubricated Two-Stage Air Compressor (230V 3-Phase)
This Quincy model is built for industrial workspaces needing steady, high-capacity air output. It features a powerful 10 HP motor running on 230 volts with Three Phase power, delivering reliable performance for heavy-duty tasks.
The pressure-lubricated two-stage pump uses cast iron cylinders paired with aluminum heads to ensure efficient heat management and durability during extended operation. Its 120-gallon vertical tank stores enough air to reduce motor cycling and maintain consistent pressure. Designed with maintenance in mind, this compressor includes features to protect internal components and simplify upkeep, making it a solid choice for automotive shops, manufacturing facilities, and other industrial settings where uptime is critical.
Product Features
- Fully Pressure Lubricated 2-Stage Compressor
- Gerotor Positive Displacement Oil Pump
- Spin-On Oil filter
- Stainless Steel Reed Valves With Valve Bumpers
- Graphite Cylinder & Head Gaskets
- Electronically Balanced Fan-Type Cast Iron Flywheel
- Cast Iron Cylinders, High-Efficiency Fin & Tube Intercooler
- One Year Factory Warranty
Product Specifications
General Information
| Product Category | Air Compressor - Stationary |
Motor
| Voltage | 230 Volt AC |
| Phase | Three Phase |
| Magnetic Starter | Yes |
| Amp Draw | 28 |
| Recommended Breaker | Consult Certified Electrician |
Engine
| HP | 10 |
Pump
| CFM | 35 |
| CFM Rated @ | 175 PSI |
| Pump Material | Cast Iron w/ Aluminum Head |
| Max PSI | 175 PSI |
| Oil Sight Glass | Yes |
| Pump Type | Two-Stage |
| After Cooler | No |
| Pump Drive | Belt Drive |
| Oil Type | Oil Lubricated |
| Oil System | Splash Lubricated |
| Pump Low Oil Shut-off | No |
Tank
| Tank Size | 120 Gallons |
| Tank Outlet | 3/4 Inch |
| Electronic Drain Valve | No |
| Tank Orientation | Vertical |
Accessories
| Air Dryer | No |
Overview
| Weight | 850 Pounds |
| Certification | ASME. UL, CSA |
| Consumer Warranty | 1 Year |
| Commercial Warranty | 1 Year |
| Product Length | 40 Inches |
| Product Width | 30 Inches |
| Product Height | 75 Inches |
| Power Type | Electric |
Downloads
Brochure
Manual
Warranty
