Quincy Air Compressor 4103D12HCB20M QT Max 10 HP 120 Gallon Two Stage 208V 3 Phase

Quincy Air Compressor 4103D12HCB20M QT Max 10 HP 120 Gallon Two Stage 208V 3 Phase

Quincy 4103D12HCB20M QT MAX 10-HP 120-Gallon Two-Stage Air Compressor (208V 3-Phase)

This heavy-duty industrial air compressor is built for reliability and longevity, featuring a pump life exceeding 50,000 hours. Its splash-lubricated, cast-iron pump ensures dependable operation, while the 1750 rpm industrial motor delivers continuous power to keep your business running efficiently. An extra capacity oil reserve enhances durability, and built-in air-cooled aftercoolers with a temperature-driven variable speed fan provide effective heat removal during extended use.

The high-efficiency finned intercooler reduces air temperature for maximum performance. Equipped with a magnetic starter for thermal overload protection, the unit also includes an automatic electronic tank drain to eliminate daily maintenance, reduce moisture in air lines, and protect the tank from rust.

A low oil cut-off switch safeguards the pump if oil levels drop too low. This compressor comes with a one-year factory warranty, which extends to a three-year “No Bull” warranty with the purchase of the EWK-4 Maintenance Kit at the time of purchase. The extended warranty covers on-site service and labor for added peace of mind.

Product Features

  • Heavy-Duty Industrial Air Compressor
  • Built In Air-Cooled Aftercoolers
  • High-Efficiency Finned Intercooler
  • Magnetic Starter
  • Automatic Electronic Tank Drain
  • Low Oil Cut-Off Switch
  • 1-Year Factory Warranty - Extends To 3-Year "No Bull" Warranty

Product Specifications

General Information

Product Category Air Compressor - Stationary

Motor

Voltage 208 Volt AC
Phase Three Phase
Magnetic Starter Yes
Amp Draw 32.2
Recommended Breaker Consult Certified Electrician

Engine

HP 10

Pump

CFM 35
CFM Rated @ 175 PSI
Pump Material Cast Iron w/ Aluminum Head
Max PSI 175 PSI
Oil Sight Glass Yes
Pump Type Two-Stage
After Cooler Yes
Pump Drive Belt Drive
Oil Type Oil Lubricated
Oil System Splash Lubricated
Pump Low Oil Shut-off Yes

Tank

Tank Size 120 Gallons
Tank Outlet 1 Inch
Electronic Drain Valve Yes
Tank Orientation Horizontal

Accessories

Air Dryer No

Overview

Weight 850 Pounds
Certification ASME. UL, CSA
Consumer Warranty 1 Year
Commercial Warranty 1 Year
Product Length 78 Inches
Product Width 28 Inches
Product Height 55 Inches
Power Type Electric

Downloads

Brochure
Manual
Warranty

$7,545.00
Quincy Air Compressor 4103D12HCB20M QT Max 10 HP 120 Gallon Two Stage 208V 3 Phase
$7,545.00

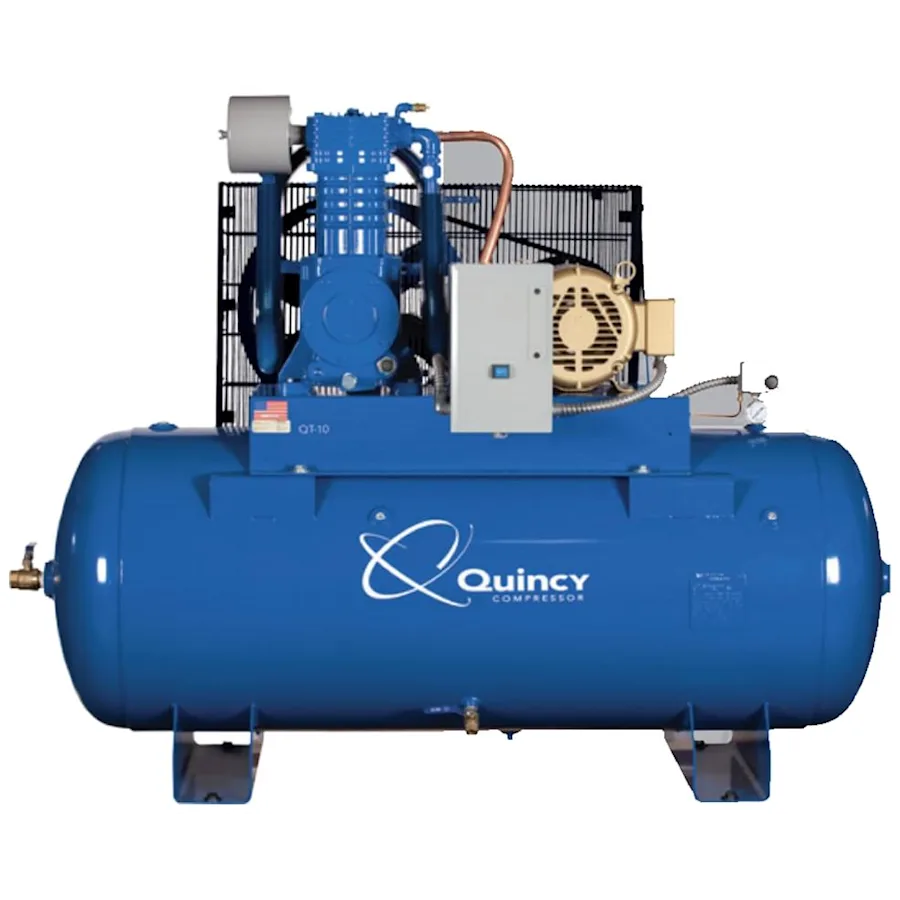

Product image 1
