Quincy Air Compressor 15 HP 120 Gallon Two Stage 460V 3 Phase

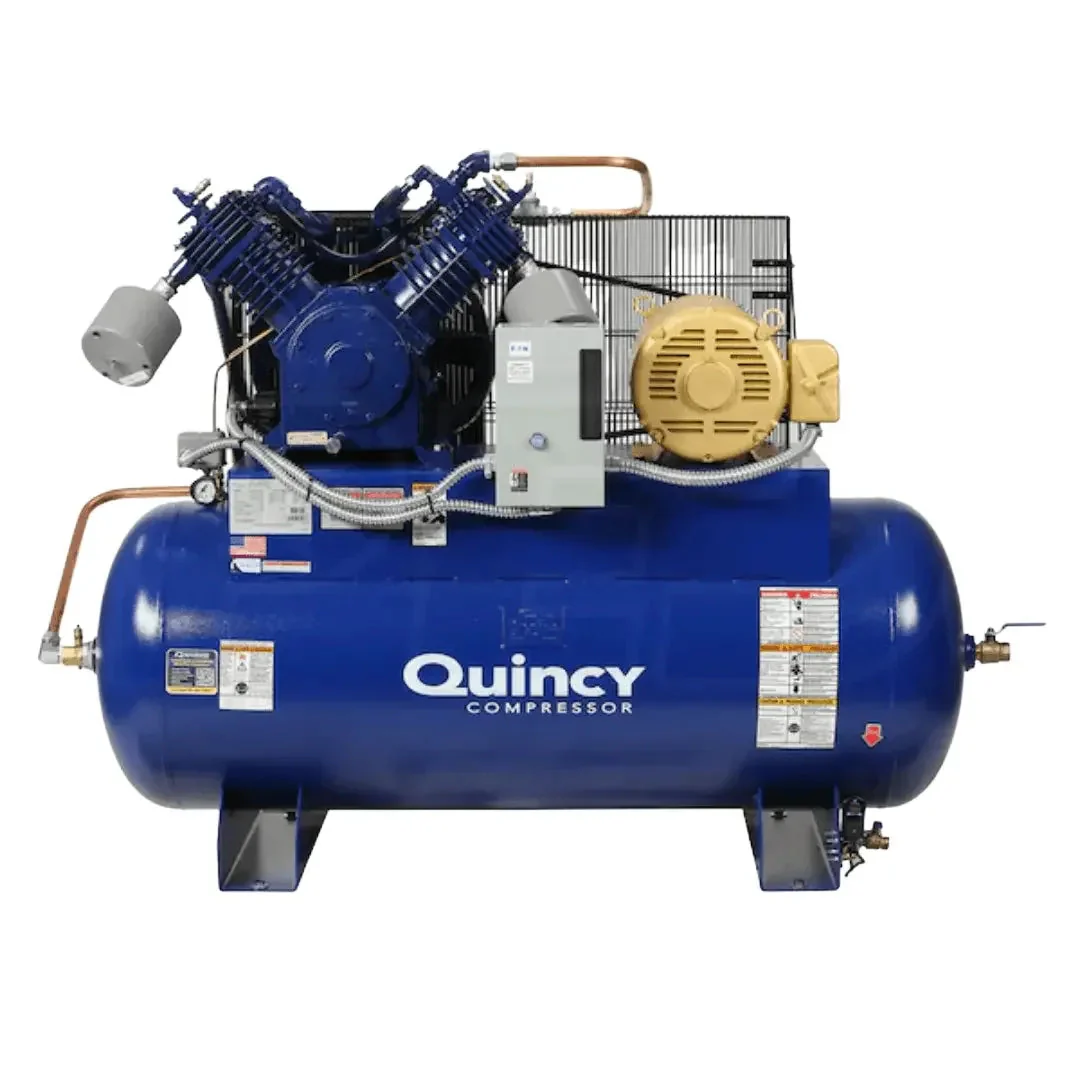

Quincy 4153D12HCA46M QT MAX 15-HP 120-Gallon Two-Stage Air Compressor (460V 3-Phase)
Built to endure the toughest industrial demands, this air compressor offers over 50,000 hours of pump life thanks to its splash-lubricated cast-iron pump design. The 1750rpm motor provides steady, continuous power, ensuring your operations run smoothly without interruption. Enhanced cooling features—including built-in air-cooled aftercoolers and a temperature-controlled variable speed fan—help maintain optimal operating temperatures for maximum efficiency.
Maintenance is simplified with an automatic electronic tank drain that prevents moisture accumulation and a low oil cut-off switch that protects the pump from damage. Thermal overload protection via a magnetic starter adds an extra layer of safety.
For warranty information please see the below link.
Product Features
- Heavy-Duty Industrial Air Compressor
- Built In Air-Cooled Aftercoolers
- High-Efficiency Finned Intercooler
- Magnetic Starter
- Automatic Electronic Tank Drain
- Low Oil Cut-Off Switch
- 1-Year Factory Warranty - Extends To 3-Year "No Bull" Warranty
Product Specifications
General Information
| Product Category | Air Compressor - Stationary |
Motor
| Voltage | 460 Volt AC |
| Phase | Three Phase |
| Magnetic Starter | Yes |
| Amp Draw | 21 |
| Recommended Breaker | Consult Certified Electrician |
Engine
| HP | 15 |
Pump
| CFM | 51 |
| CFM Rated @ | 175 PSI |
| Pump Material | Cast Iron w/ Aluminum Head |
| Max PSI | 175 PSI |
| Oil Sight Glass | Yes |
| Pump Type | Two-Stage |
| After Cooler | Yes |
| Pump Drive | Belt Drive |
| Oil Type | Oil Lubricated |
| Oil System | Splash Lubricated |
| Pump Low Oil Shut-off | Yes |
Tank
| Tank Size | 120 Gallons |
| Tank Outlet | 1 Inch |
| Electronic Drain Valve | Yes |
| Tank Orientation | Horizontal |
Accessories
| Air Dryer | No |
Overview
| Weight | 923 Pounds |
| Certification | ASME. UL, CSA |
| Consumer Warranty | 1 Year |
| Commercial Warranty | 1 Year |
| Product Length | 78 Inches |
| Product Width | 28 Inches |
| Product Height | 55 Inches |
| Power Type | Electric |
Downloads
Brochure
Manual
Warranty
