Quincy Air Compressor 453D80VCB23M QT Max 5 HP 80 Gallon 230V 3 Phase

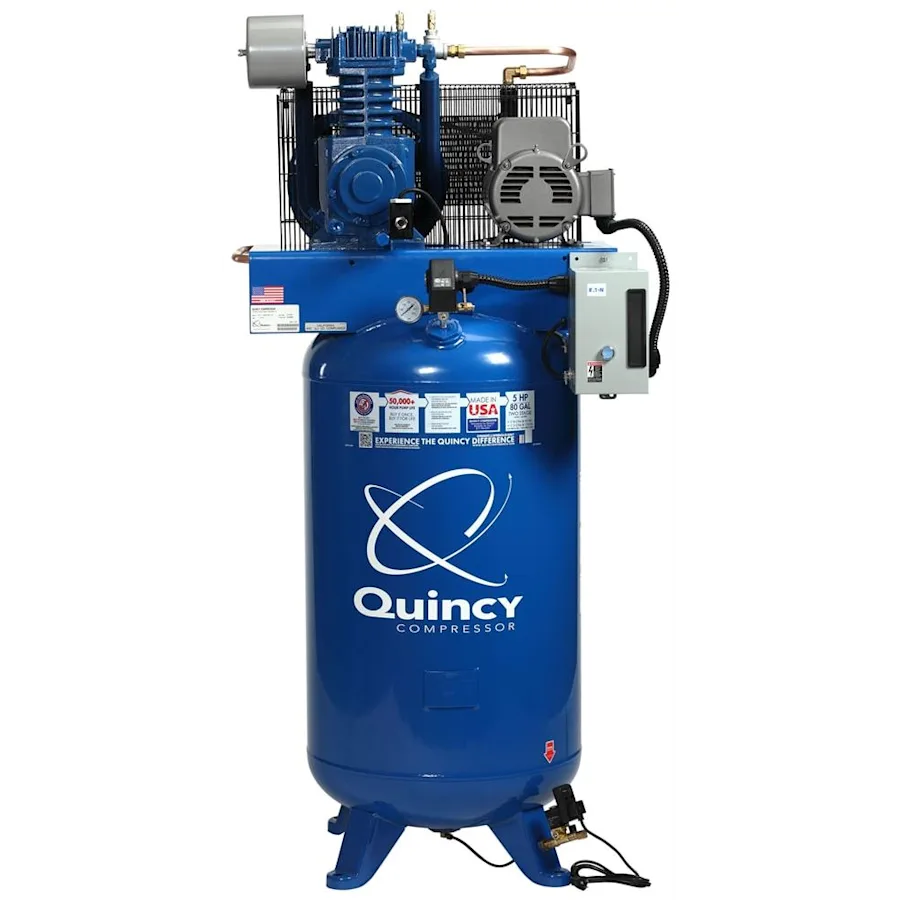

Quincy 453D80VCB23M QT MAX 5-HP 80-Gallon Two-Stage Air Compressor (230V 3-Phase) Vertical

The Quincy QT MAX 5 HP compressor brings dependable compressed air performance to industrial and commercial settings with its 5 horsepower Three Phase motor and an 80-gallon ASME-certified vertical tank. Its splash-lubricated, cast-iron two-stage pump delivers around 17.2 CFM at 175 PSI while operating at a low RPM (~1,750), which helps reduce heat and wear and extend service life beyond 50,000 hours. Built for longevity, the compressor features aluminum heads, stainless steel reed valves, finned intercoolers, and extra-capacity oil reservoirs. Safety and maintenance are enhanced through an automatic tank drain, low-oil shutoff protection, and a magnetic starter.

With minimal oil carry-over (under 5 ppm) and a continuous-duty design, it's ideal for fabrication shops, automotive bays, or any space with limited floor area. The unit ships with a standard one-year factory warranty on parts and labor. If the EWK‑3 maintenance kit is purchased at the time of sale and the compressor is registered promptly, the warranty extends to two years on the unit and three years on the pump, with on-site service included. Click on the manual link below for warranty information.
