Quincy Air Compressor 453DS80HCB20 QT Pro 5 HP 80 Gallon Two Stage 208V 3 Phase
Quincy 453DS80HCB20 QT Pro 5-HP 80-Gallon Two-Stage Air Compressor (208V 3-Phase)

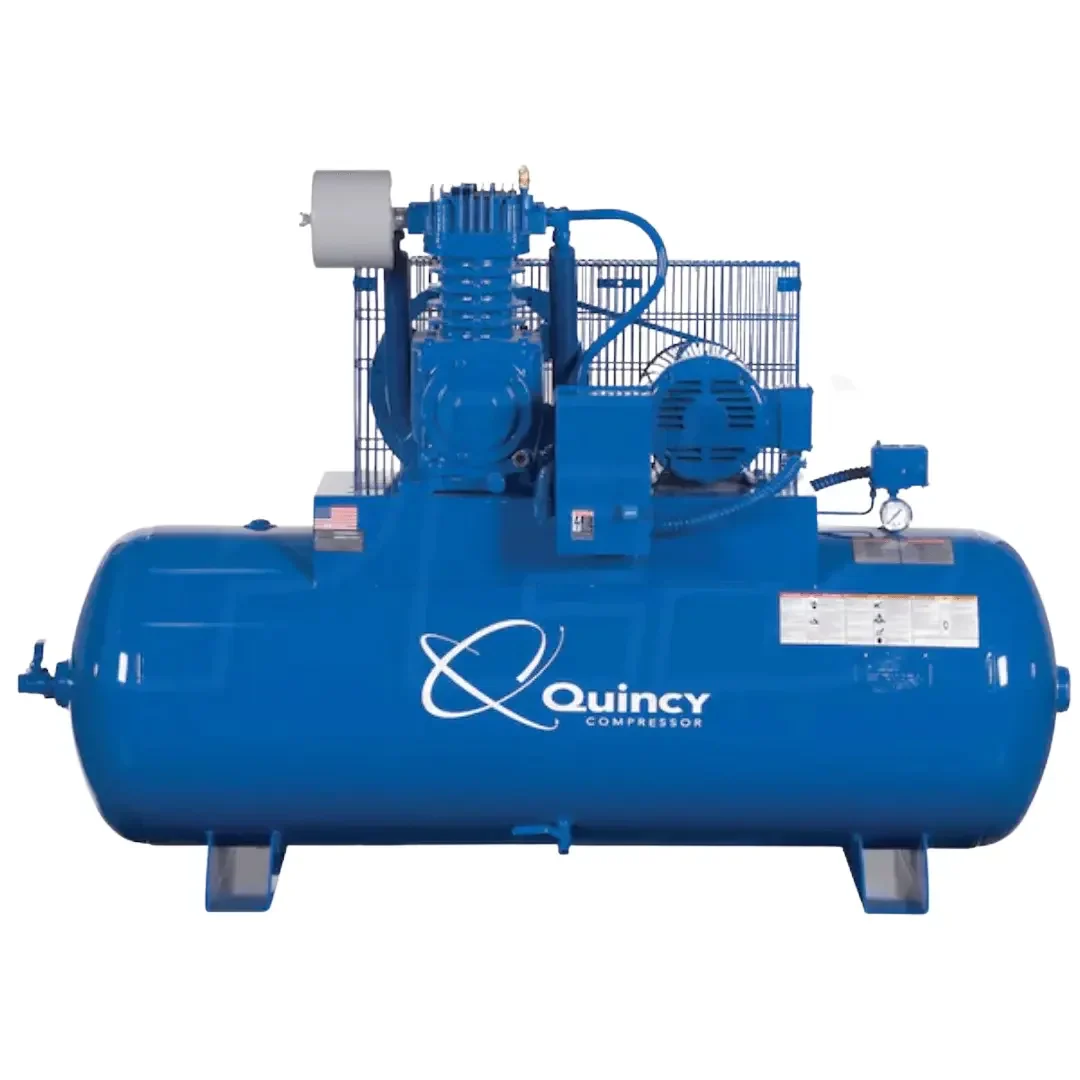

The Quincy QT Pro 5 HP air compressor (model 253DS80HCB20) is designed for commercial and industrial use, featuring a splash-lubricated, two-stage cast-iron pump engineered for durability and long service life. It delivers approximately 17.2 CFM at 175 PSI, providing steady and reliable airflow for a wide range of pneumatic tools and applications.
Powered by a 5-horsepower, 208V Three Phase motor running at low RPM, this compressor minimizes heat and wear for quieter operation and extended component life. The 80-gallon ASME-certified horizontal tank offers ample capacity to meet the air demands of high-output work environments.
Efficiency is enhanced with an aluminum head for heat dissipation, finned-tube intercoolers, and an oversized oil reservoir. The unit maintains low oil carryover to ensure clean compressed air. Maintenance is simplified by an automatic condensate drain, low-oil shutdown protection, and a factory-mounted magnetic starter with thermal overload protection.
Product Features
- Heavy Duty QT-5 Industrial Pump
- ODP Slow-Speed Motor
- High-Efficiency Finned Intercooler
- 2-Piece Connection Rods
- ASME Coded 80 Gallon Tank
- 1-Year Factory Warranty - Extends To 3-Year "No Bull" Warranty
Product Specifications
General Information
| Product Category | Air Compressor - Stationary |
Motor
| Voltage | 208 Volt AC |
| Phase | Three Phase |
| Magnetic Starter | Yes |
| Amp Draw | 17.5 |
| Recommended Breaker | Consult Certified Electrician |
Engine
| HP | 5 |
Pump
| CFM | 17.2 |
| CFM Rated @ | 175 PSI |
| Pump Material | Cast Iron w/ Aluminum Head |
| Max PSI | 175 PSI |
| Oil Sight Glass | Yes |
| Pump Type | Two-Stage |
| After Cooler | No |
| Pump Drive | Belt Drive |
| Oil Type | Oil Lubricated |
| Oil System | Splash Lubricated |
| Pump Low Oil Shut-off | No |
Tank
| Tank Size | 80 Gallons |
| Tank Outlet | 3/4 Inch |
| Electronic Drain Valve | No |
| Tank Orientation | Horizontal |
Accessories
| Air Dryer | No |
Overview
| Weight | 660 Pounds |
| Certification | ASME. UL, CSA |
| Consumer Warranty | 1 Year |
| Commercial Warranty | 1 Year |
| Product Length | 70 Inches |
| Product Width | 23 Inches |
| Product Height | 47 Inches |
| Power Type | Electric |
