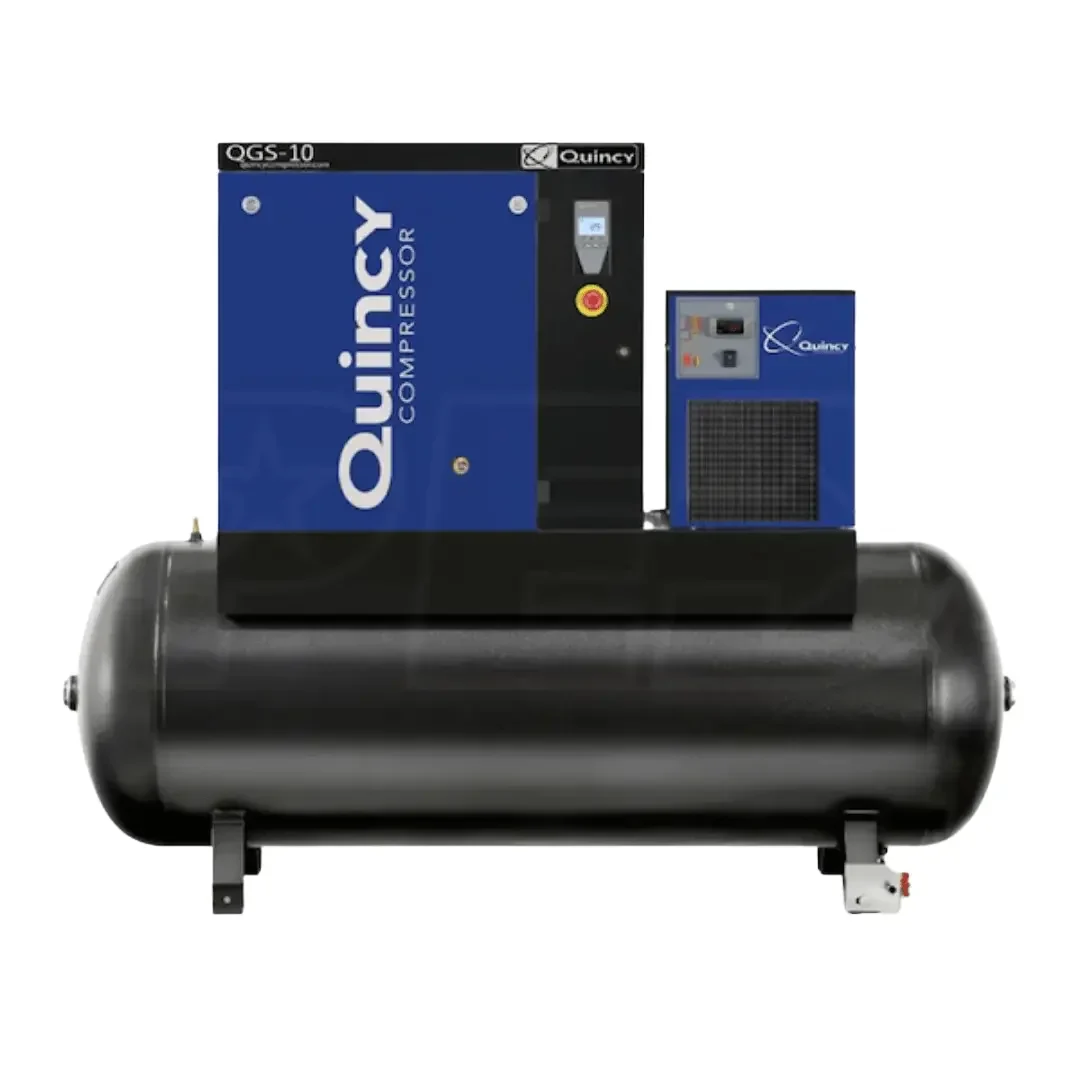

Quincy Air Compressor 10 HP 120 Gallon Rotary Screw with Dryer
Quincy 4152021980 QGS 10-HP 120-Gallon Rotary Screw Air Compressor w/ Dryer (208-230/460V 3-Phase)
The Quincy QGS 10-HP rotary screw air compressor with integrated refrigerated dryer delivers clean, dry air for your shop or industrial setup. Featuring an oil-injected twin screw pump, it ensures reliable, quiet performance around the clock with its 100% duty cycle design.
This compact system outputs 38.8 CFM at 125 PSI while maintaining a small footprint, saving valuable workspace. Its integrated dryer condenses and removes moisture, oil, and debris, protecting downstream tools and machinery from corrosion and wear.
The Auto-Dual control system allows programmable timed shutdowns to reduce energy use during downtime, while the TEFC motor operates on 208, 230, or 460V 3-phase power (installation by a licensed electrician required). Premium synthetic lubrication rated for 8,000 hours reduces oil carryover and extends service life.
Designed with a durable long-life V-belt drive and enclosed in a noise-reducing cabinet, this unit keeps your facility quieter and your compressed air system efficient.
For warranty information please see the below link.
Product Features
- Superior Compressed Air Turn-Key Performance
- Integrated Refrigerated Air Dryer
- Continuous 100% Duty Cycle
- Standard Quiet Enclosure
- Premium Synthetic Lubrication
- Auto-Dual Operation
- Long Life V-Belt Drive
- TEFC Electric Motor
- Extended 3 Year Factory Warranty Available
- True Blue 5-Year Warranty with Quincy Authorized Start Up
Product Specifications
General Information
| Product Category | Air Compressor - Stationary |
Motor
| Voltage | 208-230/460 Volt AC |
| Phase | Three Phase |
| dBA | 65 |
| Amp Draw | Consult Certified Electrician |
| Recommended Breaker | Consult Certified Electrician |
Engine
| HP | 10 |
| Engine Low Oil Shut-off | Yes |
Pump
| CFM | 38.8 |
| CFM Rated @ | 125 PSI |
| Max PSI | 125 PSI |
| Oil Sight Glass | Yes |
| Pump Type | Rotary |
| After Cooler | Yes |
| Pump Drive | Belt Drive |
| Oil Type | Oil Lubricated |
| Pump Low Oil Shut-off | Yes |
| Duty Cycle | 100% |
Tank
| Tank Size | 120 Gallons |
| Tank Included | Yes |
| Tank Outlet | 1/2 Inch |
| Electronic Drain Valve | No |
| Tank Orientation | Horizontal |
Accessories
| Air Dryer | Yes |
| Air Filter | Yes |
Overview
| Weight | 850 Pounds |
| Certification | ASME |
| Consumer Warranty | 1 Year |
| Commercial Warranty | 1 Year |
| Product Length | 76 Inches |
| Product Width | 25 Inches |
| Product Height | 58 Inches |
| Power Type | Electric |
