Ranger RCD-1500MP Car Dollies Move Vehicles Up to 6,000 lbs!
Ranger RCD-1500MP Car Dollies Move Vehicles Up to 6,000 lbs

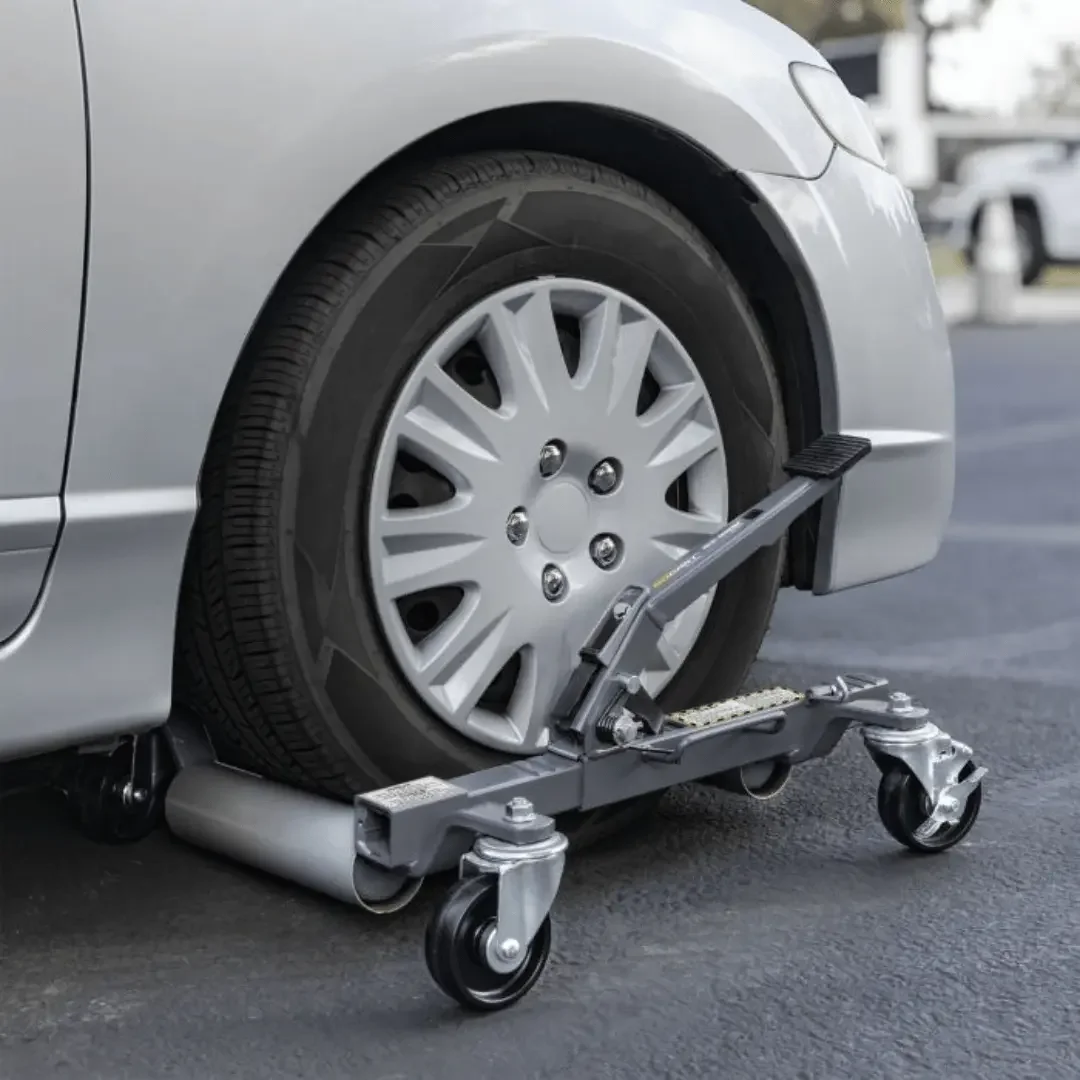

The Ranger RCD-1500MP car dollies offer a versatile solution for moving vehicles without starting engines or relying on drive power. Designed for shops, garages, or restoration bays, these dollies transform each wheel into a caster, allowing precise repositioning of cars, trucks, trailers, and more—even when they’re not drivable. With a full set of four dollies rated at 1,500 lb each, the system supports loads up to 6,000 lb total—making it suitable for many light and medium vehicles.

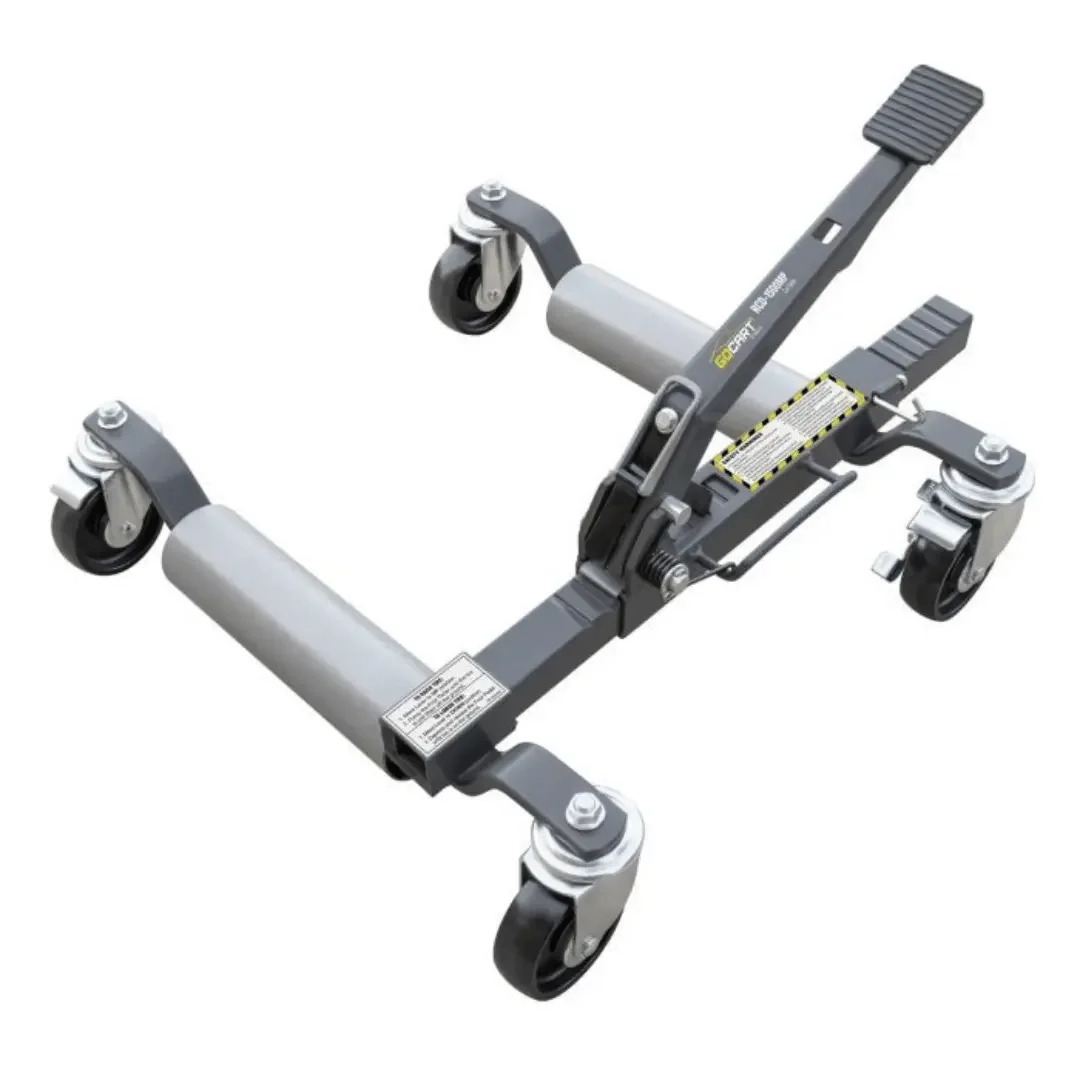

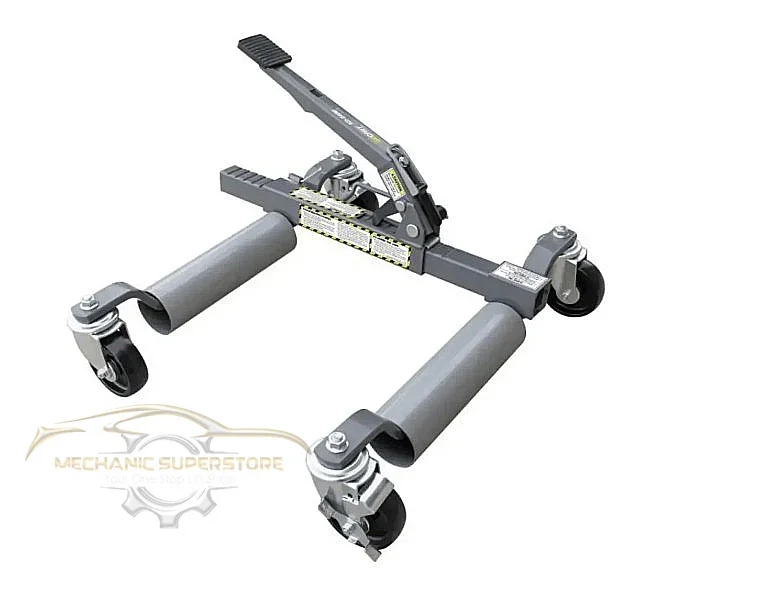

Each dolly is built on a steel telescoping frame that lets you adjust to fit different tire widths and diameters. The aluminum rollers “hug” the tire, securing grip and preventing slippage, especially when combined with the non-skid roller surfaces. A hydraulic foot pump allows quick lifting of the wheel above ground so the dolly sits underneath. Once the vehicle is raised, a locking pin locks the height in place and the valve holds the hydraulic pressure. Repeat for each wheel and the vehicle can now roll freely on phenolic resin wheels, which are non-marking and resistant to oils, solvents, and shop conditions.

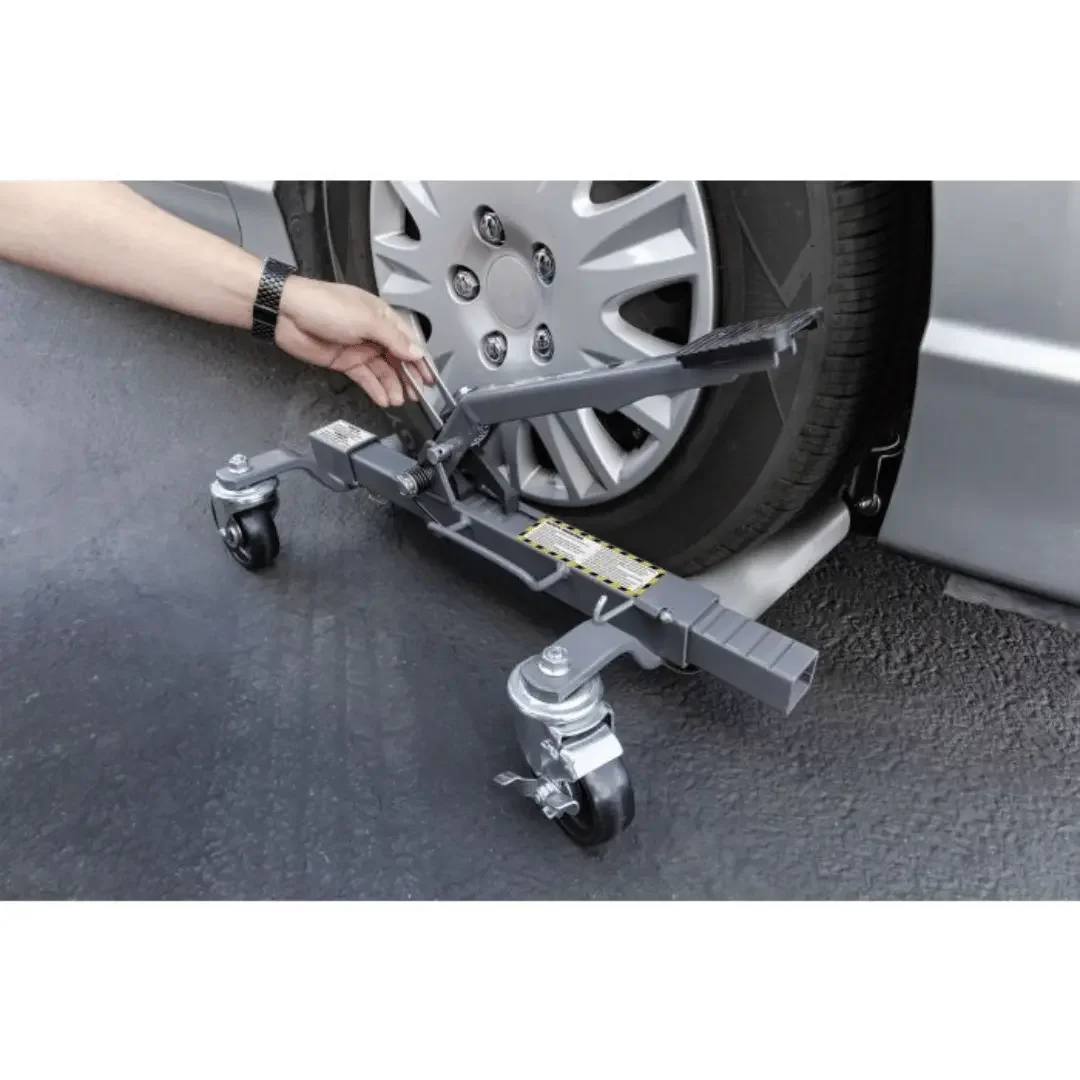

Operation requires minimal setup on these car dollies. You extend each dolly’s frame, roll it against the tire, pump it up, lock it, and repeat. This sequence empowers one technician to convert a disabled vehicle into a mobile unit for storage, layout, alignment, or repositioning. Because the dollies operate from all four wheels, the vehicle can be maneuvered in any direction, which is especially useful in tight bays or for pushing vehicles flush to walls.
Stability and floor protection are key design features. Each dolly carries 1,500 lb and is built with a low center of gravity to resist tipping while moving. The four car dollies together support up to 6,000lbs. The wide casters distribute load evenly across the floor, minimizing pressure points. The phenolic resin construction is floor-friendly, resisting marking or damage even on painted or delicate flooring. These attributes make the RCD-1500MP a practical choice when you want to avoid scarring floors while keeping mobility.
Durability is a focus in every component. The frame is constructed of tubular steel, reinforced at stress points. Welded joints and cross-members resist twisting under load. The hydraulic lift mechanism is engineered for repeated cycles, and internal seals are designed to resist degradation from shop oil or environmental exposure. Because these dollies will live in active bays, that ruggedness matters day after day.
When the job is done, the dollies collapse for compact storage. The telescoping frames retract, and the hydraulic system returns to a low profile. This collapsibility lets you slide them under cabinets or store them in racks instead of dedicating a lot of floor space. In a busy shop, that ability to stow them out of the way is as valuable as their mobility function.
The Ranger RCD-1500MP offers a practical way to convert immobile vehicles into mobile ones inside your space. Its blend of strength, adjustability, floor respect, and efficient operation make it a choice tool in shops that want to move cars without moving engines.
Contact us for more info on car dollies.
Product Specifications
| Holding Capacity, Each | 1,500 lbs. (680 kg) |
| Load Rating: 4 Dollies | 6,000 lbs. (2,722 kg) Max |
| Tire Width Max. | 11 in. (279.4 mm) |
| Tire Diameter Range | 15 in. – 34 in. (381 mm – 864 mm) |
| Stowed Dimension | 24 in. (L) x 24.5 in. (W) x 8.5 in. (H) (610 mm (L) x 622 mm (W) x 216 mm (H)) |
| Frame Length | 24 in. (610 mm) |
| Frame Width, w/o Casters | 23 in. (584 mm) |
| Caster Diam. X Width | 4 in. x 1.25 in. (102 mm x 32 mm) |
| Min. – Max. Roller Spread Adjustment | 9.5 in. - 25.5 in. (241 mm - 648 mm) |
| Roller Width | 11 in. (279.4 mm) |
| Roller Diameter | 3 in. (76 mm) |
Pick Up and Delivery
Our Pick Up locations for BendPak/Ranger are located in Santa Paula, California & Theodore, Alabama.
Call, text, or chat with us if you have questions. 866-774-7743
