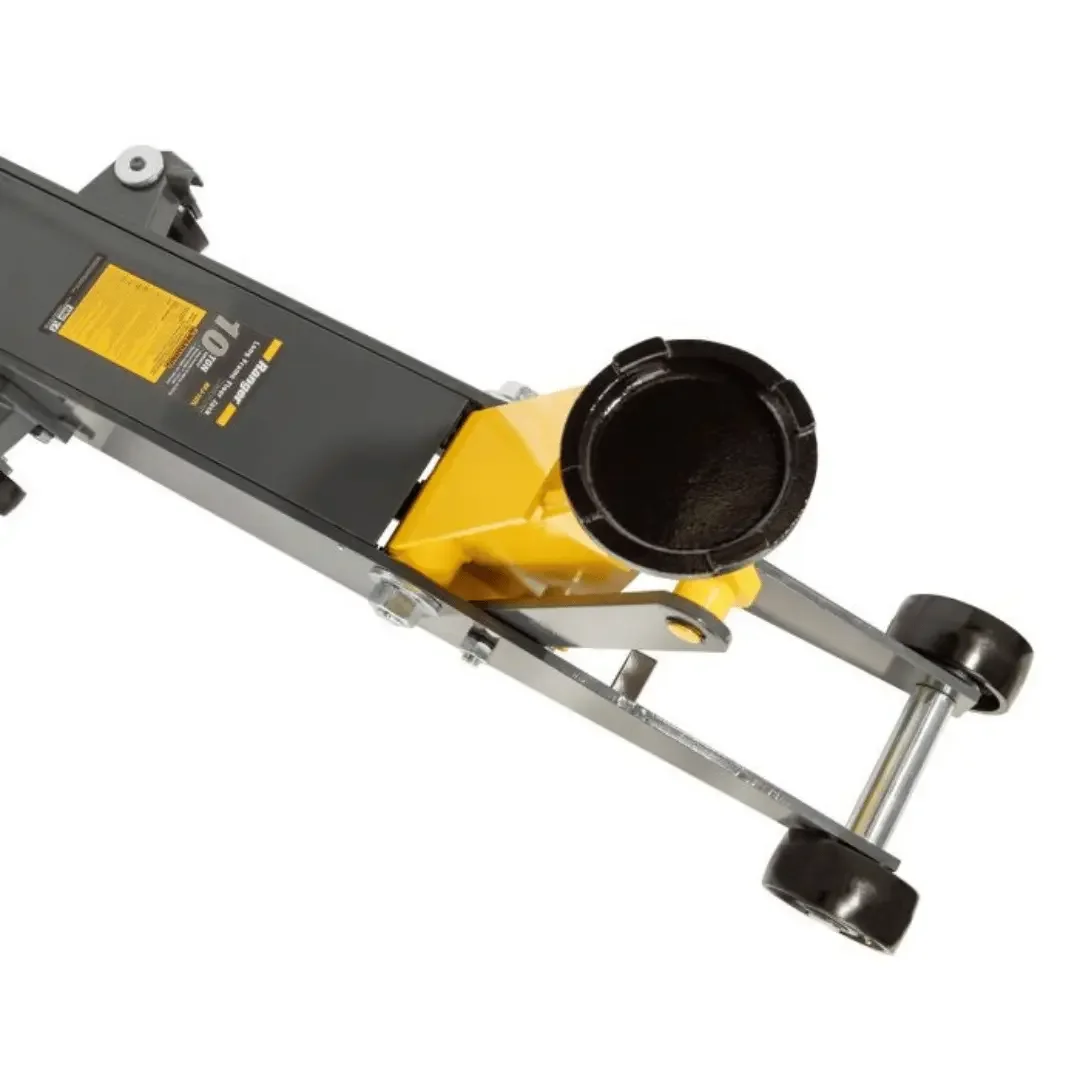

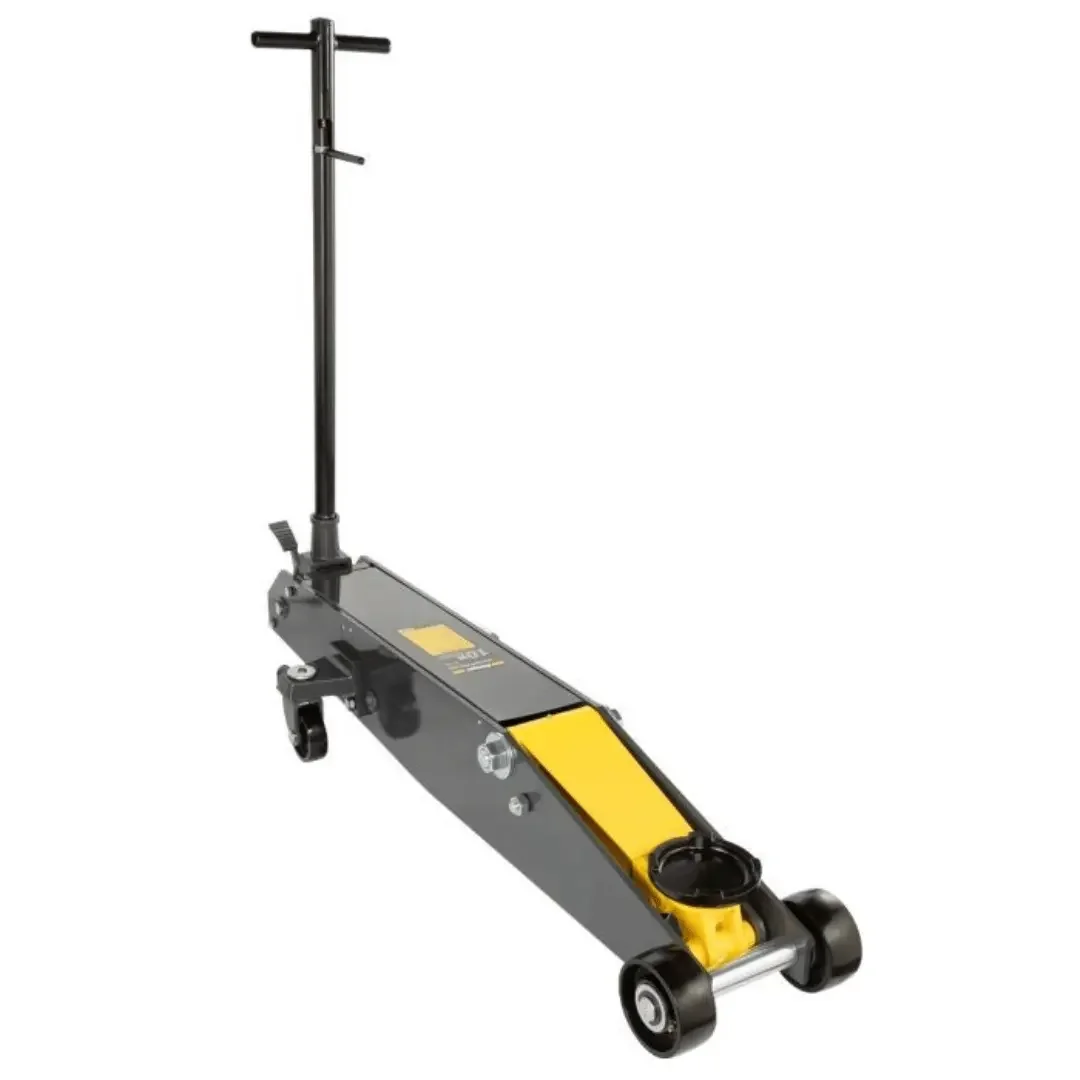

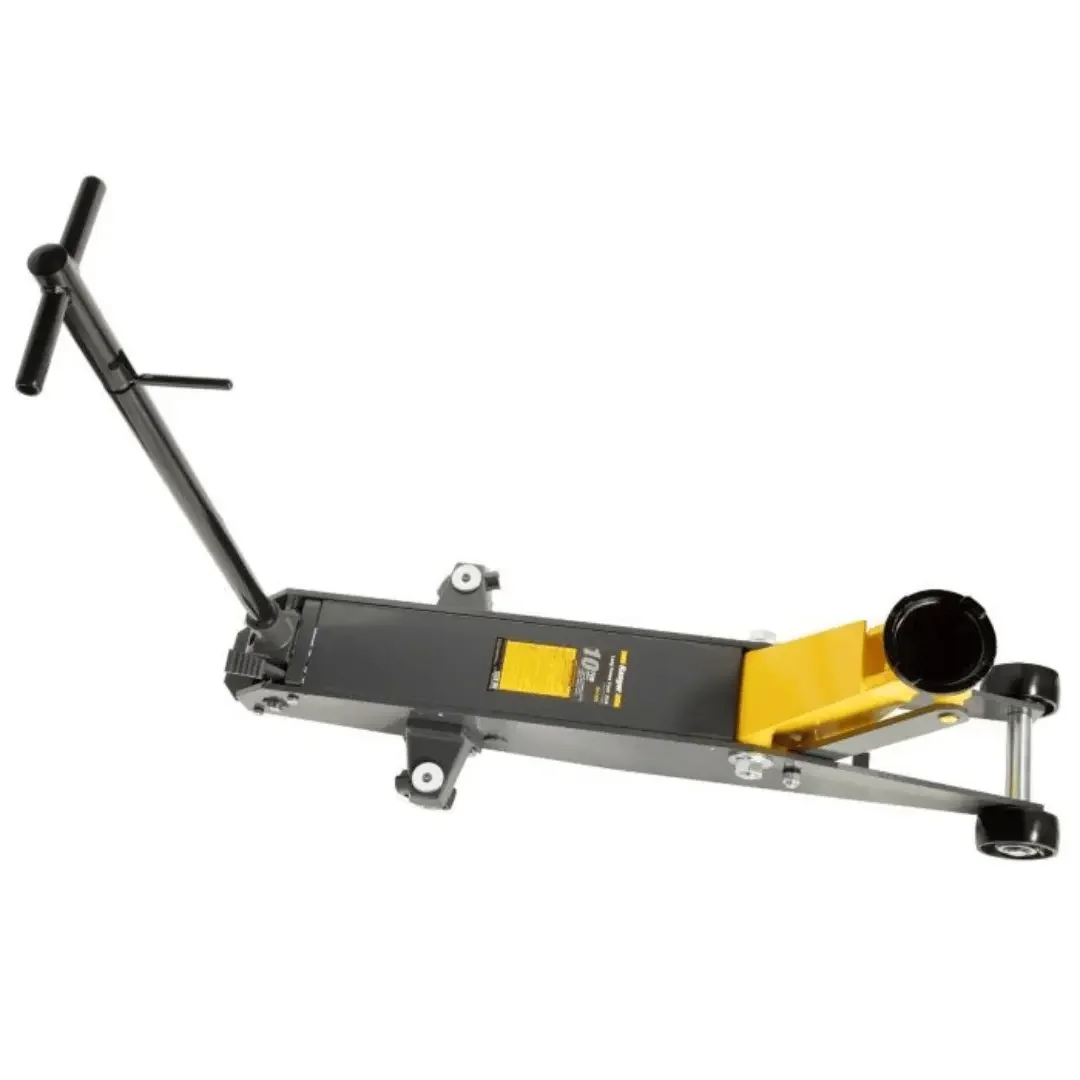

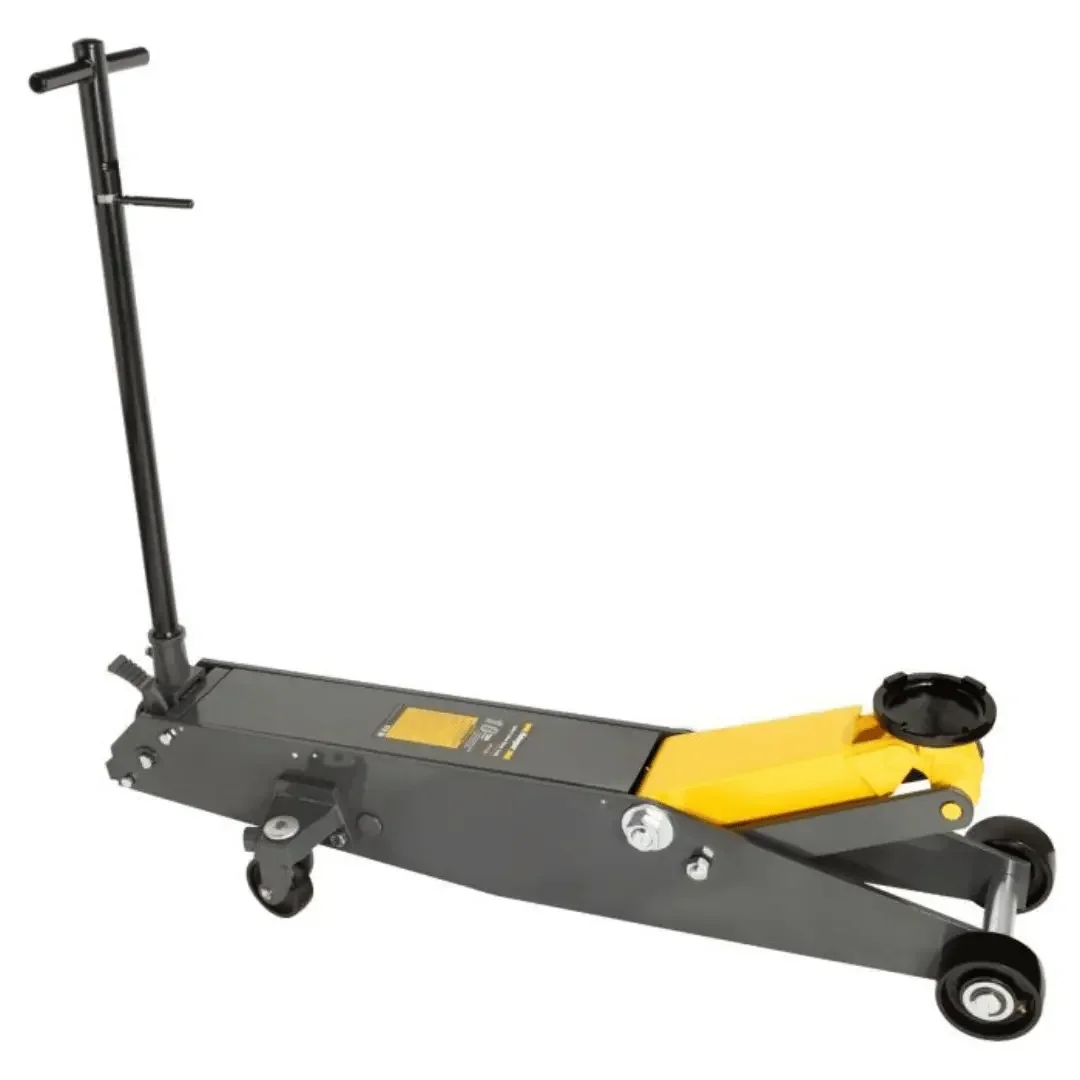

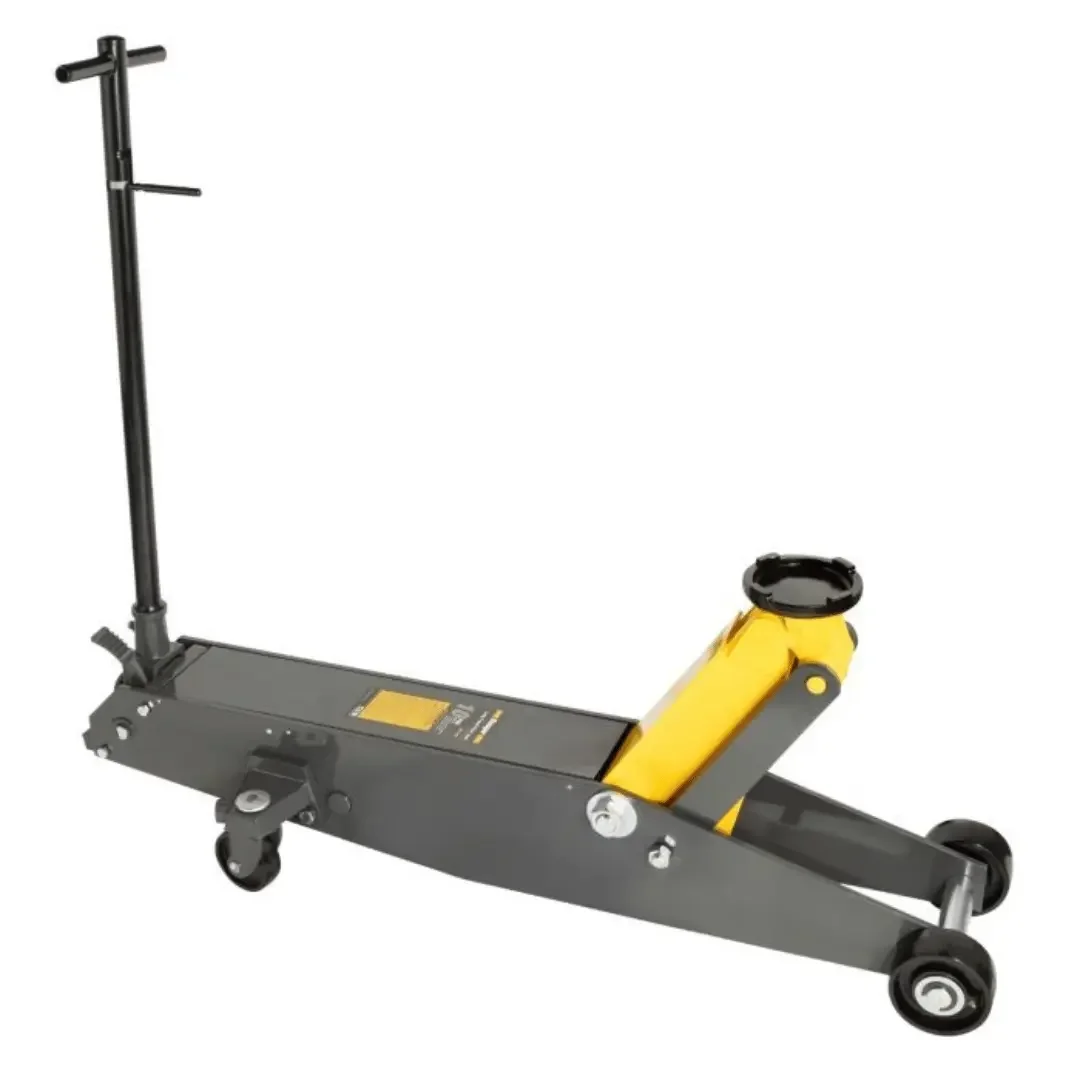

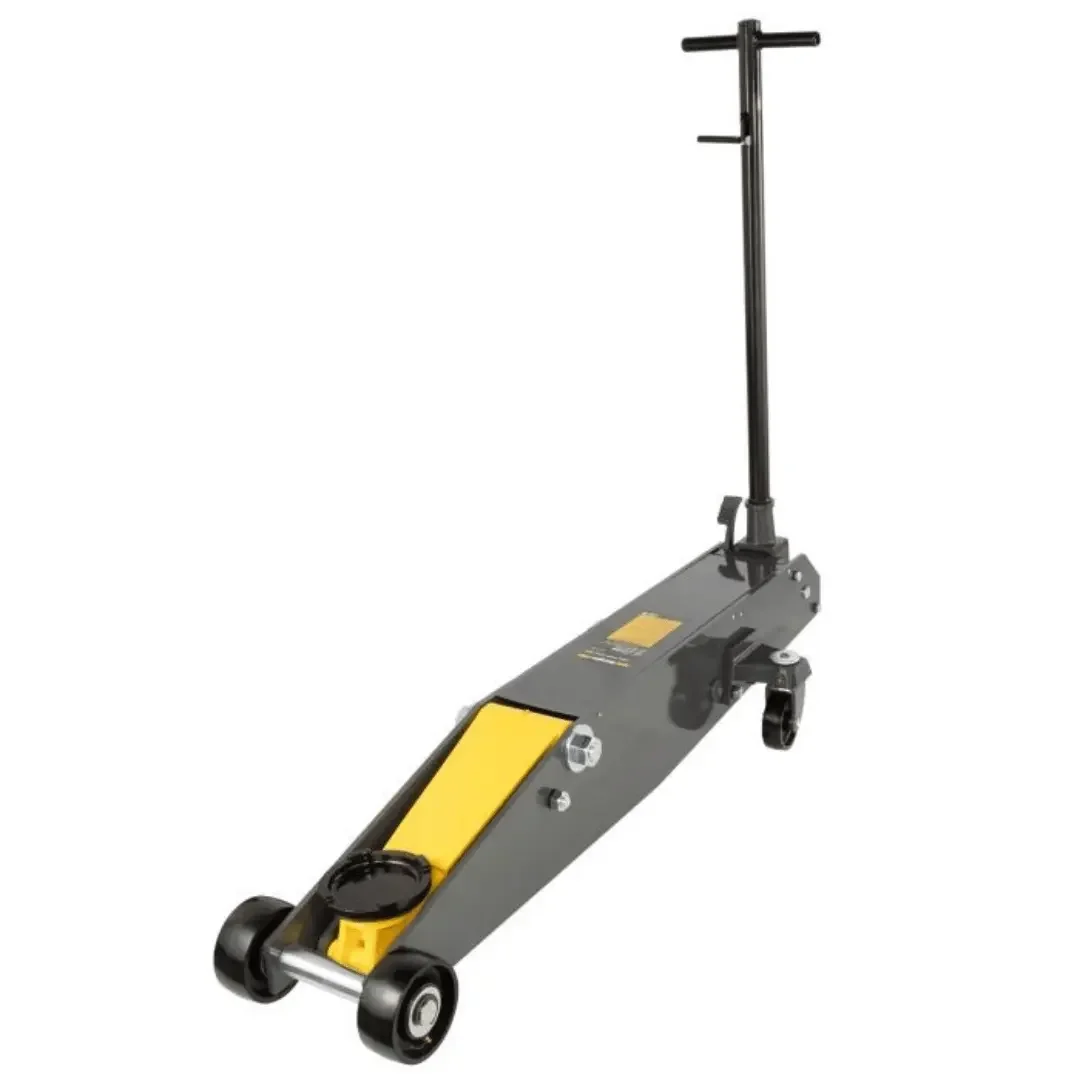

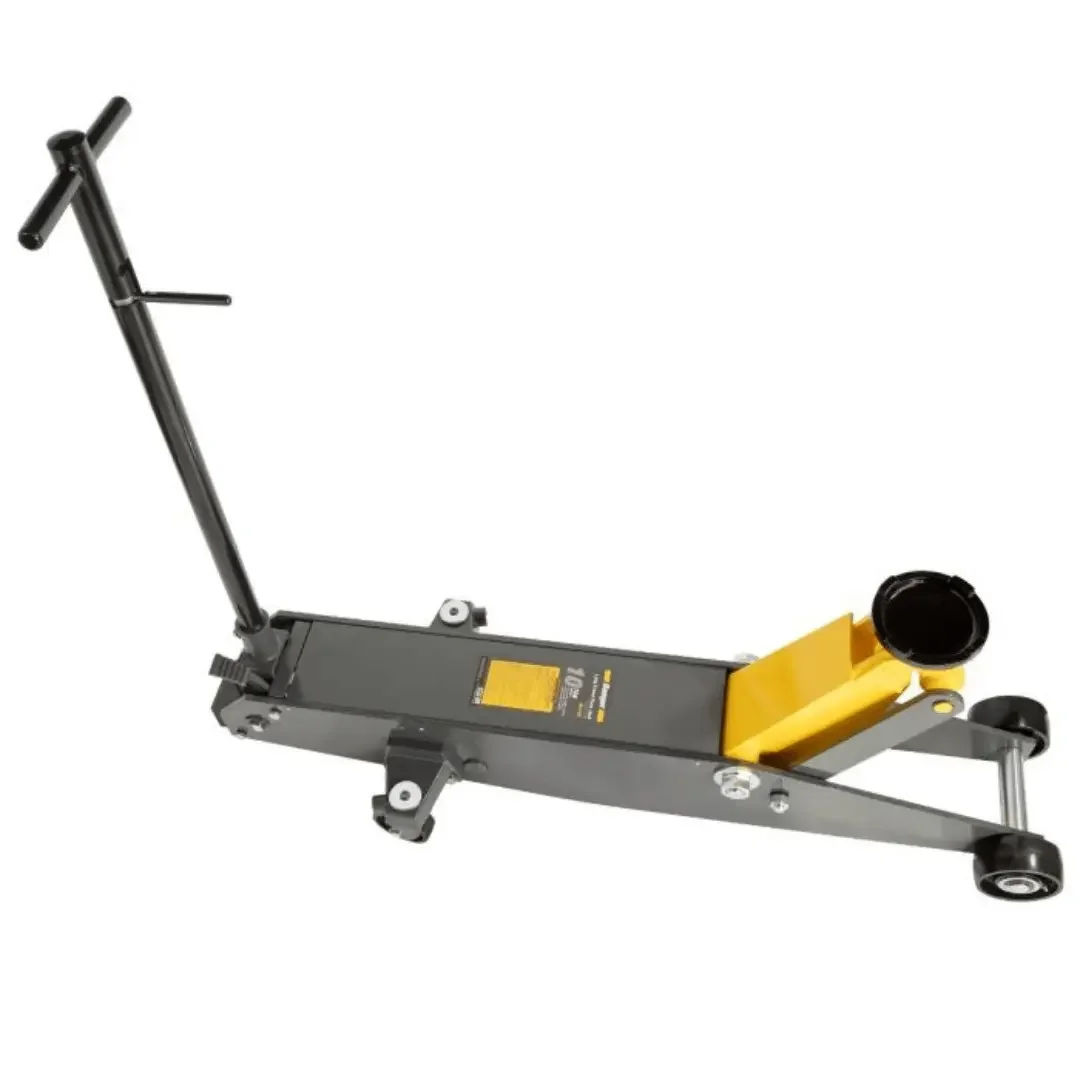

Ranger RFJ-10TL 10-Ton Long Frame Floor Jack
Ranger RFJ-10TL 10-Ton Long Frame Floor Jack
The Ranger RFJ-10TL 10-Ton Long Frame Floor Jack is a professional-grade lifting solution built to handle some of the toughest jobs in heavy service environments. Designed for trucks, buses, farm equipment, and construction machinery, this floor jack delivers a massive 20,000 lb lifting capacity, making it a dependable choice for shops and facilities that need serious lifting power. With its extended chassis, reinforced steel construction, and operator-friendly controls, the RFJ-10TL combines strength, stability, and efficiency in one rugged package.

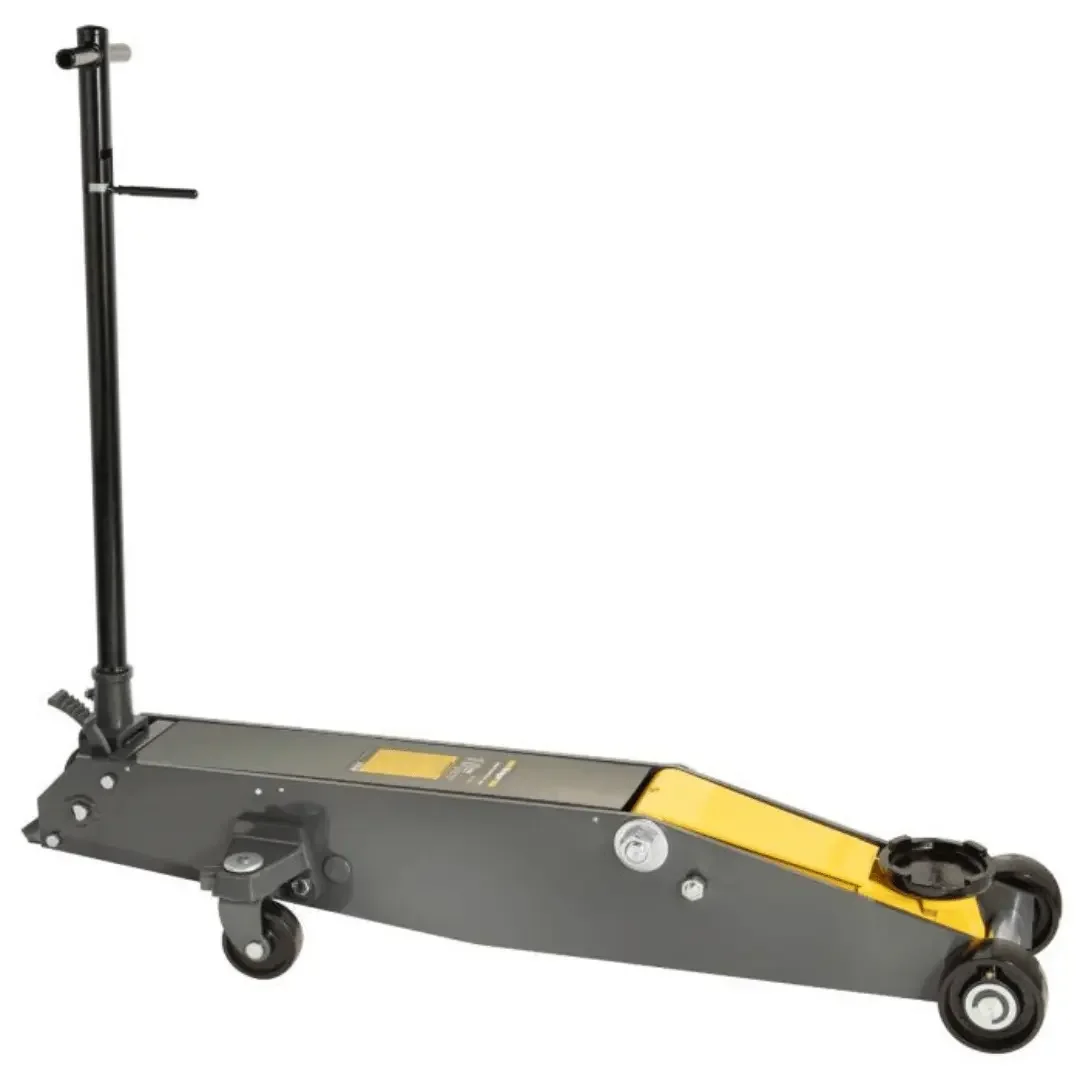

Constructed with heavy-duty steel, the floor jack frame is engineered to endure continuous use in demanding environments. The long-chassis design allows the jack to reach deep under vehicles with extended frames or low ground clearance. Measuring 61 inches in overall chassis length, the unit provides exceptional reach while maintaining stability under load. The wide stance contributes to secure lifting, minimizing flex and ensuring a solid platform when handling large vehicles and equipment.
The RFJ-10TL offers a lifting range from a 7 inch minimum saddle height to a maximum height of 23 inches. This broad range allows technicians to access a variety of vehicles and components without compromise. Whether working on suspension systems, undercarriage repairs, or general maintenance, the jack provides the necessary lift height and holding strength to perform tasks safely and effectively.

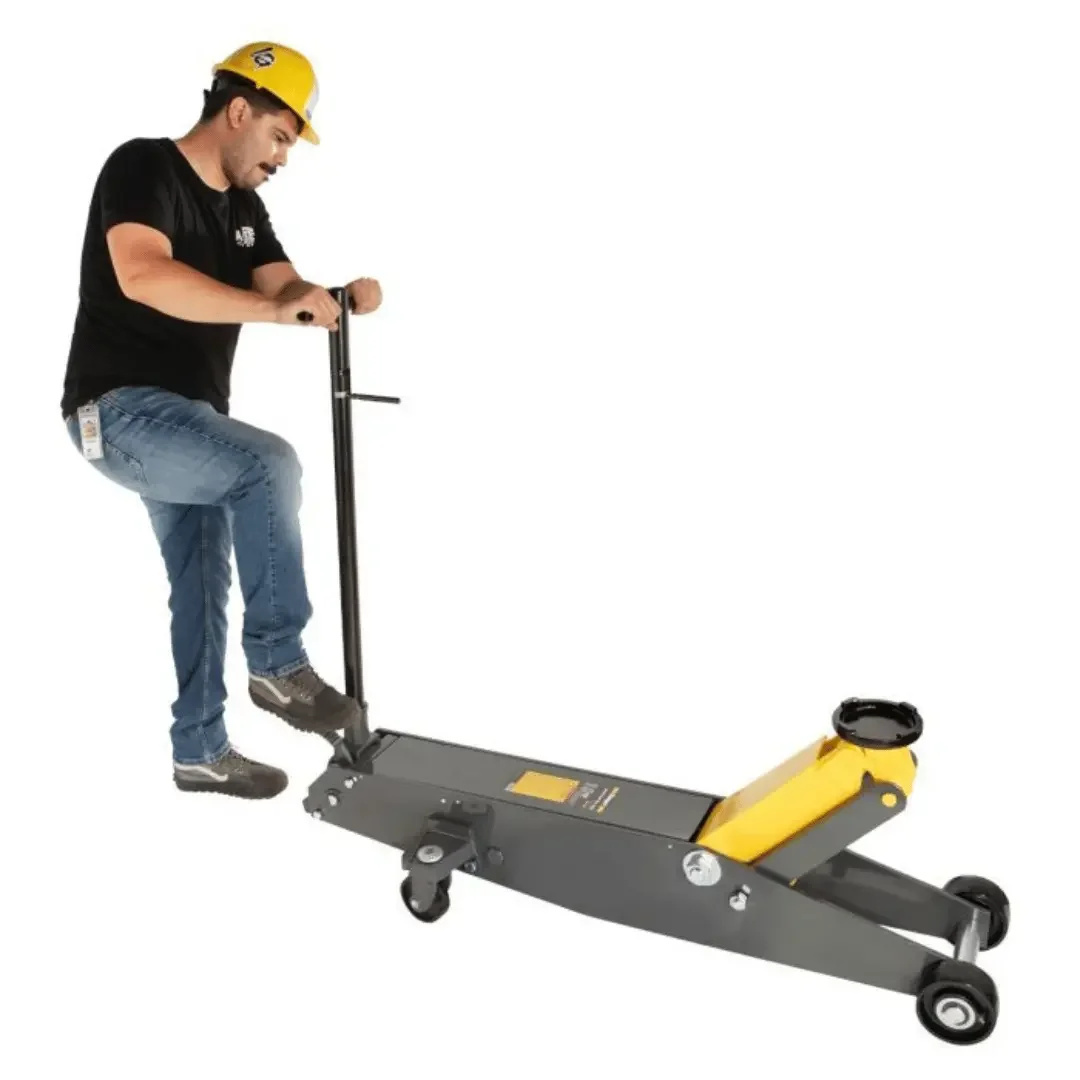

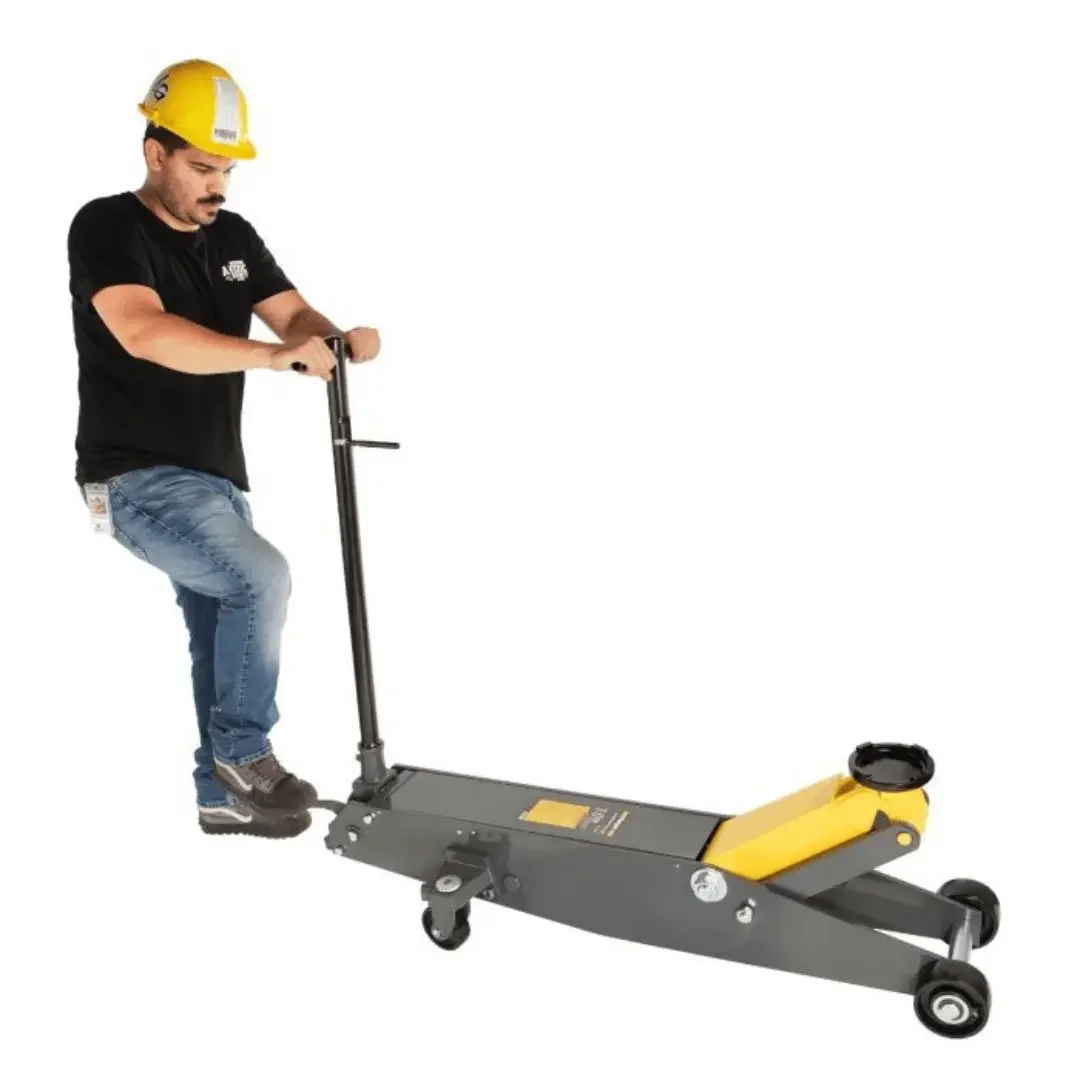

Ease of operation is a key advantage of this specific floor jack model. The hydraulic system incorporates a dual plunger pump assembly for fast rising action. A convenient foot pedal accelerates the initial lifting stage, reducing strain and saving time during setup. Once engaged, the handle provides smooth, controlled pumping action for precise elevation. The pressure release system uses a universal joint design that allows fine adjustment, giving the operator full control when lowering heavy loads. This ensures both safety and accuracy during operation.

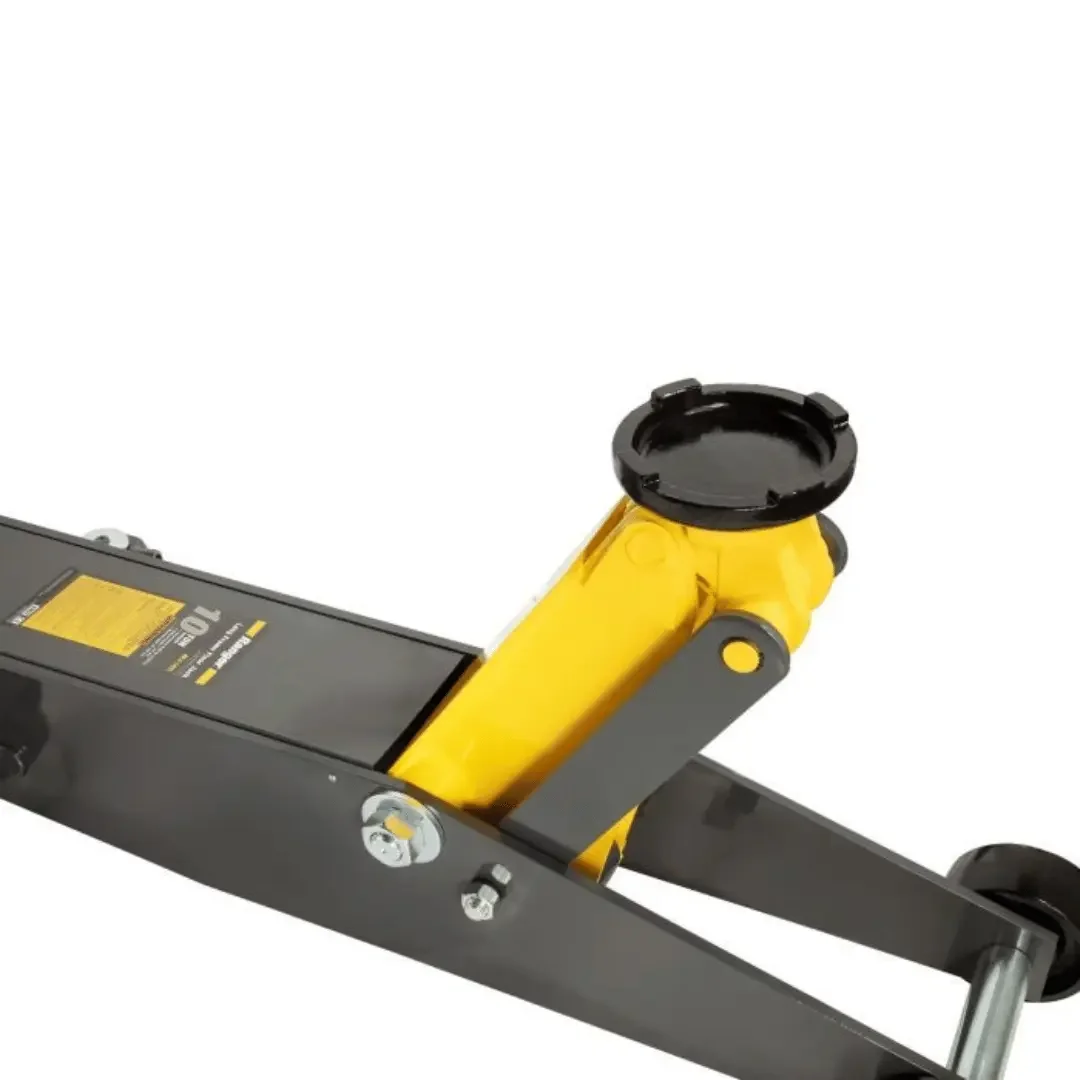

An automatic overload protection valve is built into the system to prevent lifting beyond the rated 10-ton capacity. This feature safeguards the jack from damage and protects the operator from unsafe lifting conditions. In addition, the ram is alloy-plated for durability, while the hydraulic seals are designed to resist wear and contamination, extending service life and reducing maintenance demands.
Mobility in the shop is another benefit of the RFJ-10TL. Equipped with heavy-duty swivel casters, the jack can be repositioned easily even in busy workspaces. Despite its substantial weight of approximately 479 pounds, the smooth-rolling casters allow for efficient maneuvering, making it easier to align the jack under vehicles or equipment.
The reinforced side plates and flanged edges on the frame increase strength in high-stress zones. These design elements, along with the thick steel construction, ensure that the RFJ-10TL can withstand the rigors of heavy-duty use without compromising stability or safety. This level of engineering makes the jack well-suited for professional garages, fleet service facilities, and industrial maintenance shops where reliable lifting equipment is essential.
The Ranger RFJ-10TL 10-Ton Long Frame Floor Jack is more than just a tool; it is a workhorse designed for the realities of demanding service. From its powerful lifting capacity and extended reach to its operator-friendly hydraulic system and built-in safety features, this jack is crafted to deliver long-term performance. When you need a solution that combines heavy lifting power, precision, and rugged durability, the RFJ-10TL is a trusted choice for serious professionals.
Contact us for more information on floor jacks for sale.
Product Features
- 20,000-lb. lifting capacity
- Alloy-plated ram
- Swivel casters for easy mobility
- Designed for heavy use
- Safety-overload system

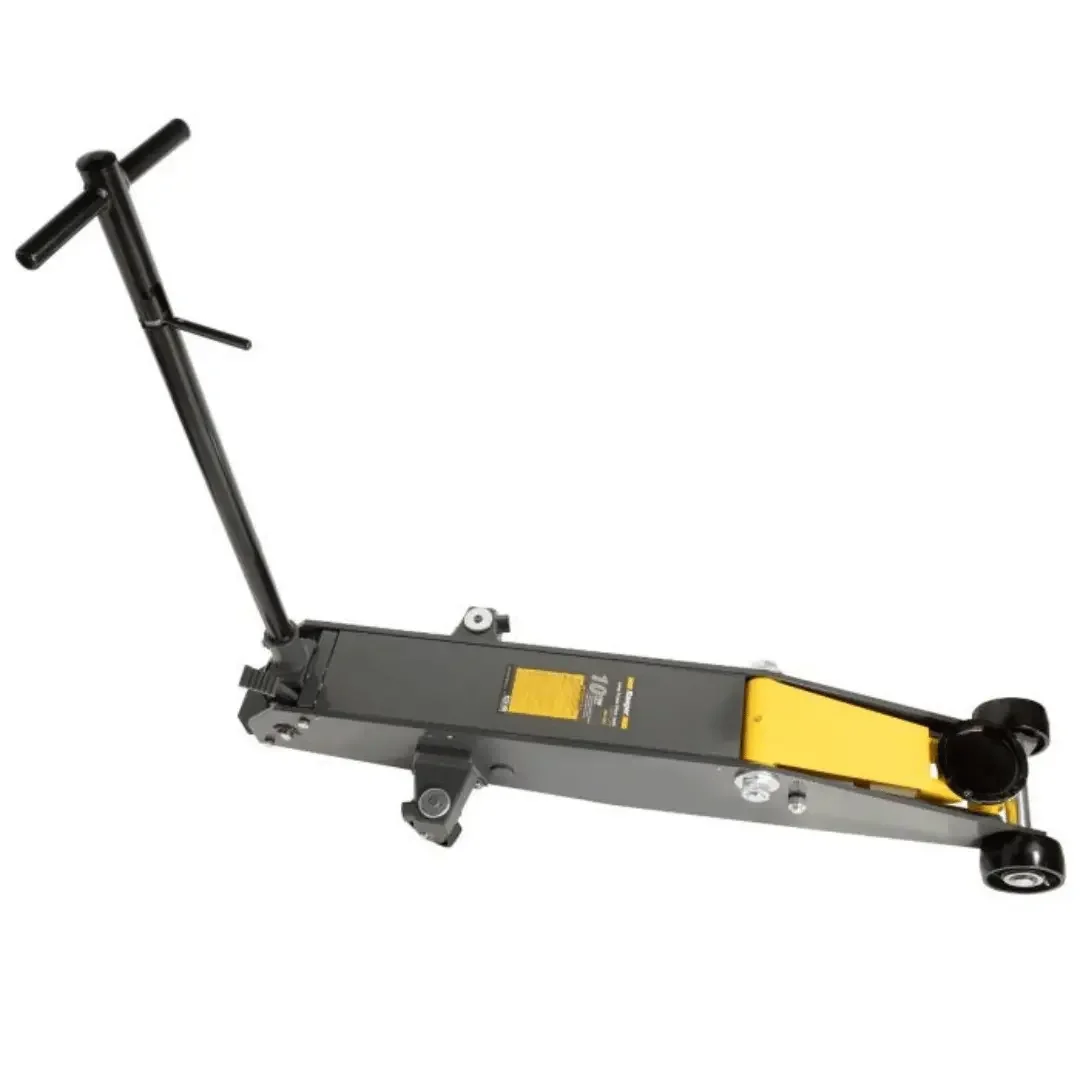

- Pump handle can be locked in three different towing positions
- Additional foot pedal control provides quick setup and rise
- Heavy steel construction for maximum durability
- Double-sealed hydraulics prevents contamination for longer service life
Product Specifications
| Lifting Capacity | 20,000 lbs. (9,072 kg) |
| Lowered Pad Height | 7" (176 mm) |
| Raised Height | 23" (584 mm) |
| Front Overall Width | 13" (330 mm) |
| Rear Overall Width | 18" (457 mm) |
| Chassis Length | 61" (1,549 mm) |
| Shipping Weight | 380 lbs. (172 kg) |
| Shipping Dimensions | 64" x 20" x 13" (1,626 mm x 508 mm x 330 mm) |
Pick Up and Delivery
Our Pick Up locations for Ranger are located in Santa Paula, California & Theodore, Alabama.
Call, text, or chat with us if you have questions. 866-774-7743
