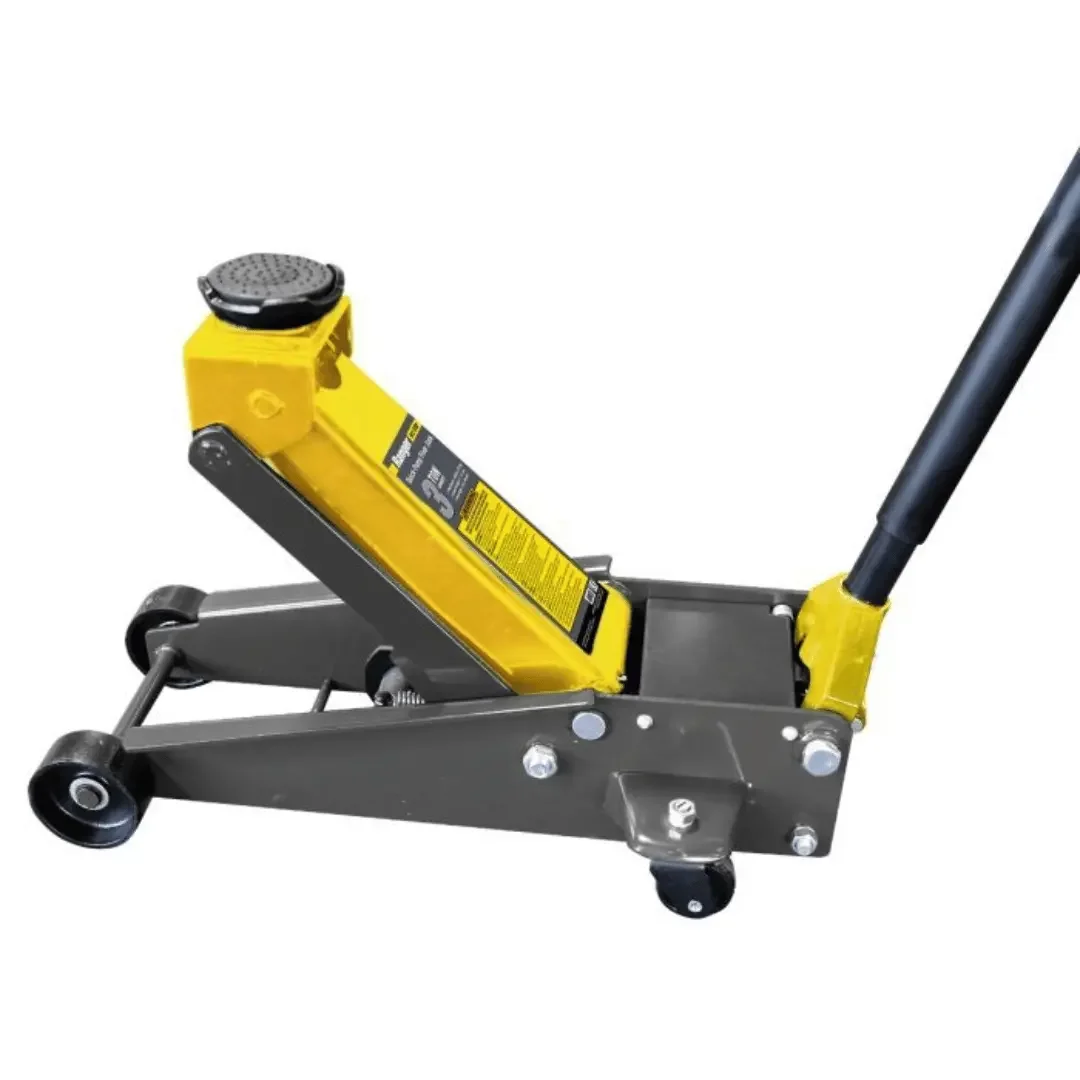

Ranger RFJ-3TQP 3-Ton Floor Jack / Quick-Pump

The Ranger RFJ-3TQP quick pump floor jack is a powerful, high-performance floor jack built for professionals and serious enthusiasts who demand speed, strength, and safety. It’s rated for a 3 ton lifting capacity, though in practice its specs show a 6,000 lb (3 ton) lift capacity, giving it headroom for heavier vehicles or safety margins. The standout feature is its “Quick-Pump” design, which lets the operator lift the saddle close to the vehicle frame with just one pump of the handle, dramatically reducing jockeying time under a car. With about four full pumps, the jack can elevate a vehicle nearly 20 inches, making it fast enough to keep up with demanding workflows. Its welded steel arms and alloy-plated ram work in concert with sealed hydraulic components, protecting against dust, grime, and fluid leakage, all of which extend its service life in harsh shop environments.

When fully lowered, the quick pump floor jack has a minimum height of 5 inches, allowing it to slip beneath many low-clearance vehicles. From that start point it can lift to a maximum of 19.75 inches, giving ample clearance for underbody service, brake work, suspension tasks, and more. Its chassis length is about 25.5 inches, with a front width near 11 inches and rear width approximately 13.5 inches—dimensions chosen to optimize stability, balance, and maneuverability under load. The jack is shipped at roughly 82 pounds, which makes it robust but still manageable for positioning in a bay.

Mobility features include swivel casters so you can roll it into position without wrestling. The lifting arm assembly is welded and reinforced to resist flexing under heavy loads. A built-in safety overload valve offers protection: if the user attempts to lift beyond capacity, the descent is controlled rather than catastrophic, promoting safer operation. The Quick-Pump system is facilitated by internal geometry that jumps the saddle toward the chassis with minimal strokes, saving time during repetitive lifts. A protective rubber sheath covers part of the handle to prevent scratching low vehicles during deployment.

Operation is straightforward: roll the floor jack under appropriate lift points, pump the handle to raise, then use the twist release control to lower safely. Always center the load on the saddle before lifting and place properly rated jack stands as soon as a vehicle is elevated—never rely on the jack alone for long-term support. Because the hydraulic system is sealed, maintenance is minimal: occasional checks for leaks, periodic inspection of seals, and cleaning of pivot points and linkages are sufficient. If elevation performance declines, bleed or purge the system as prescribed by factory procedures.

For shops working on mixed fleets of sedans, SUVs, and light trucks, the RFJ-3TQP is especially useful where quick lifting is vital. Its rapid pump action saves time during wheel or brake jobs, alignment prep, and general service work. The steel construction, load safety design, and efficient lifting make it a solid, dependable choice when downtime or tool failure is not an option.

Contact us for more information on floor jacks or other mechanic shop equipment.
