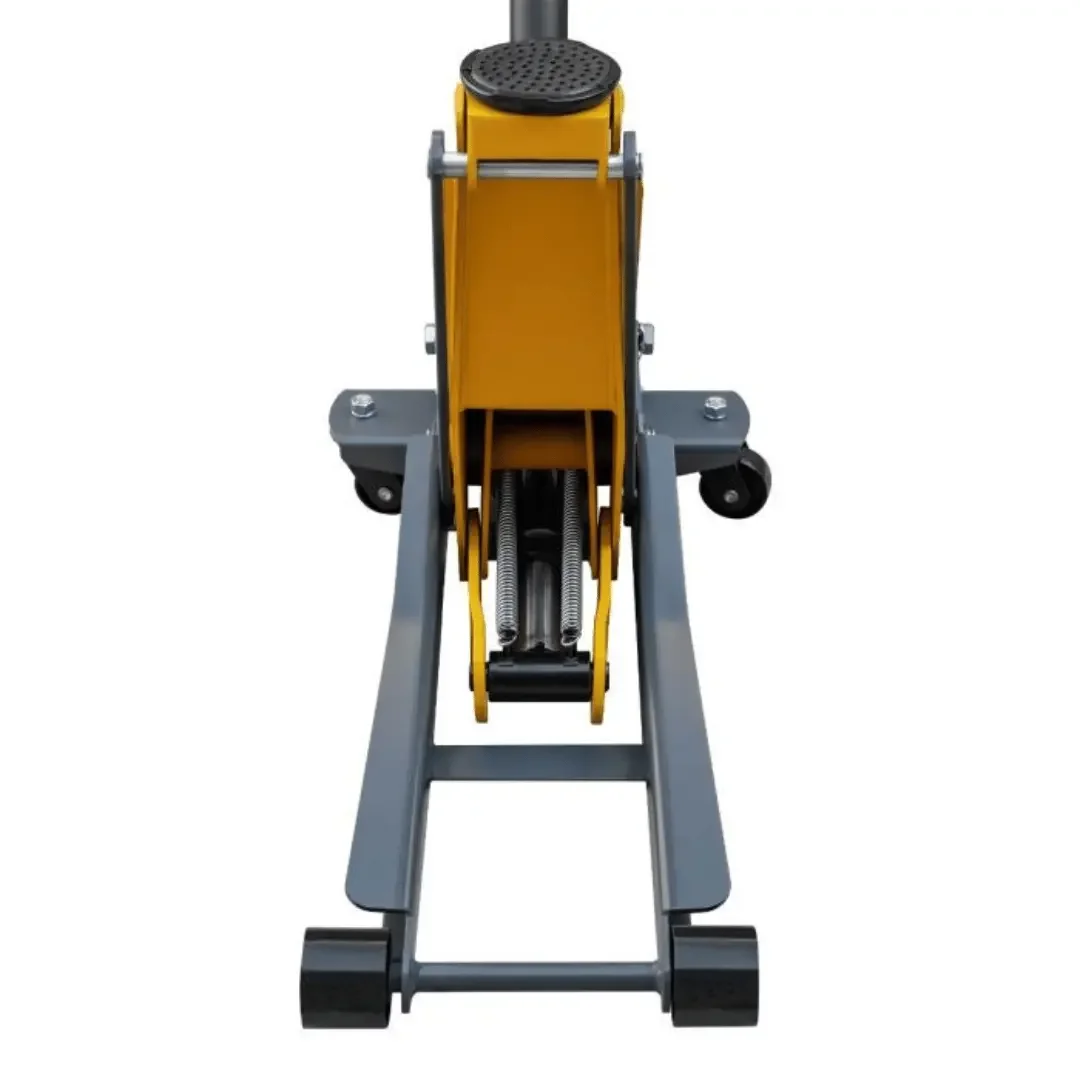

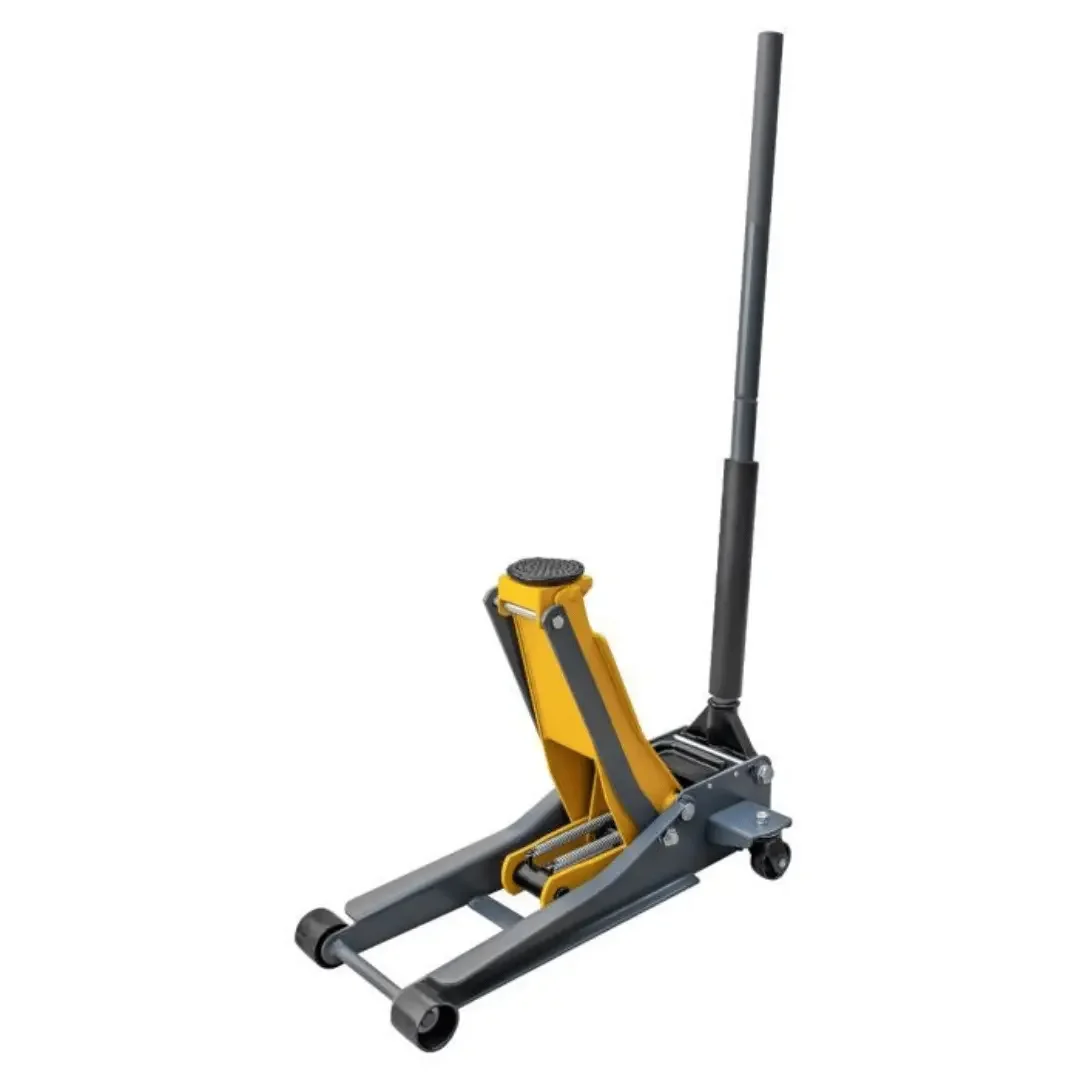

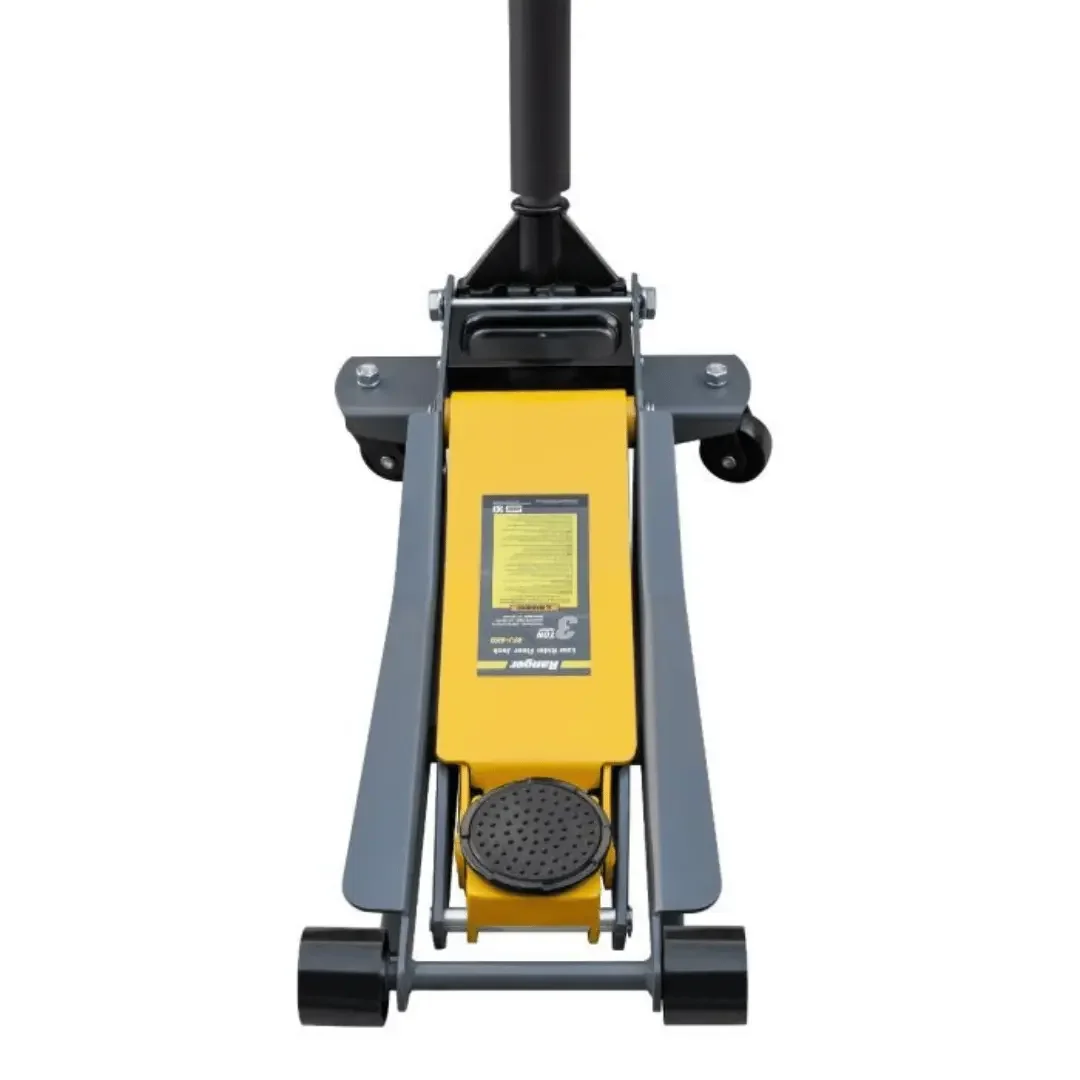

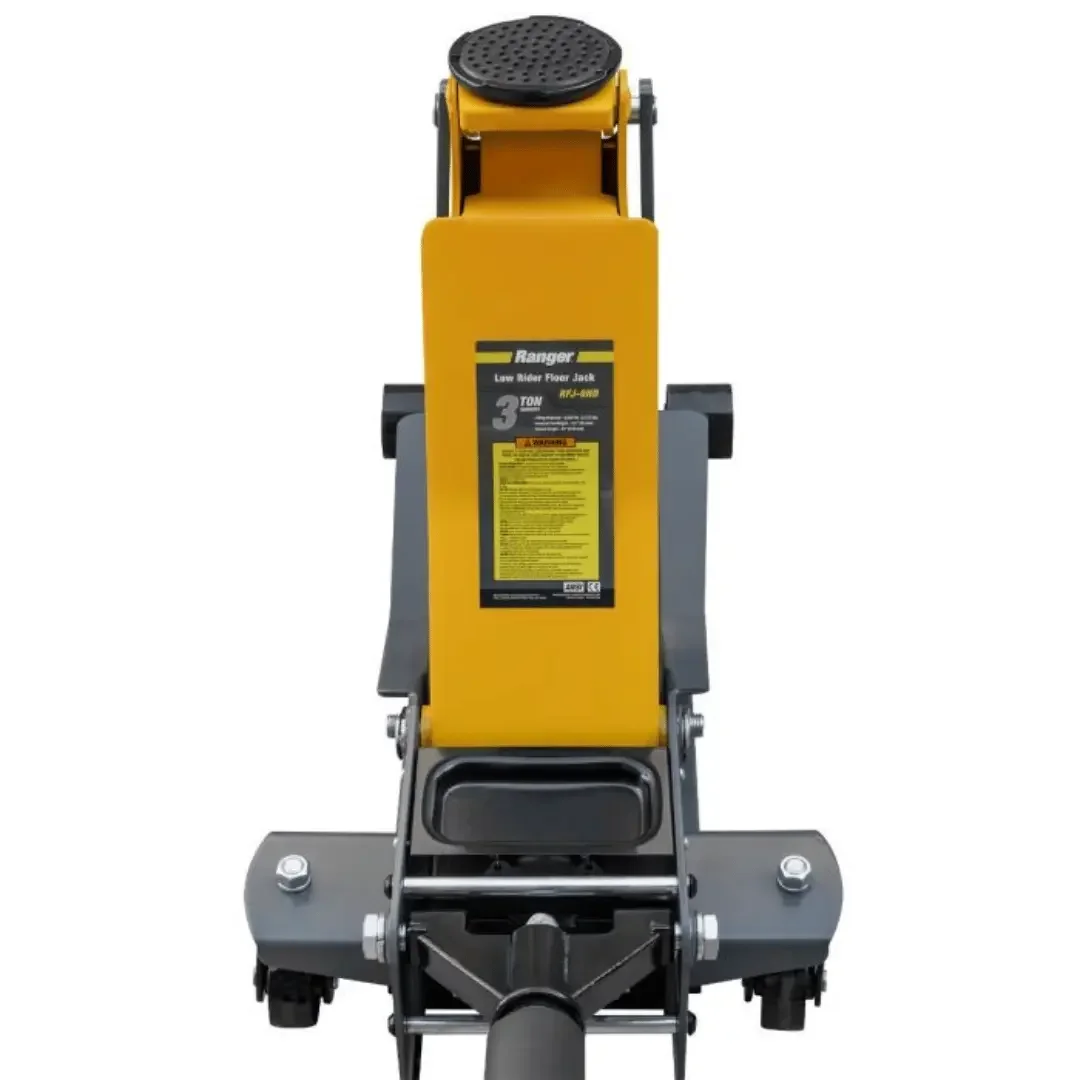

Ranger RFJ-6HD 3-Ton "Low Rider" Floor Jack

The Ranger RFJ-6HD Low-Rider Floor Jack is a professional-grade hydraulic jack built for technicians who work on low-clearance performance vehicles, sports cars, and heavy sedans. With a lifting capacity of 6,000 pounds or 3 tons, this model delivers impressive strength in a design optimized for speed, safety, and long-term reliability. The low-rider profile is engineered for access under vehicles with ground clearance as low as 3.6 inches while still offering a full lift height of up to 21 inches. That combination of low entry and high reach makes it one of the most versatile floor jacks for mixed-vehicle service environments.

The RFJ-6HD floor jack is constructed from heavy-gauge steel and reinforced with flanged side plates that prevent flexing or twisting under pressure. This structural integrity helps maintain even weight distribution and reduces stress on the hydraulic system. The jack’s frame measures approximately 27 inches long with an 11-inch front width and a 14-inch rear width, providing a broad and stable base that supports safe lifting in busy workshop conditions. Weighing about 108 pounds, it remains heavy enough for solid contact yet manageable to roll or reposition using its swivel caster wheels.

The heart of the RFJ-6HD floor jack is its quick-pump hydraulic system, designed to reduce setup time by raising the saddle to contact height with just a few strokes. This quick-pump design is ideal for repetitive lifting tasks, tire changes, and general automotive maintenance. Once loaded, a dual-plunger pump system engages smoothly to lift up to the maximum height with minimal effort. The hydraulics are double-sealed to prevent leaks and contamination from dust, oil, and shop debris. These seals also preserve hydraulic fluid integrity and maintain steady lifting power across years of use. The built-in safety overload valve prevents operation beyond rated capacity, ensuring that both the user and the jack remain protected during every lift.

The jack’s universal joint pressure release system allows precise control while lowering a vehicle, even with partial turns of the handle. This fine-tuned release is especially useful when positioning a car onto jack stands, allowing millimeter-accurate descent without jerking or dropping. The saddle is made from hardened steel with a rubberized contact pad that grips securely and minimizes damage to vehicle surfaces. The low starting height of 3.6 inches means this model easily slides beneath sports cars, tuning builds, and modified vehicles where traditional jacks simply can’t fit.

Maintenance on the floor jack is minimal but important. Periodically check hydraulic fluid levels, lubricate the main pivot points, and inspect the jack for signs of fluid leakage or damaged seals. If lifting performance becomes sluggish, air may have entered the hydraulic circuit; bleeding the system restores smooth operation. Because the hydraulic cylinder and pump assembly are sealed, contaminants are unlikely to enter, extending the service life of internal components. Always store the jack on a level surface and avoid overloading beyond the rated capacity to ensure optimal performance and safety longevity.

To use the RFJ-6HD, roll it beneath the correct lifting point on a vehicle, ensure the saddle is centered, and begin pumping the handle until contact is made. Continue pumping to achieve the desired height, then place properly rated jack stands for support. Never work beneath a vehicle supported only by a hydraulic jack. To lower, slowly twist the handle counterclockwise; the universal joint release provides smooth, controlled descent. The solid steel frame, broad base, and balanced lift geometry all contribute to the smooth, predictable motion that professionals expect from a premium piece of shop equipment.
