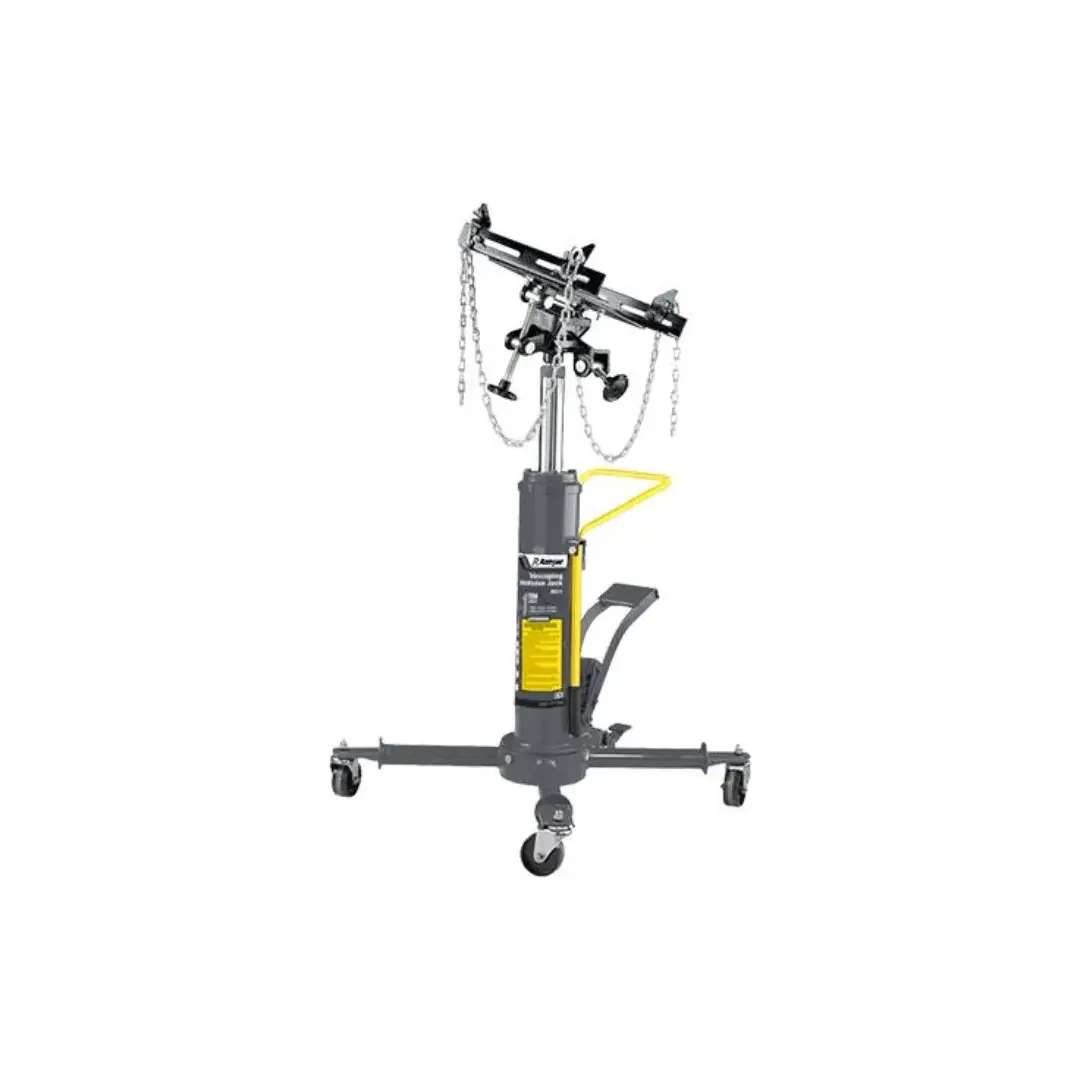

Ranger RTJ-1 1-Ton Capacity Telescoping Transmission Jack

The Ranger RTJ-1 is a professional telescoping transmission jack built to simplify and secure the removal, installation, or transfer of transmissions and transaxles. Rated for a full 1 ton (2,000 lb) lifting capacity, it combines height reach, stability, adaptability, and user-friendly controls to serve well in both shop and mobile environments. The vertical telescoping column allows the jack to expand through a wide range, accommodating deeper or recessed transmission housings while providing precise control over height. Rugged construction, sealed hydraulics, and strong safety features make the RTJ-1 dependable for repeated use under load.

At its lowest configuration, the RTJ-1 transmission jack provides a stable base height sufficient to slide beneath most vehicle frames and transmissions. As the column telescopes upward, it reaches a maximum height of 71 inches. This affords plenty of clearance to align, maneuver, and mount transmissions, especially in vehicles where depth or frame constraints would challenge conventional jacks. The jack’s mechanical advantage and geometry allow for incremental adjustment throughout the stroke, giving the operator fine control when raising or lowering heavy drivetrain components.

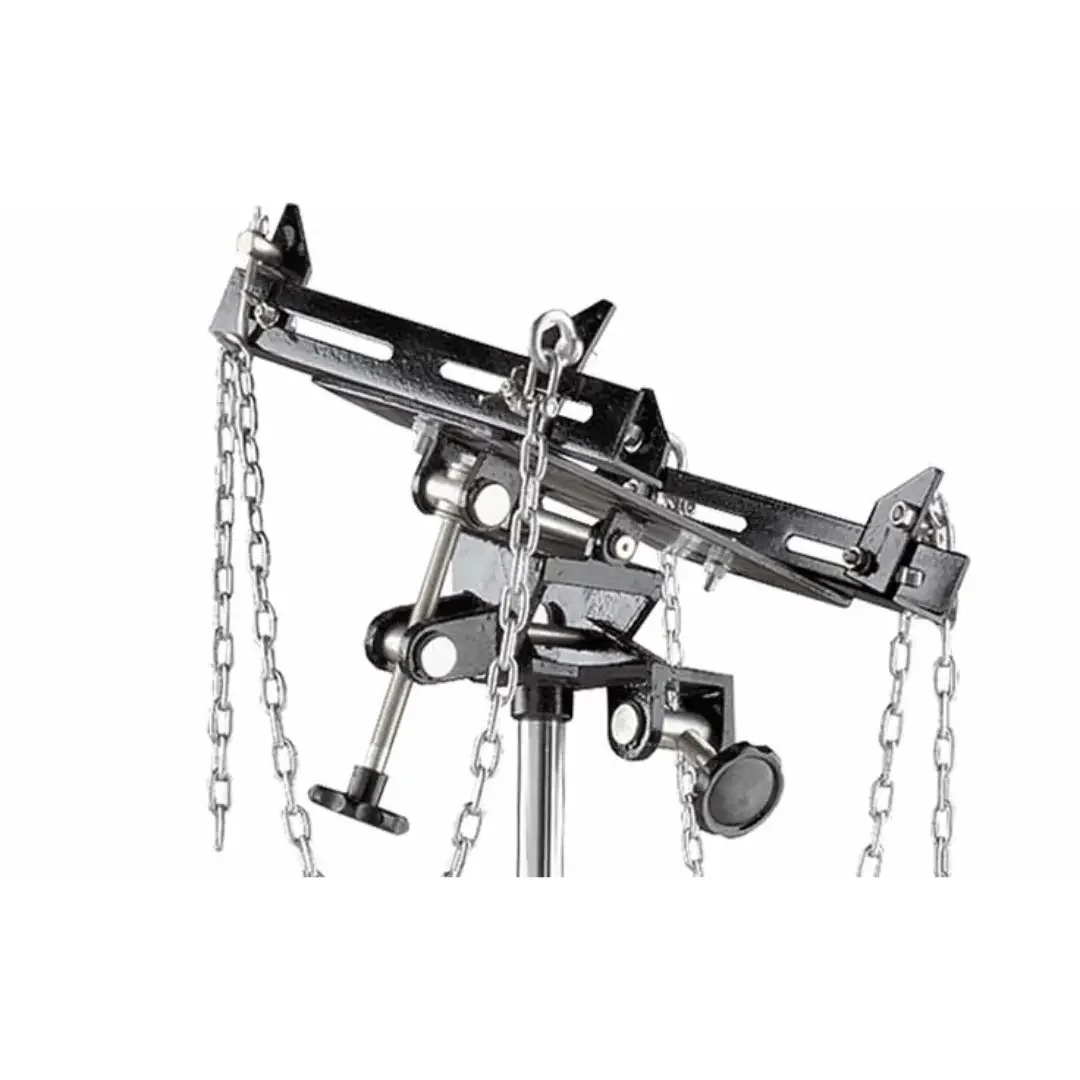

Integral to its design is the adjustable saddle, which secures the transmission or transaxle during operation. The saddle can be positioned to match different bolt patterns or housing shapes, ensuring versatile compatibility across domestic, import, or performance vehicles. Safety is enhanced by anchoring chains or straps (included with the jack), which affix the load to the saddle to resist shifting or tilting during movement. The saddle assembly itself is robustly engineered to prevent slippage or deformation under heavy torque during alignment tasks.

Hydraulically, the RTJ-1 is built for durability and consistent performance. The system uses double-sealed hydraulic cylinders that resist fluid leakage and contamination from shop grime or debris. The seals maintain system integrity even under demanding cycles. A foot-operated pump is standard, allowing hands-free lift control and reduced operator fatigue, especially when lifting heavy components. The foot pump is mechanically linked to the hydraulic circuit so that each depression translates into lift motion, while the release valve enables smooth, controlled descent when lowering the transmission into place.

Stability is emphasized in the base design. Wide legs and reinforcing support gussets help maintain balance under load, reducing the risk of tipping even when the column is near full extension. The column is centered on the base to distribute weight evenly, and the anchor chains add security against lateral shifts. The jack’s construction is robust, with heavy steel components throughout the frame and column, built to resist bending or distortion under heavy loads and repeated service.

In practice, the RTJ-1 gives technicians confidence when working on transmissions. To use it, the operator positions the jack beneath the drivetrain component, secures the load to the adjustable saddle via chains or straps, and then pumps the foot lever until the transmission is aligned or begins to shift. As installation progresses, the telescoping column can be raised or lowered to adjust fit, and once aligned, the assembly can be slowly lowered with the release valve for exact placement. Always support the load with appropriate supports or jack stands when finished, and never trust the jack alone as the only support for long durations or when personnel must work beneath the vehicle.
