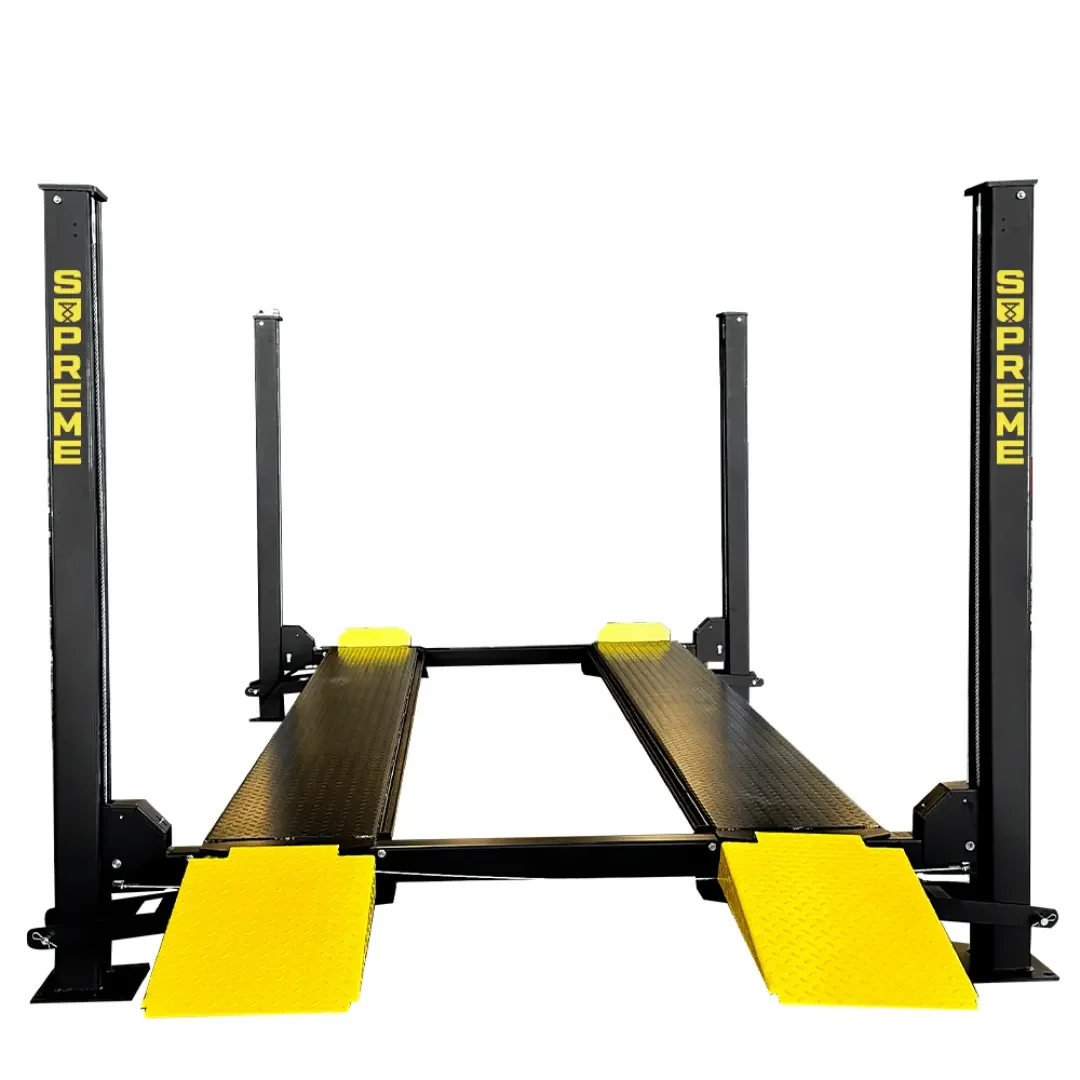

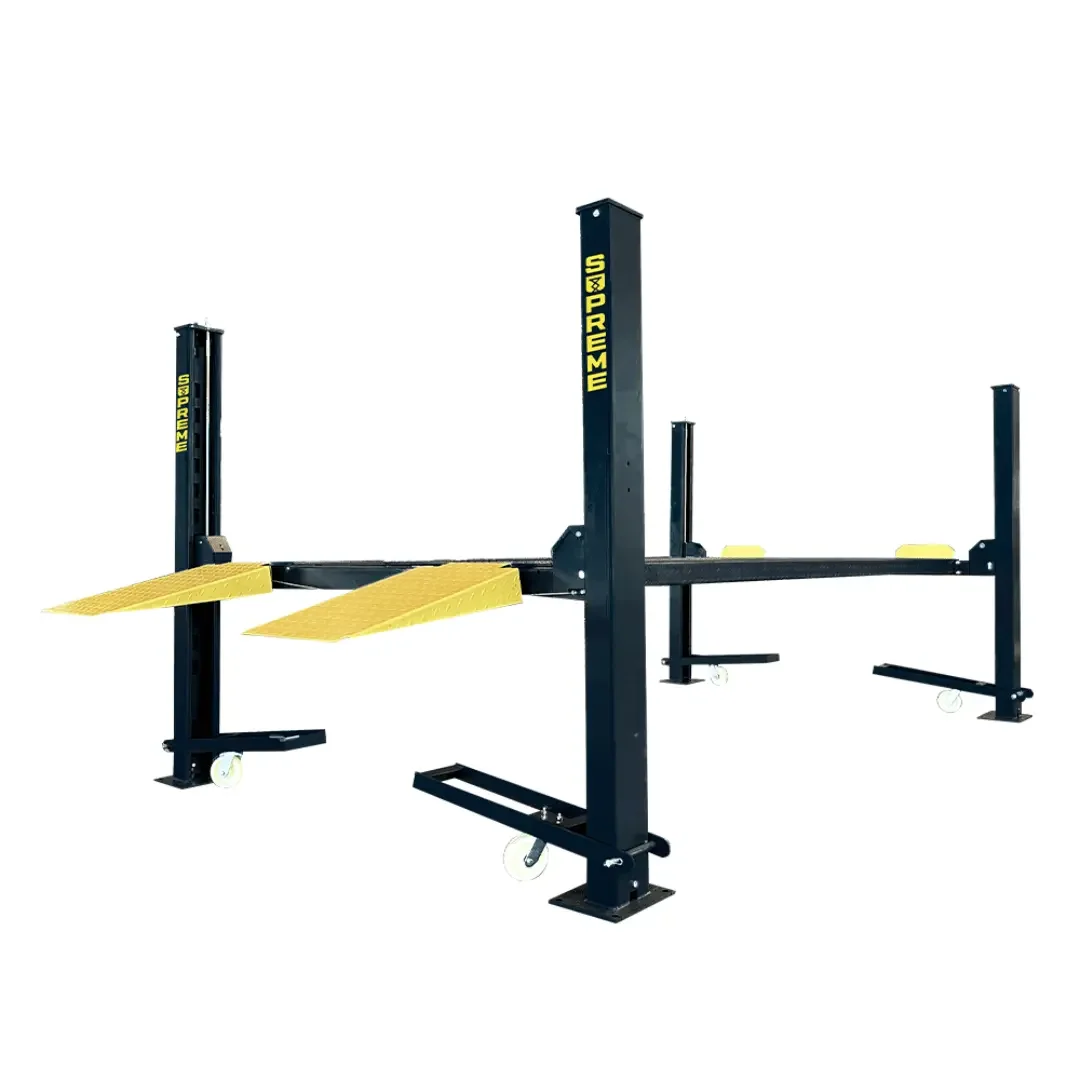

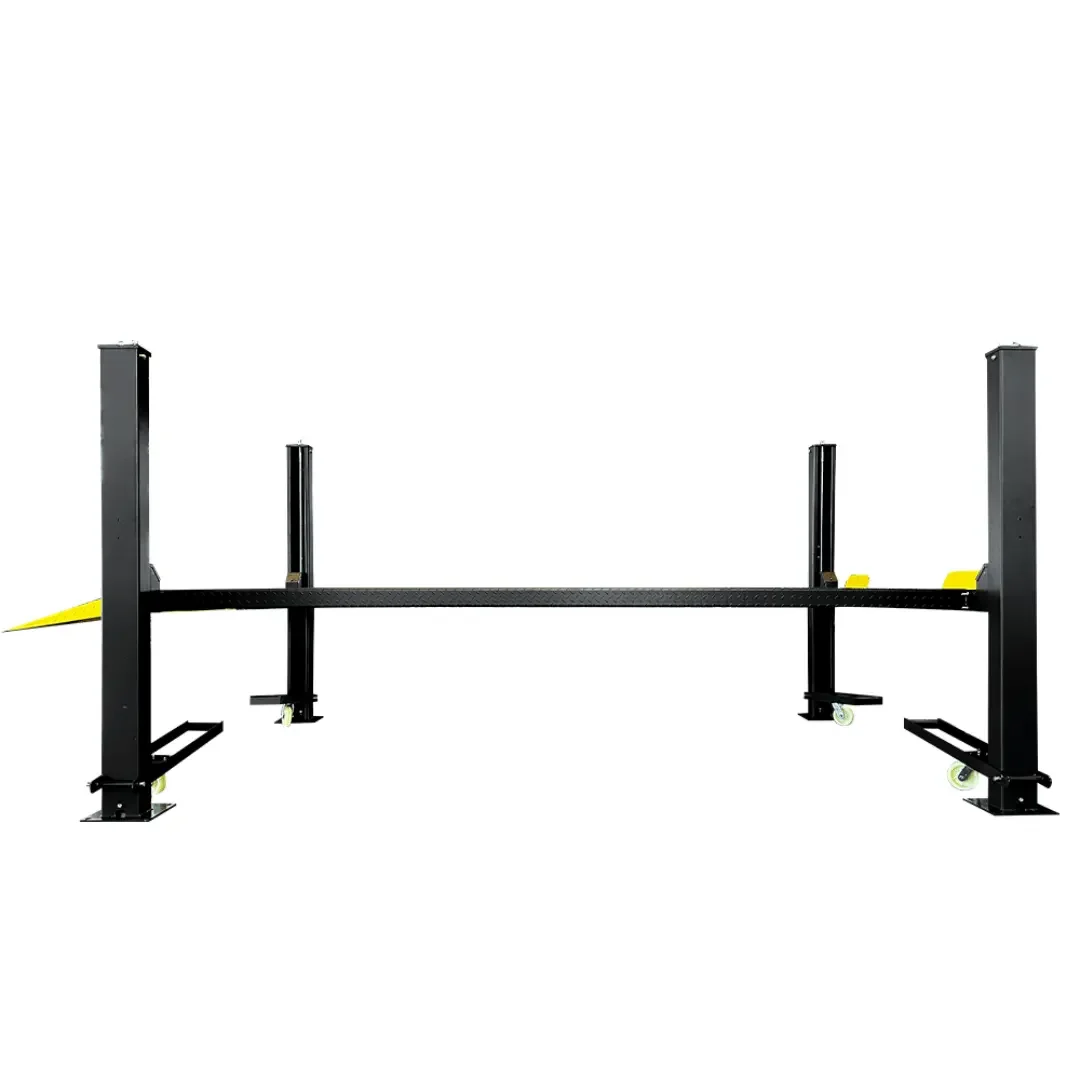

Supreme SP-85P 8,500 lb 4 Post Parking Lift

The Supreme SP-85P 8,500 lb 4 post parking lift is purpose-built to serve both enthusiasts and professionals who need dependable vehicle storage and service capability in one unit. This 4 post lift combines a powerful lift capacity, smart structural design, and practical features to help maximize space and utility in a garage or shop environment.

With a lifting capacity of 8,500 lbs, the SP-85P 4 post parking lift is engineered to accommodate a wide variety of vehicles—everything from sedans and sports cars to light trucks and SUVs. Whether you’re storing a weekend cruiser or servicing heavier street vehicles, this lift delivers reliable performance without overreach. The ability to stack vehicles or lift one for complete underbody access makes it a versatile addition to any workspace.

The structure is fabricated from heavy gauge steel and finished with a tough powder coat to resist corrosion and stand up to daily use. Reinforced runways provide stable vehicle support, while cross bracing adds lateral rigidity and reduces flex under load. Included are jack tray inserts and drip trays—useful features for when you want to perform light maintenance or catch leaking fluids without mess.

Operation is powered by a robust 3 HP hydraulic motor running on 110V, which simplifies the electrical requirements for many residential or small commercial setups. The lift cycle time is approximately 40 seconds, giving a good balance between speed and control. A single-point locking release mechanism enables both sides of the lift to disengage locks simultaneously, making operation faster and more intuitive.

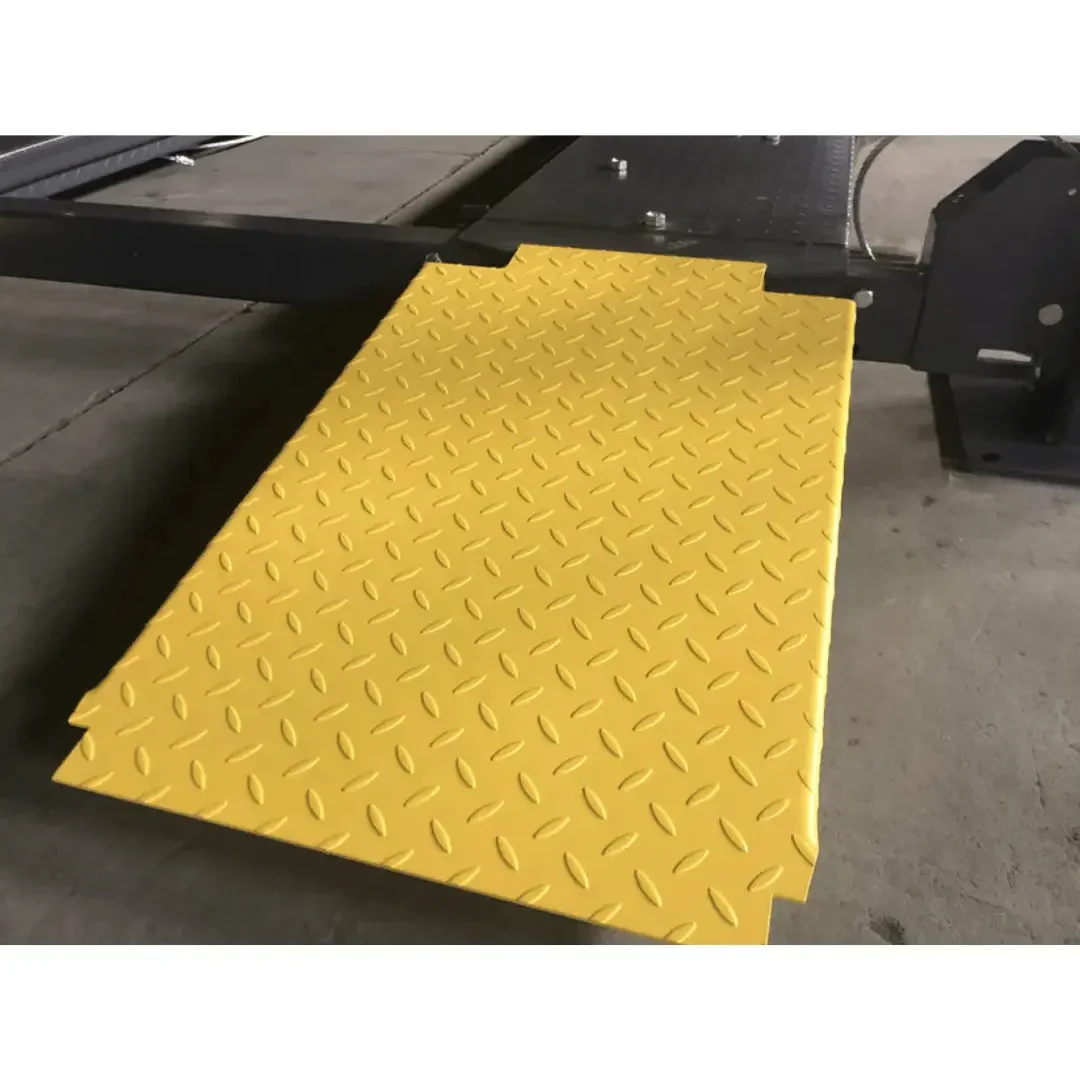

The SP-85P includes a caster kit, allowing mechanics to reposition the lift in the shop when needed. This portability is rare in heavier lifts and can help when rearranging bay layouts or cleaning floors. Approach ramps are part of the design, and the runways are engineered to be low enough (5 inches when lowered) to roll in low-clearance vehicles with ease.

Key dimensions make this 4 post parking lift practical for many garage environments. The overall height is 83.75", offering enough vertical space without requiring extreme ceiling height. The lift height goes up to 71", while under-runway clearance is 68". The base footprint includes a width of 108" and a runway length of 157". The drive-through width between the runways is 92.5", enabling easy entry and exit of various vehicle widths. Between the runways, the space spans 37.5", and the base plate size is 12" × 12". Locking is staged across 10 positions, allowing secure pausing at multiple levels during use. Shipping weight is approximately 1,600 lbs, so careful handling is essential during delivery and installation.

Installation demands a solid foundation. The lift must be anchored to concrete that meets or exceeds structural requirements in thickness and compressive strength; proper anchoring and leveling are crucial. Misalignment or poor foundation work can degrade performance and safety. Because of its large mass, a forklift or hoist is often required to move and place columns and runways during installation.

Contact us for more information.
