Triumph NOS10000 10,000 lb Service Storage 4 Post Automotive Lift
Triumph NOS10000 10,000 lb Service Storage Four Post Automotive Lift
*Get a FREE Chicago Pneumatic CP WallAIR 1.5-HP Wall-Mount Air Compressor w/ Hose Reel + Inflation Kit with this lift while supplies last!
(option to add compressor will be available at checkout)
The Triumph NOS10000 delivers exceptional strength, safety, and performance for both professional garages and home enthusiasts. Built with Triumph’s trusted outside slider design, this four-post automotive lift ensures unmatched stability and rigidity — making it perfect for lifting, servicing, and long-term vehicle storage.
Designed to handle up to 10,000 lbs, the NOS10000 offers premium features and craftsmanship you can rely on. Whether you’re performing maintenance or storing your prized vehicles, this lift combines industrial-grade power with user-friendly operation.
Product Features
-
Rugged Construction: 4.75" x 4.75" posts with 6.5" x 6.5" slide collars provide superior rigidity and durability.
-
Secure Locking System: Manual deadbolt locks with oversized release linkage for quick and safe operation.
-
Lightweight Aluminum Ramps: 36" ramps weigh only 29 lbs each for easy setup and handling.
-

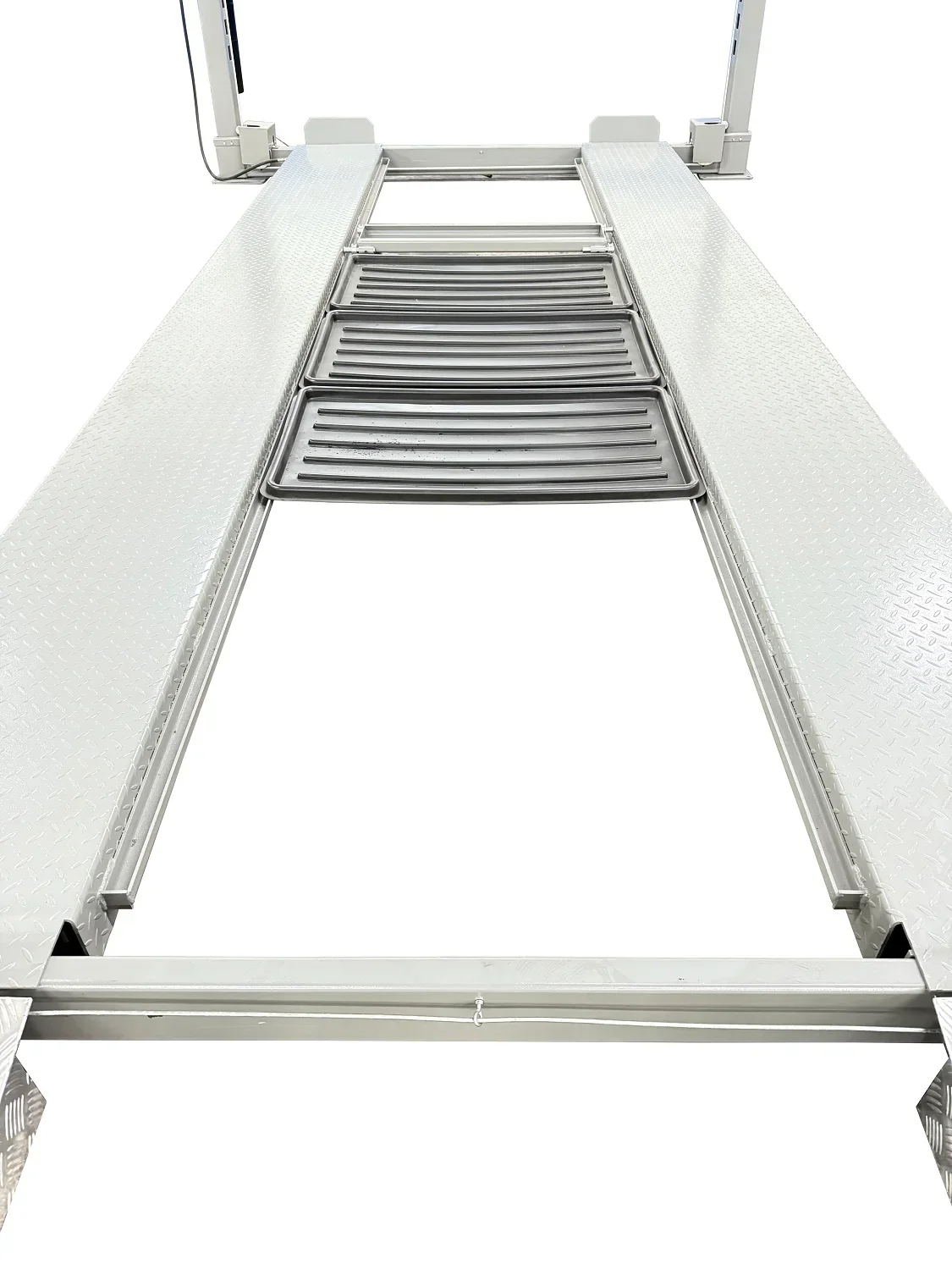

Complete Accessory Package: Includes drip trays, rolling jack tray, and cable keepers to prevent run-off.
-
Extra Strength Design: Boxed tracks add rigidity and ensure long-lasting performance under heavy use.
-
Safety First: Features a secondary redundant safety system for added peace of mind.
-
Mobility Ready: Heavy-duty poly-coated caster kit allows easy relocation of the lift when needed.
Product Specifications
| Lift Model | NOS10000 |
|---|---|
| Capacity | 10,000 lbs |
| Overall Height | 99.5" |
| Overall Length | 210.5" |
| Overall Width | 123" |
| Lift Height | 87" |
| Height Under Runway | 81.5" |
| Runway Length | 204″ |
| Drive Thru Width | 109" |
| Runway Width | 20" |
| Lowered Height | 5.5" |
| Locking Positions | 14 |
| Base Plate Size | 12" x 12" |
| Lock Release | Single Point |
| Lift Time | 60 Seconds |
| Voltage | 110 Volts |
| Shipping Weight | 2,535 lbs |
Pick Up and Delivery
Our Pick Up locations for Triumph are located in Forth Worth, TX / Columbus, OH / Las Vegas, NV.
Call, text, or chat with us if you have questions. 866-774-7743
