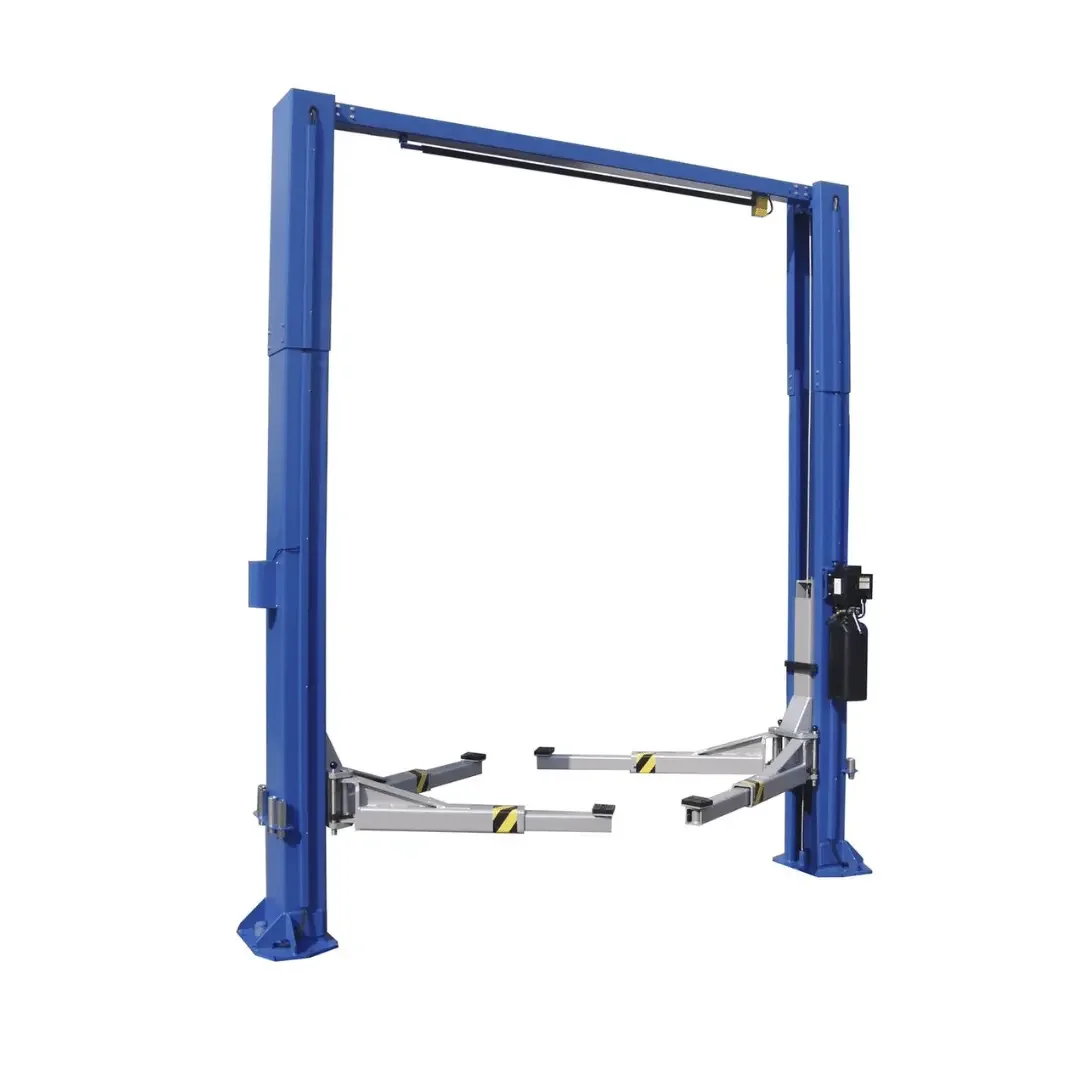

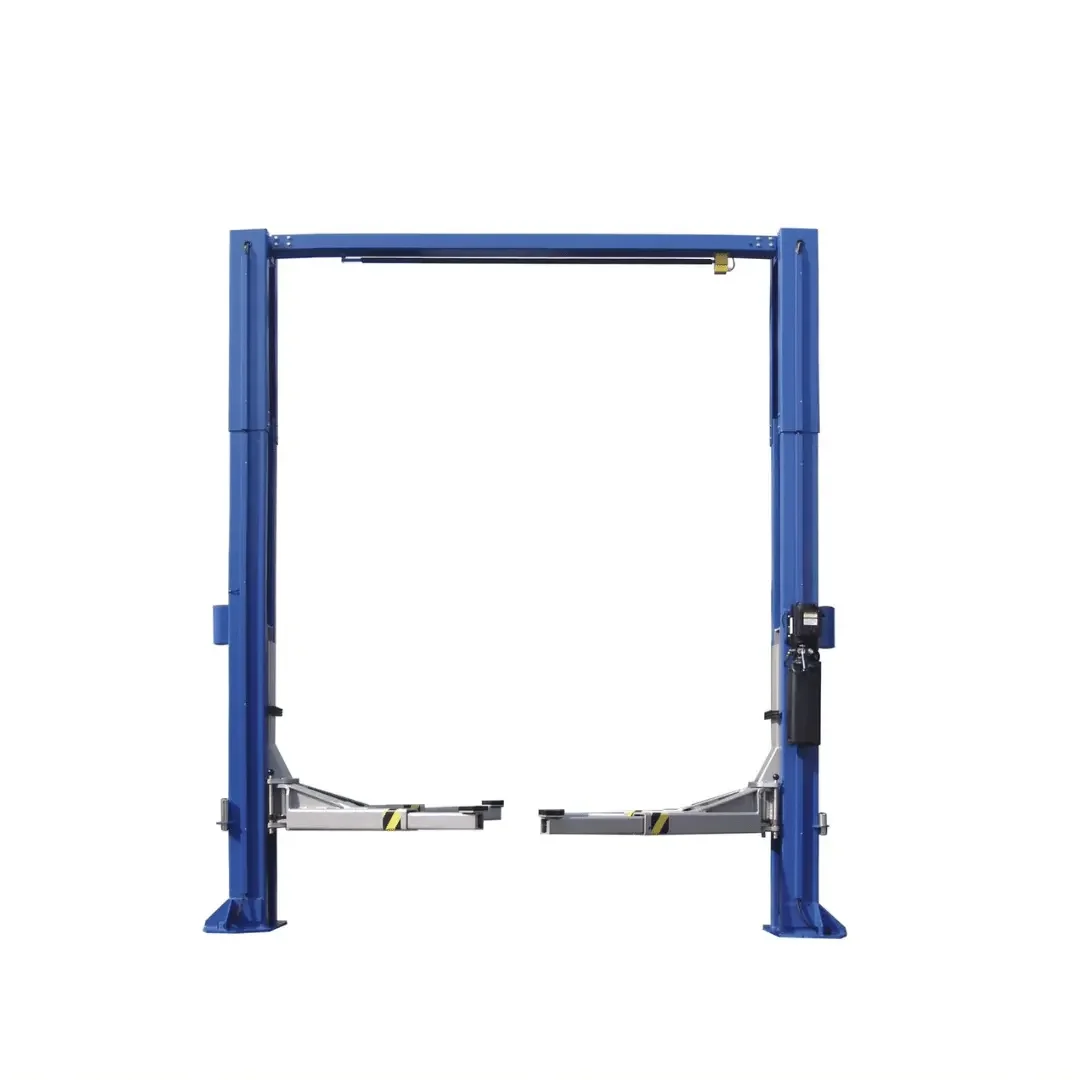

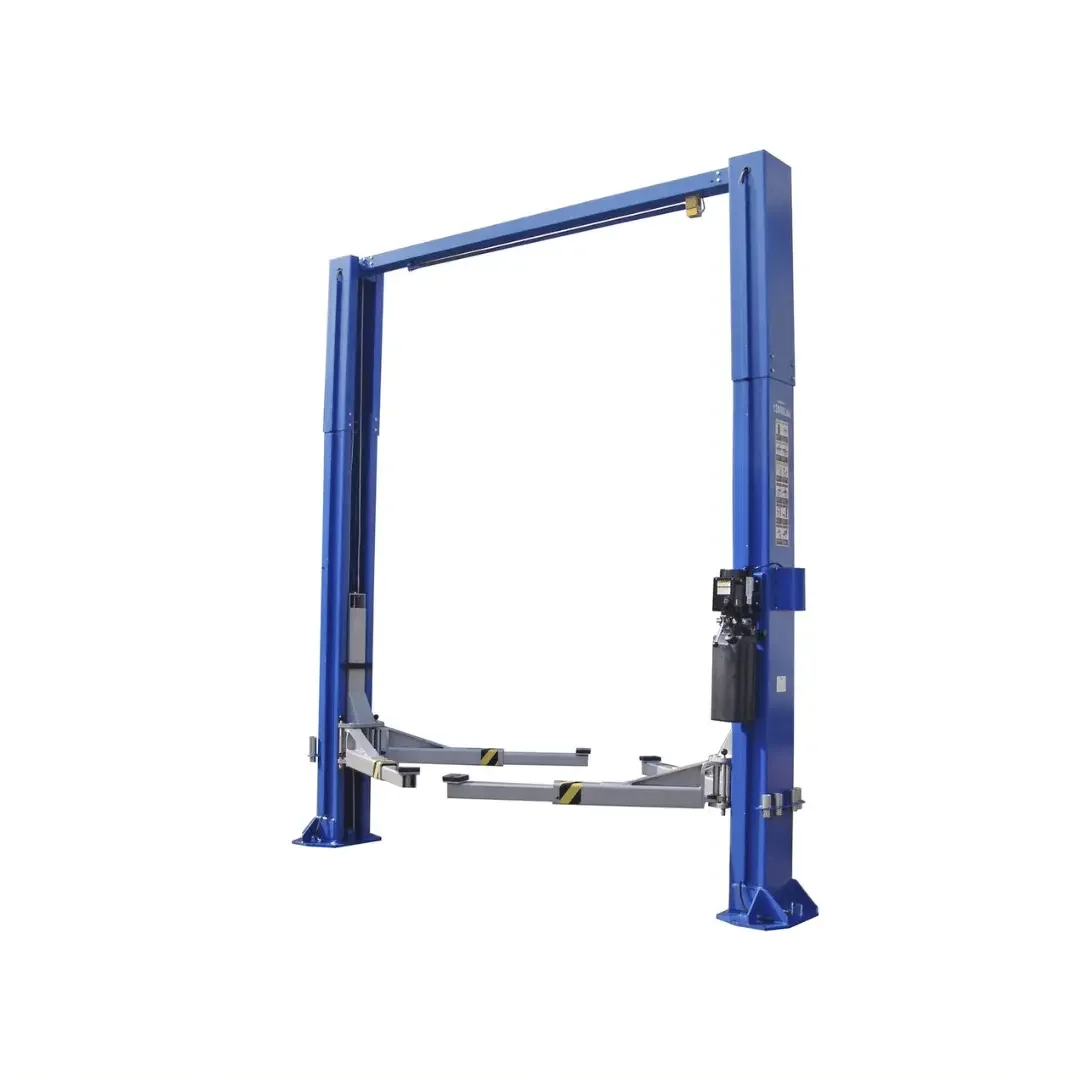

Tuxedo TP12KC-D 12,000 lb 2 Post Lift - Direct Drive
Tuxedo TP12KC-D 12,000 lb 2 Post Lift - Direct Drive
Product Features
- 12,000 lbs Capacity

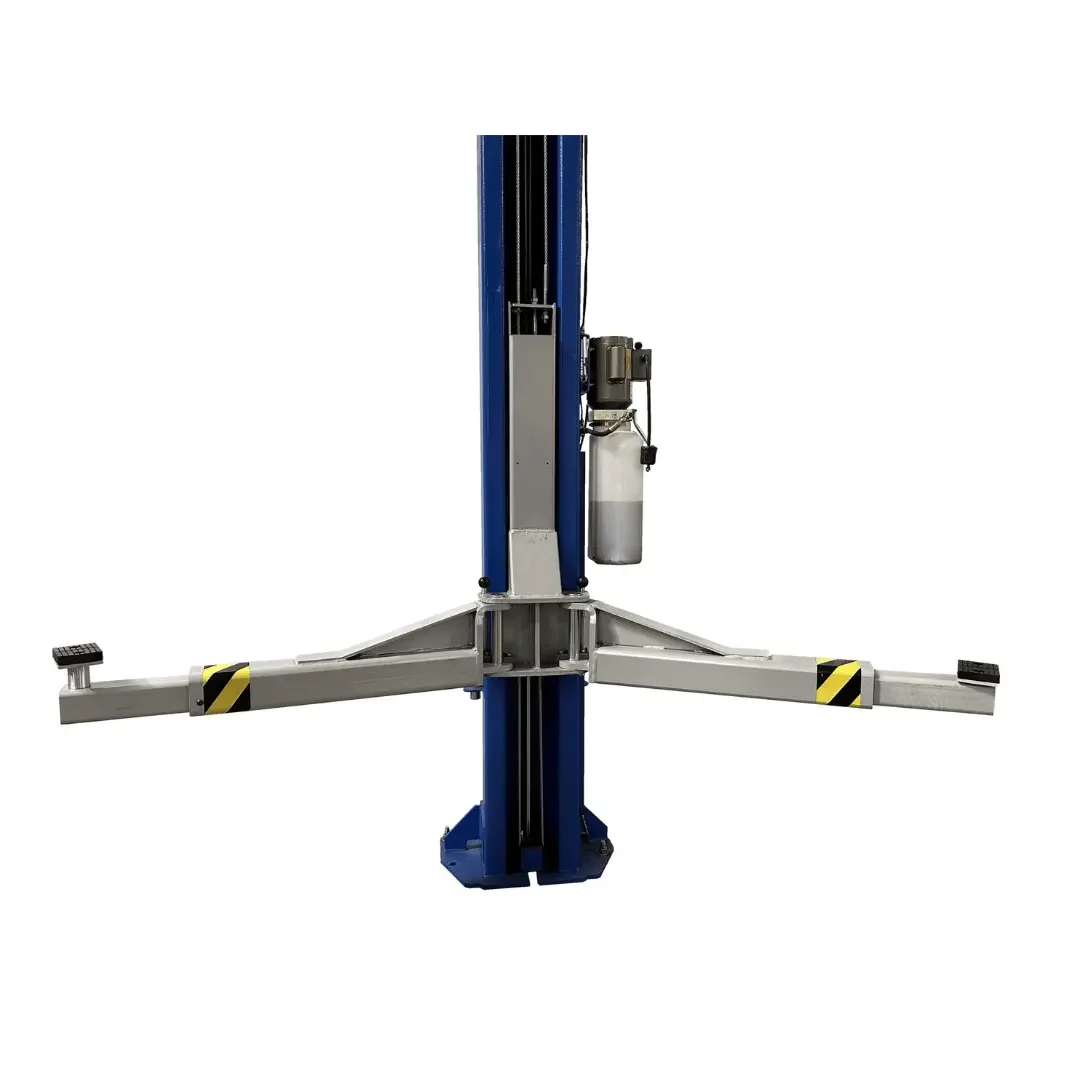

- Symmetric arm design
- Rubber Door Guards

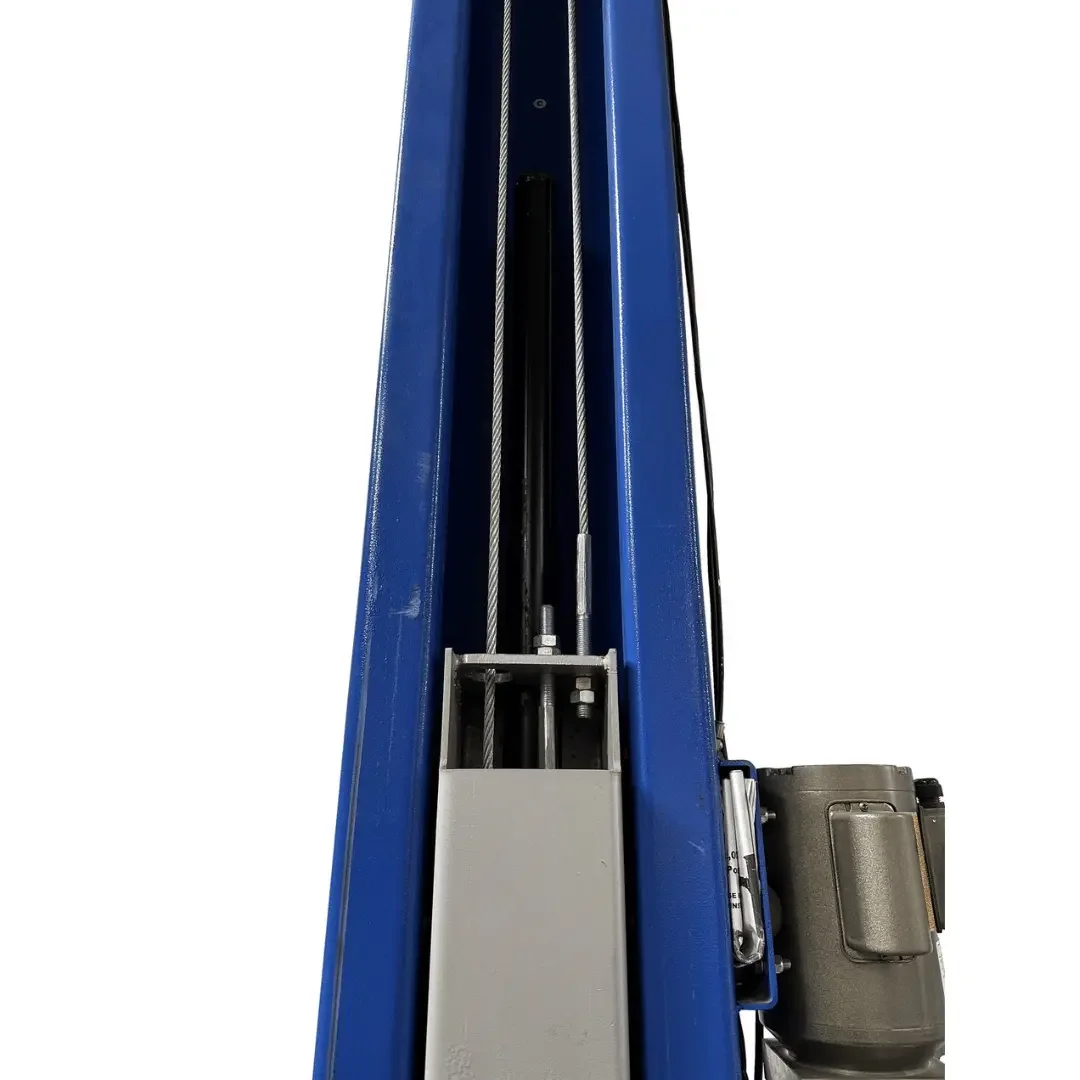

- Direct Drive push Cylinders
- Single Point pneumatic Lock Release
- Heavy Duty Arm Restraint System

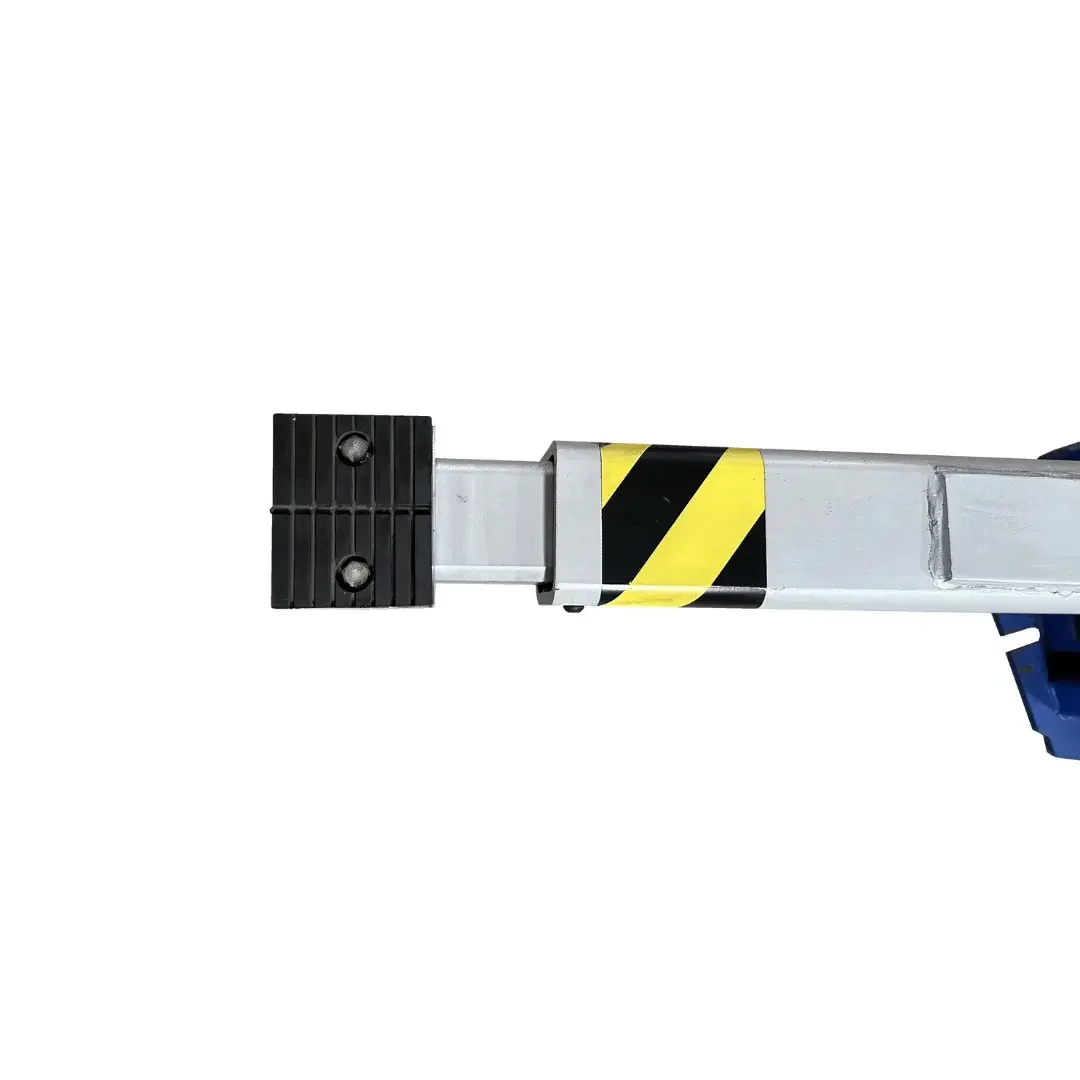

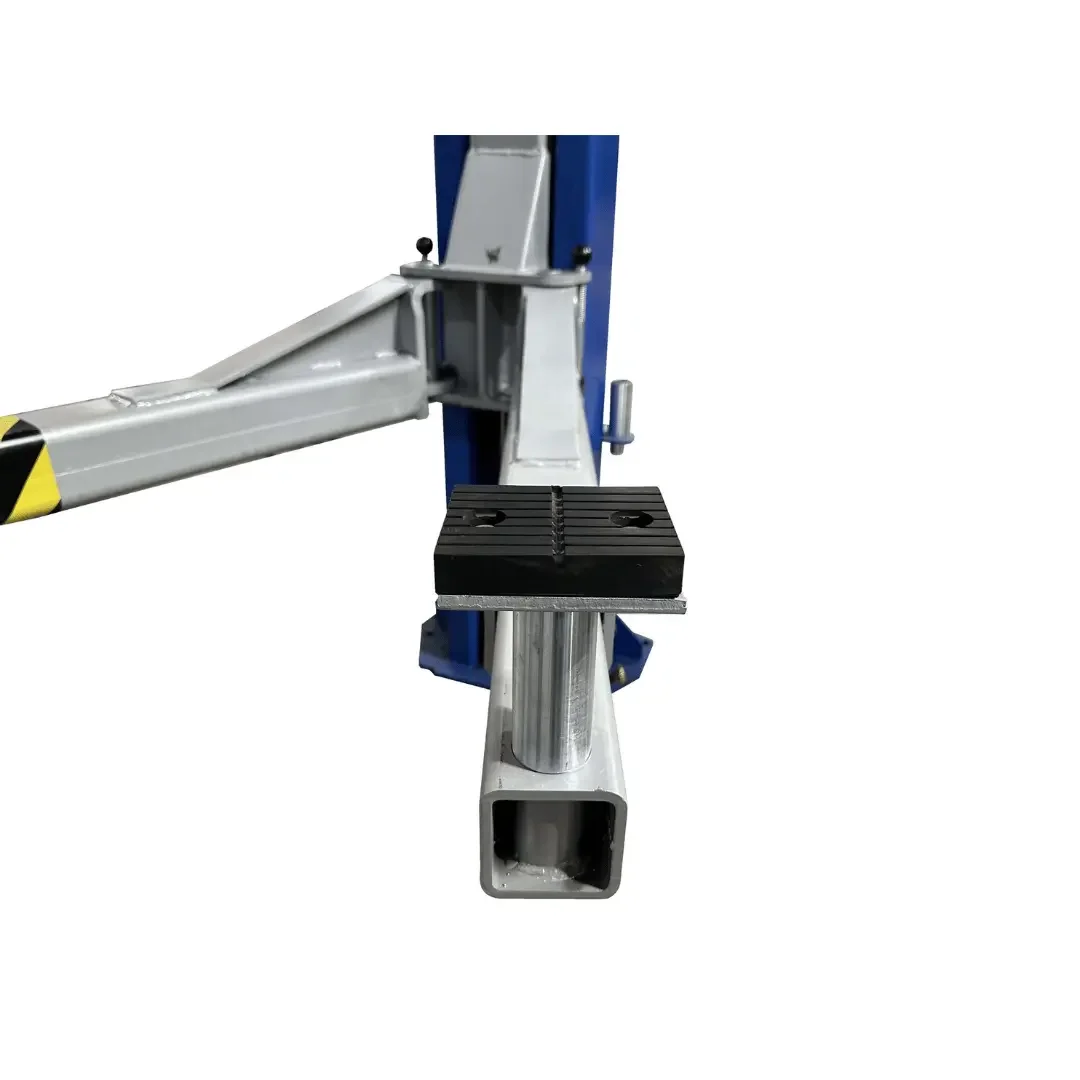

- Drop-in Lift Pads

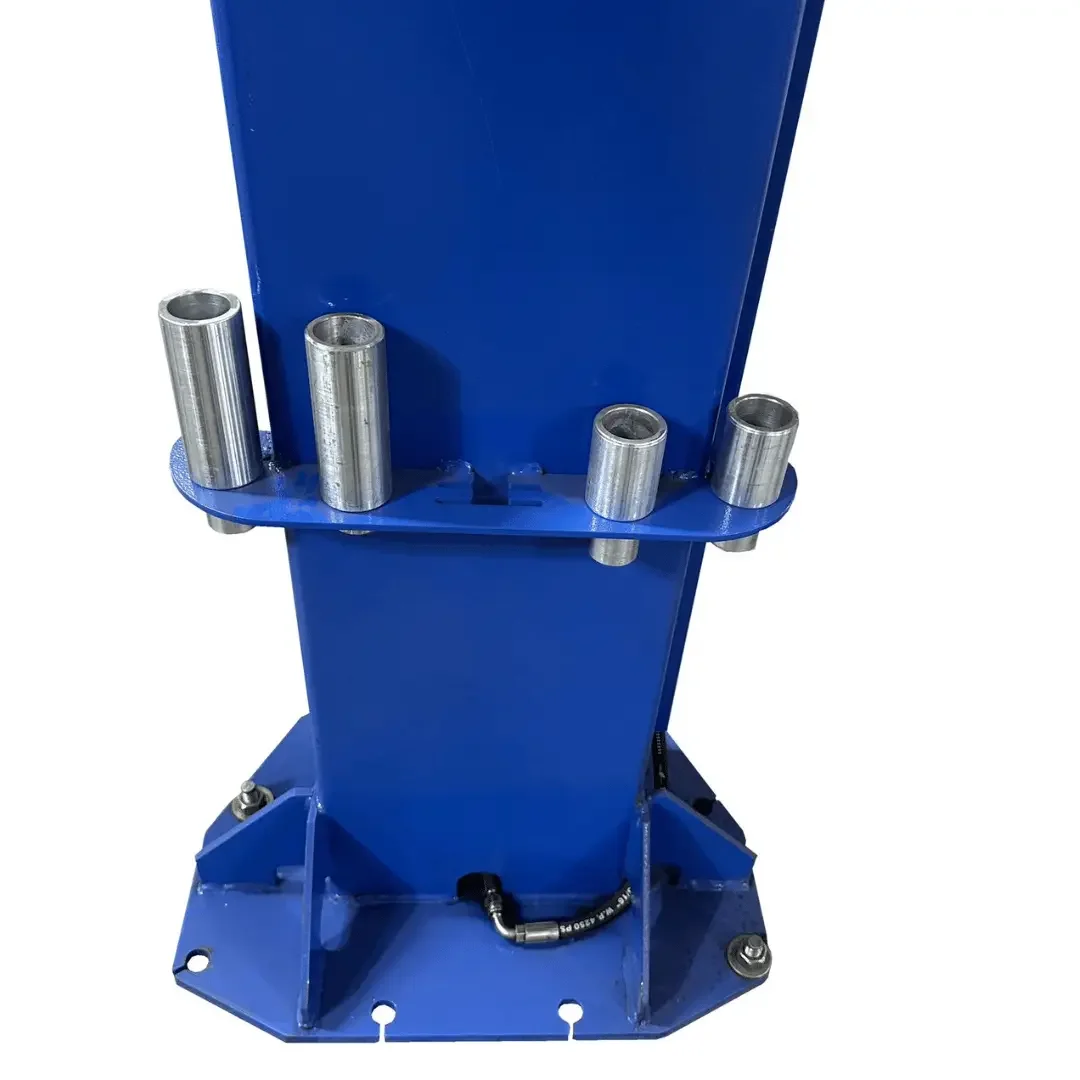

- Stackable Adapters Included
- External hose guards

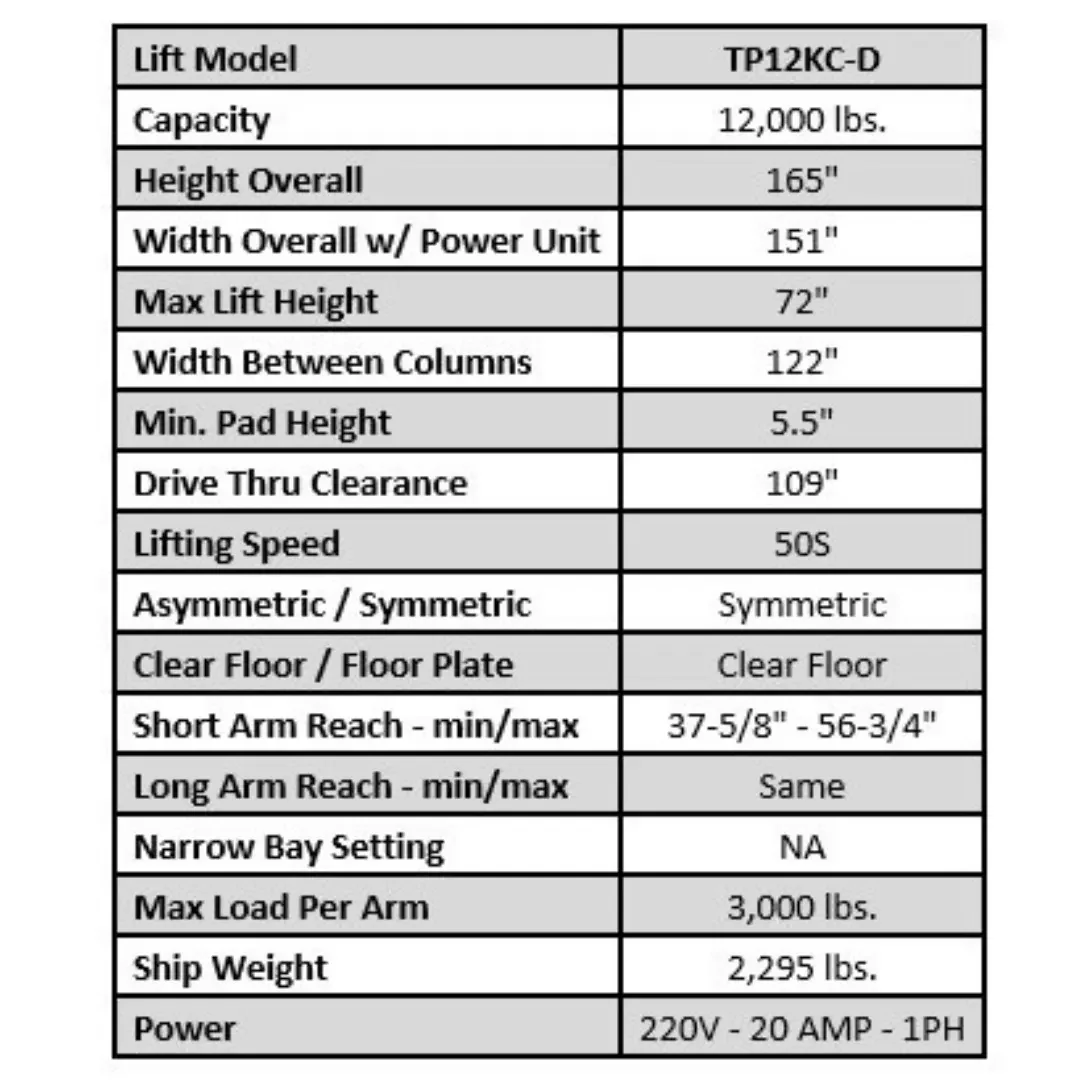

Product Specifications
| Lift Model | TP12KC-D |
|---|---|
| Capacity | 12,000 lbs |
| Height Overall | 165″ |
| Width Overall w/ Power Unit | 151″ |
| Max Lift Height | 72″ |
| Width Between Columns | 122″ |
| Min. Pad Height | 5-1/2″ |
| Drive Thru Clearance | 109″ |
| Lifting Speed | 50S |
| Asymmetric / Symmetric | Symmetric |
| Clear Floor / Floor Plate | Clear Floor |
| Short Arm Reach – min/max | 37-5/8″ – 56-3/4″ |
| Long Arm Reach – min/max | 37-5/8″ – 56-3/4″ |
| Max Load Per Arm | 3,000 lbs |
| Ship Weight | 2,295 lbs |
| Power | 220V – 20 Amp – 1PH |
Pick Up and Delivery
Our Pick Up locations for Valor, Tuxedo, iDeal are located in Temecula, California - Orlando, Florida - Norcross, Georgia - Elwood, Indiana - St. Cloud, Minnesota - Reidsville, NC - Pottsville, Pennsylvania - Alvarado, Texas - West Valley City, Utah.
Call, text, or chat with us if you have questions. 866-774-7743
$5,712.00
Tuxedo TP12KC-D 12,000 lb 2 Post Lift - Direct Drive—
$5,712.00
Description
Tuxedo TP12KC-D 12,000 lb 2 Post Lift - Direct Drive
Product Features
- 12,000 lbs Capacity
- Symmetric arm design
- Rubber Door Guards
- Direct Drive push Cylinders
- Single Point pneumatic Lock Release
- Heavy Duty Arm Restraint System
- Drop-in Lift Pads
- Stackable Adapters Included
- External hose guards
Product Specifications
| Lift Model | TP12KC-D |
|---|---|
| Capacity | 12,000 lbs |
| Height Overall | 165″ |
| Width Overall w/ Power Unit | 151″ |
| Max Lift Height | 72″ |
| Width Between Columns | 122″ |
| Min. Pad Height | 5-1/2″ |
| Drive Thru Clearance | 109″ |
| Lifting Speed | 50S |
| Asymmetric / Symmetric | Symmetric |
| Clear Floor / Floor Plate | Clear Floor |
| Short Arm Reach – min/max | 37-5/8″ – 56-3/4″ |
| Long Arm Reach – min/max | 37-5/8″ – 56-3/4″ |
| Max Load Per Arm | 3,000 lbs |
| Ship Weight | 2,295 lbs |
| Power | 220V – 20 Amp – 1PH |
Pick Up and Delivery
Our Pick Up locations for Valor, Tuxedo, iDeal are located in Temecula, California - Orlando, Florida - Norcross, Georgia - Elwood, Indiana - St. Cloud, Minnesota - Reidsville, NC - Pottsville, Pennsylvania - Alvarado, Texas - West Valley City, Utah.
Call, text, or chat with us if you have questions. 866-774-7743
