Altas WB11 Computerized Wheel Balancer
Altas WB11 Computerized Wheel Balancer
The Atlas® WB11 is the most popular Atlas® wheel balancer that we sell. Affordability, dependability and repeatable accuracy all make the WB11 one of the most biggest sellers in our line of computerized wheel balancers. The WB11 is very a simple, yet sophisticated wheel balancer. Each electrical component part is virtually “plug and play” so repair is easy when it is time to replace parts.

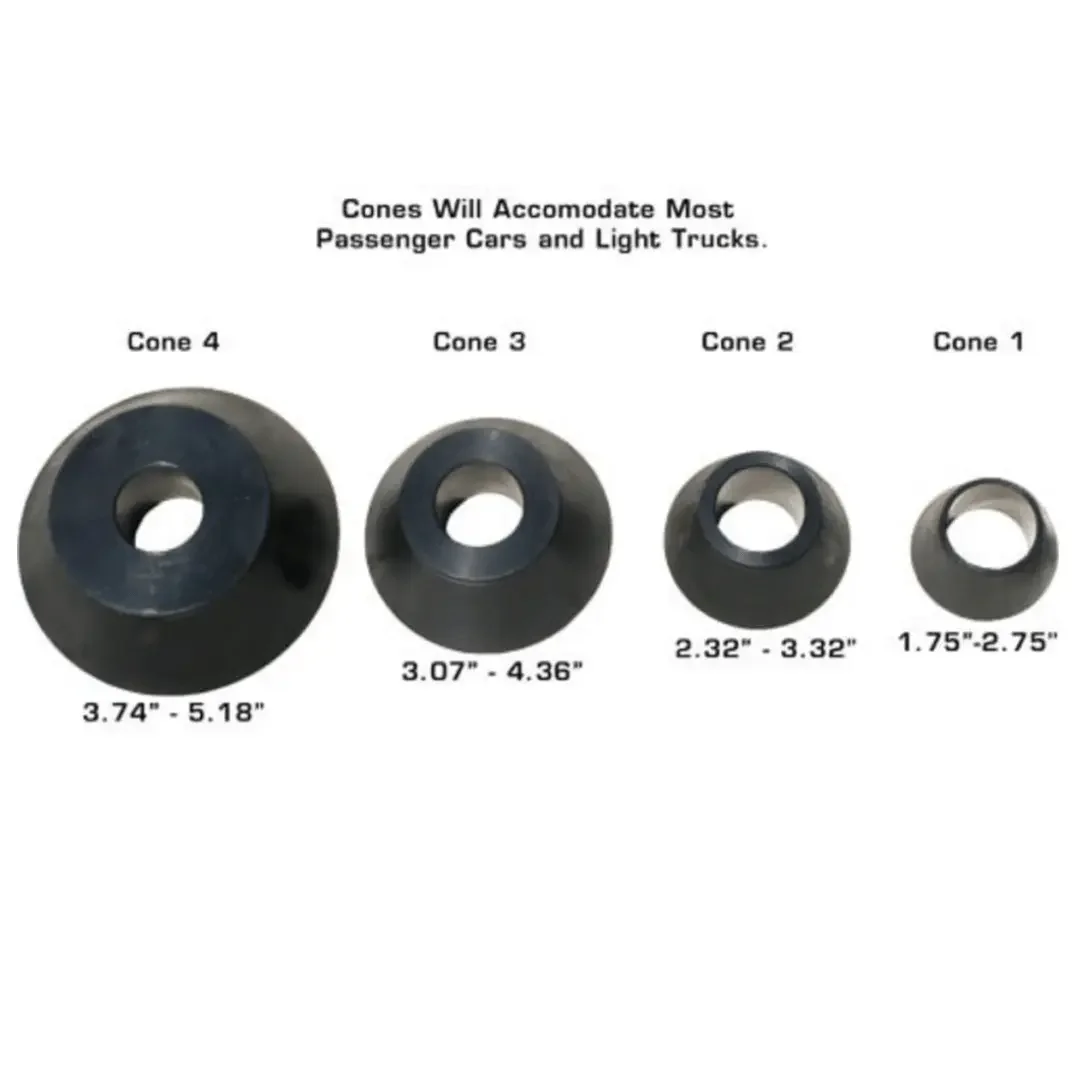

The Atlas® WB11 is capable of self-diagnosing problems and displays error codes so the operator can make the necessary adjustments or repairs in their own shop. There is never any need to wait for a high-priced service technician to visit the store. The WB11 also handles a wide range of wheels on the market with a capability of up to 32″ diameter rims and a weight capacity of over 130 lbs. The WB11 comes standard with a quick-release nut for securing wheels and a set of 4 cones to accomodate center holes from 1.75″ up to 5.18″. An adapter kit made up of a larger cone and a spacer, the Light Truck Adapter Kit, can be purchased separately to handle bigger center holes and more off-set wheels.
The simplicity of the Atlas® WB11, both in ease of operation and repair, make this balancer the perfect choice for almost any shop.
Product Features
- Computer Controlled Motorized Spin Balancer
- Automatic and pedal operated brake.
- Automatic start/stop when hood is lowered/raised.
- Static and dynamic balancing modes.
- Rapid optimization (OPT)
- Self-Diagnosing and Self-calibrating
- Exceptional stability in reading the unbalance between planes.
- Display in grams or ounces, and in mm or inches.
- No anchor-down installation needed
- Includes Plastic Quick-Release Nut, 4 Centering Cones, Wheel Weight Pliers, & Measuring Calipers
- Replacement Parts & Wear Items Always in Stock
- 1 Year Parts Only Warranty
Product Specifications
| Model | WB11 |
| Max Tire Diameter | 39" (3" 6') |
| Rim Sizes (Cars And Light Trucks) | 10"-32" |
| Rim Width | 1 1/2"-20" |
| Shaft Size | 40mm |
| Max. Wheel Weight | 150 lbs. |
| Balancing Speed | 150 RPM |
| Data Entry | All Dimensions Manual Entry |
| Measurements | Standard Or Metric |
| Accuracy | 1 gram |
| Weight Position Resolution | 1.4 Degrees |
| Self Calibration | Yes |
| Motor | 1/4 HP |
| Power Supply | 110volt |

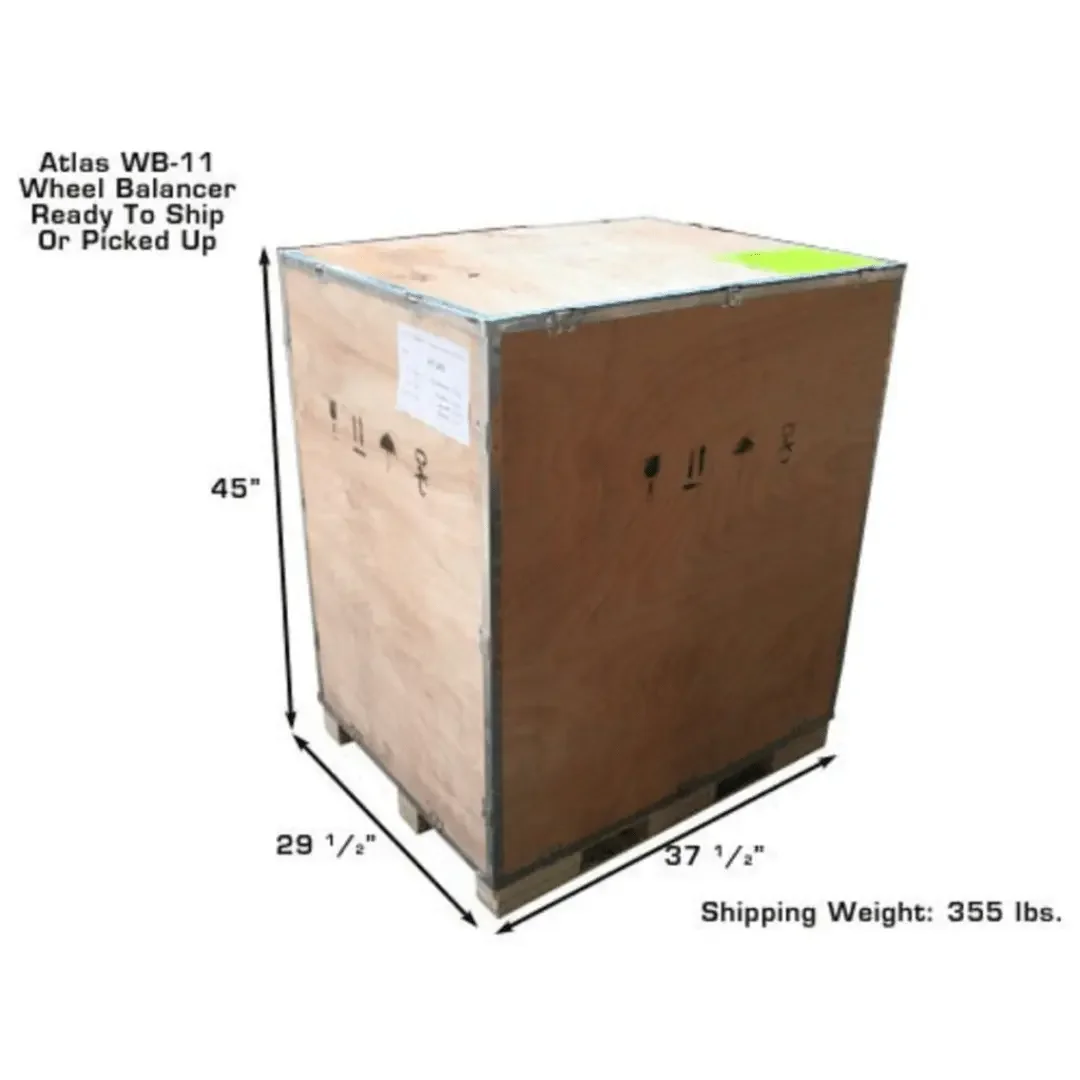

| Shipping Weight | 355 lbs. |
Pick Up and Delivery
Our Pick Up locations for Atlas are located in Altanta, GA, Fresno, CA, Phoenix, AZ, Indiana, IN, and New Jersey, NJ.
Call, text, or chat with us if you have questions. - 866-774-7743
