Atlas ACL Air Operated 1,000 lb Capacity Motorcycle Lift with Roller Plate
Atlas ACL Air Operated 1,000 lb Capacity Motorcycle Lift with Roller Plate
The Atlas® ACL motorcycle lift has a heavy gauge (diamond plated) platform length of 85 1/2 inches and an additional 20 inch removable approach ramp.
The Atlas® ACL is air operated and requires between 90-100 PSI to operate. The ACL is the perfect addition to any service department of professional motorcycle dealers or is a great motorcycle lift for the person who wants to work on his personal bike in their own garage.

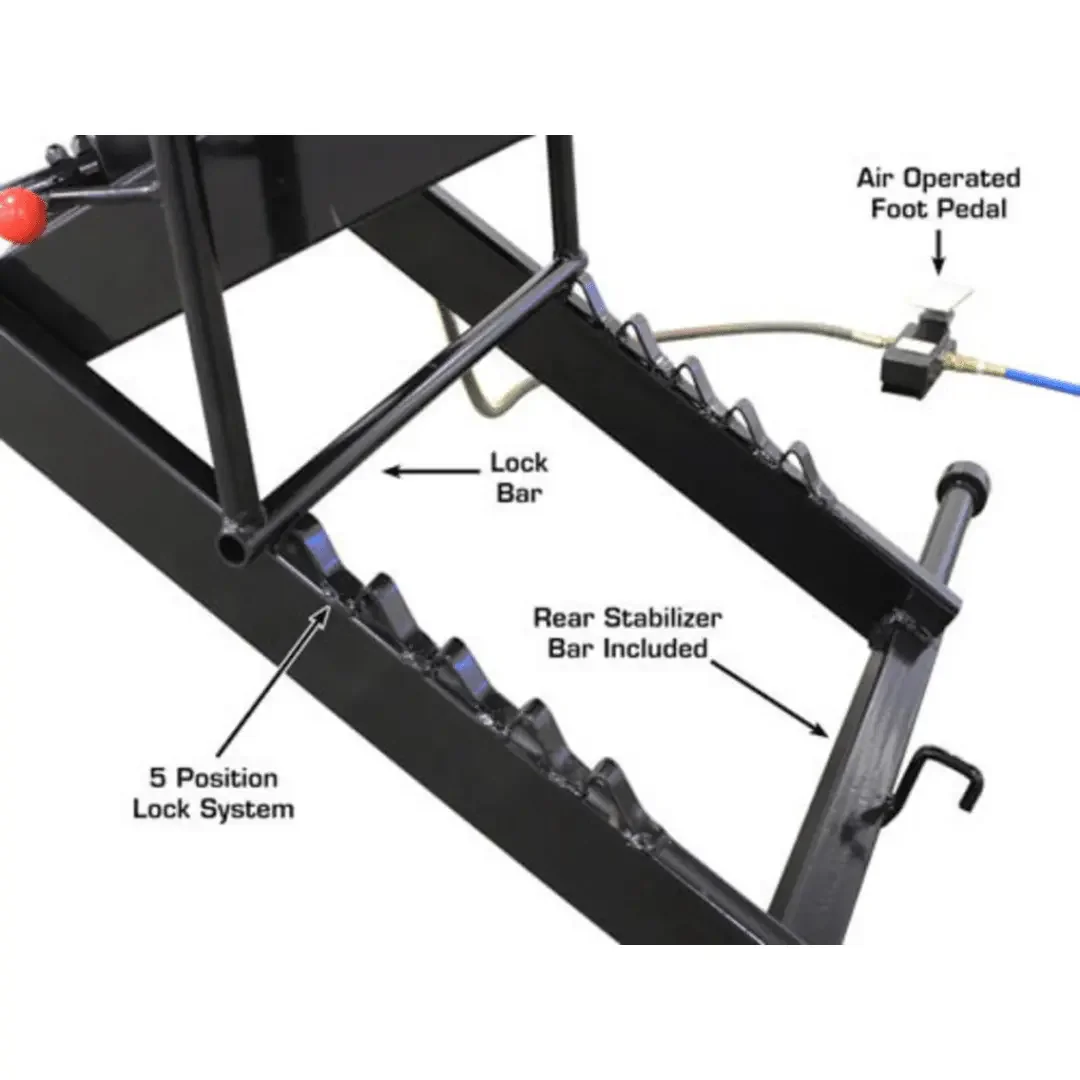

This is a complete motorcycle lift that includes an adjustable front (padded) wheel vise and a heavy duty air operated foot valve for easy raising and lowering. The defining feature of the ACL motorcycle lift is a removable plate at the rear of the lift. The plate can be removed and left off to allow more access to the rear tire or the plate can be replaced with an included roller plate. The roller plate allows the rear tire to be spun for work and testing. Finally, the ACL also includes the stabilizing bar at no extra charge. This bar provides greater stability for the raised platform by increasing the “footprint” of the lift.
For those customers looking for more width to pick up ATV's, UTV's, Golf Carts, and other wider vehicles the Atlas® ACL motorcycle lift can be equipped with the Atlas® ACL Side Extension Kit to increase the width up to 4 feet.
Product Features
- 1,000 lb. Capacity
- 33" Full Lift Height
- Diamond Plate Surface
- Air Operated (External Air Supply Required)
- Removable Roller Plate

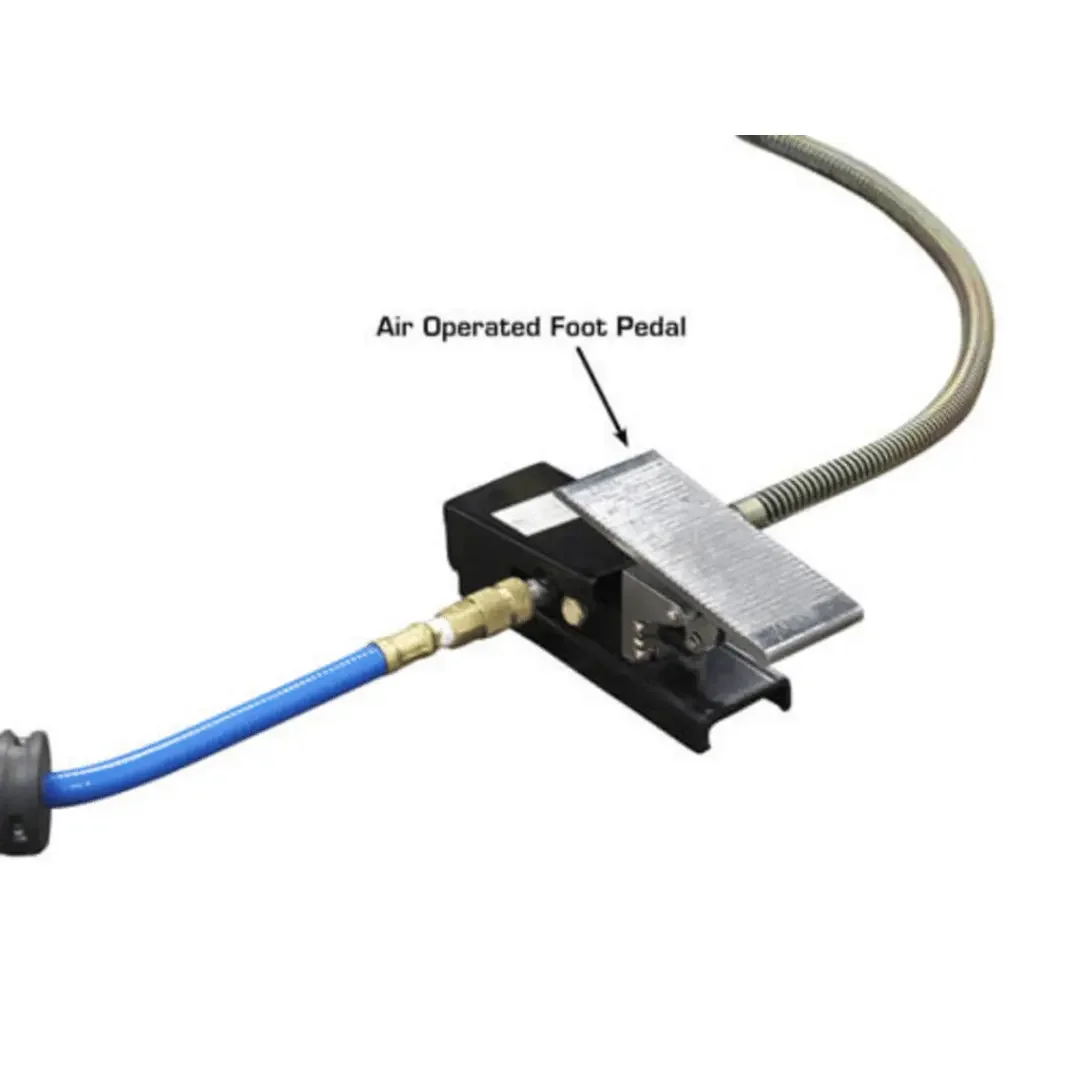

- Foot Pedal Control Included

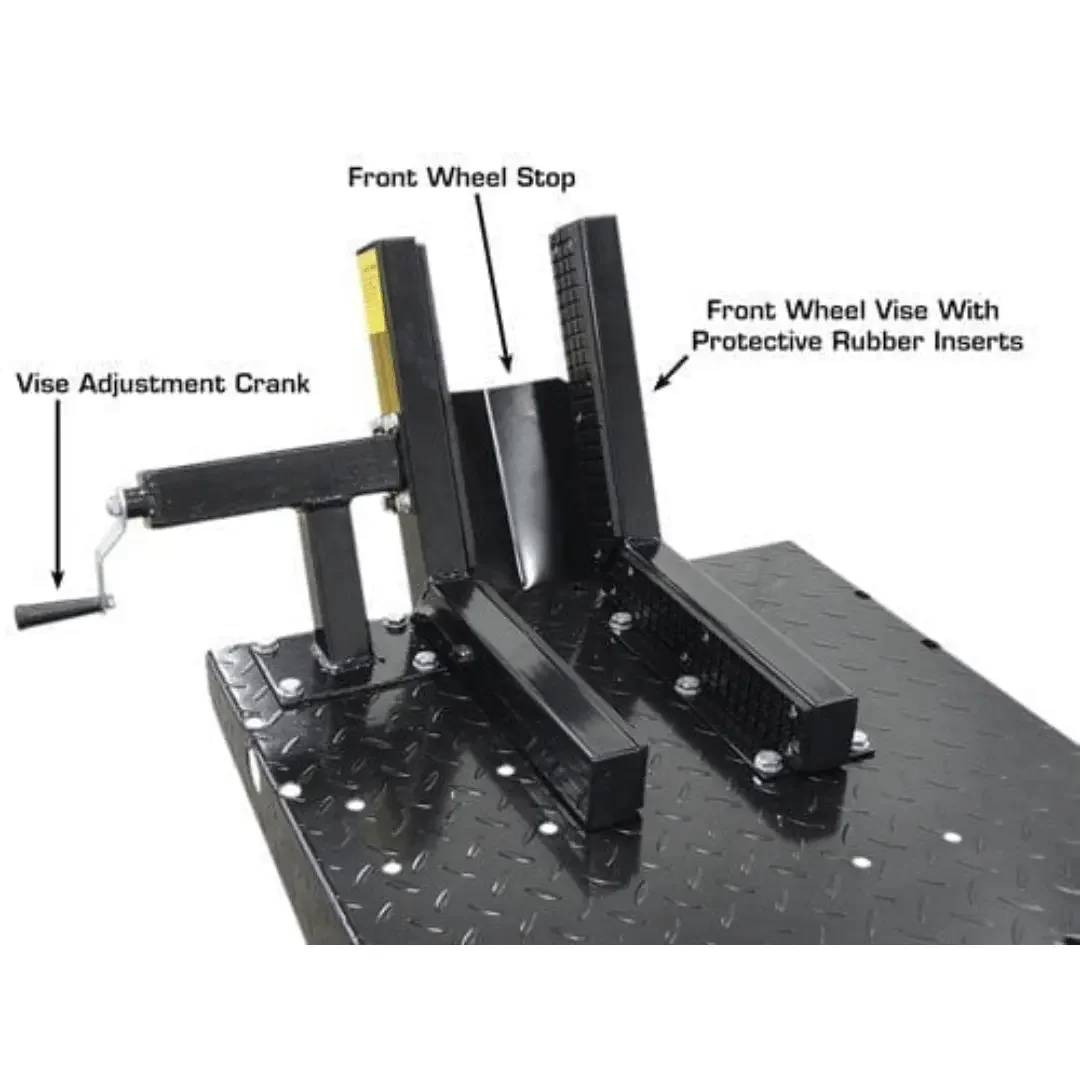

- Front Wheel Vise Included
- 1 Year Warranty

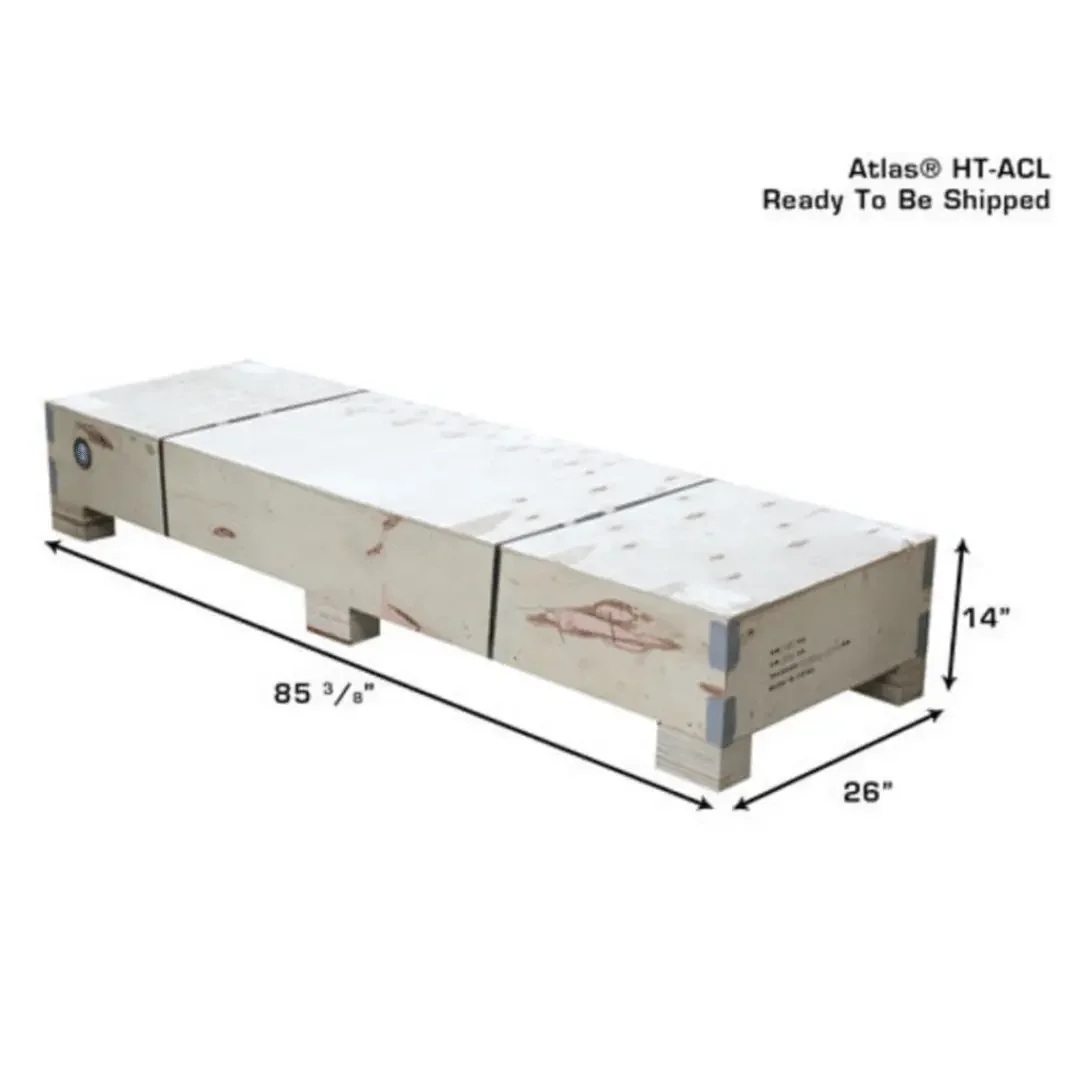

- Shipping Weight: 500 lbs.
Product Specifications
| Model | ACL Motorcycle Lift |
| Weight Capacity | 1,000 lbs. |
| Length (W/ Ramp) | 105 1/2" (8' 9 1/2") |
| Table Length (W/O Ramp) | 85 1/2" (7' 1 1/2") |
| Width | 24" |
| Lift Height | 33" (2' 9") |
| Lowered Height | 7 1/4" |
| Removable Approach Ramp | 20" |
| Air Requirement | 90-100 PSI |
| Shipping Weight | 500 lbs. |
Pick Up and Delivery
Our Pick Up locations for Atlas are located in Atlanta, GA, Fresno, CA, Phoenix, AZ, Indiana, IN, and New Jersey, NJ.
Call, text, or chat with us if you have questions. - 866-774-7743
