Atlas PSP-6000 6,000 lb Single Post Portable Car Lift

Atlas PSP-6000 6,000 lb Single Post Portable Car Lift

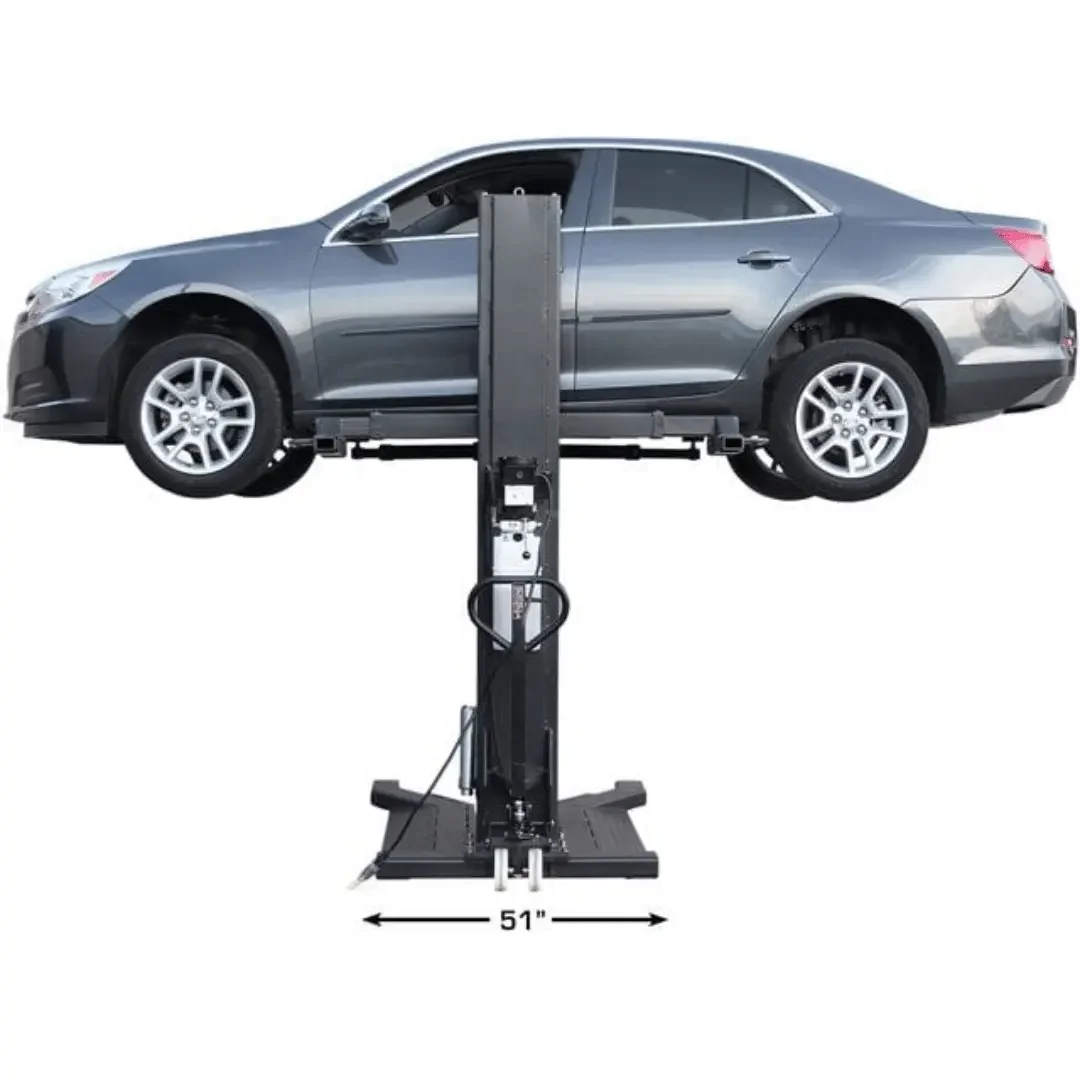

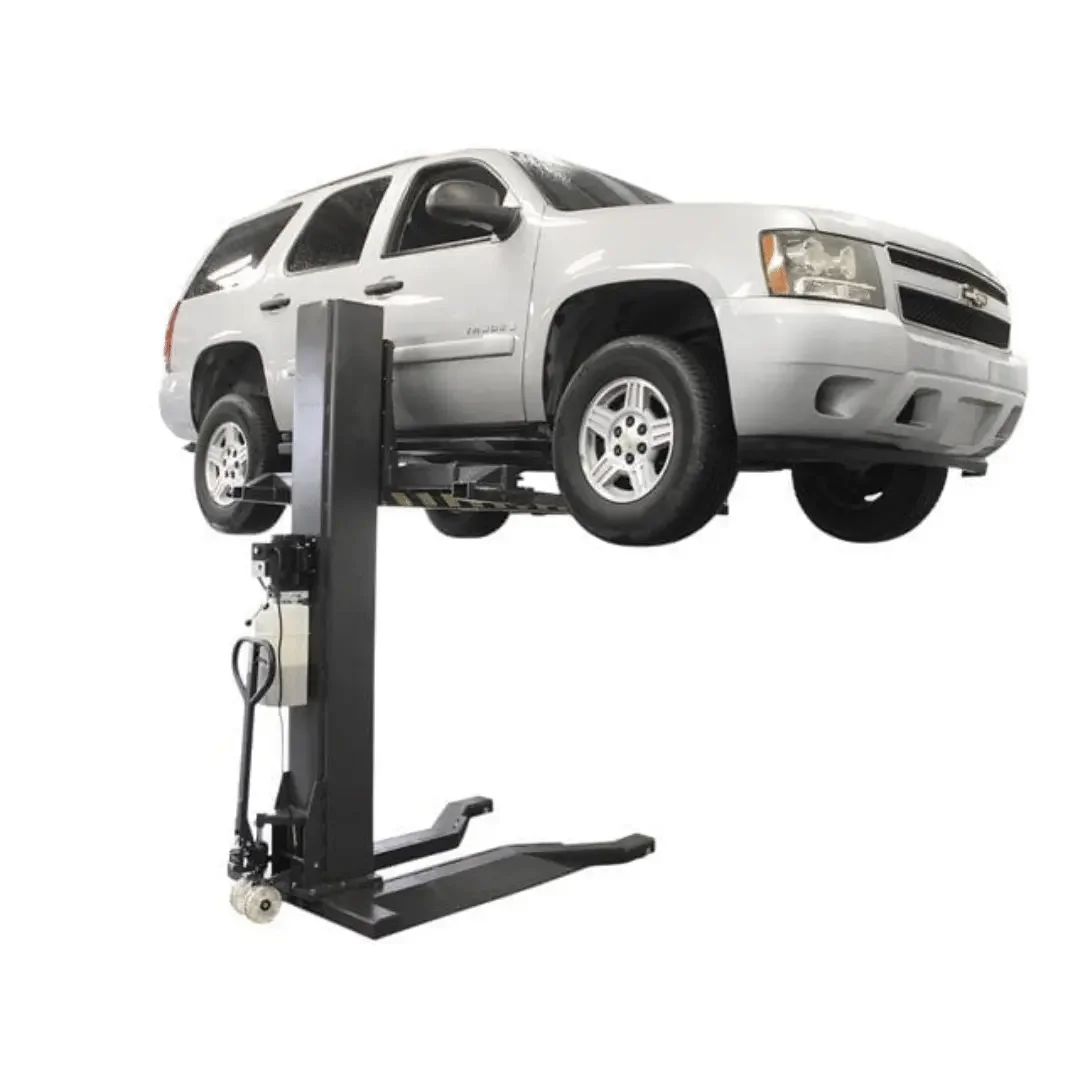

The Atlas® PSP-6000 Single Post Portable Cart Lift is the perfect choice for those smaller shops or the car enthusiast who does not want to tie up space with a permanently mounted lift. The Atlas® PSP-6000 can be rolled out of the way when not in use. The column fits under a 9-foot ceiling and allows the operator to raise most vehicles high enough to access many parts of the vehicle that would not be accessible with a mid-rise lift. The large steel plates under the column allow the lift to be used on asphalt. This lift can be rolled through a 9-foot wide garage door and fits under a 9-foot ceiling.

The Atlas® PSP-6000 portable single post lift is powered by a 110-volt power unit that is mounted to the portable cart. The lift is equipped with a single-point lock release system. The portable cart has a steel handle that allows the operator to pull or push the cart to the desired location. The cart includes a small hydraulic floor jack and a steel oil drain pan.

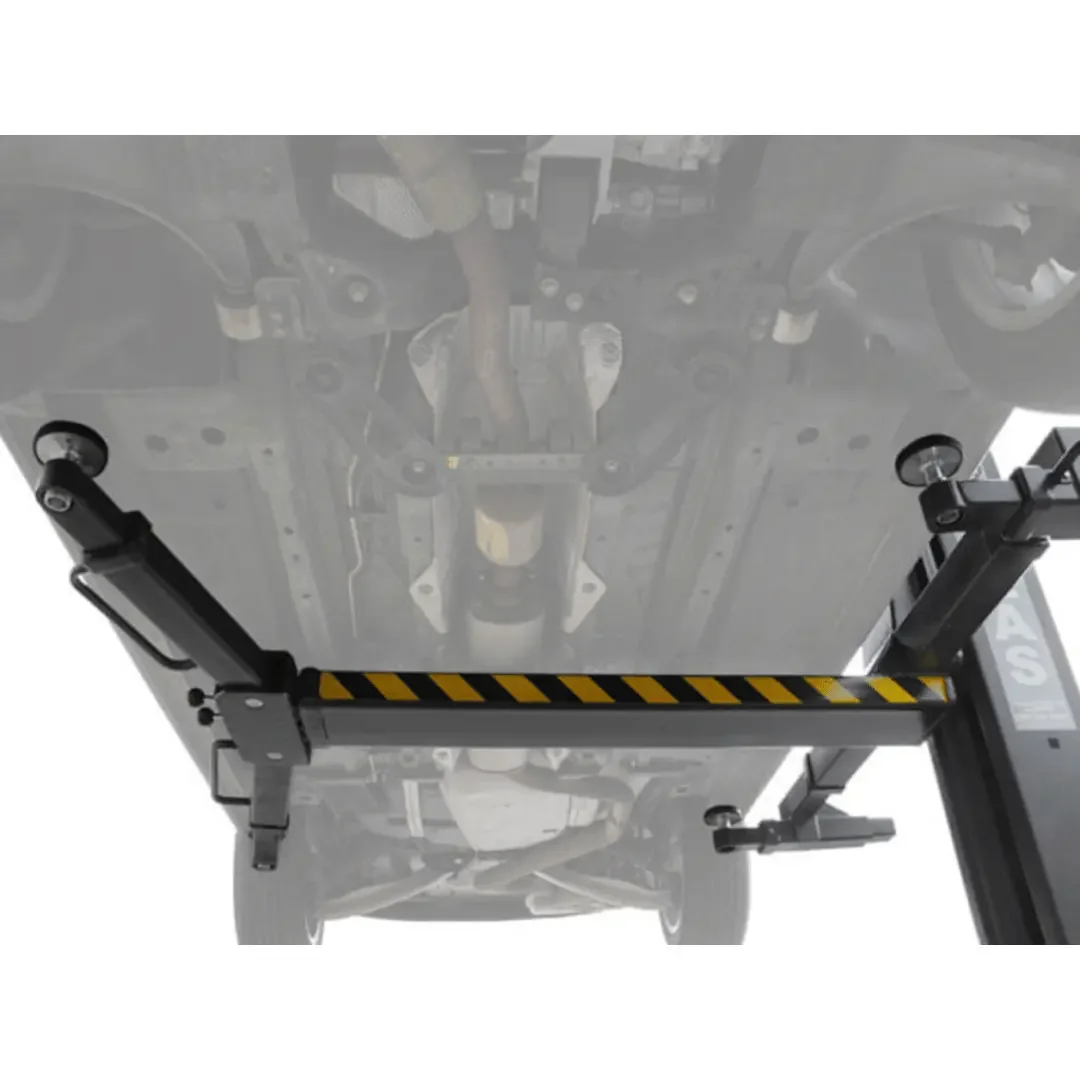

The Atlas® PSP-6000 is a portable single post lift that provides a 6,000 lb. lifting capacity at an affordable price. The lift is perfect for body shops, restoration shops, or service facilities that need a low-cost lifting solution that can be easily moved. The lift includes a set of four (4) full-frame adapters and a set of four (4) unibody adapters.

The Atlas® PSP-6000 is easy to set up and operate. The power unit is mounted to a cart that is easily positioned near the lift. The power unit uses a standard 110-volt outlet and includes a hydraulic hose that connects to the lift cylinder. The lift can be raised or lowered by simply pressing a button. The lift is equipped with a safety lock system that automatically engages at several different heights.

Features:

• 6,000 lb. Capacity
• Portable Design

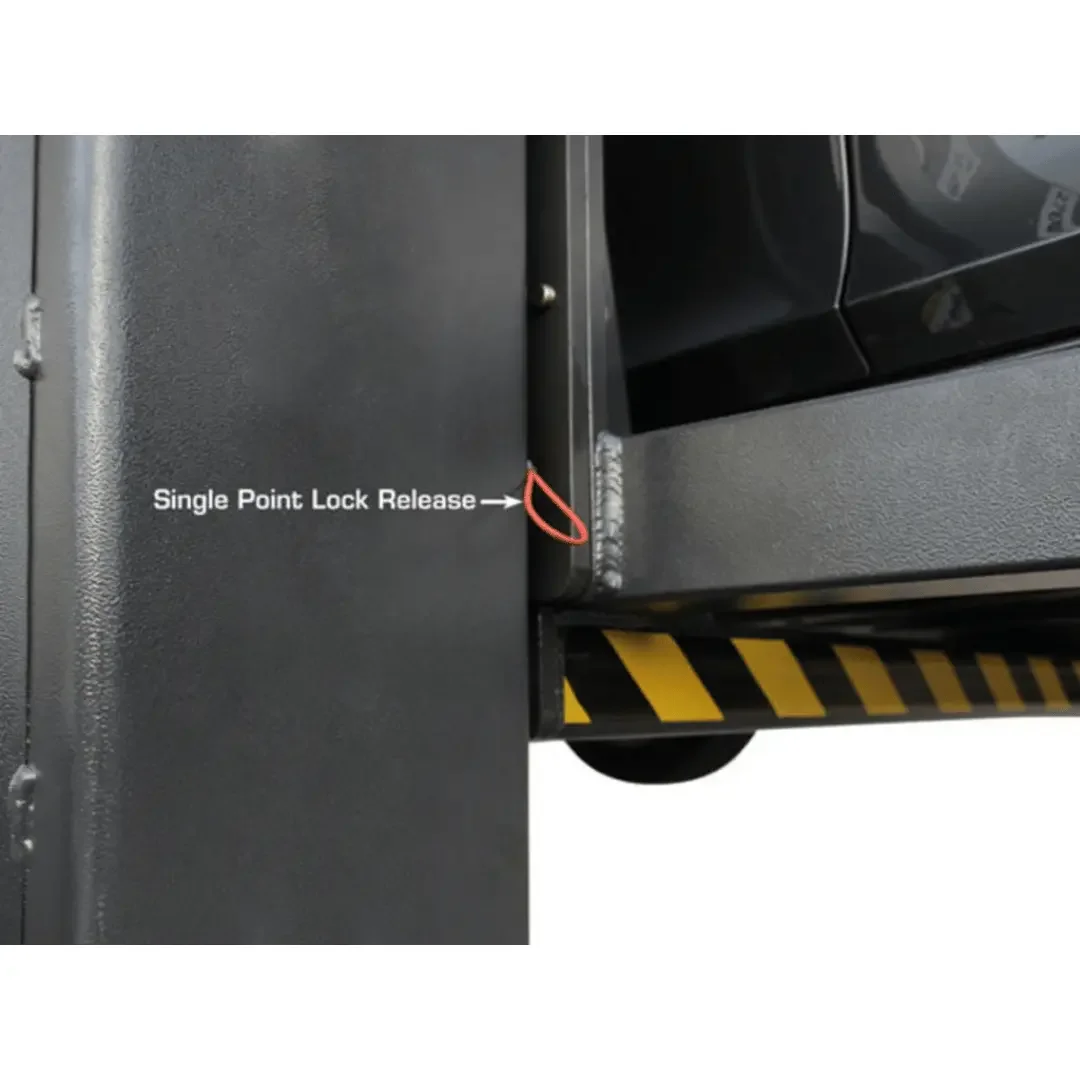

• Single-Point Lock Release
• Steel Base Plates Allow Use On Asphalt

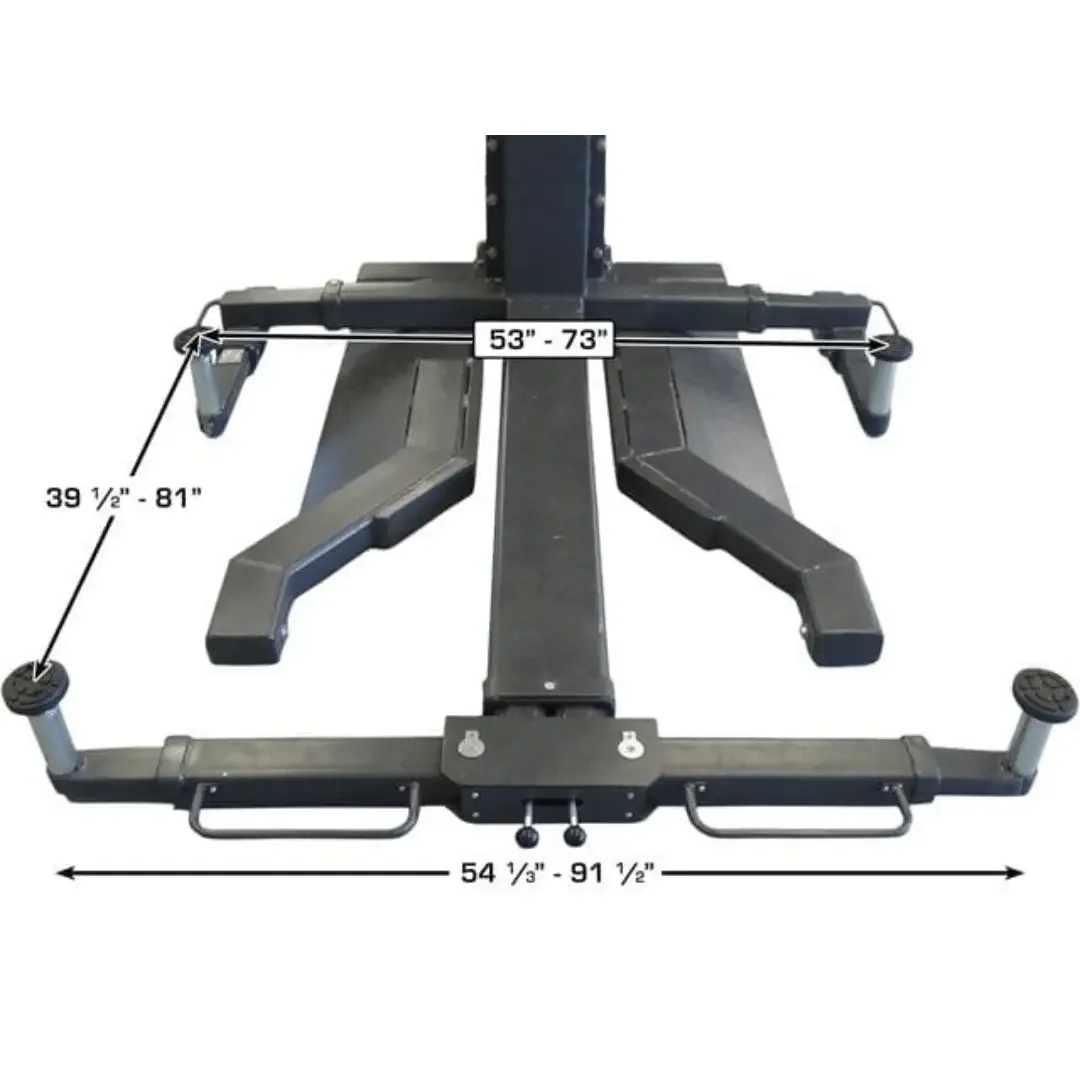

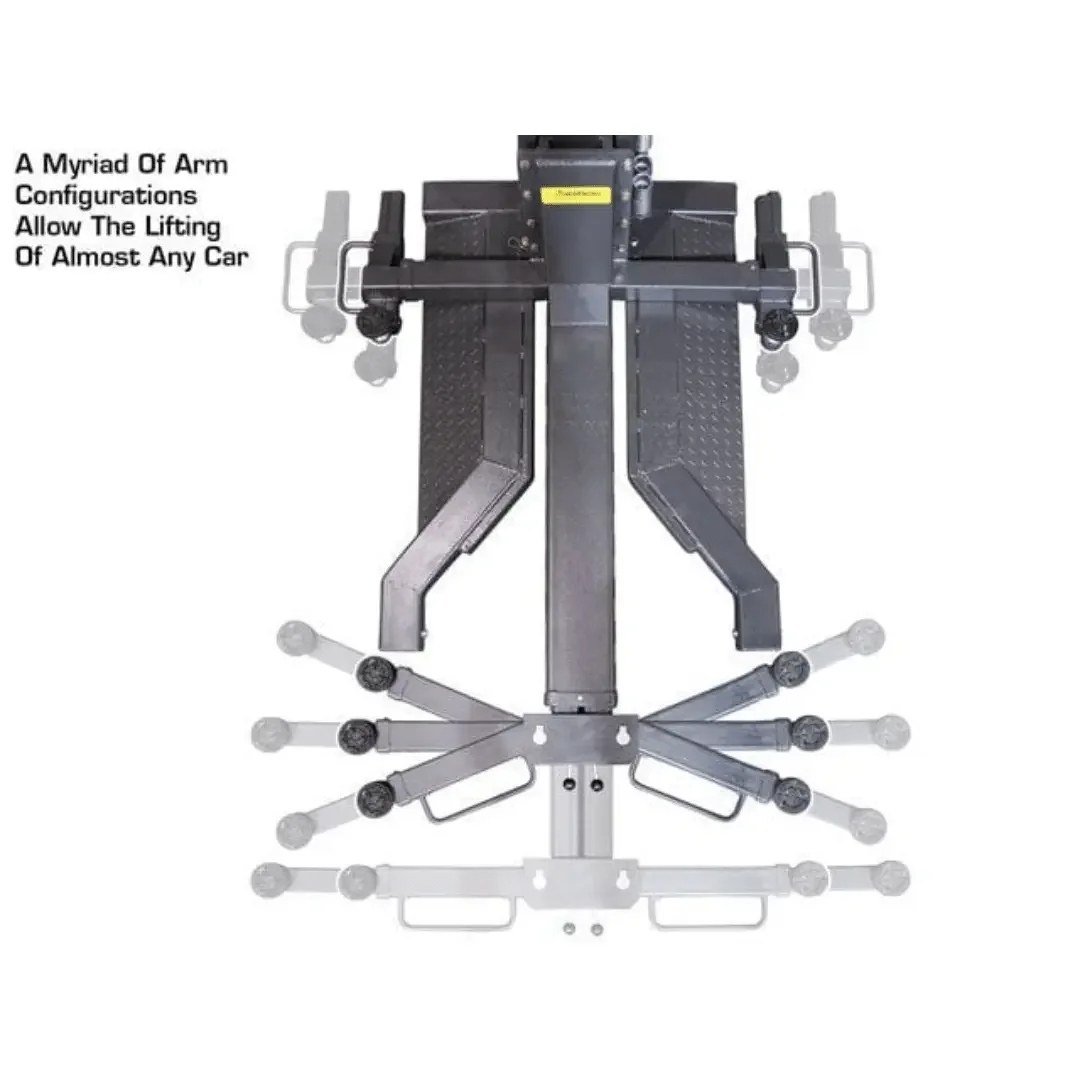

• Comes With 8 Adapters (4 Full Frame & 4 Unibody)
• Great For Body Shops, Restoration or Service Facilities
• 110 Volt Power Unit (Pre-Wired)

Atlas PSP-6000 Specifications:

Lifting Capacity	6,000 lbs.

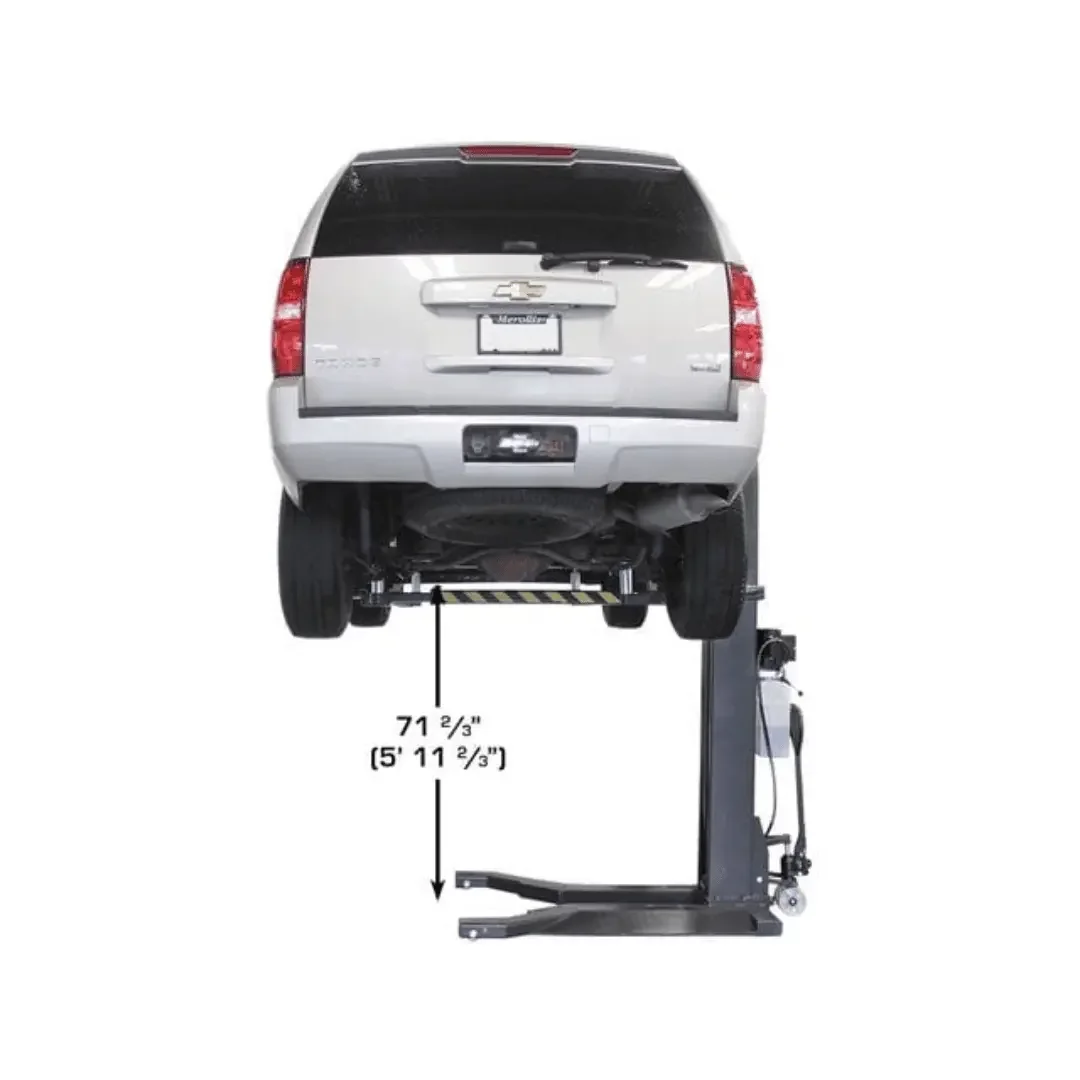

Lifting Height (Without Adapters)	74 1/2”
Lifting Height (With Adapters)	80 1/2”

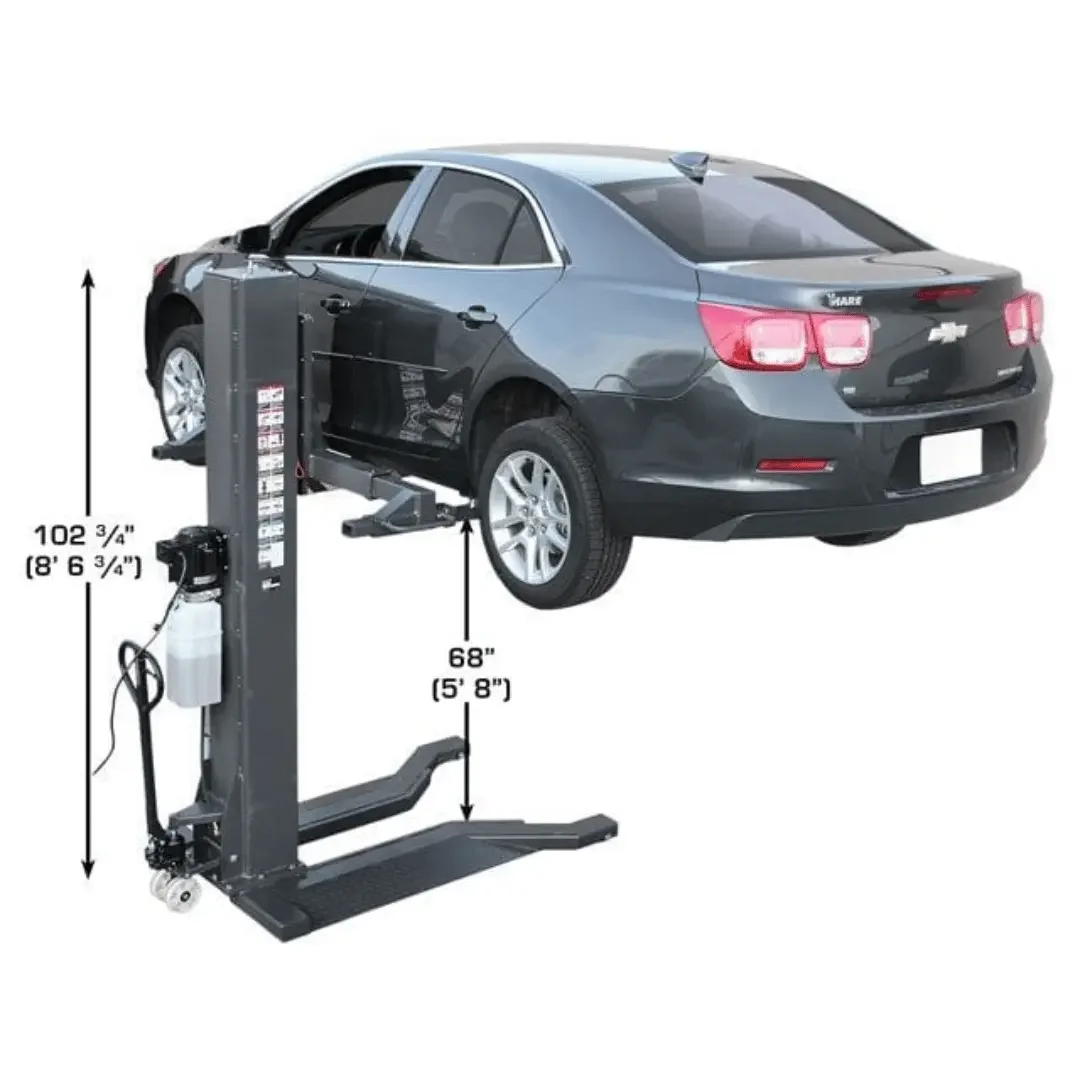

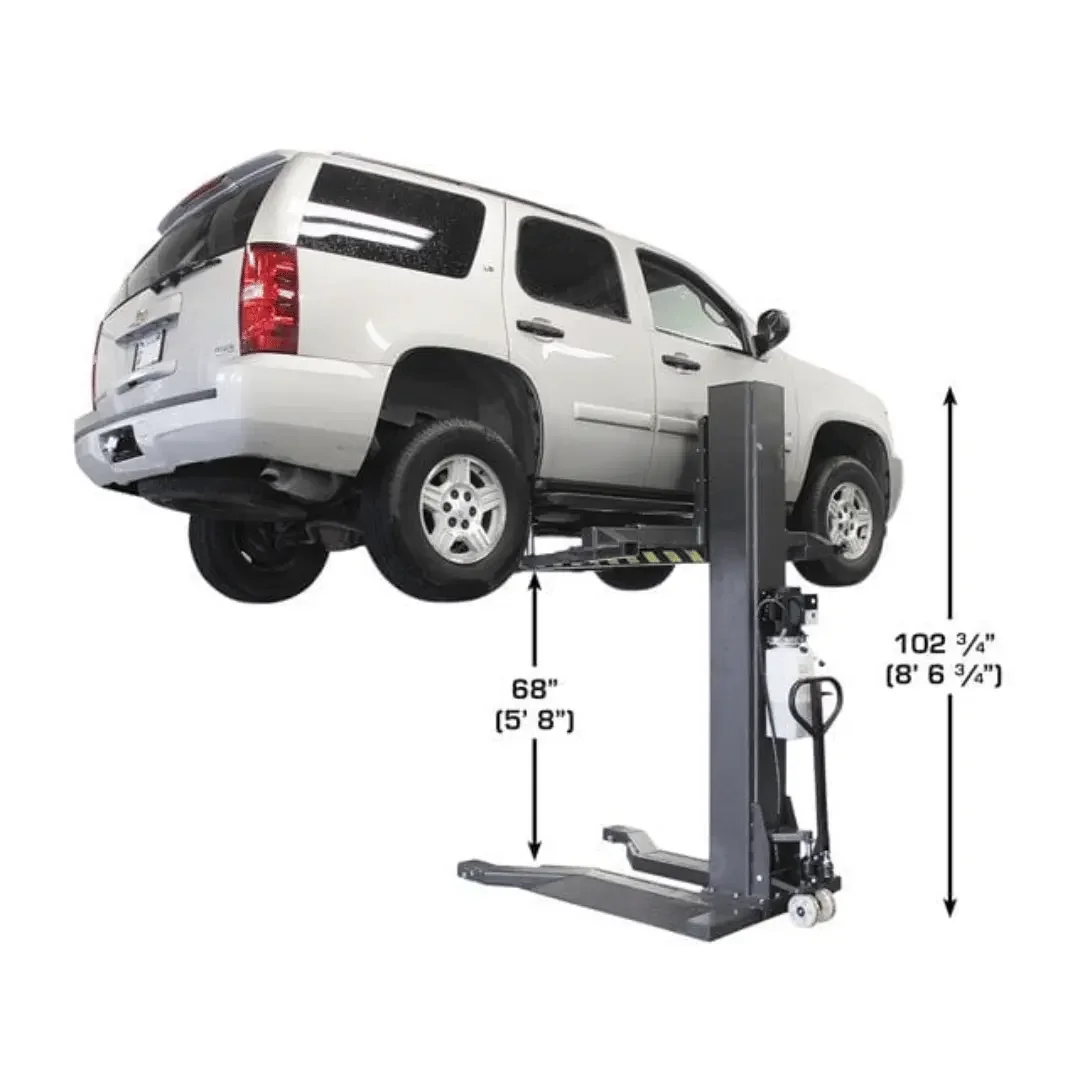

Overall Height of Column	95”
Length of Base Plate	62”
Width of Base Plate	48”

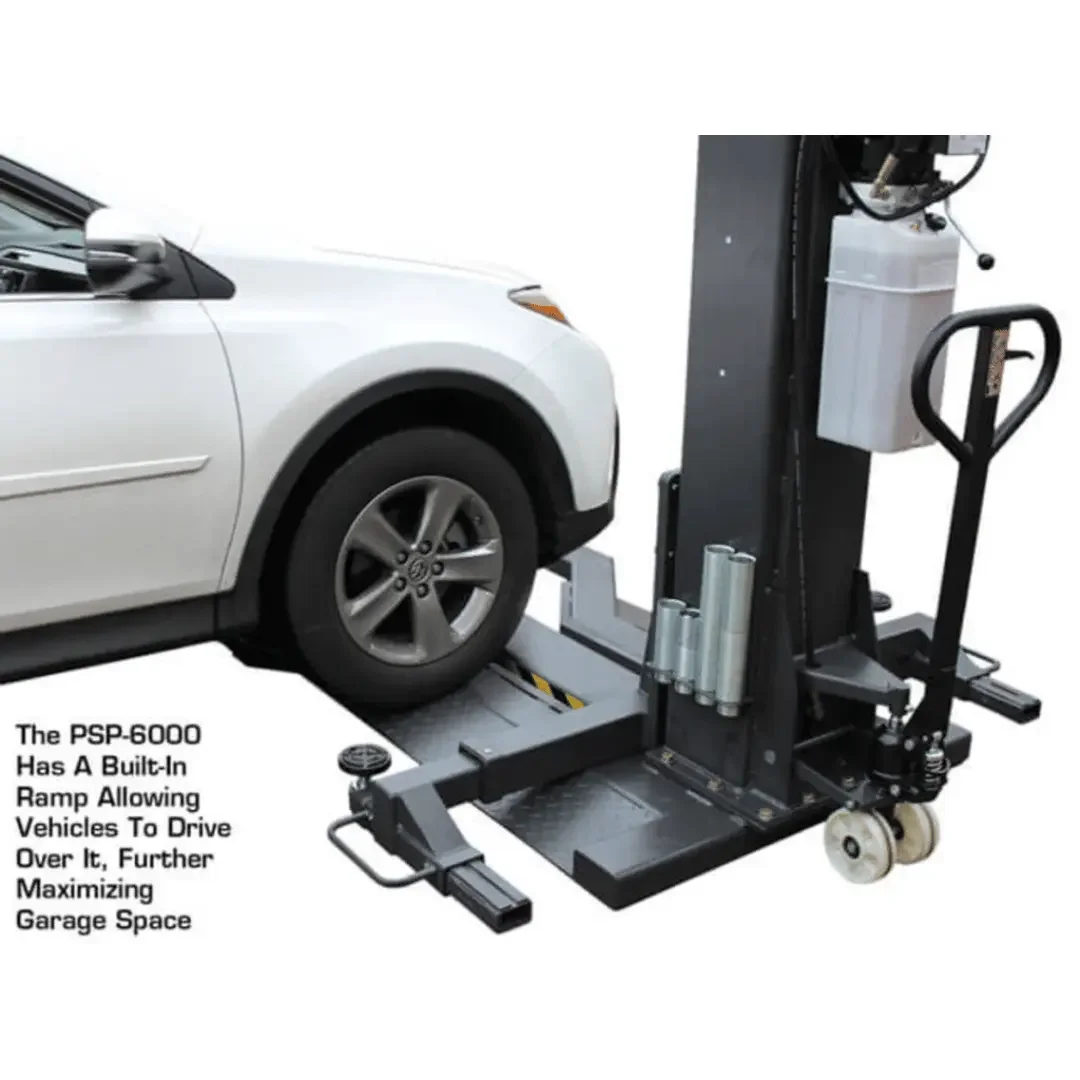

Drive-Over Height	4”
Column Size	7 1/4” x 4 1/2”
Column Thickness	1/4”
Base Plate Thickness	5/8”
Motor	110 Volt
Shipping Weight	1,050 lbs.
