Atlas PV10PX 10,000 lb Overhead 2-Post Car Lift

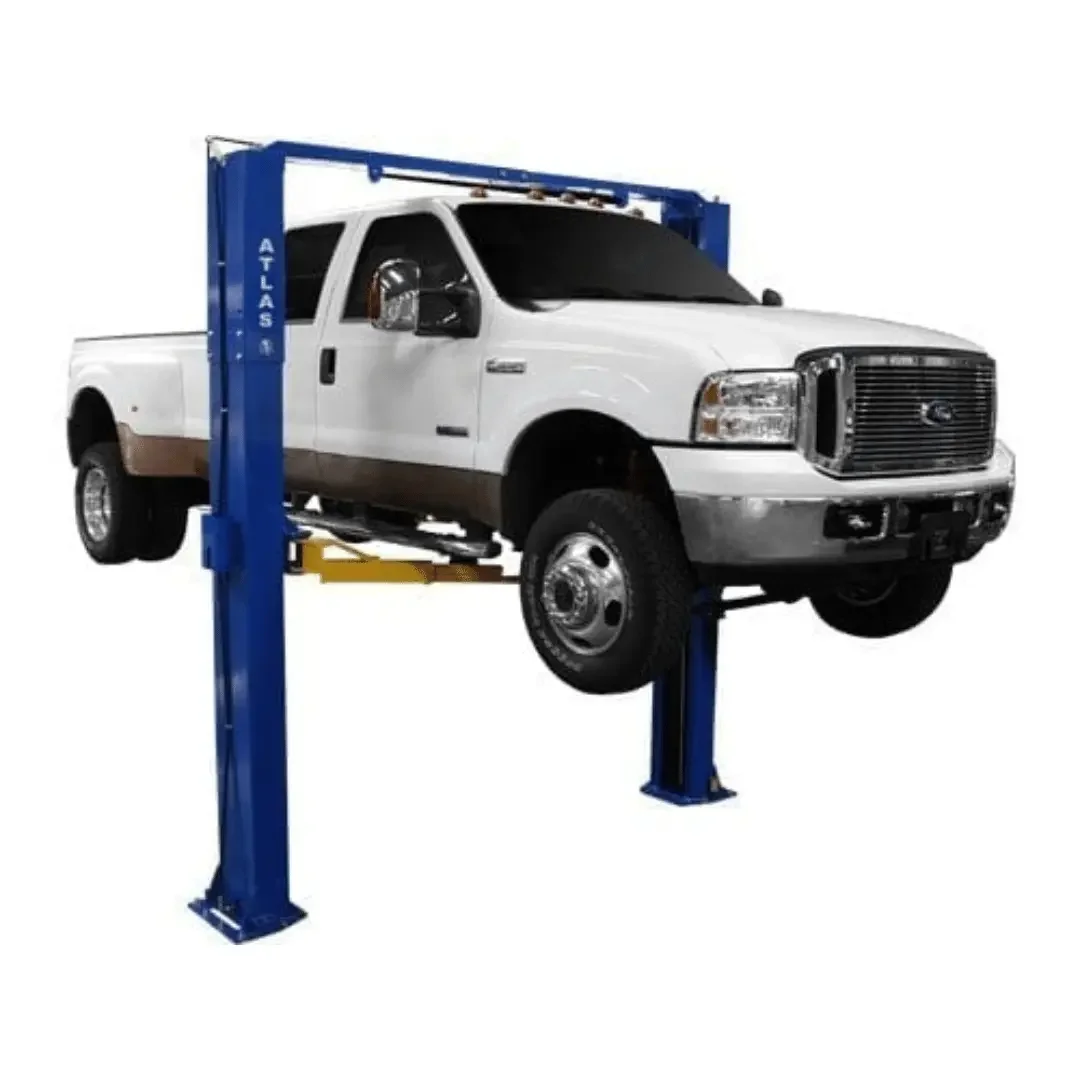

2-Post Lift - The Atlas® PV10PX is a heavy-duty, professional-grade two-post lift designed for both automotive repair shops and serious home garages. With a lifting capacity of 10,000 pounds, it is built to safely handle a wide range of vehicles, from compact cars to one-ton diesel trucks. The lift features a padded shut-off bar that prevents the roof of the vehicle from contacting the overhead crossbar, and the carriages are equipped with rubber protective covers to reduce the risk of door damage when opened near the columns.
To increase versatility, the PV10PX 2-post car lift includes a twelve-piece deluxe truck adapter set, compared to the standard eight-piece version found on many lifts. Reinforced rubber lift pads provide secure and durable contact with vehicle lifting points, ensuring stability during operation. Engineered for safety and reliability, the PV10PX has been trusted by thousands of users worldwide for more than a decade, making it one of the most popular above-ground lifts in the industry.
Product Features
- 10,000 lb. capacity
- Commercial Grade
- Adjustable Height – 11′ 11 1/8″ or 12’3″

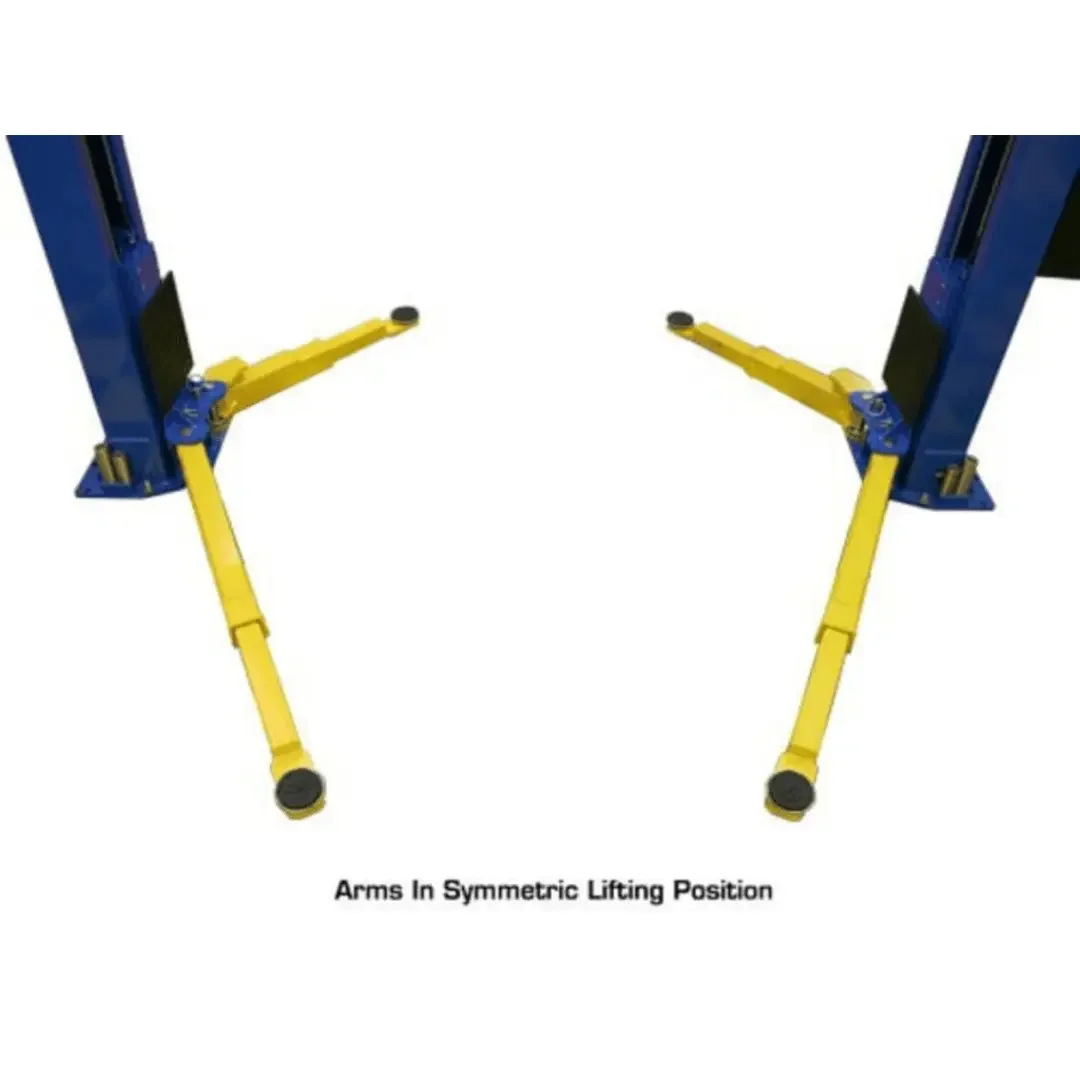

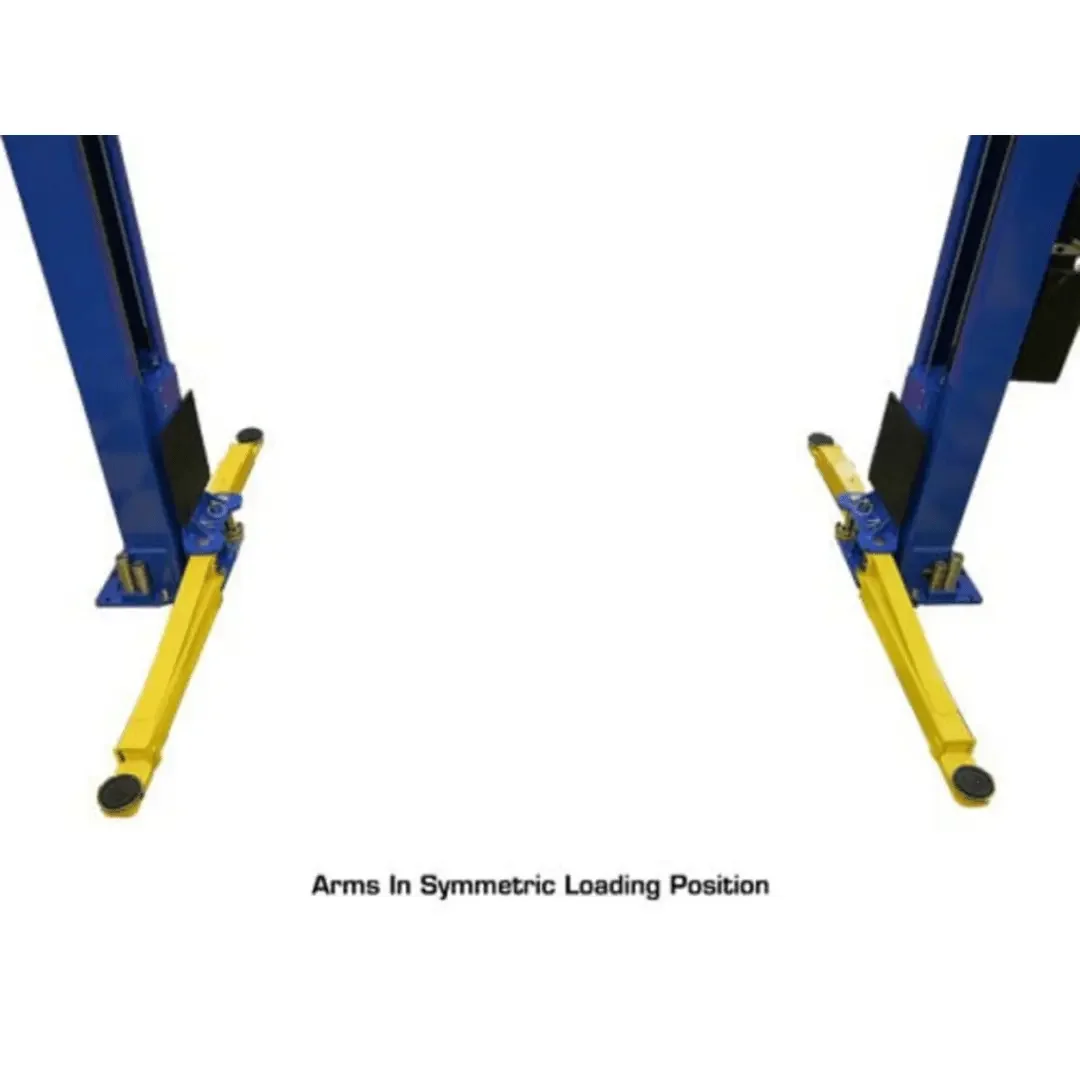

- Asymmetric/Symmetric Arms

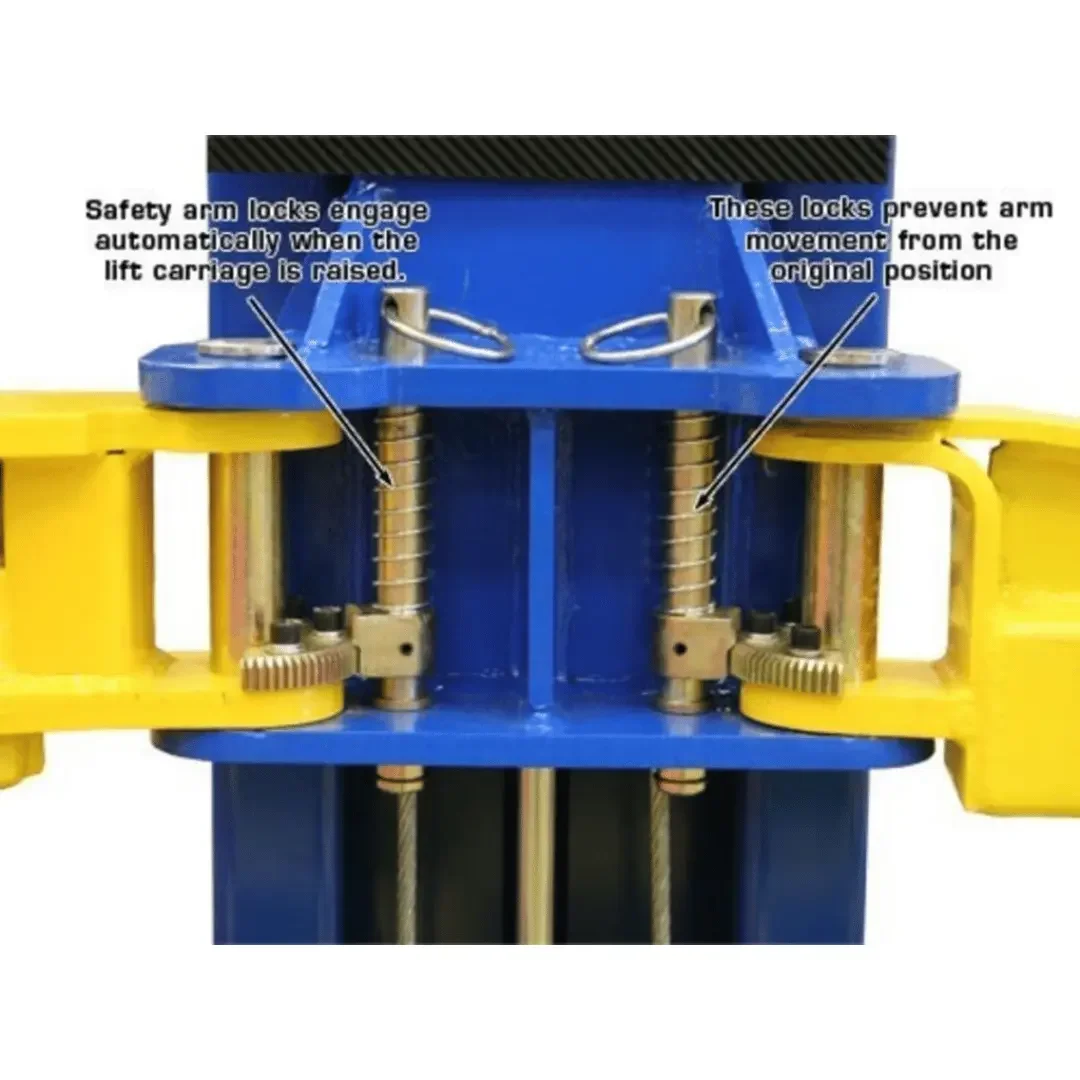

- Automatic Arm Restraints

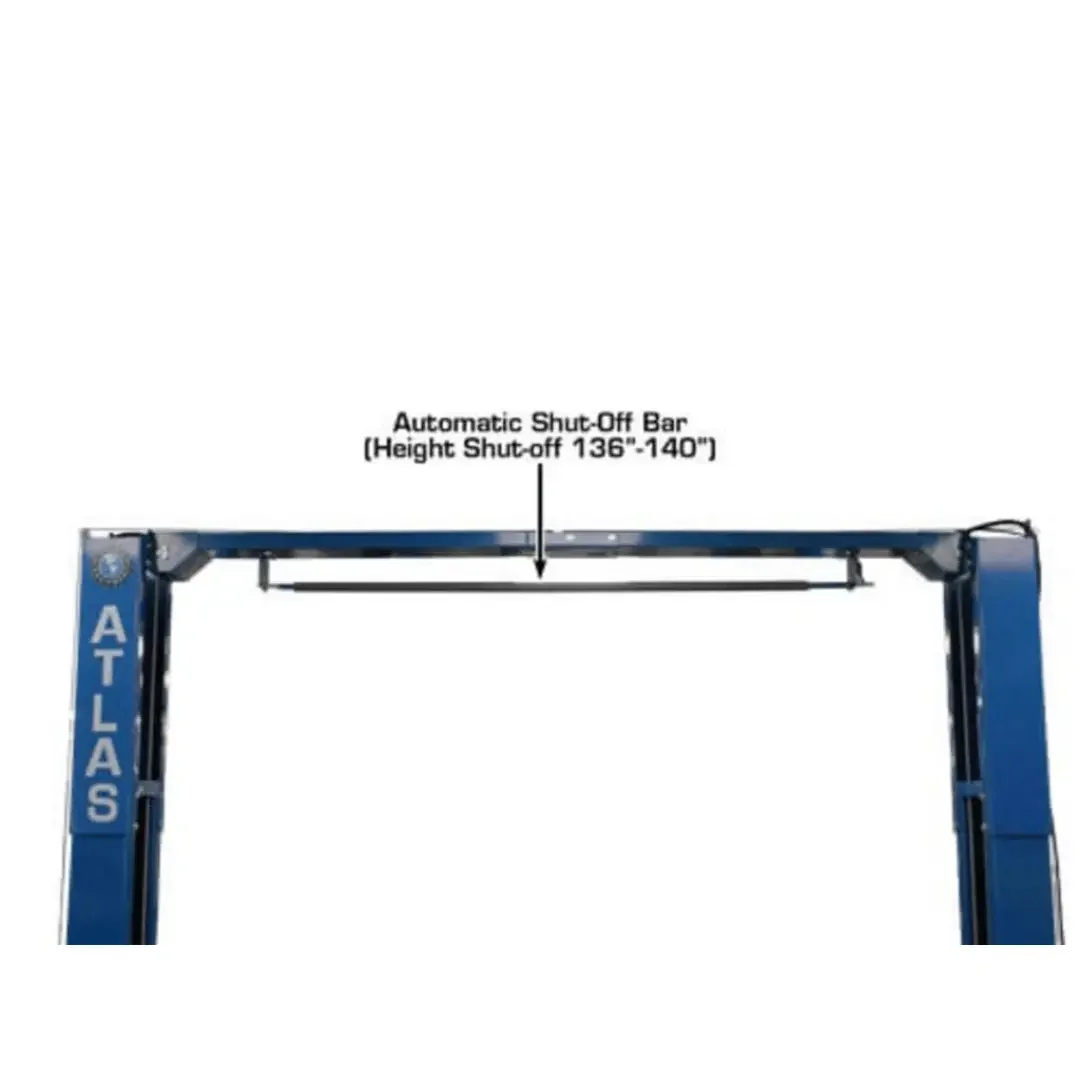

- “Padded” Shut-Off Bar
- Padded Carriages

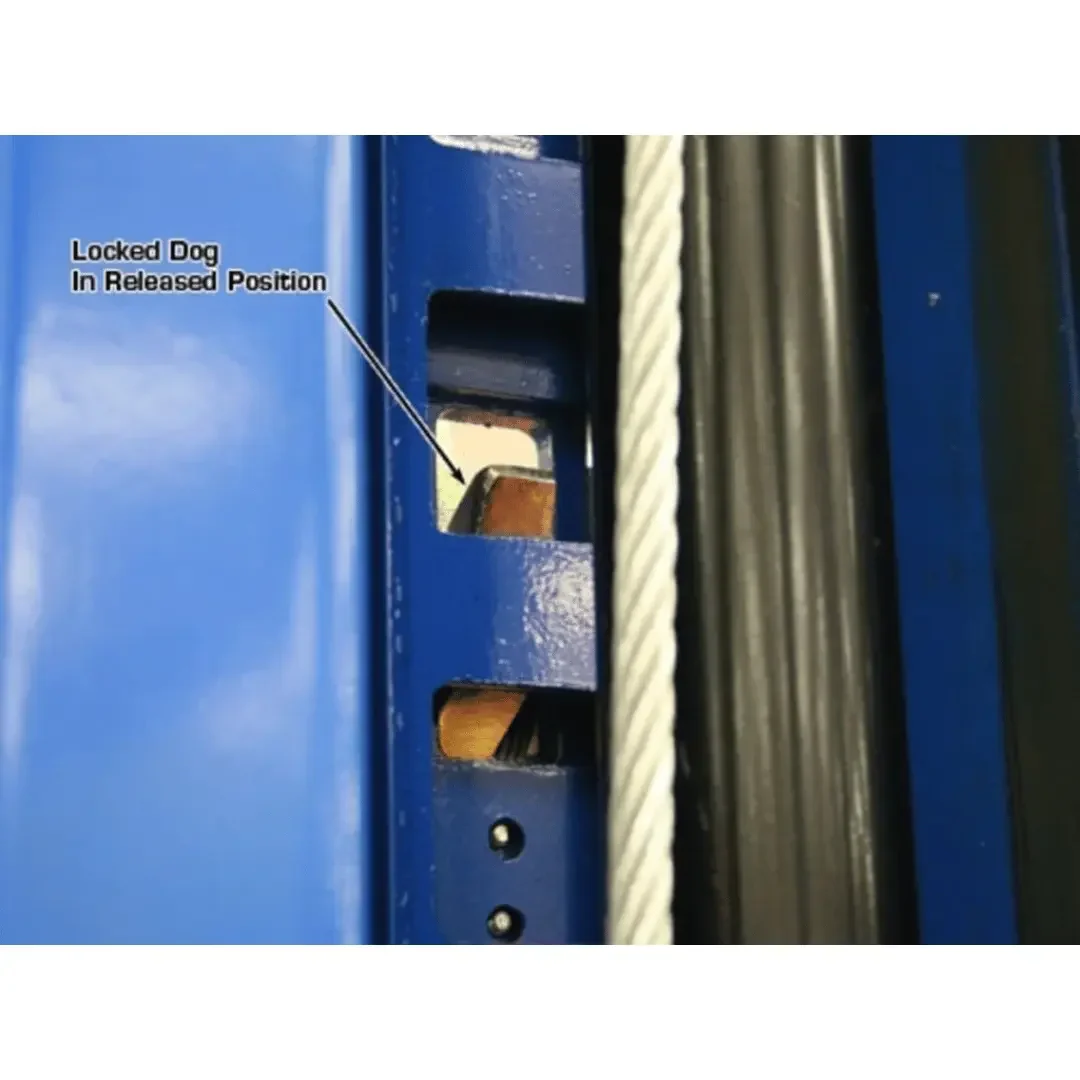

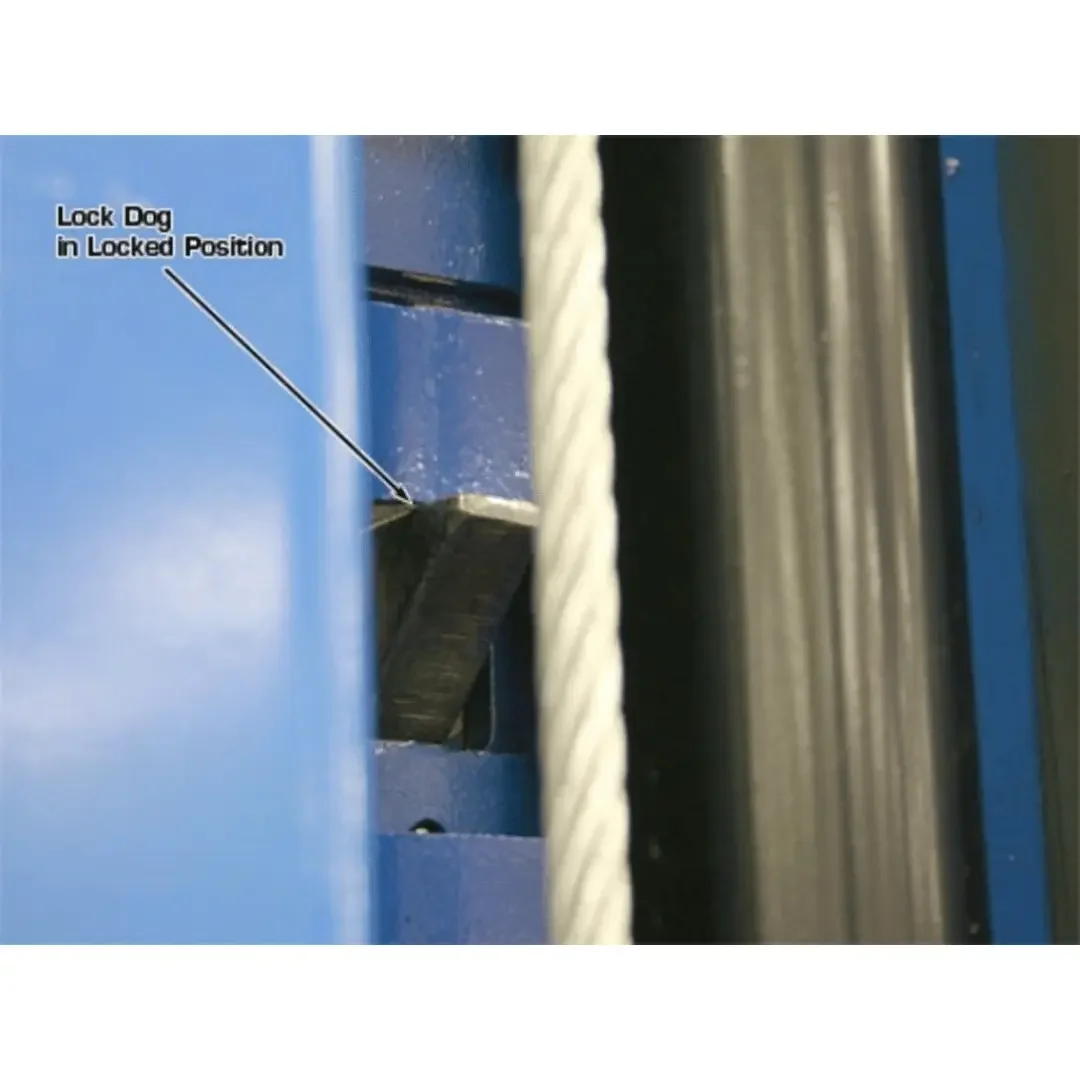

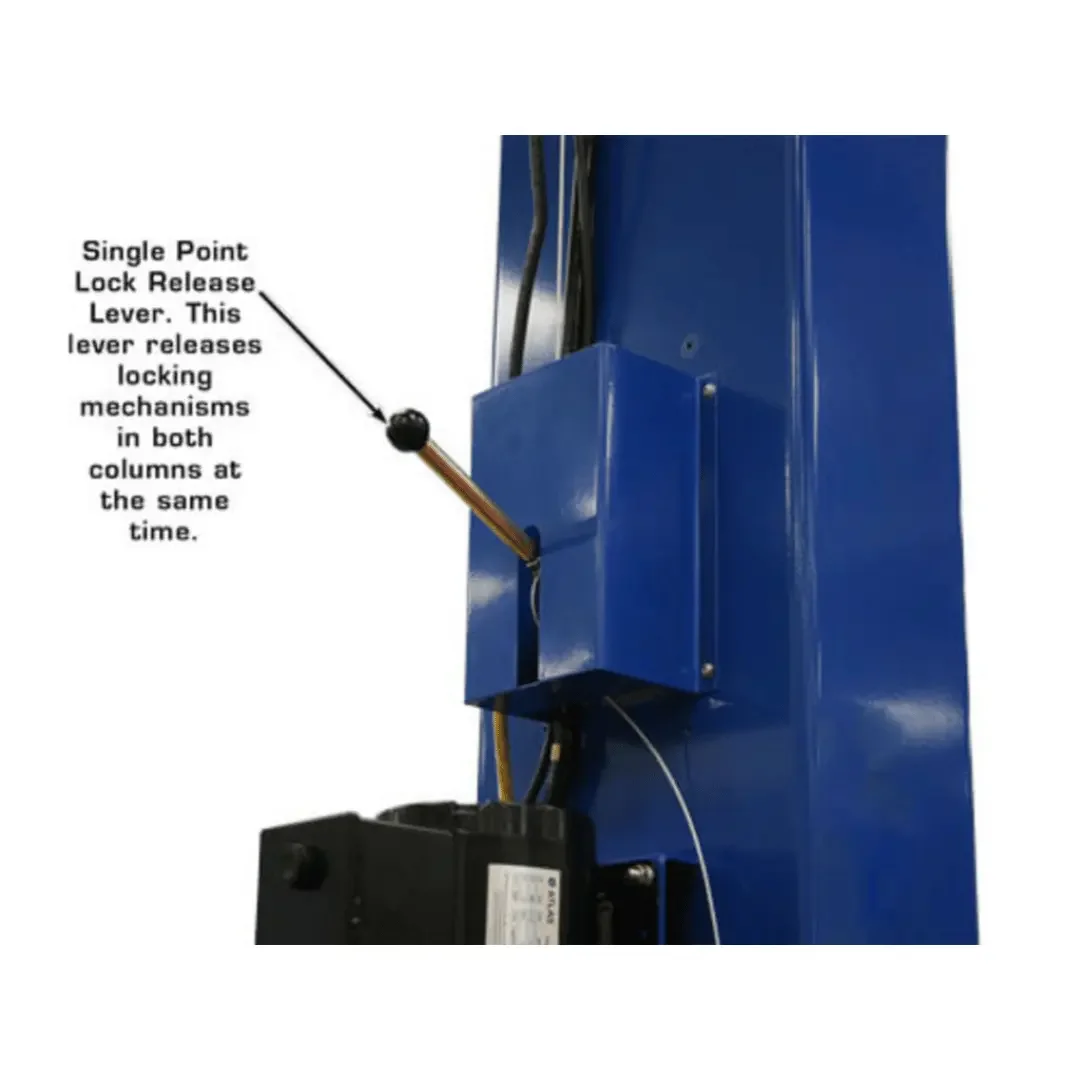

- Single Point Lock Release

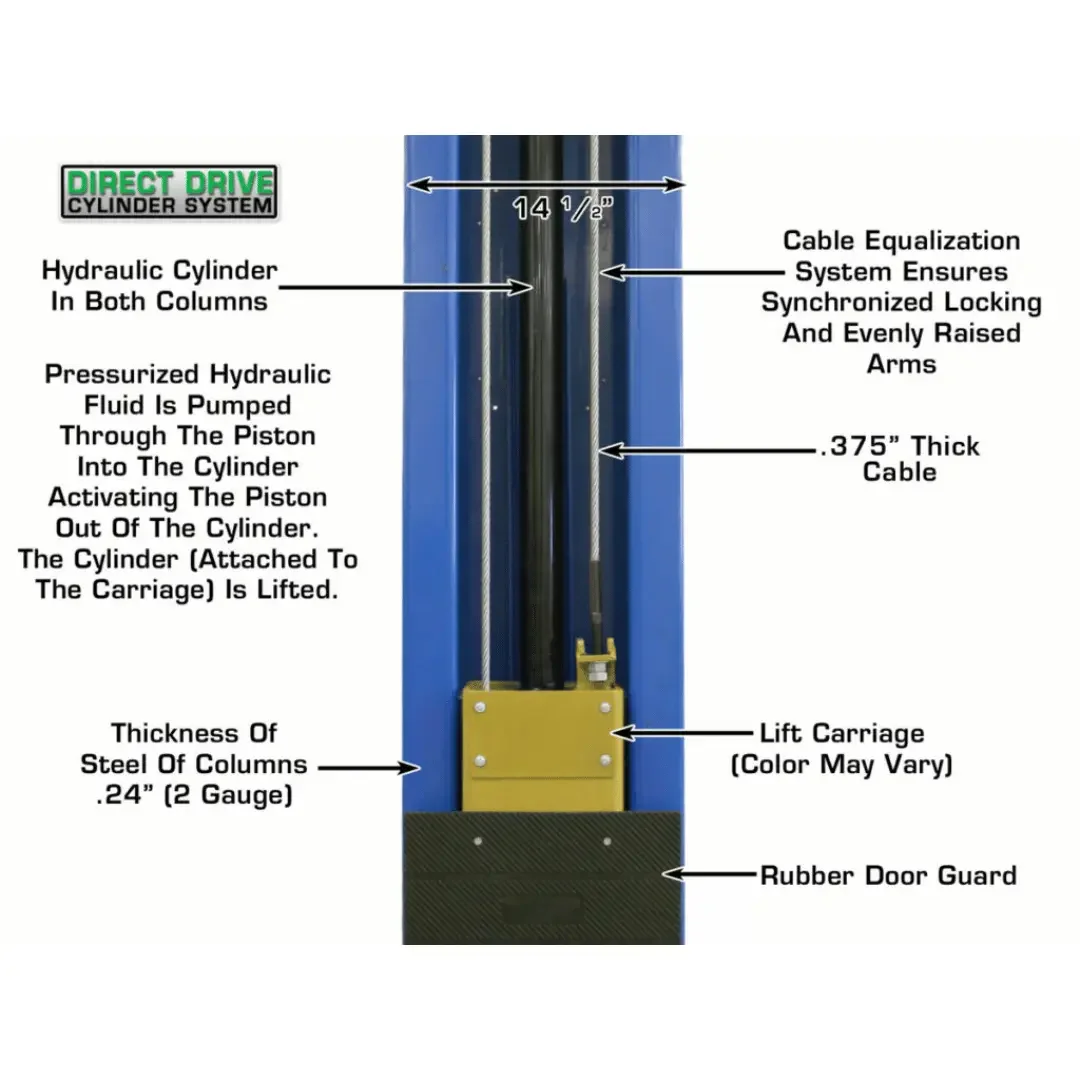

- Direct-Drive Cylinders
- Powder Coat Finish

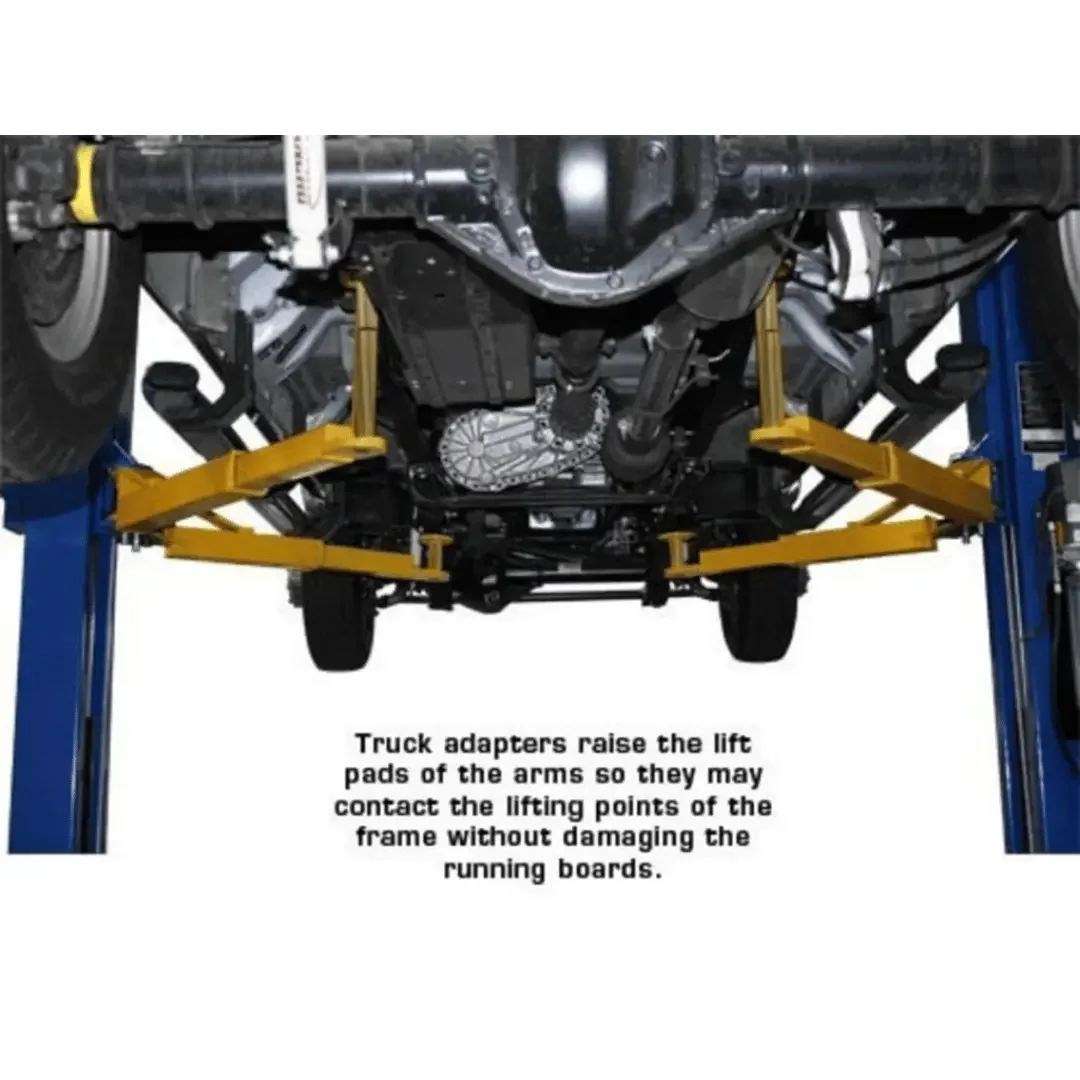

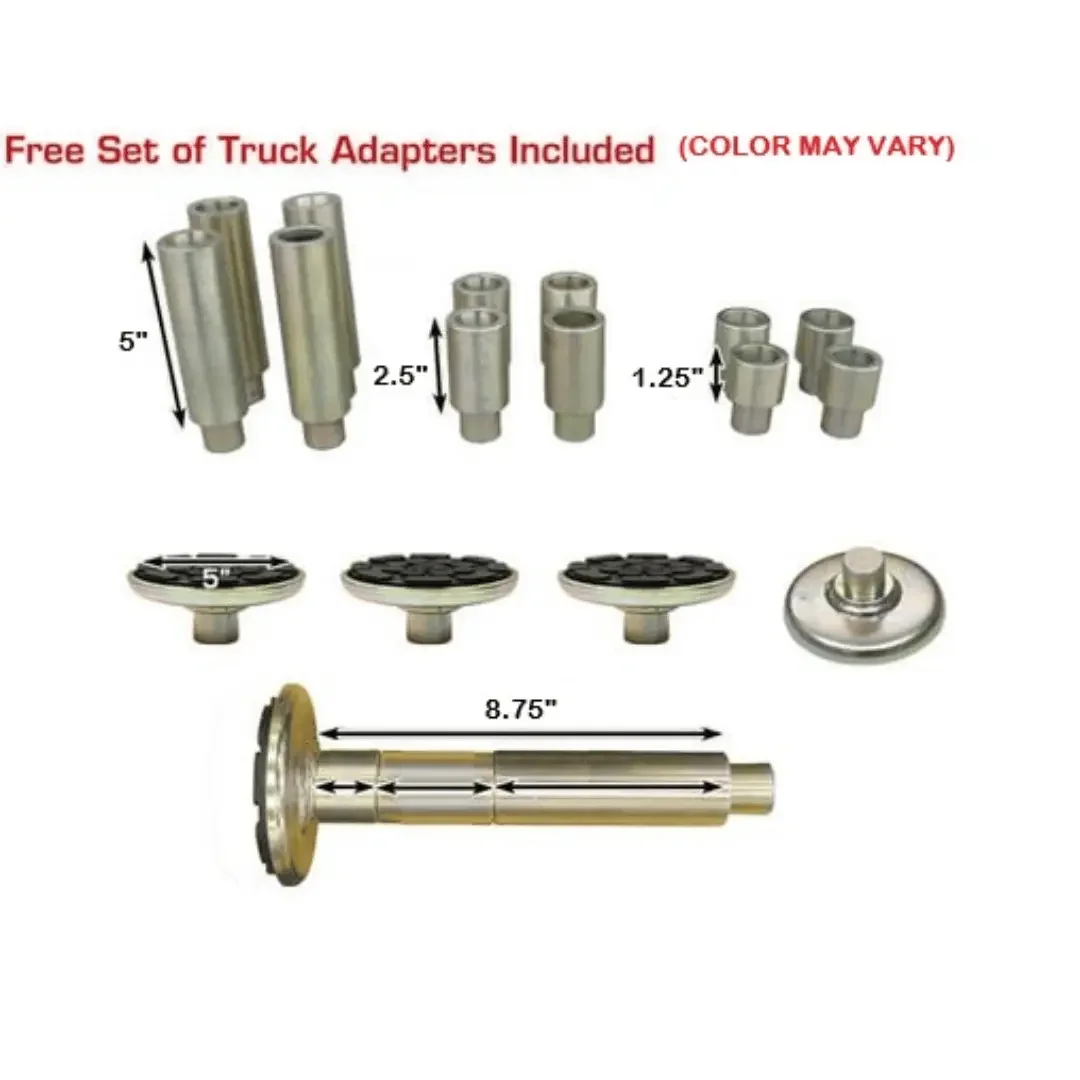

- Free 12 Piece Truck Adapter Set

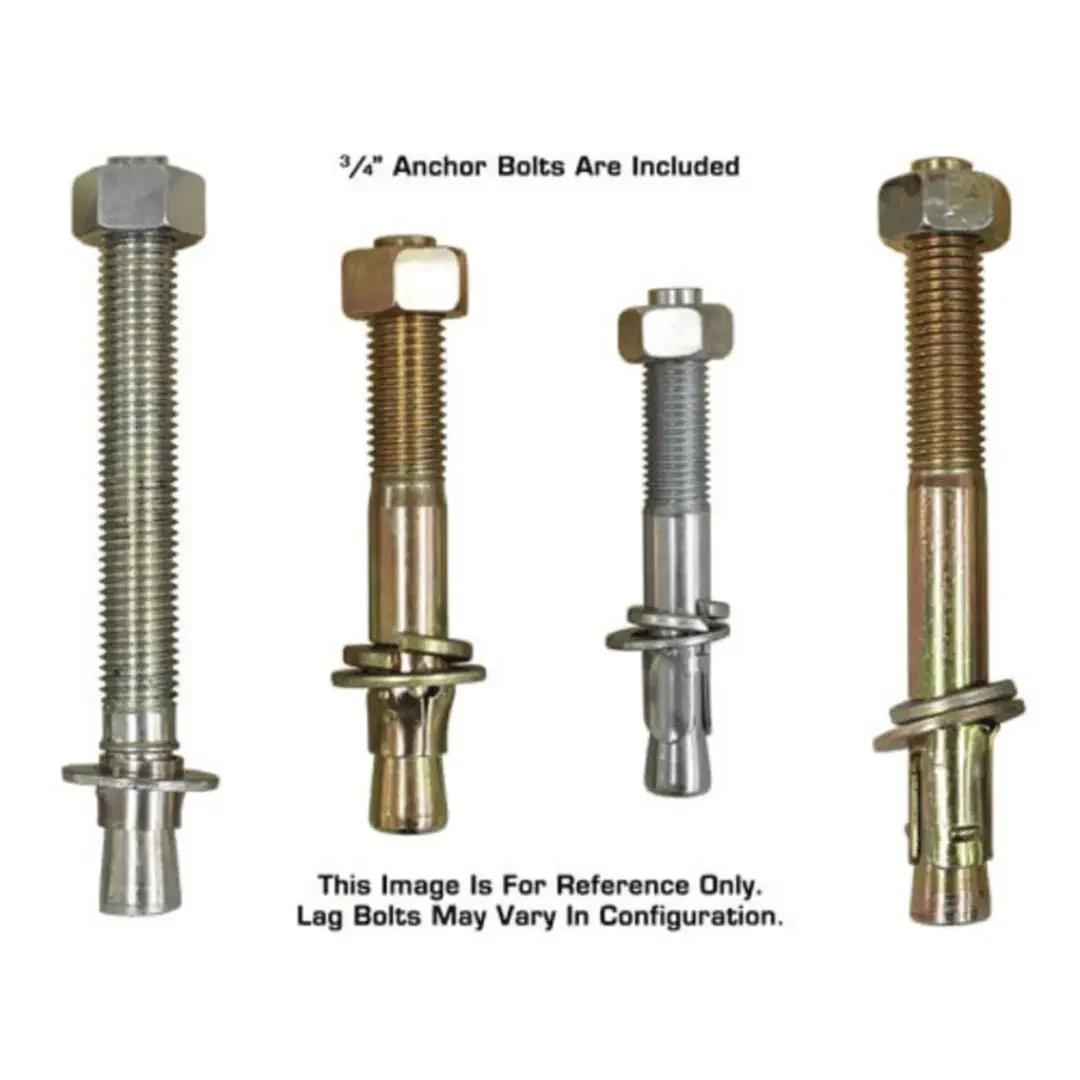

- Mounting Hardware Included

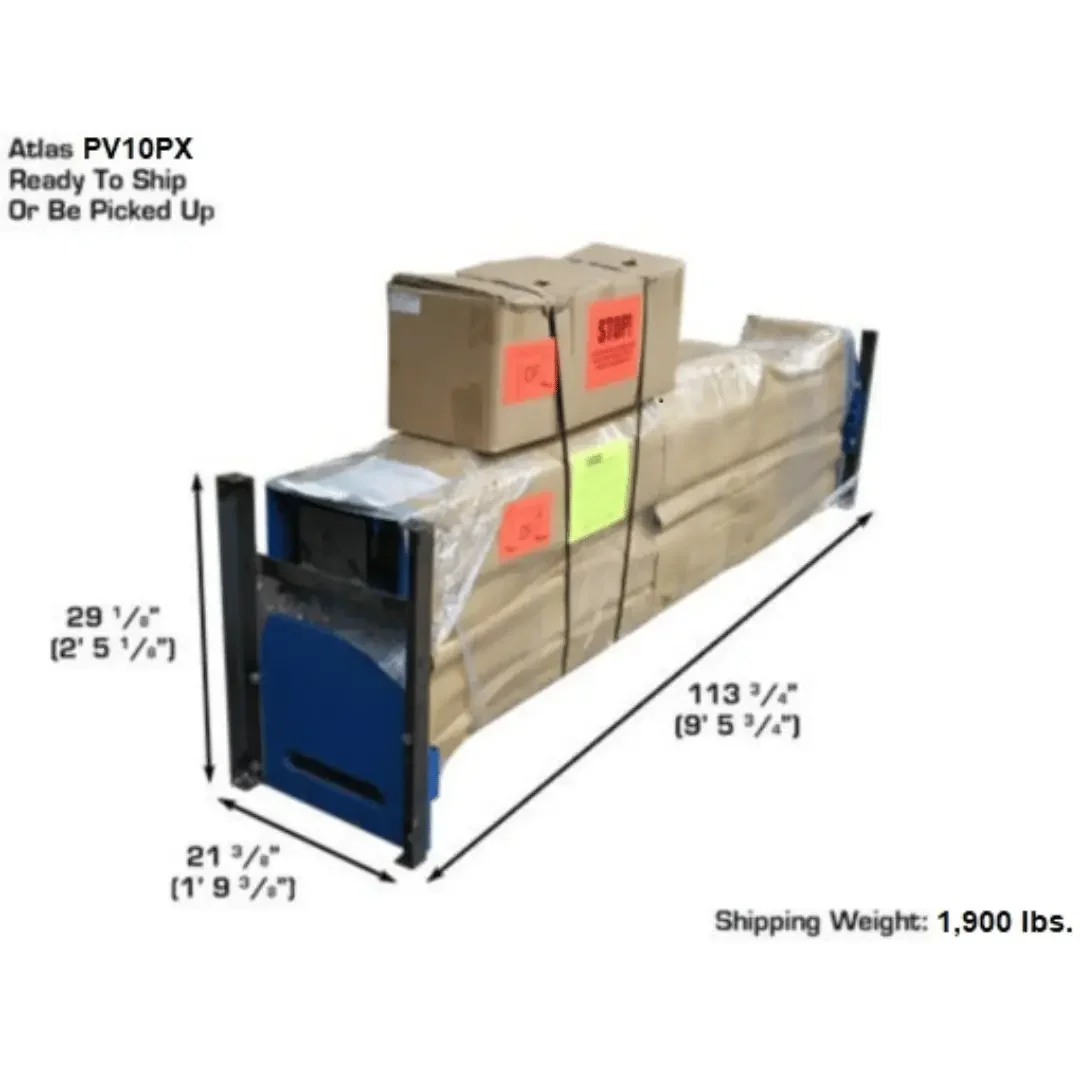

- Shipping Weight: 1,875 lbs.
- 5 yr Structural – 2 yr Hydraulic Warranty – Parts Only
Product Specifications
| Model | XH-PV10PX |
| Capacity | 10,000 lbs. |
| Overall Height | 143 1/8" (11’ 11 1/8”) or 147” (12’ 3”) |
| Overall Width w/Motor | 145" (11’ 11”) |
| Outside Column to Outside Column | 125 1/2" (10’ 5 1/2") |
| Maximum Lift Height (Without Adapters) | 72 1/2" |
| Maximum Lift Height (With Adapters) | 81 1/4" |
| Minimum Arm Height | 4 1/2" |
| Inside Column | 110 1/8” (9’ 2 1/8”) |
| Drive Thru | 96 1/4” (8’ 1/4") Symmetric / 90 1/4" (7' 6 1/4") Asymmetric |

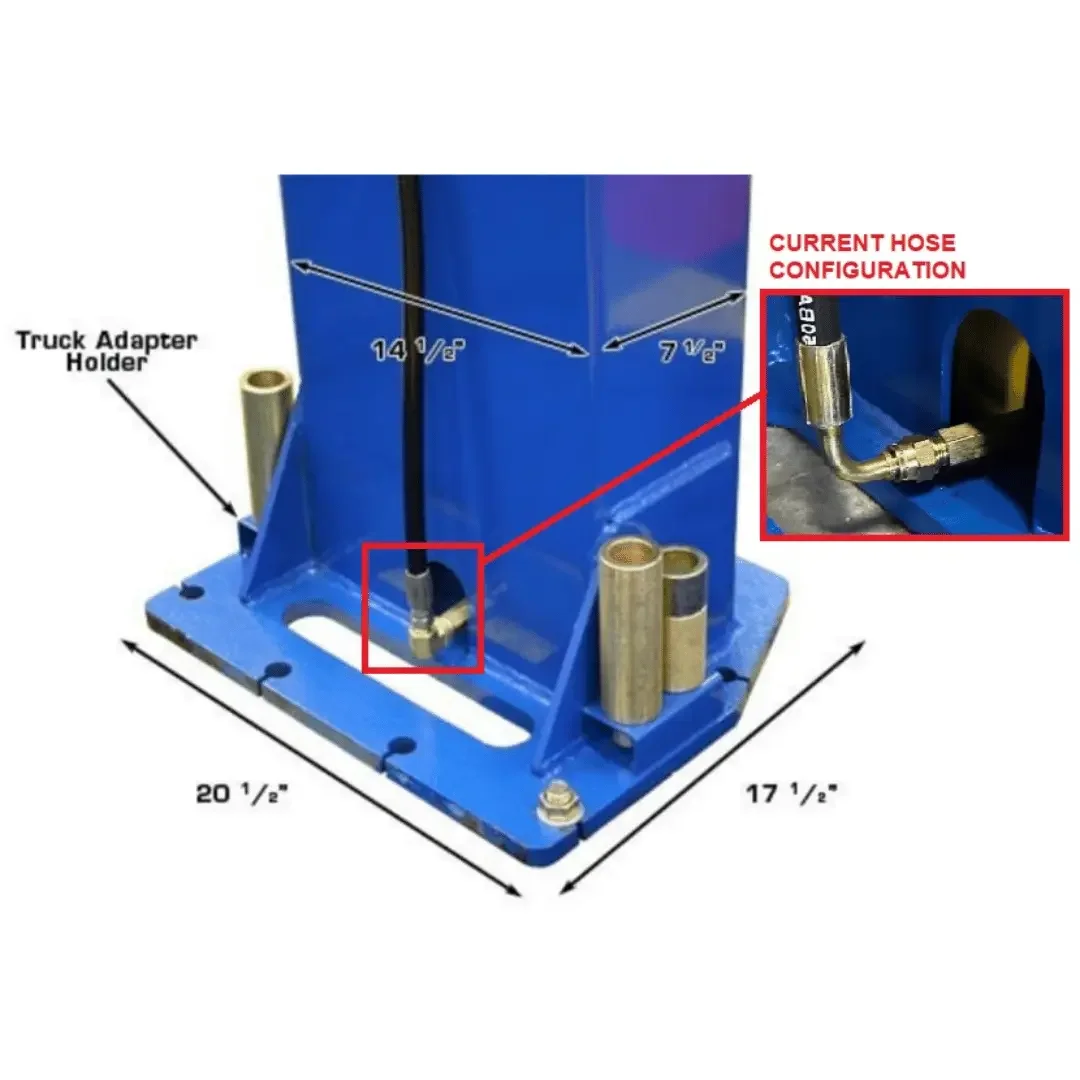

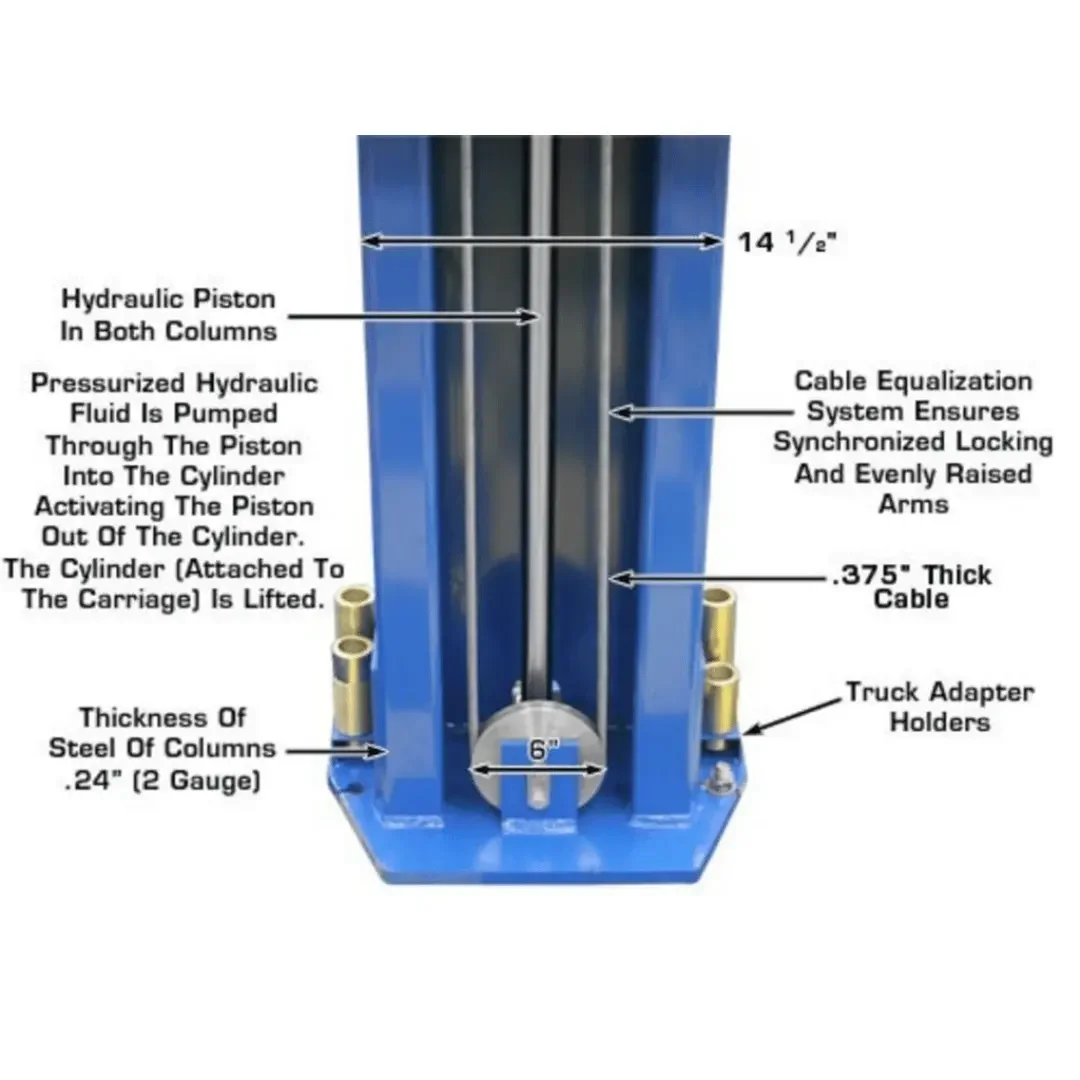

| Column Size | 7 1/2" x 14 1/2" |
| Column Thickness of Steel | 6mm |
| Base Of Lift | 17 1/2" x 20 1/2" |

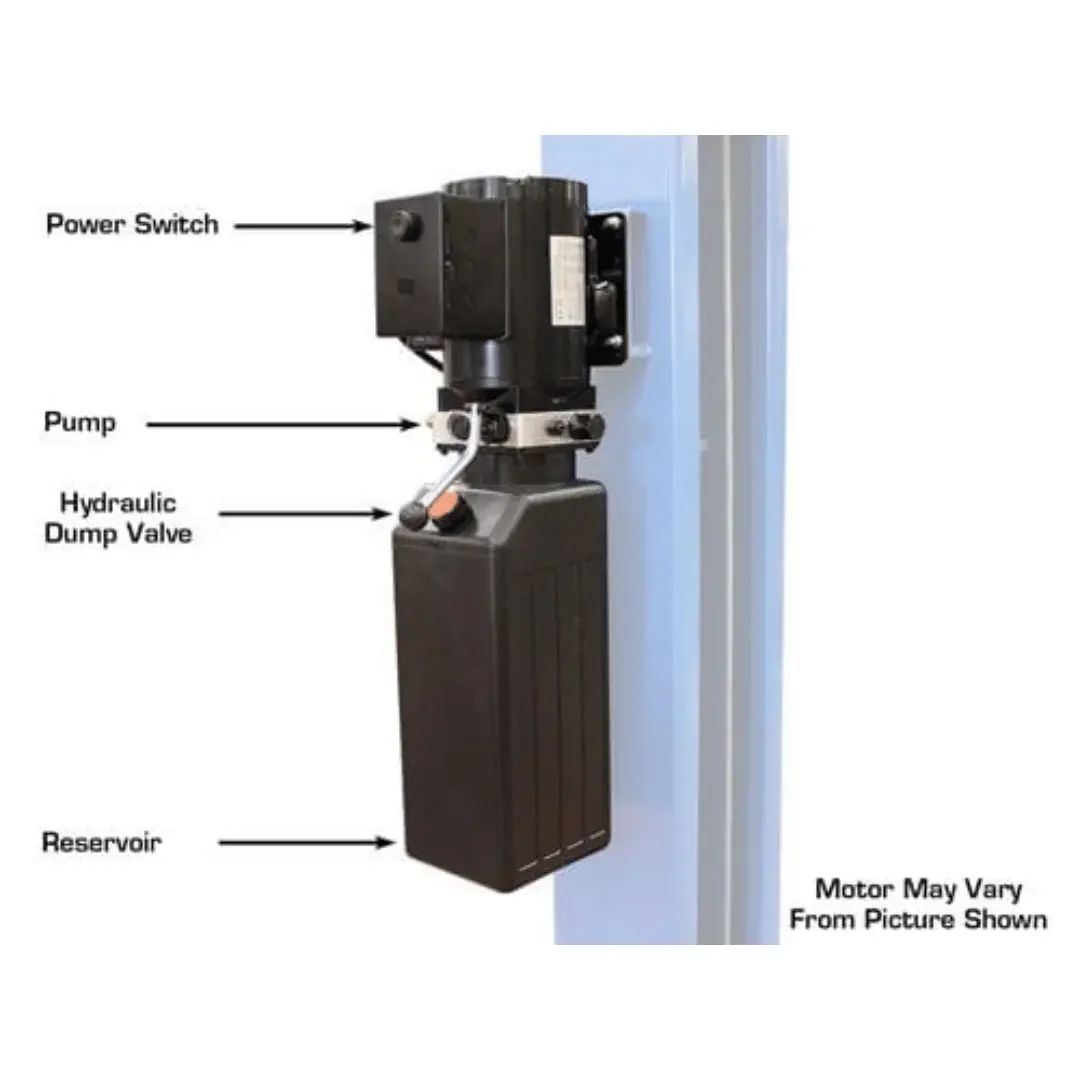

| Motor/Electrical Requirement | 220 volt single (1) phase. A 30 amp breaker is recommended |
| Oil Requirement | 3–5 Gallons AW32/AW46 (NOT INCLUDED) |
| Adapter Heights | 4 Each: 1.25”, 2.5”, 5” |
| Arm Hole/Adapter Peg Size | 1.5” |
| Minimum Concrete Required | 4" of concrete with a 3000 psi rating |
| Shipping Weight | 1,900 lbs. |
Pick Up and Delivery
Our Pick Up locations for Atlas are located in Atlanta, GA, Fresno, CA, Phoenix, AZ, Indiana, IN, and New Jersey, NJ.
Call, text, or chat with us if you have questions. - 866-774-7743
