Atlas PV15PX 15,000 lb Overhead 2 Post Lift
Atlas PV15PX 15,000 lb Overhead 2-Post Lift
The Atlas® PV series 2 post lift represents the absolute best value for the customer who demands a heavy duty professional grade two post lift at the lowest possible price. Atlas® has been manufacturing the PV series two post above ground lifts for over a decade. Thousands sold!

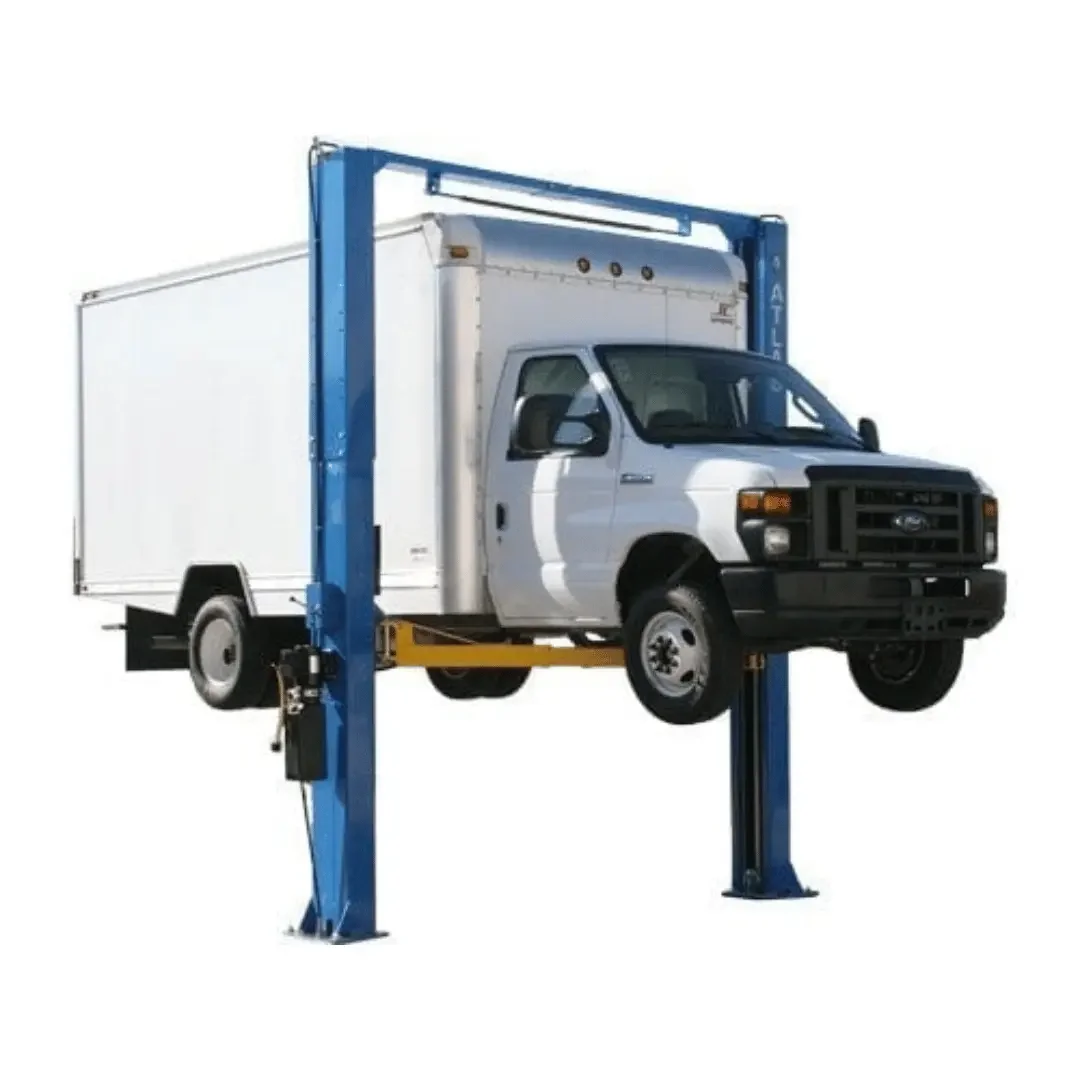

The Atlas® PV15PX is a commercial grade lift designed to accommodate everything from standard cars to heavy duty service trucks. The distance between the symmetrical columns is almost 123″ with a drive through space of over 109″. Extra height allows you to lift vans and box trucks without worry.

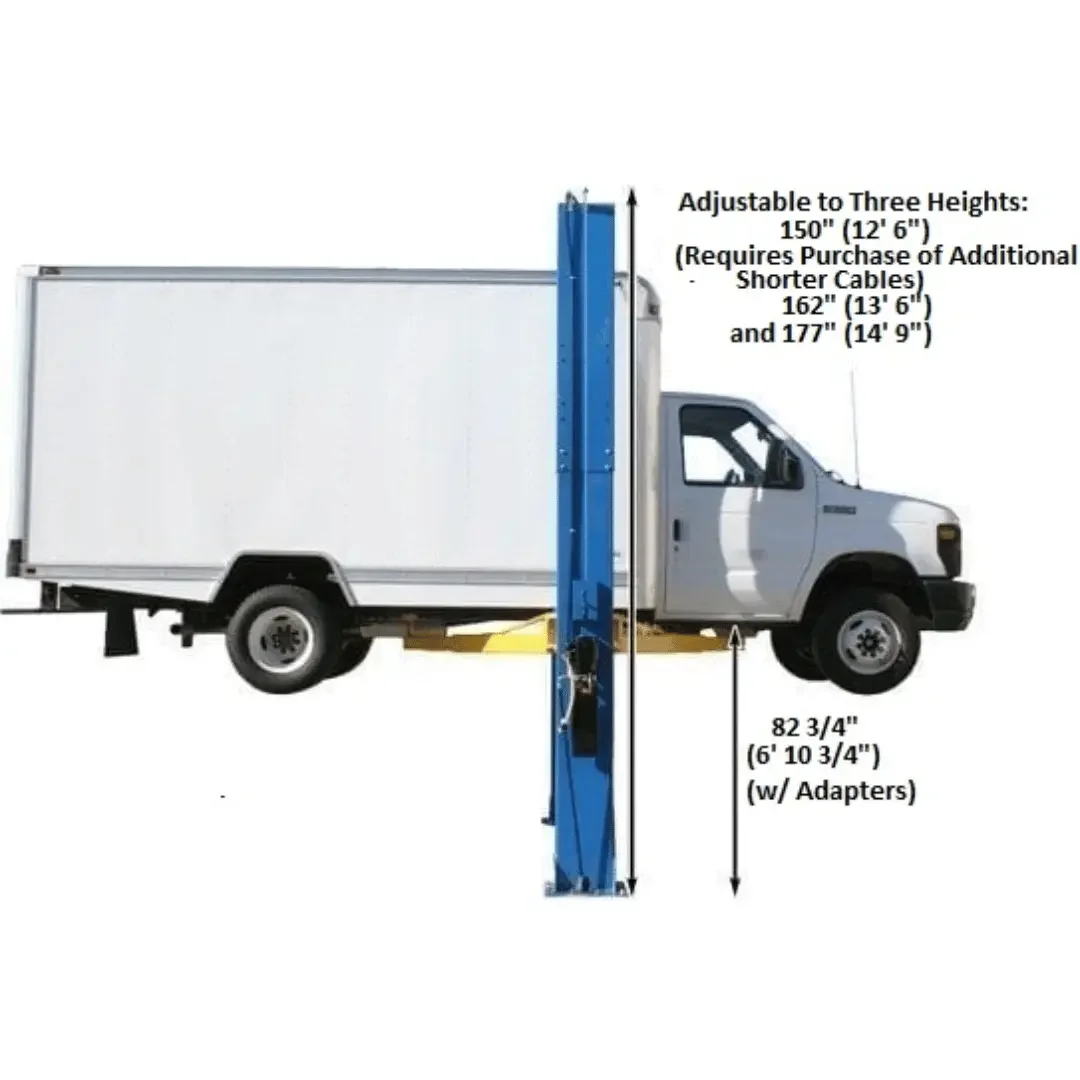

The Atlas® XH-PV15PX features three height settings; the lowest setting of 150" (12'6") requires purchase of extra short cables.
Product Features
- 15,000 lb capacity
- Extra Tall & Extra Wide
- Commercial Grade

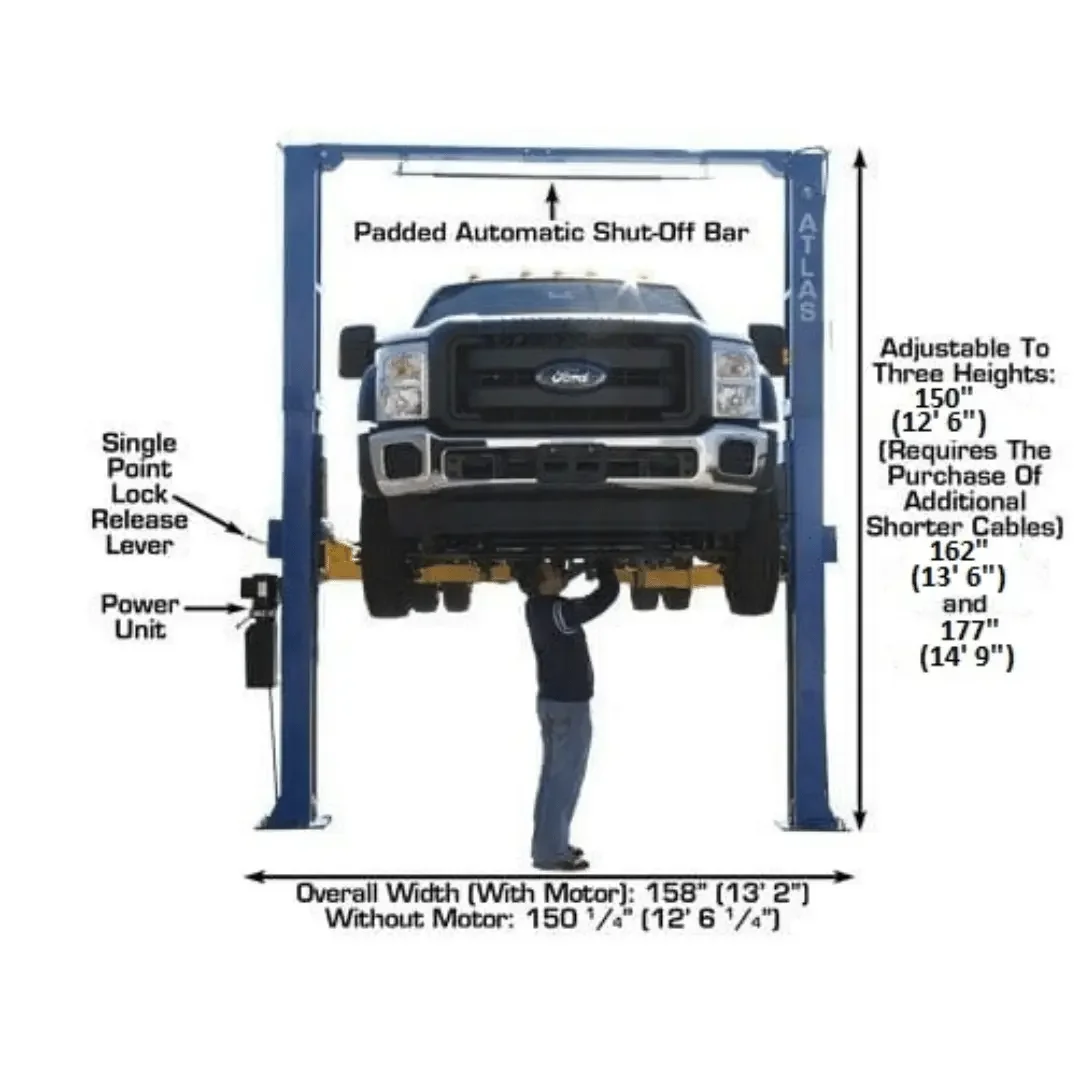

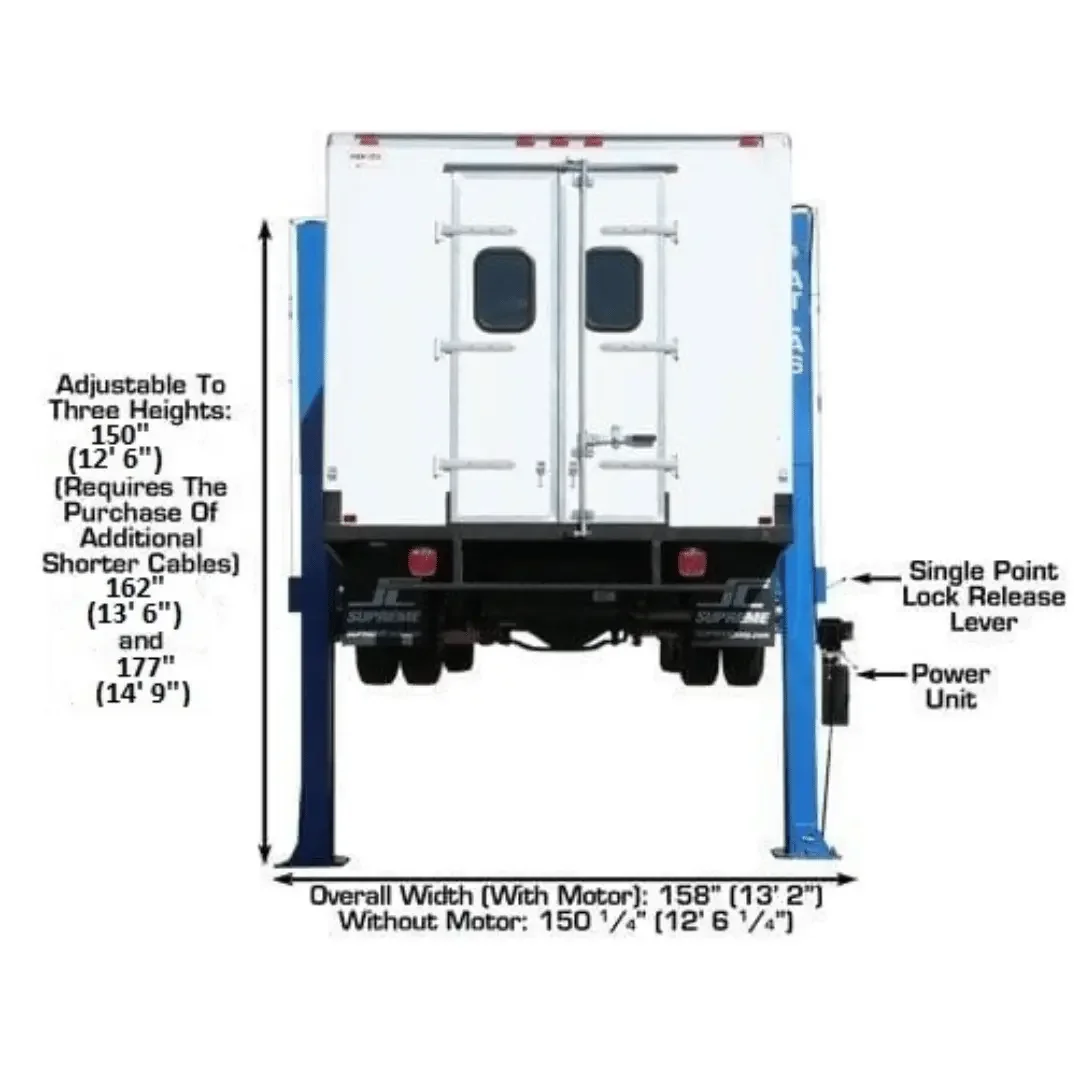

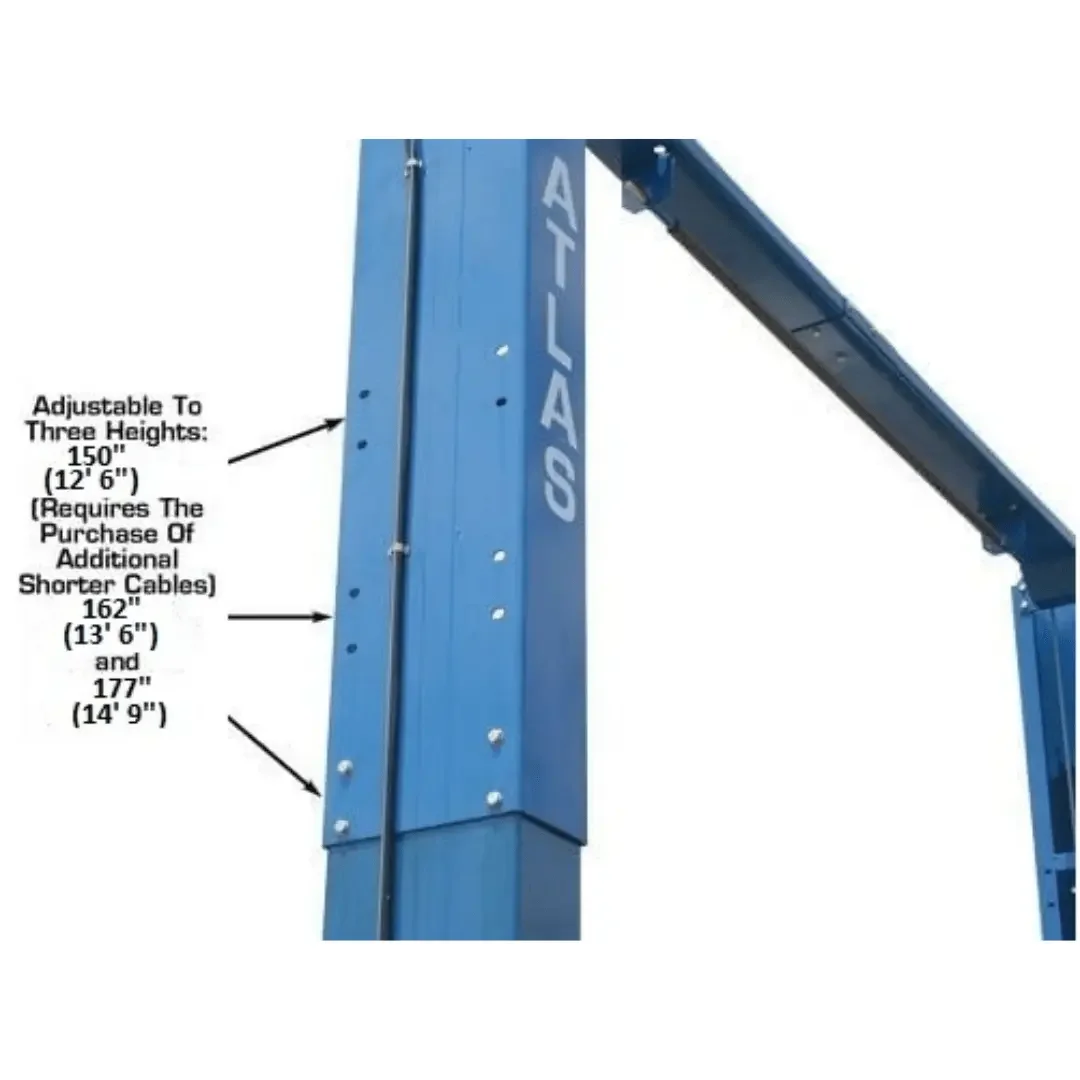

- Adjustable height: 165″ or 177″
- Low height: 150″ (requires extra cables)

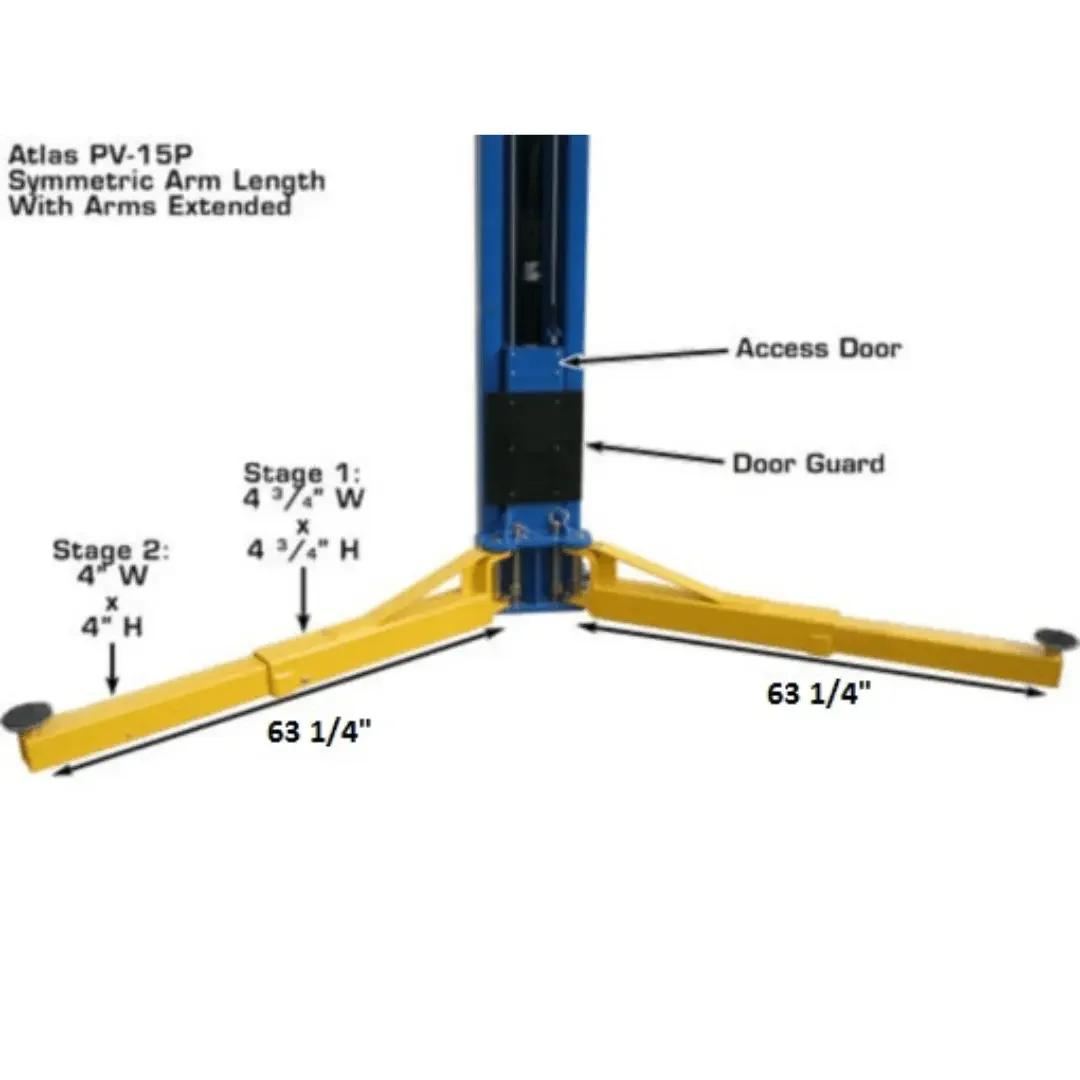

- Symmetric arms
- Automatic Arm Restraints

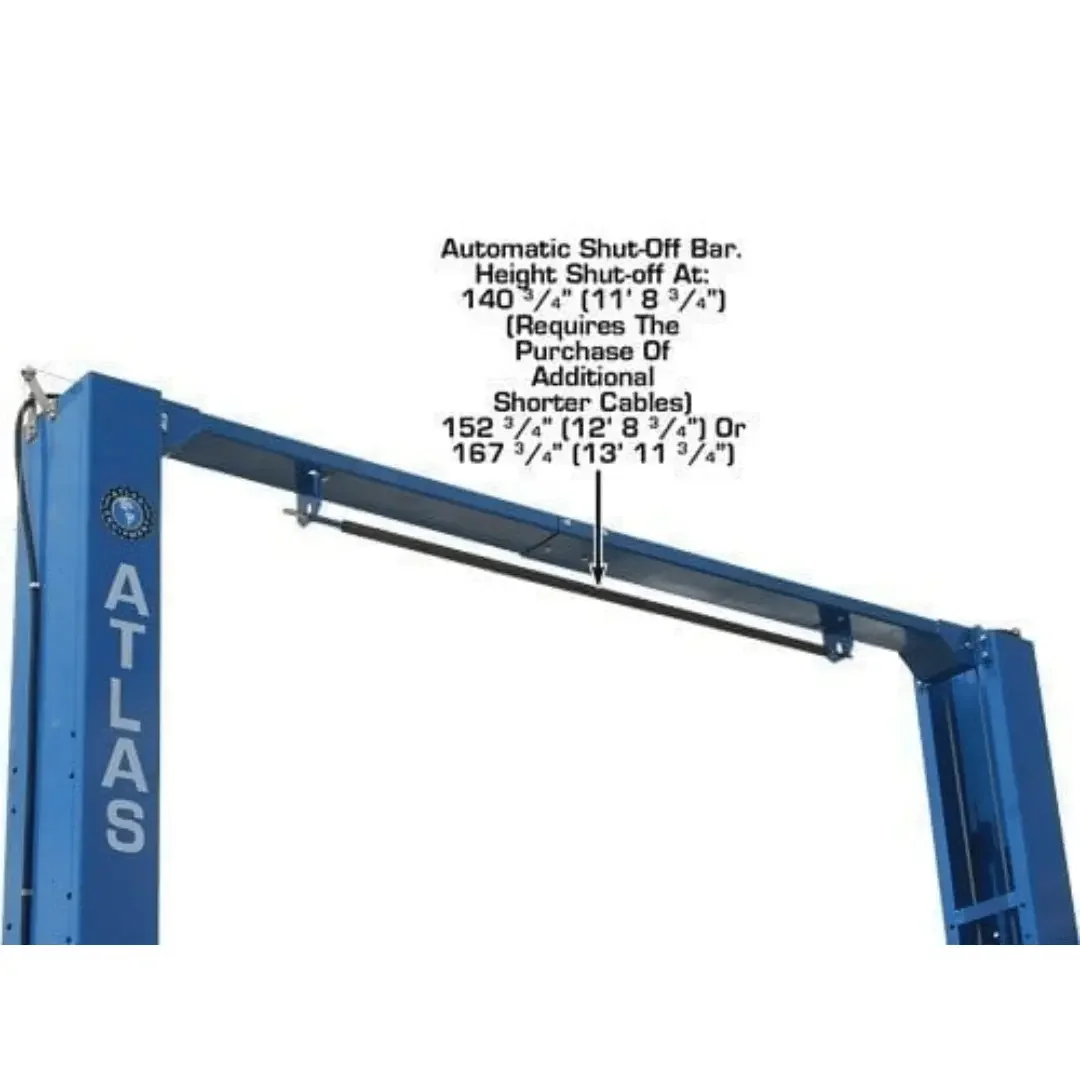

- “Padded” Shut-Off Bar
- Door Guards on Carriages

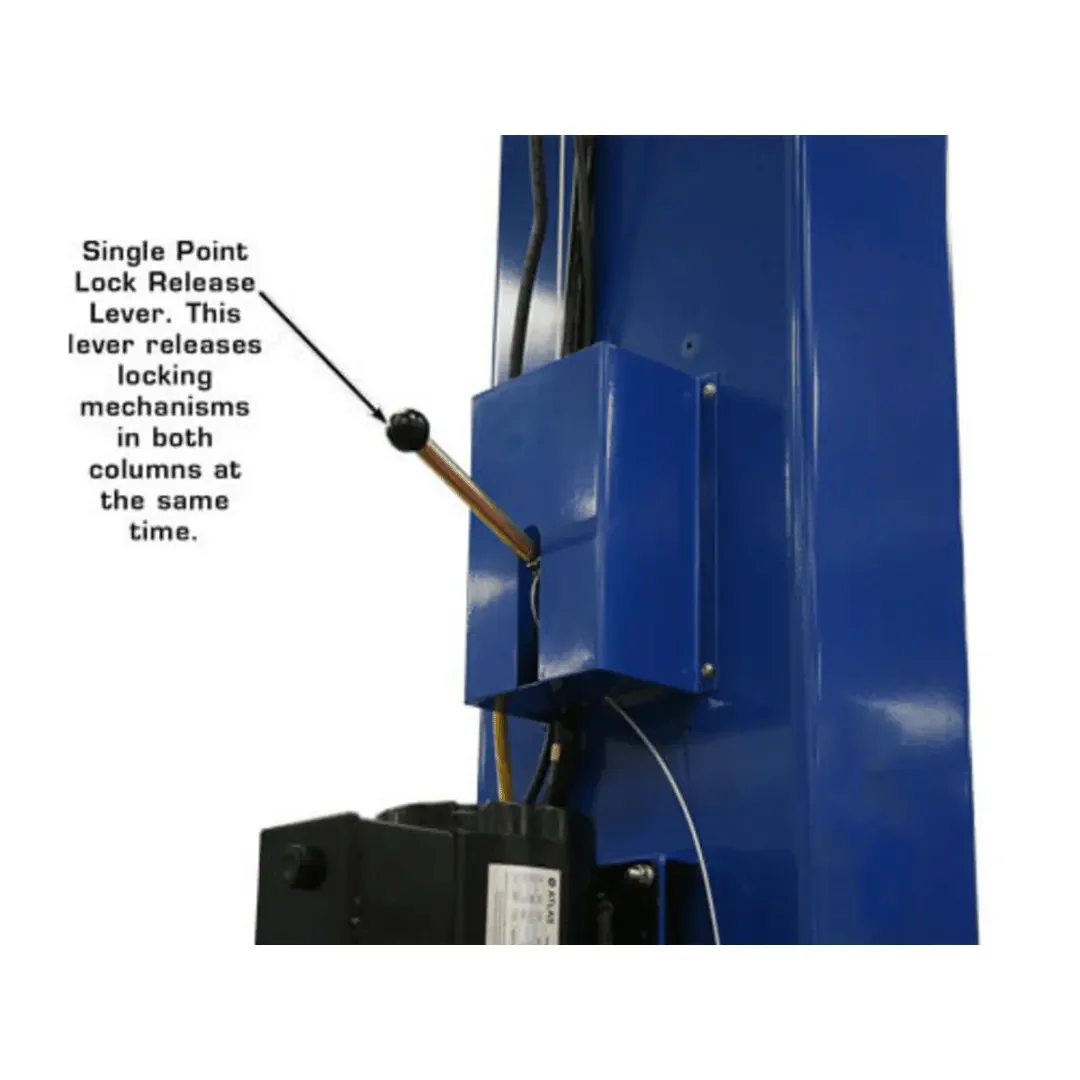

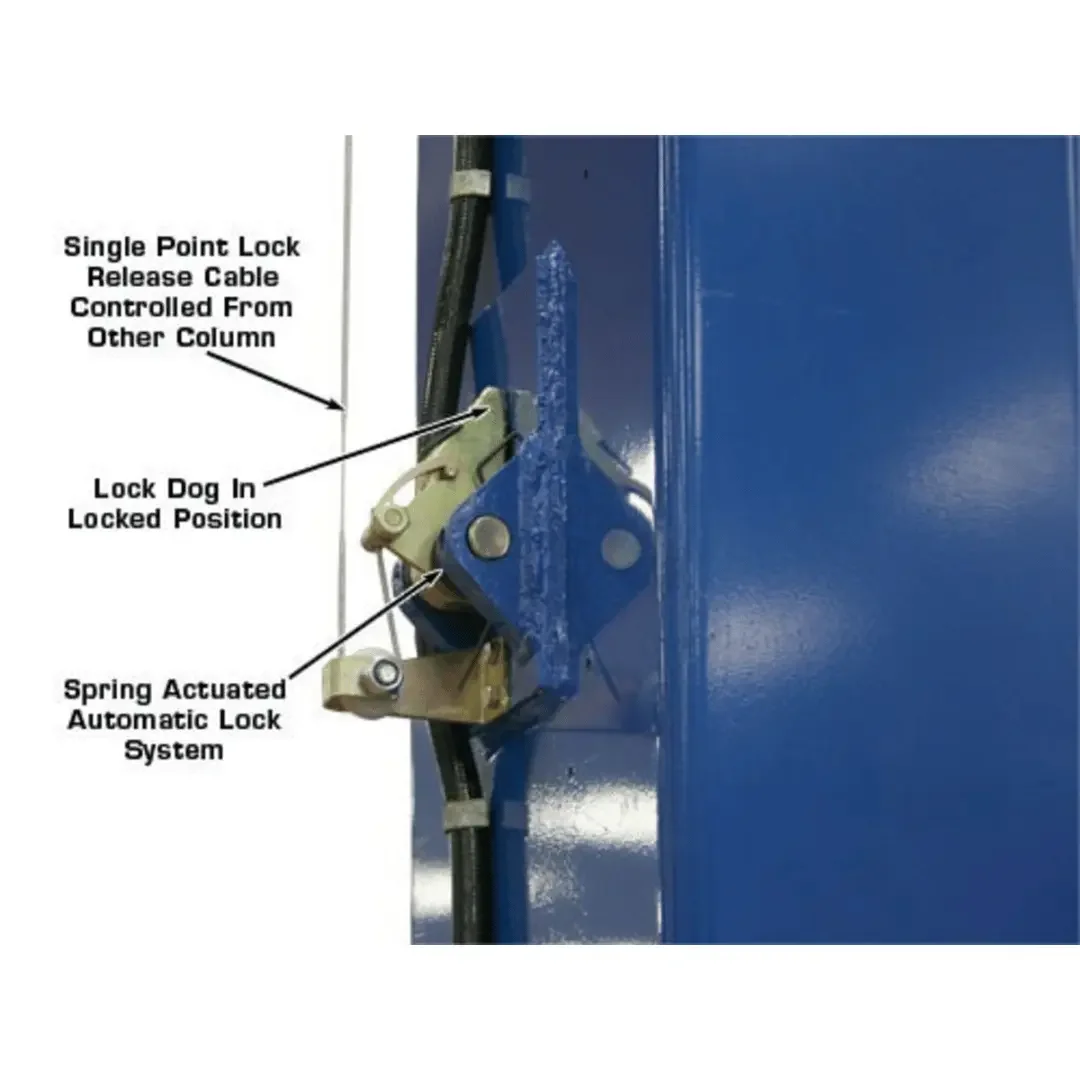

- Single Point Lock Release
- Direct-Drive Cylinders
- Powder Coat Finish
- 12 Piece Truck Adapter Set (Free)

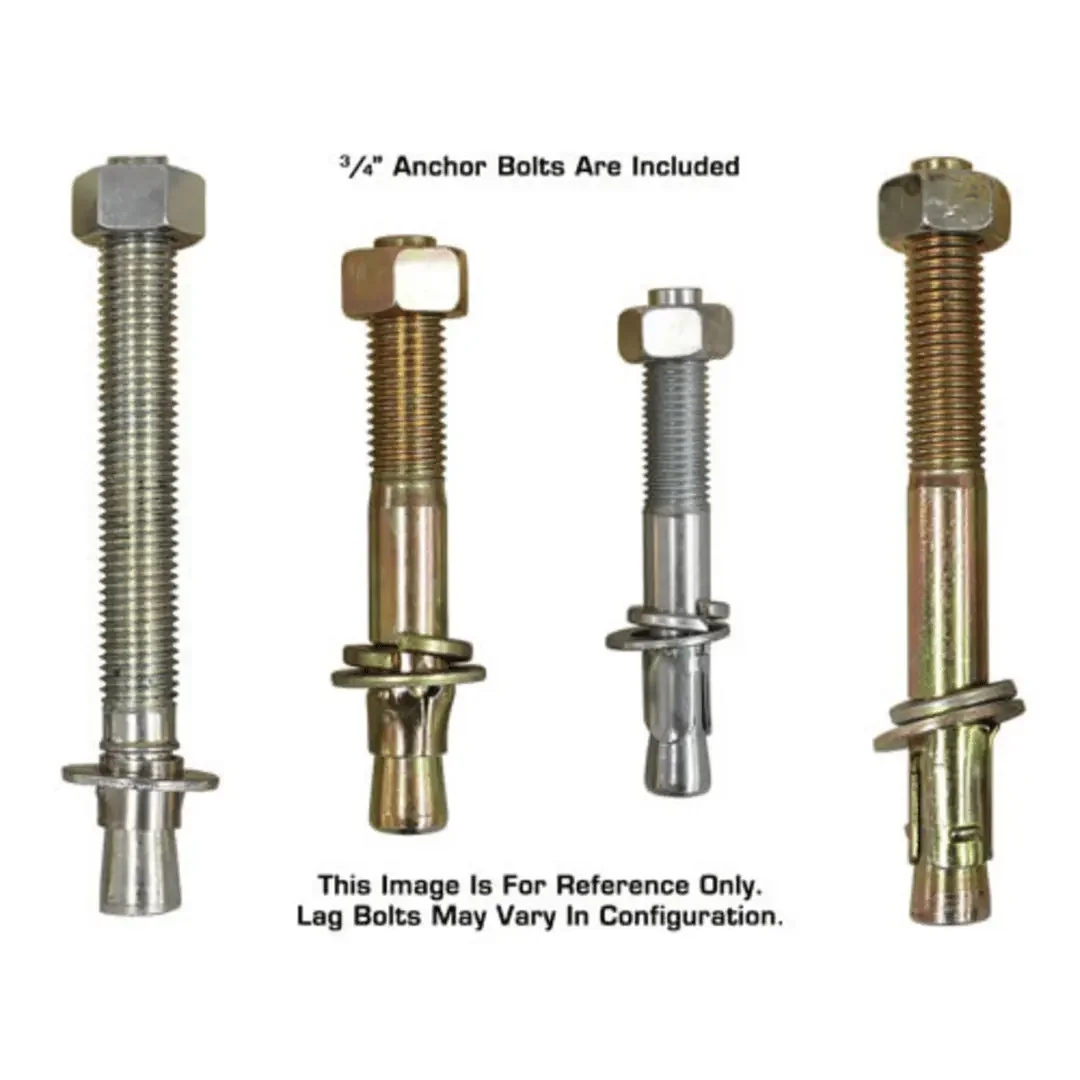

- Mounting Hardware Included
- Shipping weight: 2,490 lbs
- 5 yr Structural / 2 yr Hydraulic Warranty – Parts Only
Product Specifications
| Model | XH-PV15PX |
| Capacity | 15,000 lbs. |
| Overall Height | 165" or 177" |
| Special Low Height | 150" (requires extra cables) |

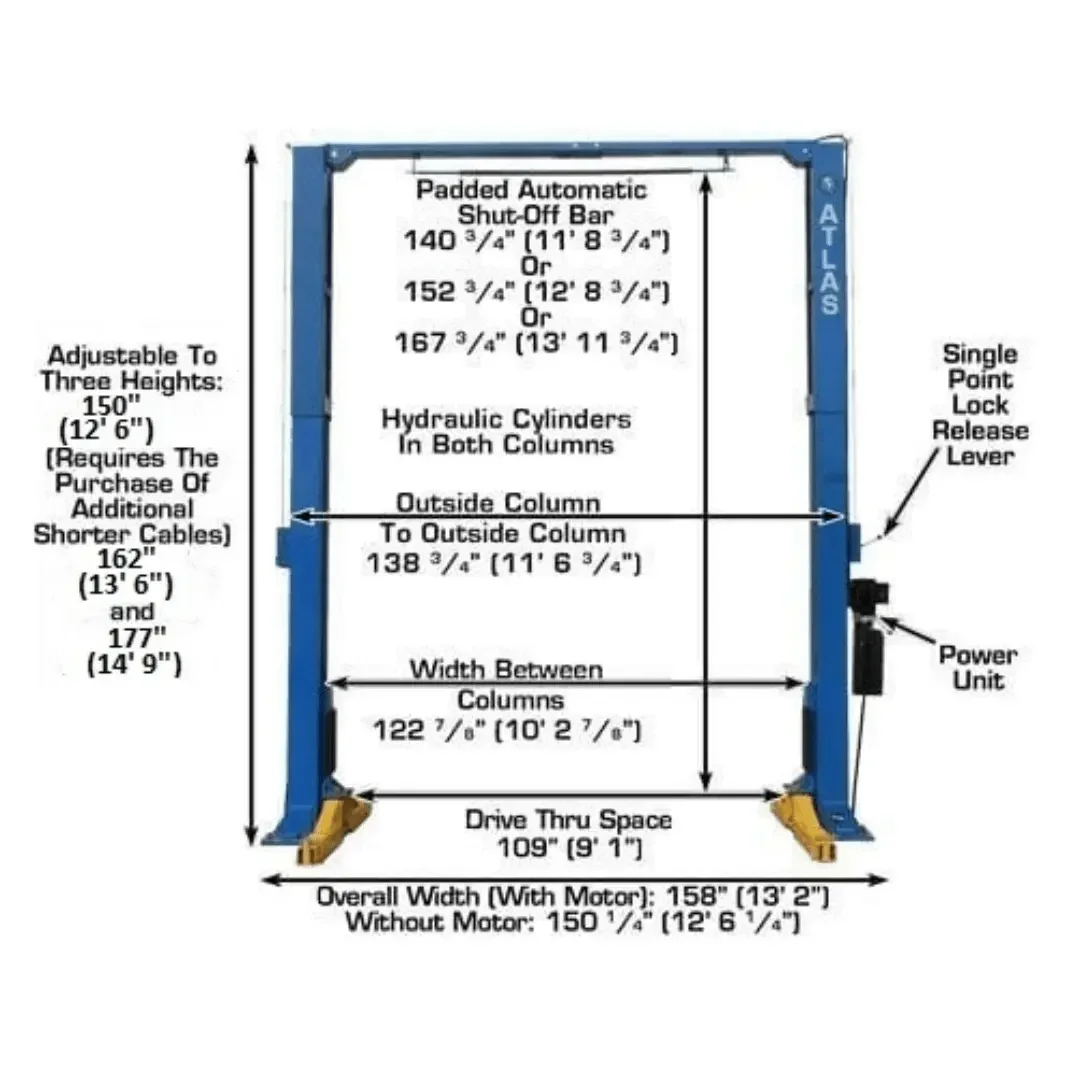

| Overall Floor Width | 150 ¾" |
| Outside Column to Column | 139 1/8" |
| Max Lift Height (w/o Adapters) | 72 ¼" |

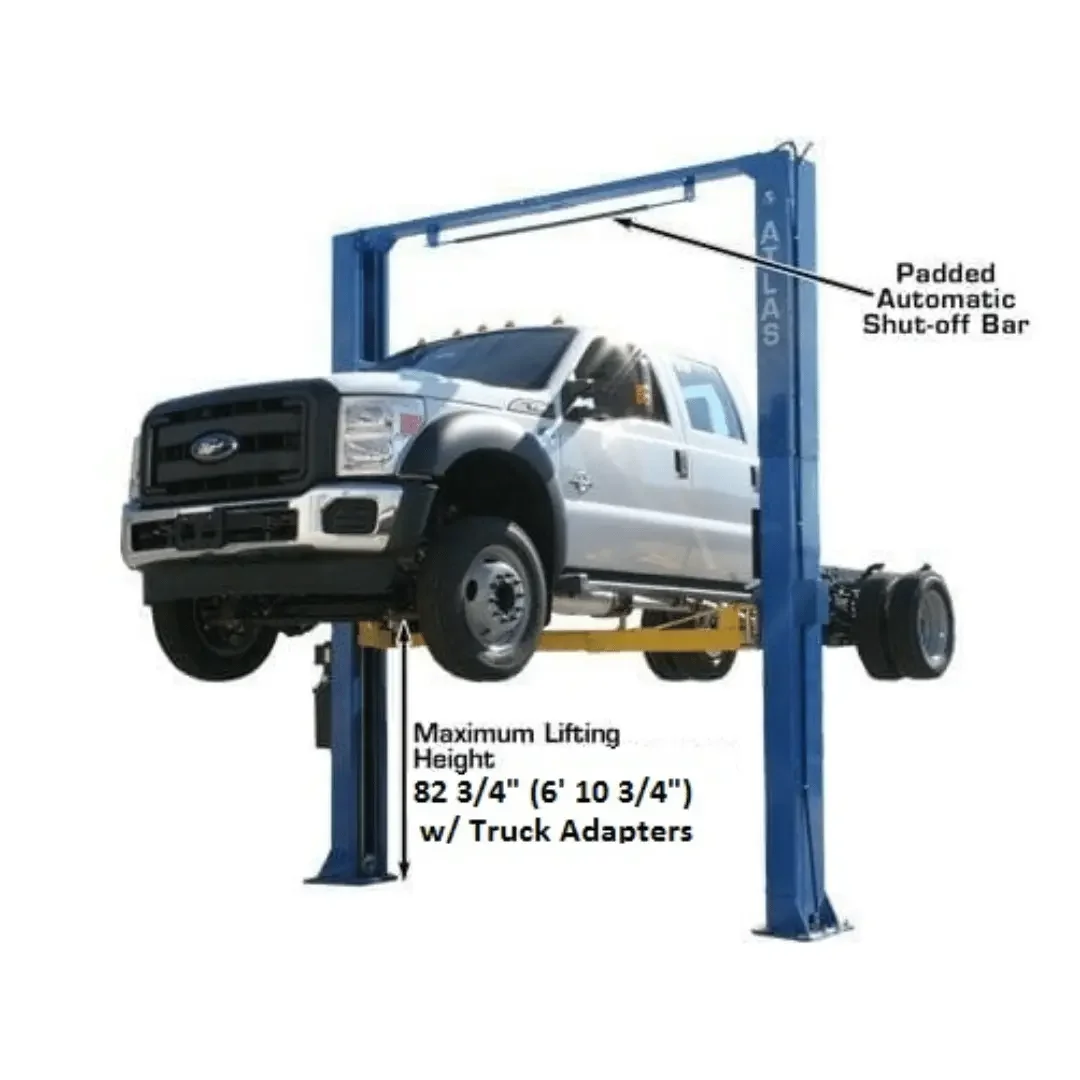

| Max Lift Height (w/ Adapters) | 81" |
| Min Arm Height | 7 ½" |
| Inside Column | 123 ½" |
| Drive Thru | 109 ½" |
| Column Size | 7 ½" x 14 ½" |
| Steel Thickness | 6mm |
| Base of Lift | 17 ½" x 20 ½" |
| Motor | 220V, 1-phase, 30A breaker |
| Oil Required | 3–5 gal AW32/AW46 (not included) |
| Adapter Heights | 1.25", 2.5", 5" |
| Adapter Peg Size | 1.5" |
| Concrete Requirement | 4" @ 3000 psi |
| Shipping Weight | 2,490 lbs. |
Pick Up and Delivery
Pick up locations: Atlanta, GA; Fresno, CA; Phoenix, AZ; Indiana, IN; and New Jersey, NJ.
Call, text, or chat with us: 866-774-7743
