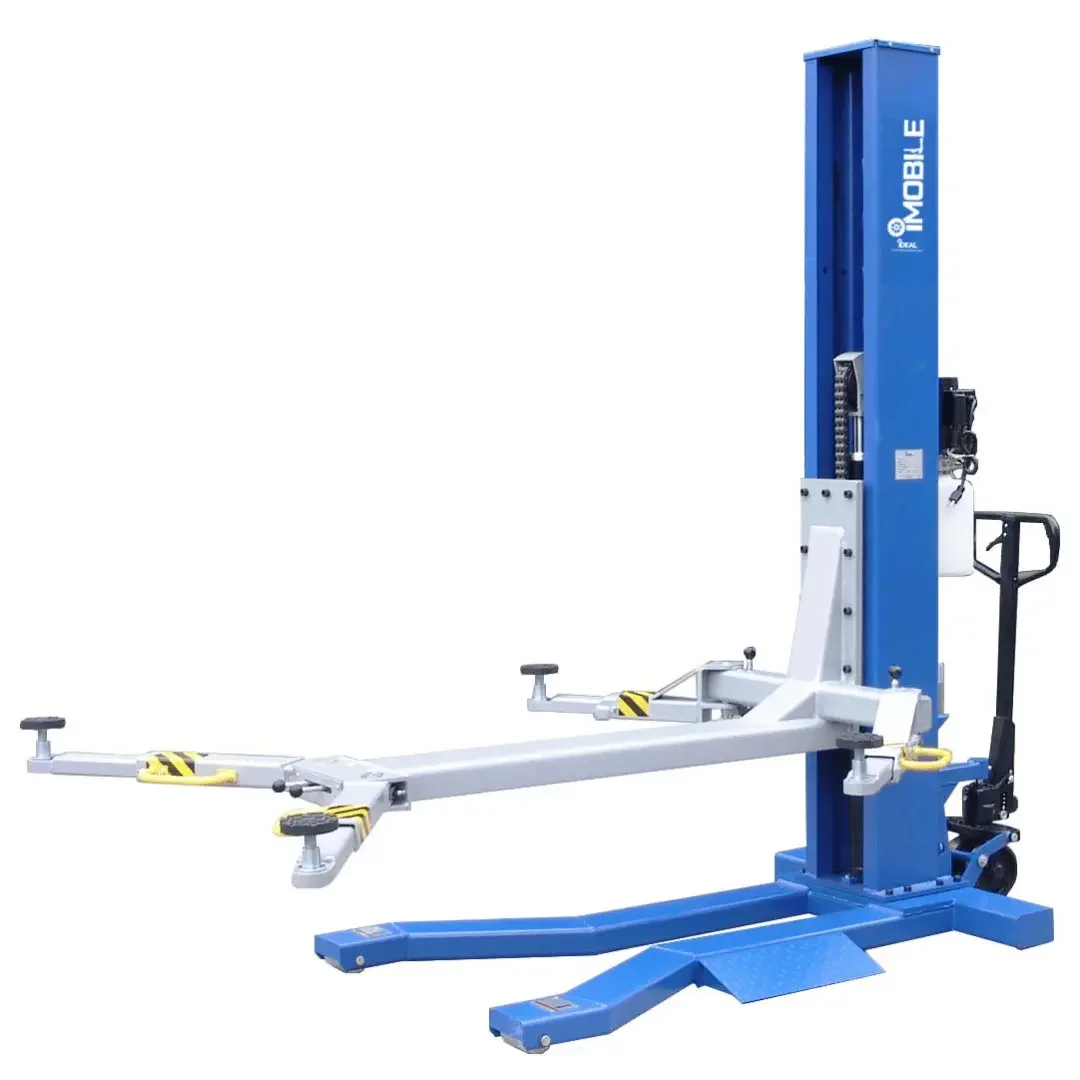

IDEAL iMobile MSC-6KLP 6,000 lb Low Profile Mobile Single Column Lift
Tuxedo iMobile MSC-6KLP 6,000 lb Low Profile Mobile Single Column Lift

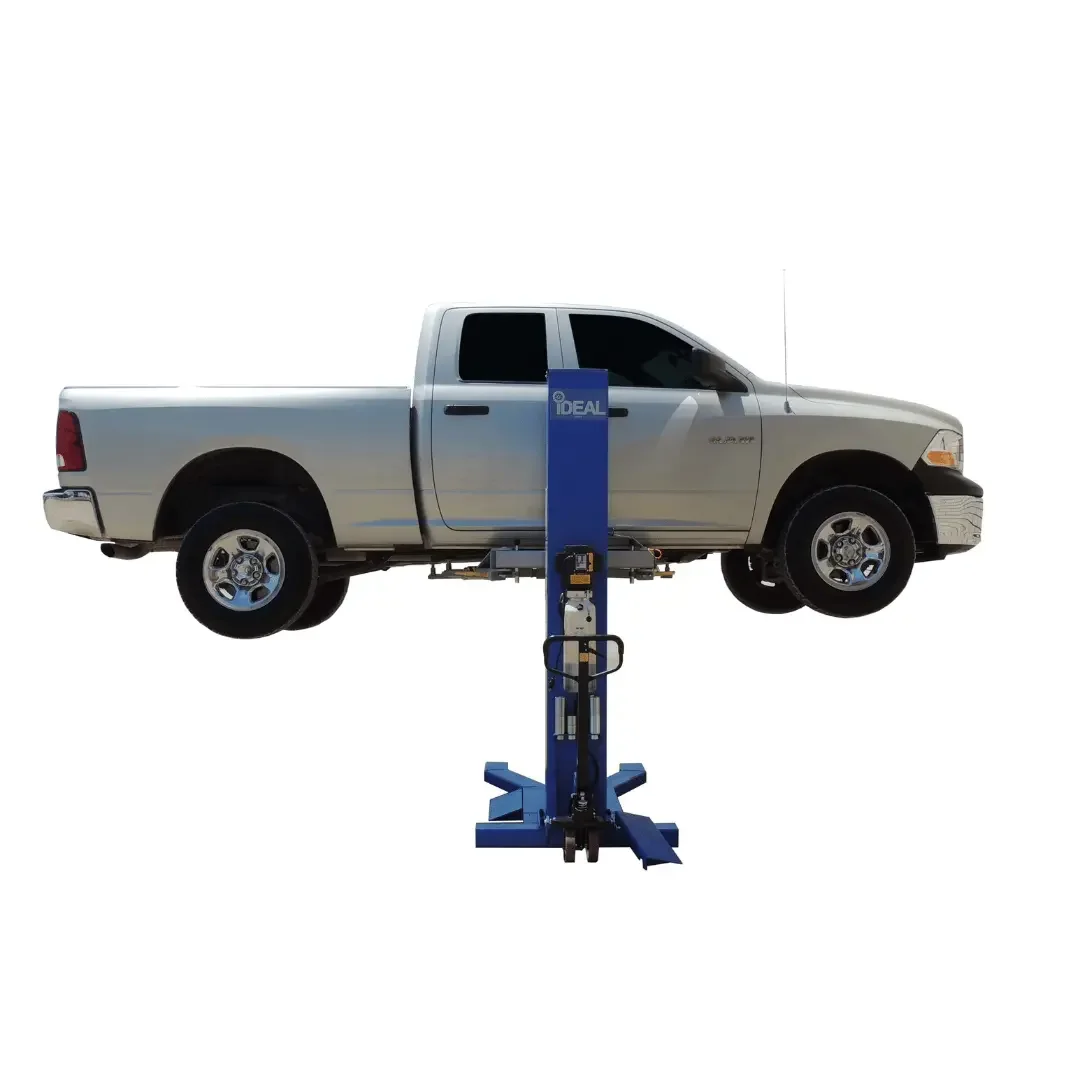

New Improved Low Profile design with less than 4” minimum height and ‘double telescoping’ Screw Pads with 2-3/4” adjustable height! Tuxedo car lift uses "pallet jack" style hydraulics to raise lift onto wheels. Rolls right under vehicle. Lifting capacity of 6,000 lbs
Spin Up Adapters
Low Profile ‘Double Telescoping’ Screw Pads
Low Profile
Low Profile ‘Drive-Over’ Ramp & Frame

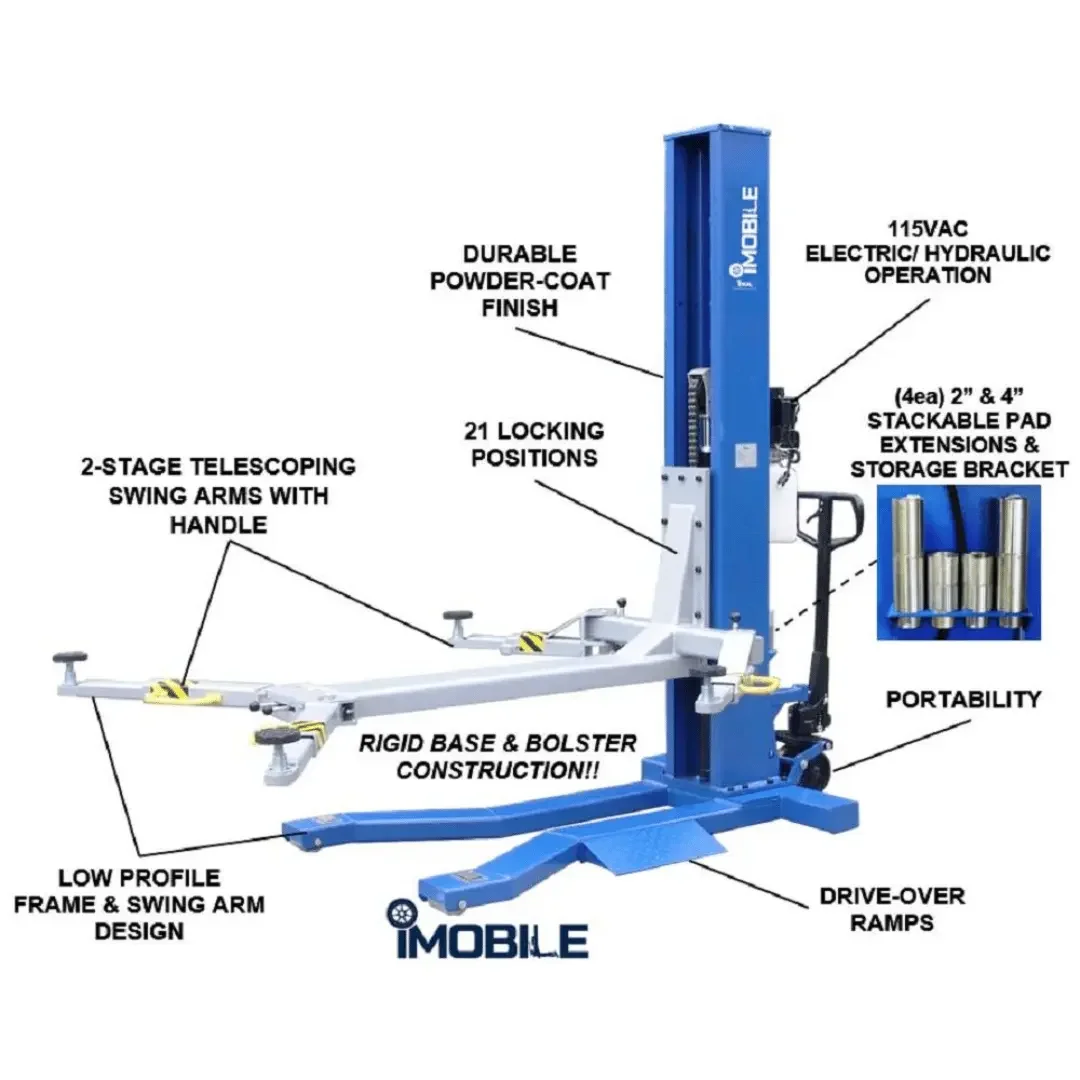

Product Features
- 6,000 lb. lifting capacity
- Great for ATV's & Motorcycles
- Improved Low Profile design with less than 4" minimum height!
- Improved "double telescoping" screw pads with 2/4" adjustable height!
- Rolls right under vehicle or use the unique drive-over design to easily position lifting points
- Pallet Jack style hydraulics to raise lift onto wheels
- Heavy Duty 13" x 10" structural column
- Durable "chain-over" cylinder design uses a 3"x36"cylinder and 846 leaf chain
- 2 sets of 4ea of 2” & 4" Height Adapters
- Single point lock release
- Fully adjustable Swing Arms
- Powder coat paint finish
Product Specifications
| Lift Model | MSC-6KLP |
| Capacity | 6,000 lbs |
| Overall Height | 102-3/8” |
| Overall Width | 45-3/16” |
| Overall Length | 101-9/16” |
| Lift Rise Height | 72" |
| Drive-Over Frame Base & Ramp Height | 3-15/16” |
| Swivel Pad Height (min./max.) | 3-7/16” – 6-5/16” |
| Main Side Swing Arms (min./max.) | 19-11/16” – 26” |
| Off Side Swing Arms (min./max.) | 24-5/8” – 34” |
| Power | 110VAC, 20Amp, 1PH |
| Ship Weight | 1,826 lbs |
Pick Up and Delivery
Our Pick Up locations for Valor, Tuxedo, iDeal are located in Temecula, California - Orlando, Florida - Norcross, Georgia - Elwood, Indiana - St. Cloud, Minnesota - Reidsville, NC - Pottsville, Pennsylvania - Alvarado, Texas - West Valley City, Utah.
Call, text, or chat with us if you have questions. 866-774-7743
